Graber i3 filament spool for bowden
:strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/13821798/illustration-file/fb990b45-69f5-48c9-ba74-620a6e0e674e/24fcea76da8140c36f323a3a9653a283_display_large.jpg)
/https://files.cults3d.com/uploaders/13821798/illustration-file/fb990b45-69f5-48c9-ba74-620a6e0e674e/24fcea76da8140c36f323a3a9653a283_display_large.jpg)
/https://files.cults3d.com/uploaders/13821798/illustration-file/18328197-61d3-443d-83d3-7c92487585a1/9d1677e9b5564d36f97d0062e98cb335_display_large.jpg)
/https://files.cults3d.com/uploaders/13821798/illustration-file/dabaccde-cbb2-460b-9ad6-f035270f0a71/72dd3a7d749a89fbdfa6ccf8aa6c75b1_display_large.jpg)
?
Creation's quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 1.1k views
- 1 like
- 40 downloads
3D model description

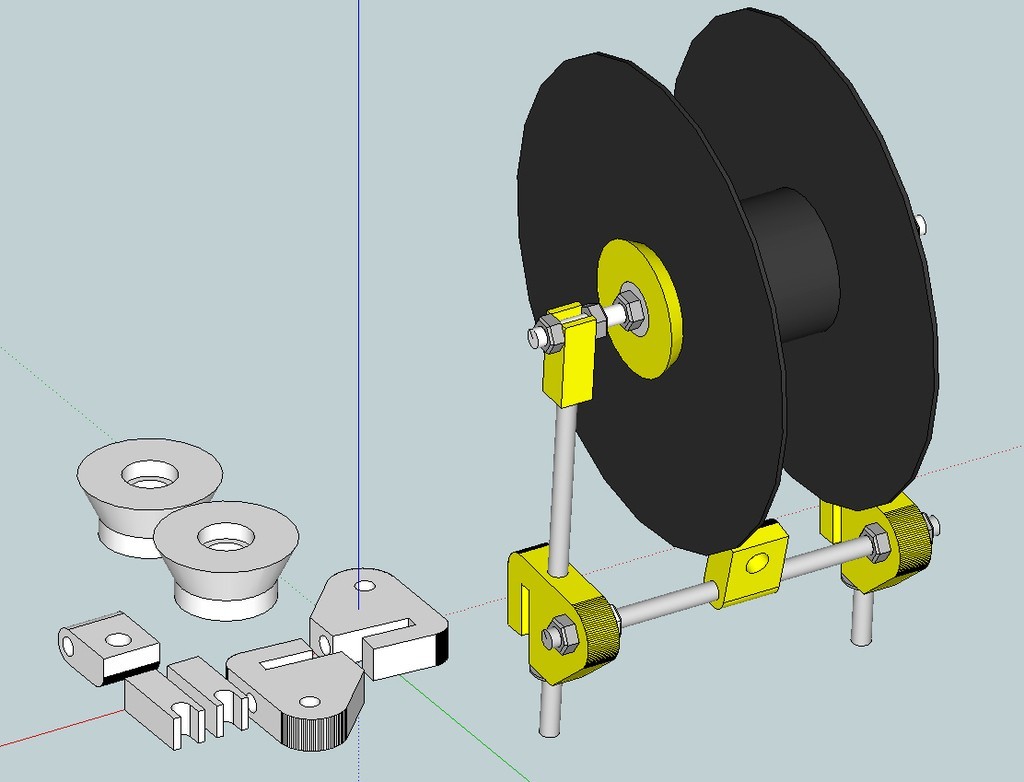

Thanks almaro for publishing Sketchup files!

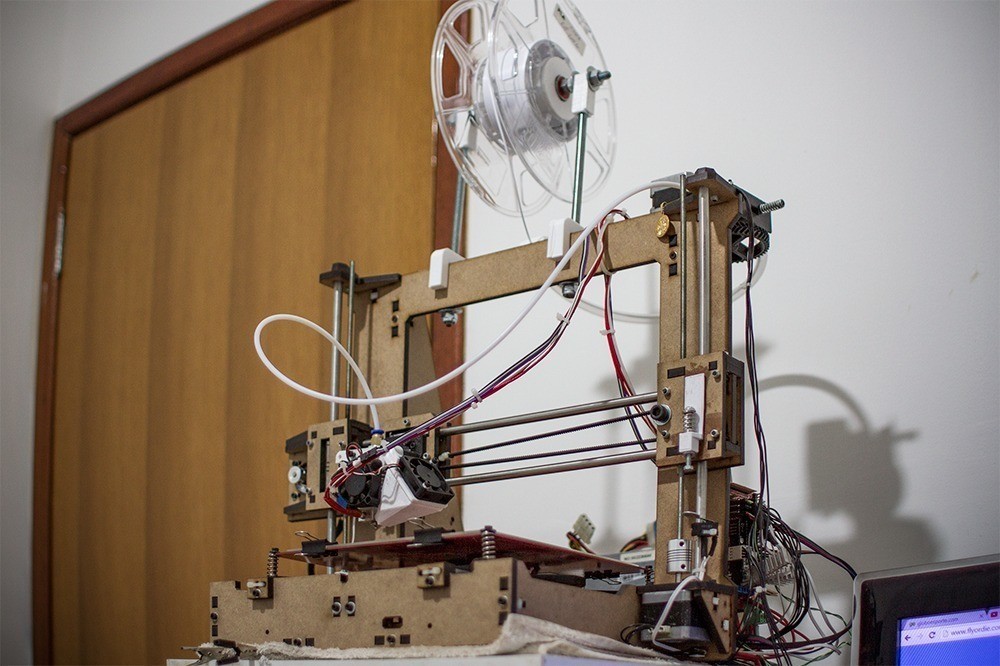

This version i modified for my Graber i3 bowden printer.

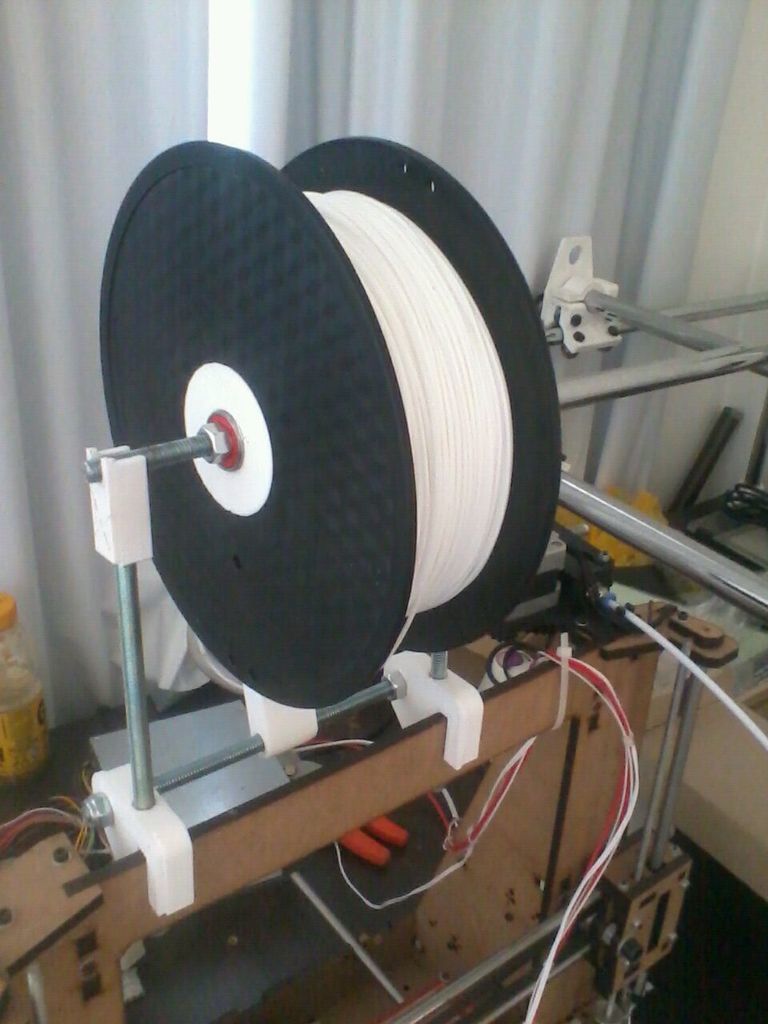

I reduce the angle for 5º because i got worried about the forces in the top frame, since the filament is 1kg, and also the height to fit with the 6mm MDF graber i3 structure.
I place my extruder on the right top too using the same screws from the structure on a minimalistic way, so in the bottom i place a path holder to guide the filament throught an PTFE tube to the extruder (ill take a photo soon).
Top oppened for more easily removing optional (i prefer it).

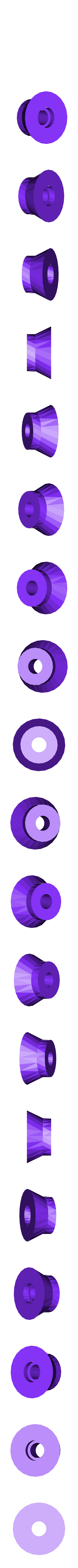

You will need 22mm rollers, threaded rod, 8mm screws and washers.
- 3D file format: STL
- Publication date: 2019/01/02 at 16:54
