3D model description

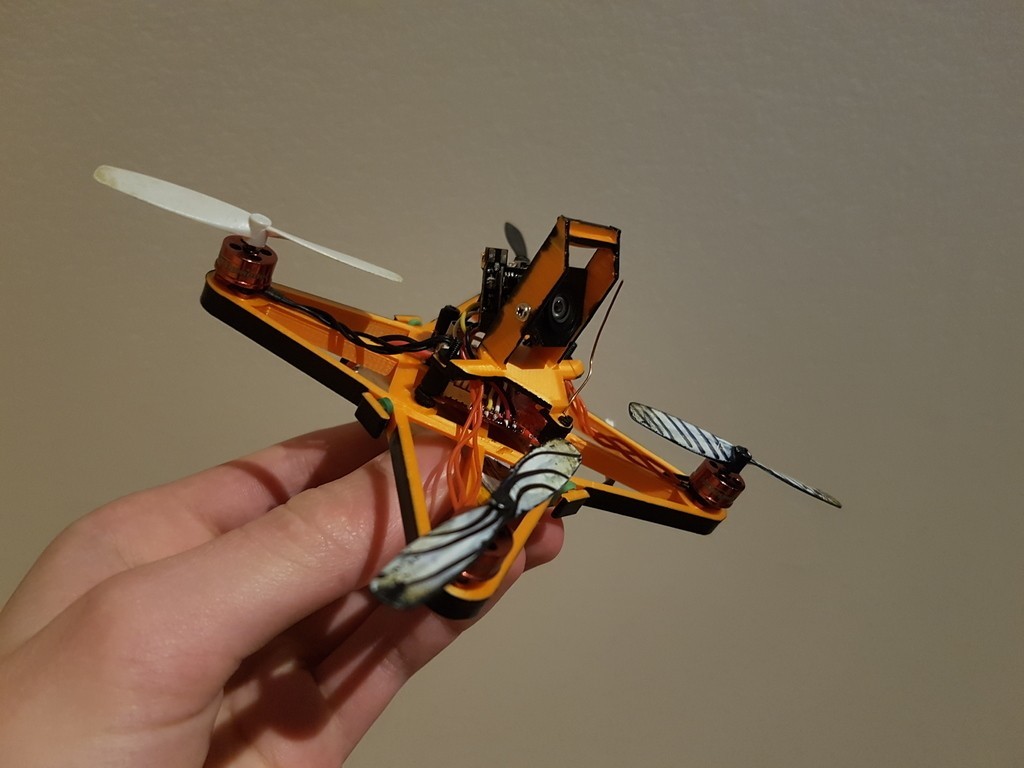

  • My custom light and super durable frame for power whoop transplants and up to 2.5" !

  • Designed for :

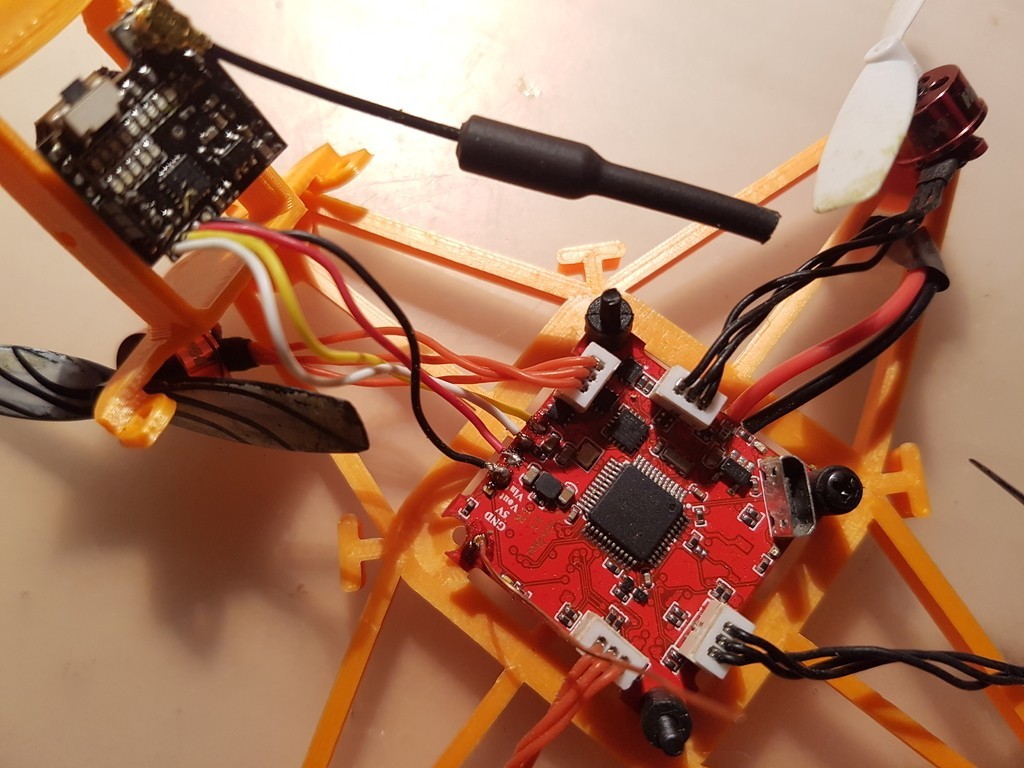

  • CrazyBee AIO FC (35*35mm pattern - M2 screws)

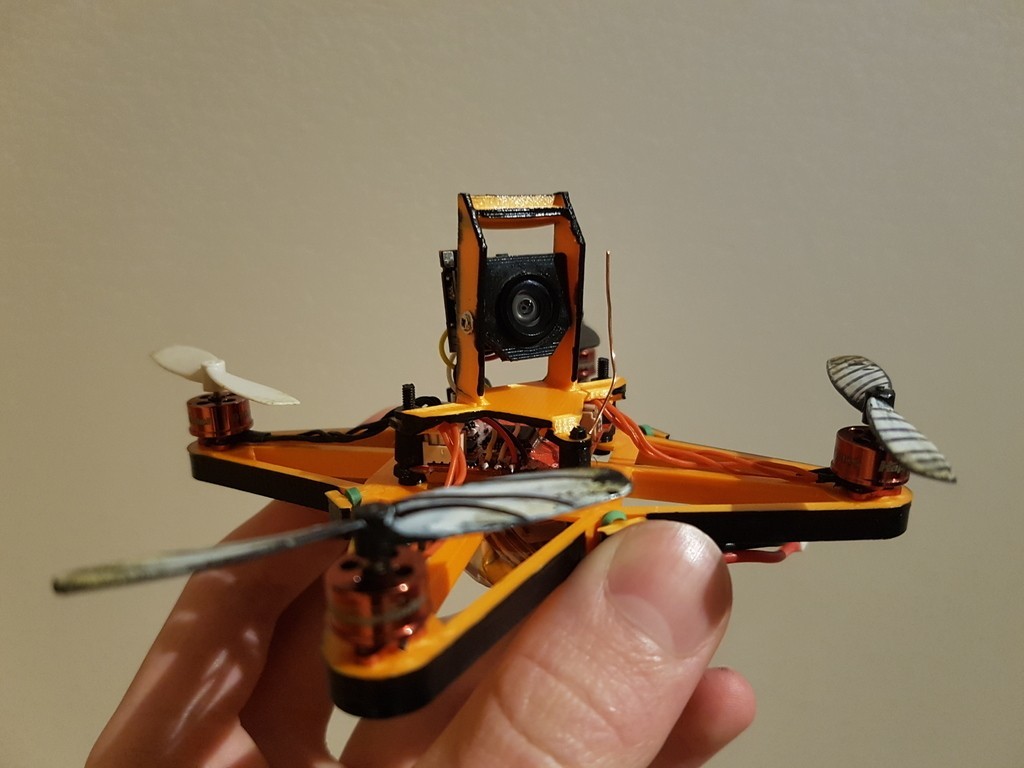

  • Camera mount fits most of AIO cameras... 10mm lens diameter

  • Motor mounts for 070x motors, 080x with 3 hole pattern should also fit (I am using HappyModel 0703 KV19000)

  • 110x version for standard 110x 4-hole pattern motors

  • Fits up to 65mm props - KingKong 65mm bi-blades

  • Motor post to motor post : 104mm

  • Printed out of PLA with 0.2mm layer and 100% - it's very durable and pretty light !

  • Frame weight (PLA 100% infill)

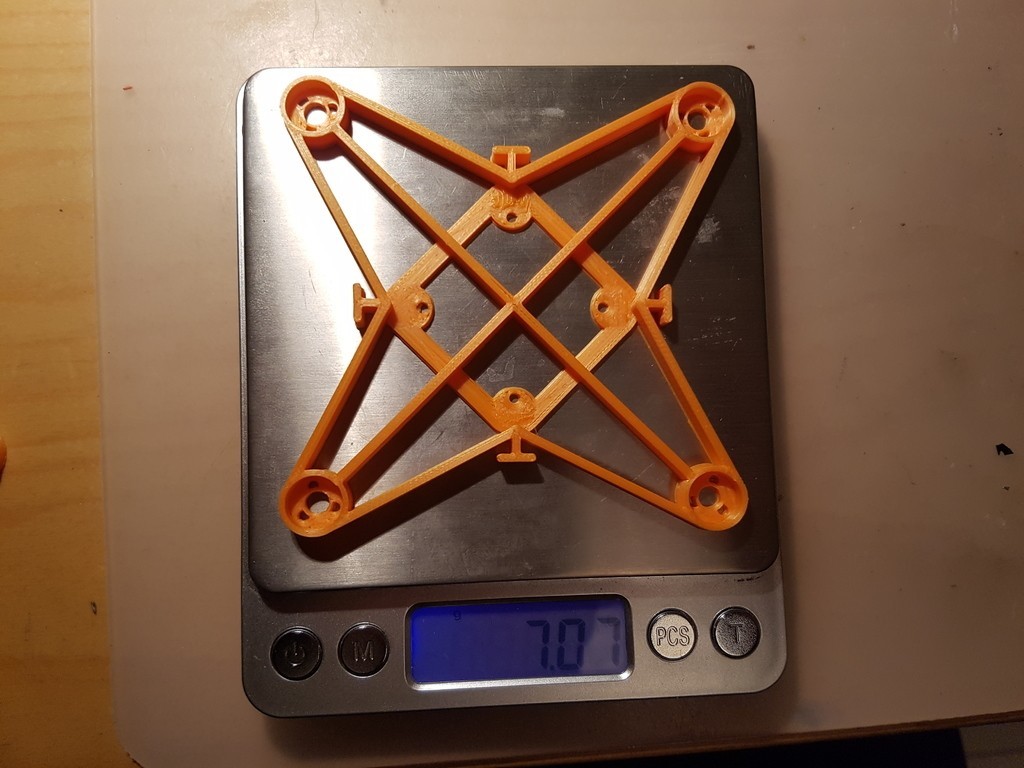

  • Bottom part - 7.10g

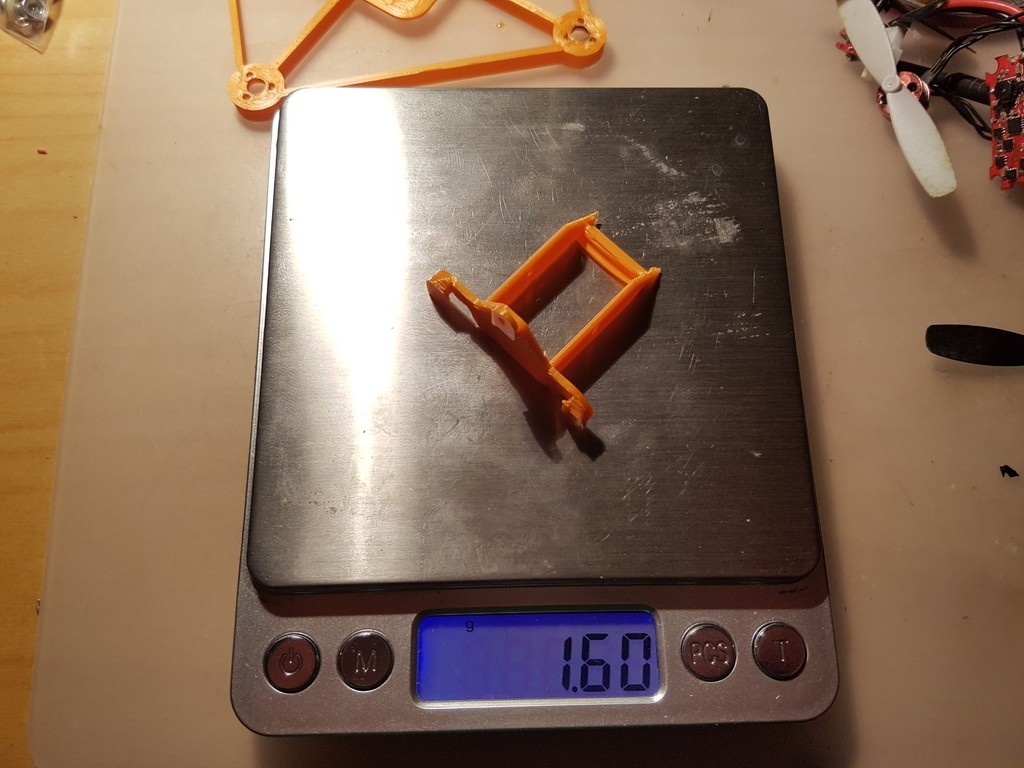

  • Camera Mount - 1.65g

  • Camera holder - 0.80g

My build (Snapper 7 transplant) weights g without battery, g with old 600mah 1S lipo

3D printer file information

  • 3D design format: STL Folder details Close
    • Camera_Holder_V2.stl
    • GR1FF_Cam_mount_LOW.stl
    • GR1FF_Cam_mount_high.stl
    • GR1FF_RACE_070x.stl
    • GR1FF_RACE_110x.stl

    Learn more about the formats

  • Publication date: 2019-03-05 at 09:35
