Geetech G2S Configuration for Repetier Firmware

Download free STL file Geetech G2S Configuration for Repetier Firmware • 3D printable template, kakiemonDownload free STL file Geetech G2S Configuration for Repetier Firmware • 3D printable template, kakiemonDownload free STL file Geetech G2S Configuration for Repetier Firmware • 3D printable template, kakiemonDownload free STL file Geetech G2S Configuration for Repetier Firmware • 3D printable template, kakiemon

Did you 3D print this model?

3D model description

Repteier Firmware for Geeetech G2S based on WBRUCEM https://www.thingiverse.com/thing:1301129

Modifications:

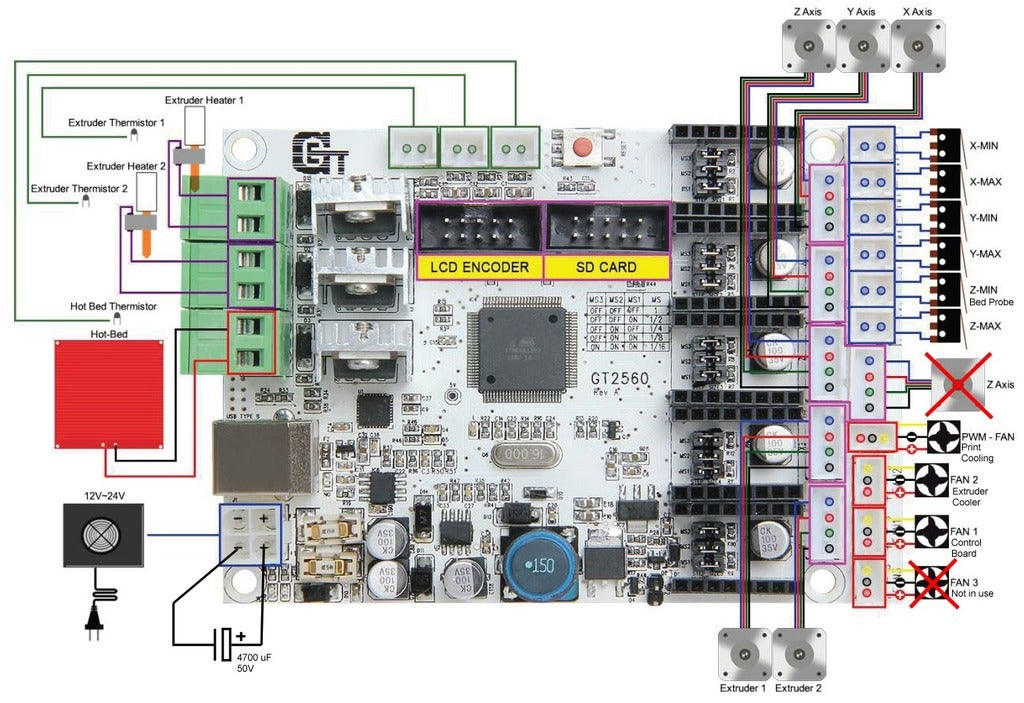

- PWM fan used to cool the printed object - needs rewiring of the fan cabling - see: website bechele.de
- Autoleveling activated and configured
- Autoleveling area reduced to 3 x 3 steps with only two repeats each.
- Autoleveling positions swapped to prevent of mechanical crash after levelling when homing.
- Preparation for printing ABS with temperatures up to 260 °
- Enabling of EEPROM use - Note: !! You need to send a M502 command once after software Upload to make Autoleveling work !!
- Reduced the number of subsegments to get enough ram for runnig autolevelling.

This isn't a printable thing. It is a starting configuration for running Repetier-Firmware on the Geeetech Delta G2S printer. Many thanks to WBRUCEM for the great piece of work.

For more information visit:
bechele.de - english
bechele.de - german
To use:
Go to [https://www.repetier.com/firmware/dev/index.php]
Upload the enclosed .json file as your "old" configuration.
Complete the configuration tool steps, adjusting where needed to match YOUR printer.
At the end, choose "Download complete firmware" to retrieve the entire firmware package (.zip file).
Compile and upload to your printer as you have done with Marlin.
Further configuration changes should always be performed via the online configuration tool. DON'T edit your Configuration.h file directly.

Notes:

Pay attention to the diagram showing how to measure dimensions of your printer. Some of these may differ slightly from the ones used in Marlin.
Extruder offsets are handled entirely within the firmware. You should enter ZERO offsets in your slicer and Repetier-Host configurations.
This firmware is under active development. If you happen to download a copy that fails to compile, just try again after a couple of days. Chances are the problem will have been fixed.

  • 3D file format: STL

Tags

Creator

License

CC BY SA
