Geeetech A10 BLTouch Mount (stiff, aligned and fixated)

Download free STL files Geeetech A10 BLTouch Mount (stiff, aligned and fixated), rbm78blnDownload free STL files Geeetech A10 BLTouch Mount (stiff, aligned and fixated), rbm78blnDownload free STL files Geeetech A10 BLTouch Mount (stiff, aligned and fixated), rbm78bln
Download free STL files Geeetech A10 BLTouch Mount (stiff, aligned and fixated), rbm78bln

Did you 3D print this model?

3D model description

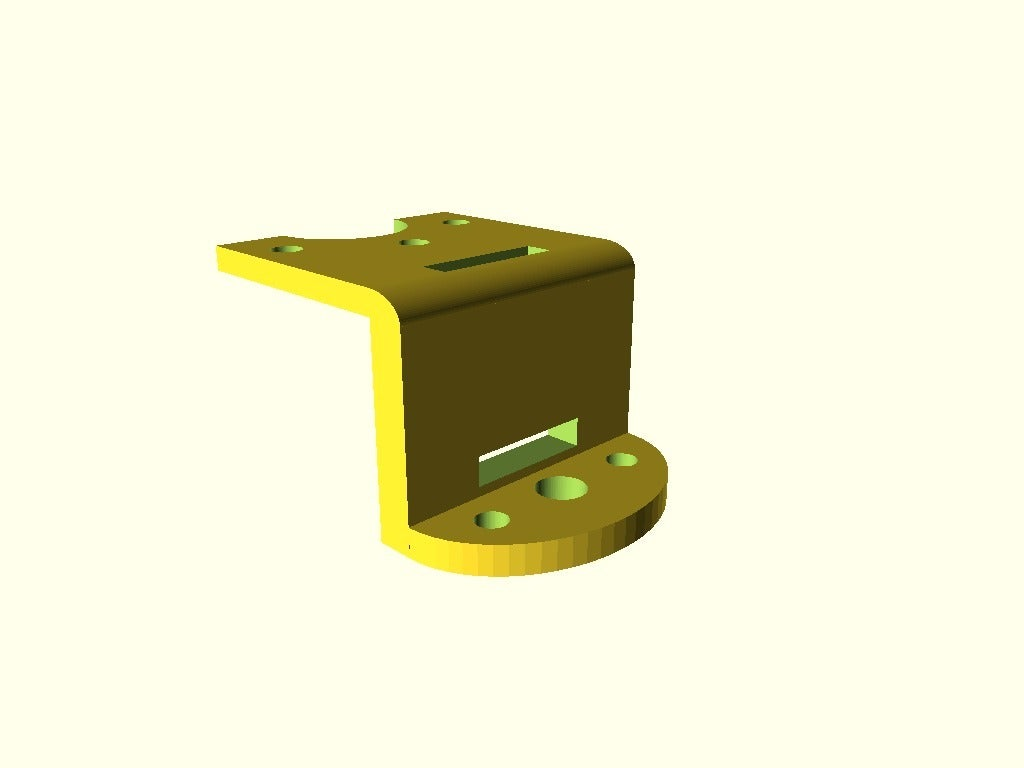

Inspired by BennyBoyW's Geeetech A10 BLTouch Mount I wanted to be safe from my clumsy moves and create a stiff version which is aligned in a well-defined way, so that the BLTouch always stays in position, almost no matter how hard I hit it accidentally and frequently :-)

As you can see I have connected it directly to Geeetech's Extension Board using the
Extension Board Mounting Plate

As a goodie I've added a few holes for the cable.

By design your config for Marlin should be:

#define X_PROBE_OFFSET_FROM_EXTRUDER 0
#define Y_PROBE_OFFSET_FROM_EXTRUDER -33
#define Z_PROBE_OFFSET_FROM_EXTRUDER -1

Of course, this can vary depending on your sensor and printer, but you can simply adjust these variables in the OpenSCAD source file:
* front_plate_z for the z-position of the sensor from the top
* sensor_dist_from_nozzle for the y-offset.

  • 3D file format: SCAD and STL
