G0704 Draw Bar Wrench

3D model description

Draw Bar wrench for a Grizzly G0704 mill. This is used to tighten the R8 collets into the spindle. There are 3 different wrenchs; all are the same size just a little different per type of motor drive your G0704 maybe.

3 Designs:

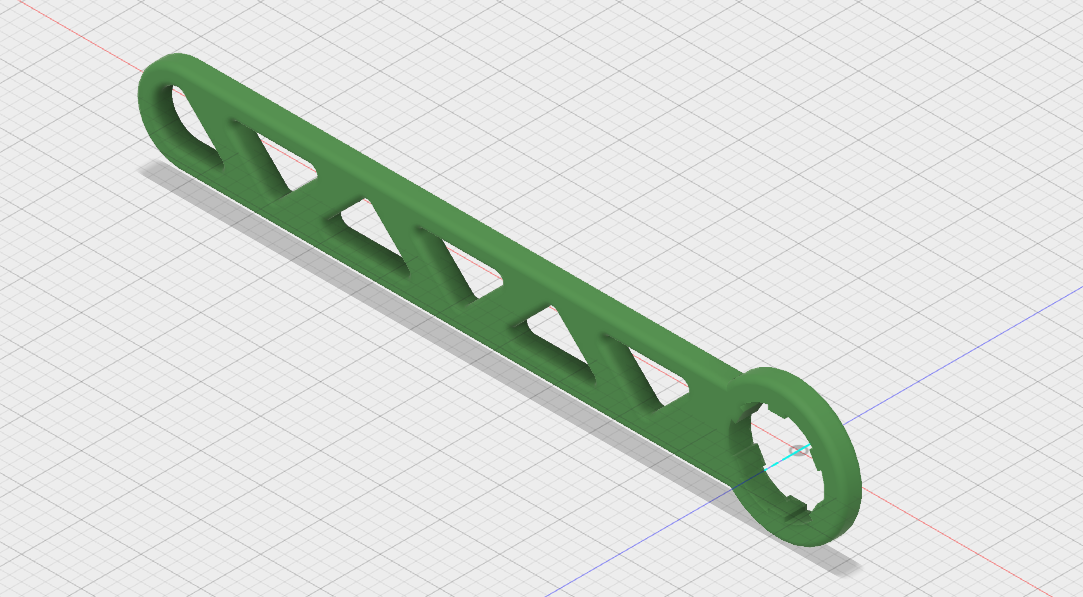

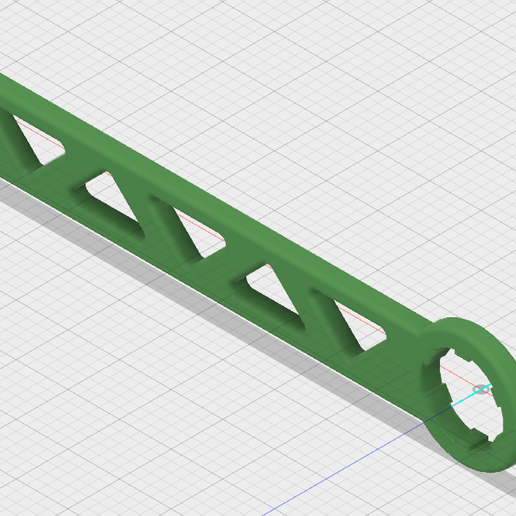

- Standard Draw Bar Wrench

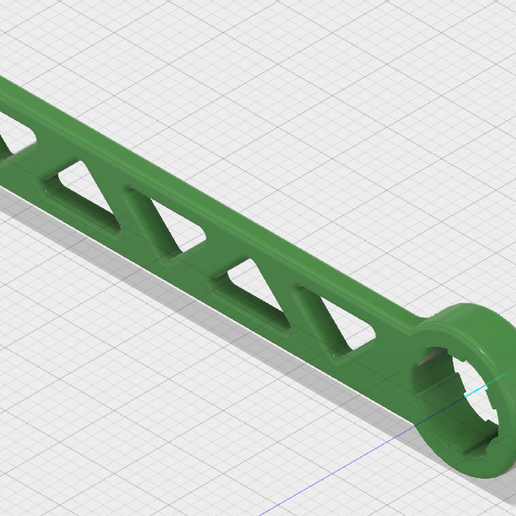

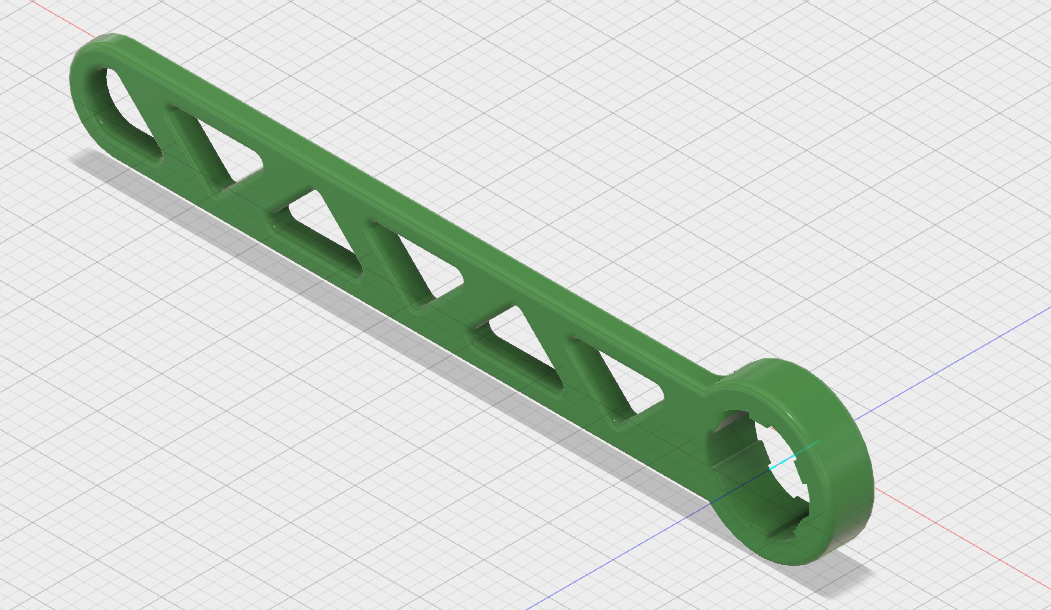

- Draw Bar Wrench for Belt Drive

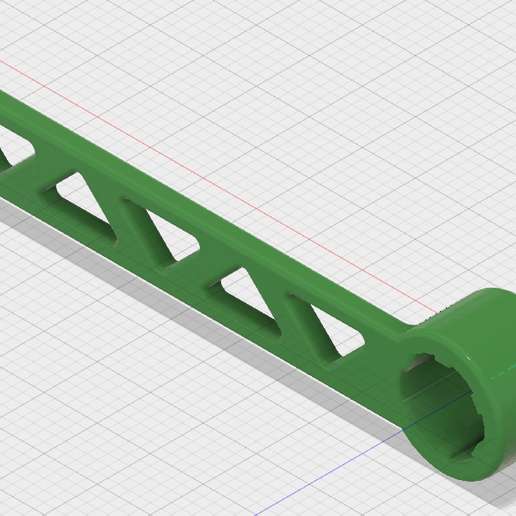

- Draw Bar Wrench for Belt Drive w/ Tach

3D printing settings

Printed with PLA
0.15mm
15% infill

  • 3D model format: STL
