Fully assembled 3D printable wrench

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

3D model description

Please consider supporting me on Patreon: https://www.patreon.com/DanielNoree

After watching the infamous video from a few years back where Z-Corp prints a fully working wrench i decided i wanted to do the same thing on my own printer.

Now, i am not talking about a "print-several-pieces-and-then-assemble" version which there are already a ton of on the internet.

What i wanted to do was something i could print and that would actually be fully working straight out of the printer.

I like to think i came pretty close. All you need to do is to remove the internal support and your done!

Keep in mind this is a proof of concept, i just wanted to see if i could do it.

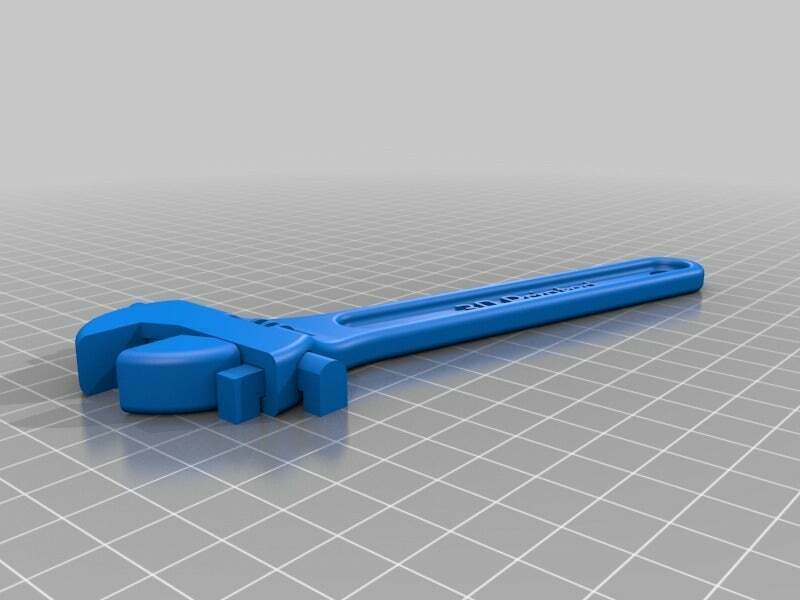

Updated 2013-10-16: Added "Printable Wrench W Longer Screw" which has a longer "screw" (3mm).

Updated 2013-08-30: I have added two new files. One with a slightly bigger gap between moving parts. This one has 0,55mm gap instead of 0,35mm. Let me know if it works out (in particular with PLA). I have also added a STEP file with no support for anyone who maight want it.

Here is a short video: https://youtu.be/Eq_JI3yctJ8

Experimantal "heavy duty" version: https://www.youmagine.com/designs/printable-wrench-reworked

Please consider supporting me on Patreon: https://www.patreon.com/DanielNoree


##By Daniel Norée

Home - Things - GooglePlus - Twitter - Facebook - Youtube - Instagram - Vimeo - LinkedIn


3D printing settings

  1. Print
  2. Remove support using a sharp knife or similar
  3. Show your friends =)

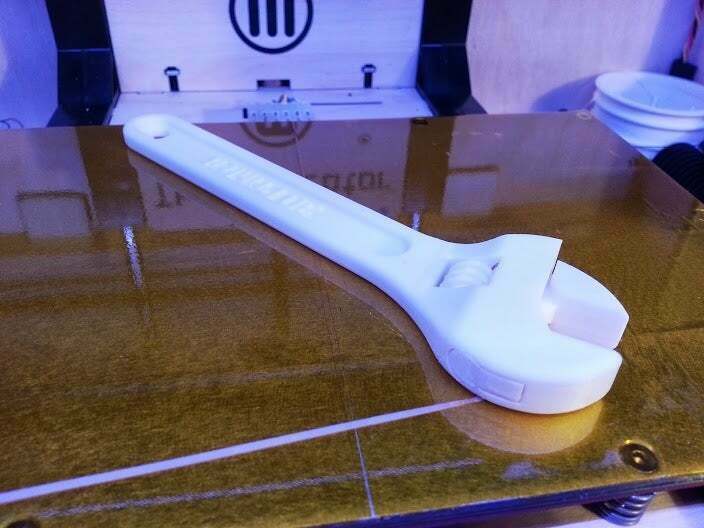

Printed on a Replicator at 0,2mm in ABS

3D printer file information

  • 3D design format: STL Folder details Close

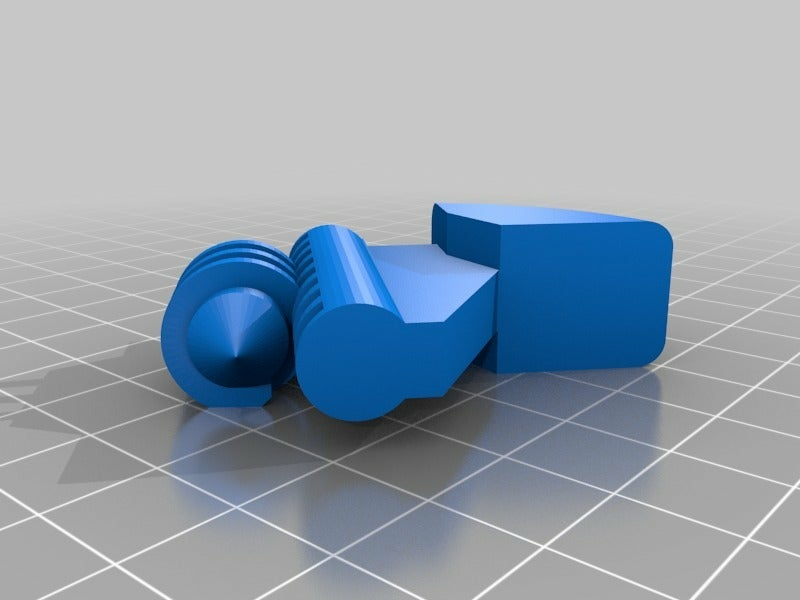

    • Dual_Extrusion_Wrench__Inserts.stl
    • Dual_Extrusion_Wrench__Supports.stl
    • Printable_Wrench.A.15.stl
    • Printable_Wrench_W_Longer_Screw.stl
    • Printable_Wrench_w_more_gap.A.0.stl

    Learn more about the formats

  • Publication date: 2021-03-26 at 06:15
    ?
    Published to Thingiverse on: 2013-08-25 at 00:01

License

CC BY - Attribution
