Freewing mechanical retract

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1k views
  • 1 like
  • 30 downloads

3D model description

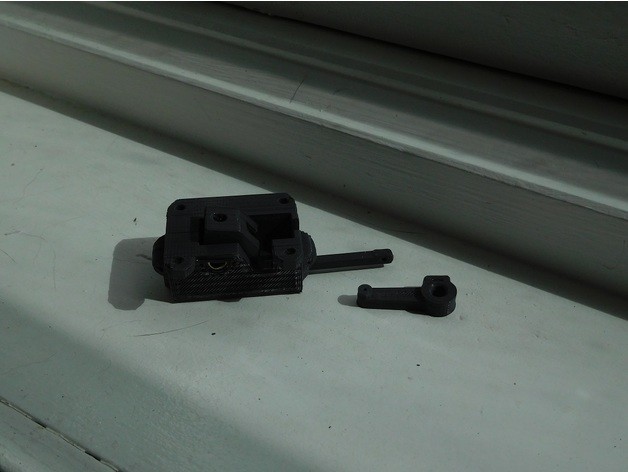

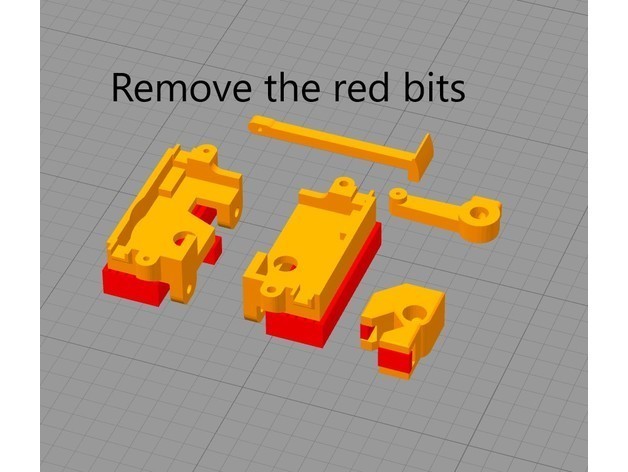

Mini mechanical retracts that work as replacements or the Freewing SU-34 retracts. Fits the hardware used in the freewing retracts. If you need to fabricate new hardware use 5mmx15mm tube or rod as the pivot shaft, and 3mm wire for the landinge gear strut. Use a M4x6 mm grub screw to hold the strut in place, and make sure you file a flat spot on the strut to prevent rotating. Assemble the retract housings usin #0 or #1 screws.

3D printer file information

  • 3D design format: STL Folder details Close
    • Retract01.STL
    • Retract02.STL
    • Retract03.STL
    • Retract04.STL
    • Retract05.STL

    Learn more about the formats

  • Publication date: 2018/05/30 at 16:07

License

CC BY NC

Tags

Creator

Norwegian inventor/designer/cat owner.

Please don't ask for original design files or parametric files.

If you ask a question about a design, ask under the design so that I can answer there.
