Frame mod - Cine Mount for Micro Camera

Download free STL file Frame mod - Cine Mount for Micro Camera • 3D printing template, GophyDownload free STL file Frame mod - Cine Mount for Micro Camera • 3D printing template, GophyDownload free STL file Frame mod - Cine Mount for Micro Camera • 3D printing template, GophyDownload free STL file Frame mod - Cine Mount for Micro Camera • 3D printing template, GophyDownload free STL file Frame mod - Cine Mount for Micro Camera • 3D printing template, Gophy

Did you 3D print this model?

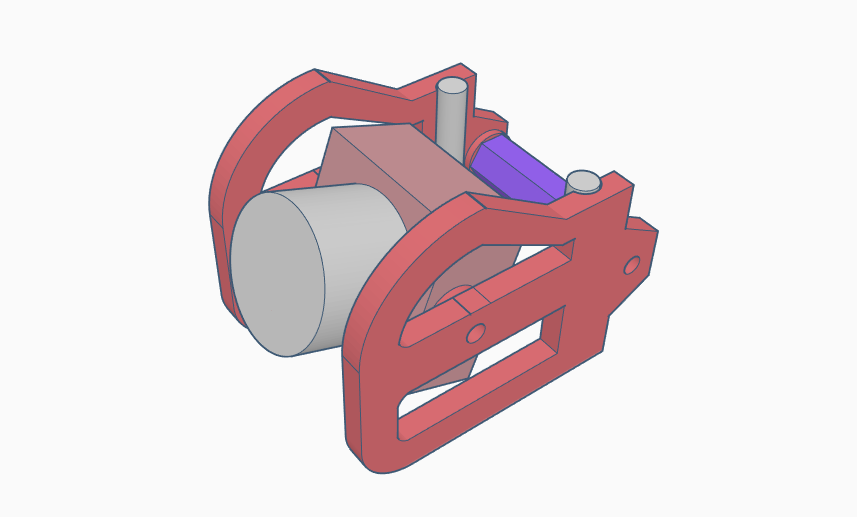

3D model description

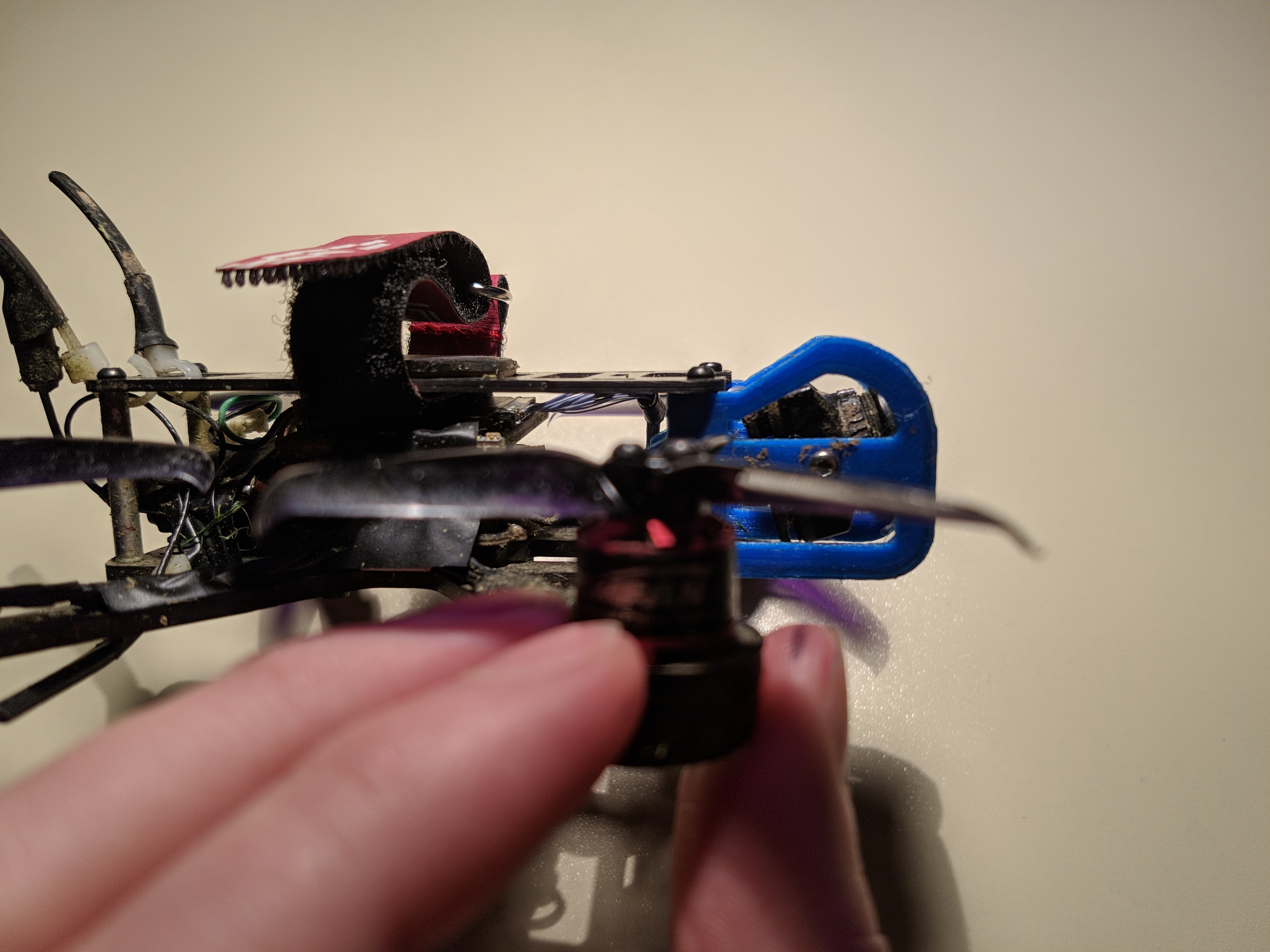

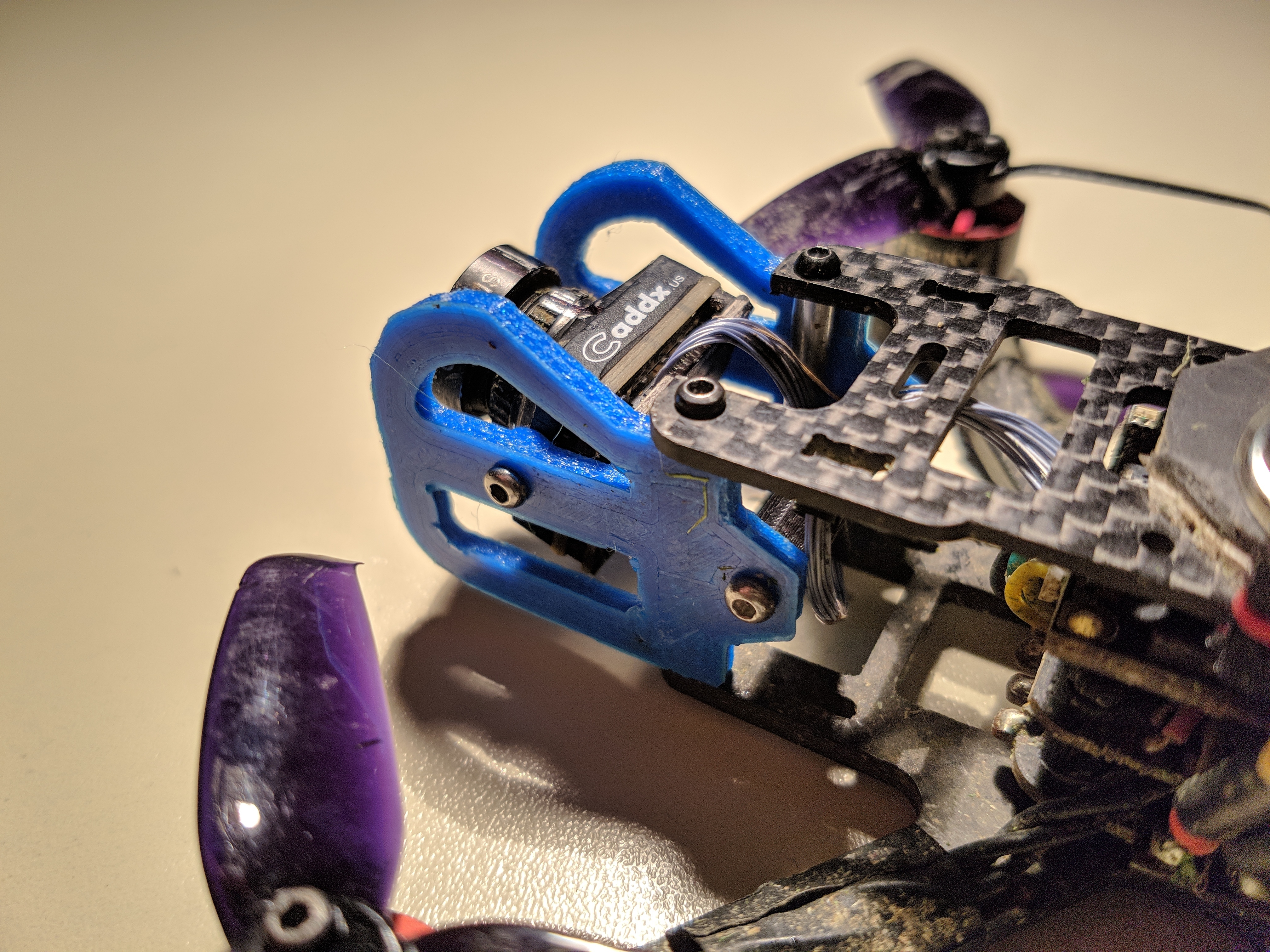

  • Designed and tested on AMAX H125 2.5" frame - 3mm standoffs (in diameter) - M2 screws, distance from snadoff to standoff - 20m
  • Should also fit some other frames with 3mm standoffs, make the standoffs longer in slicer if needed...

  • M2 screws for camera (Micro size 19x19mm) and standoff to hold the plates together

  • No mount or props in view - I am using Caddx turtle with Turbo eye ~ 170° FOV

  • No jello in image - don't use TPU, I have used nylon but ABS, PETG or PLA should be ok too

  • 3D file format: STL
