Follow Focus Professional

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 3.2k views
  • 14 likes

3D model description

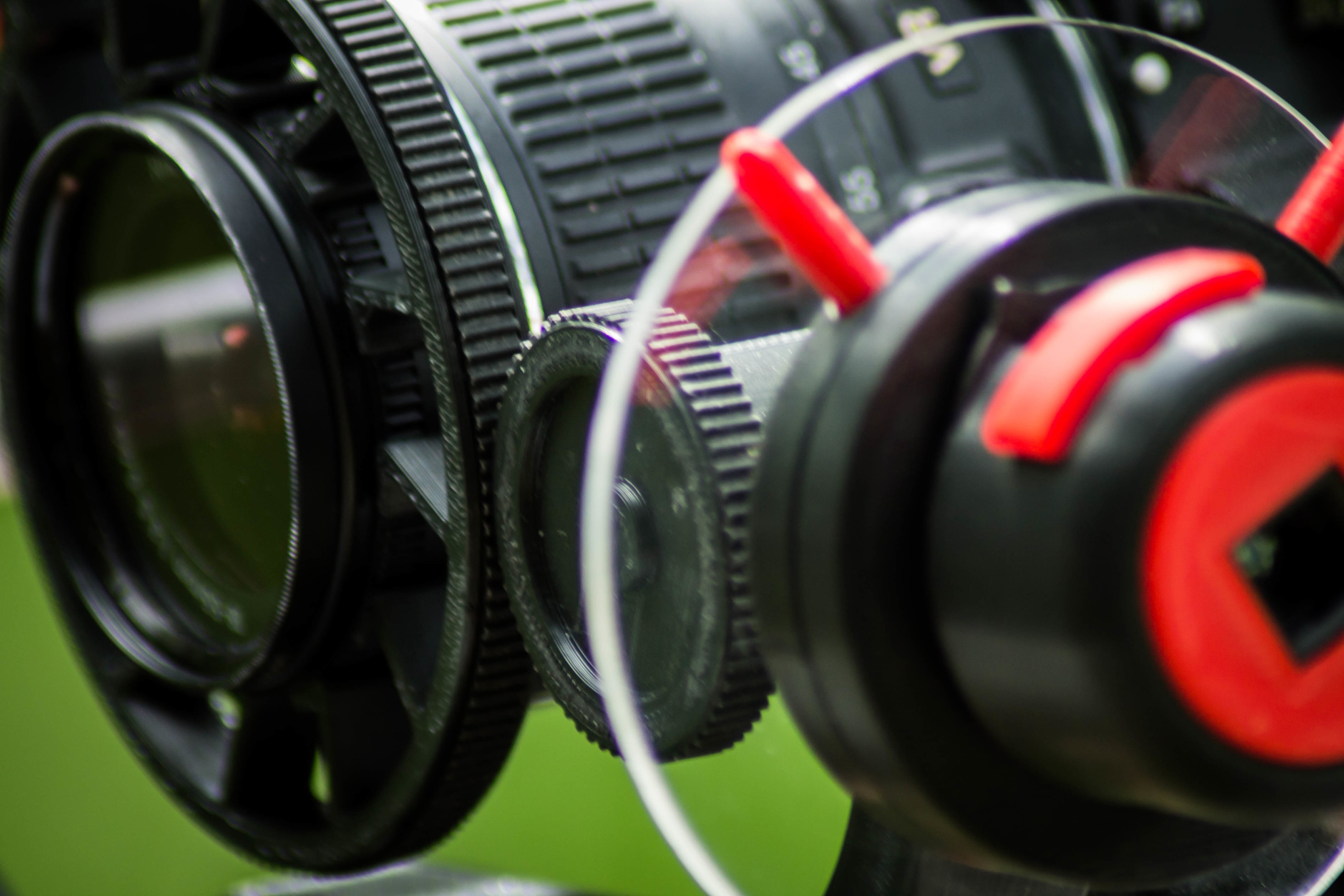

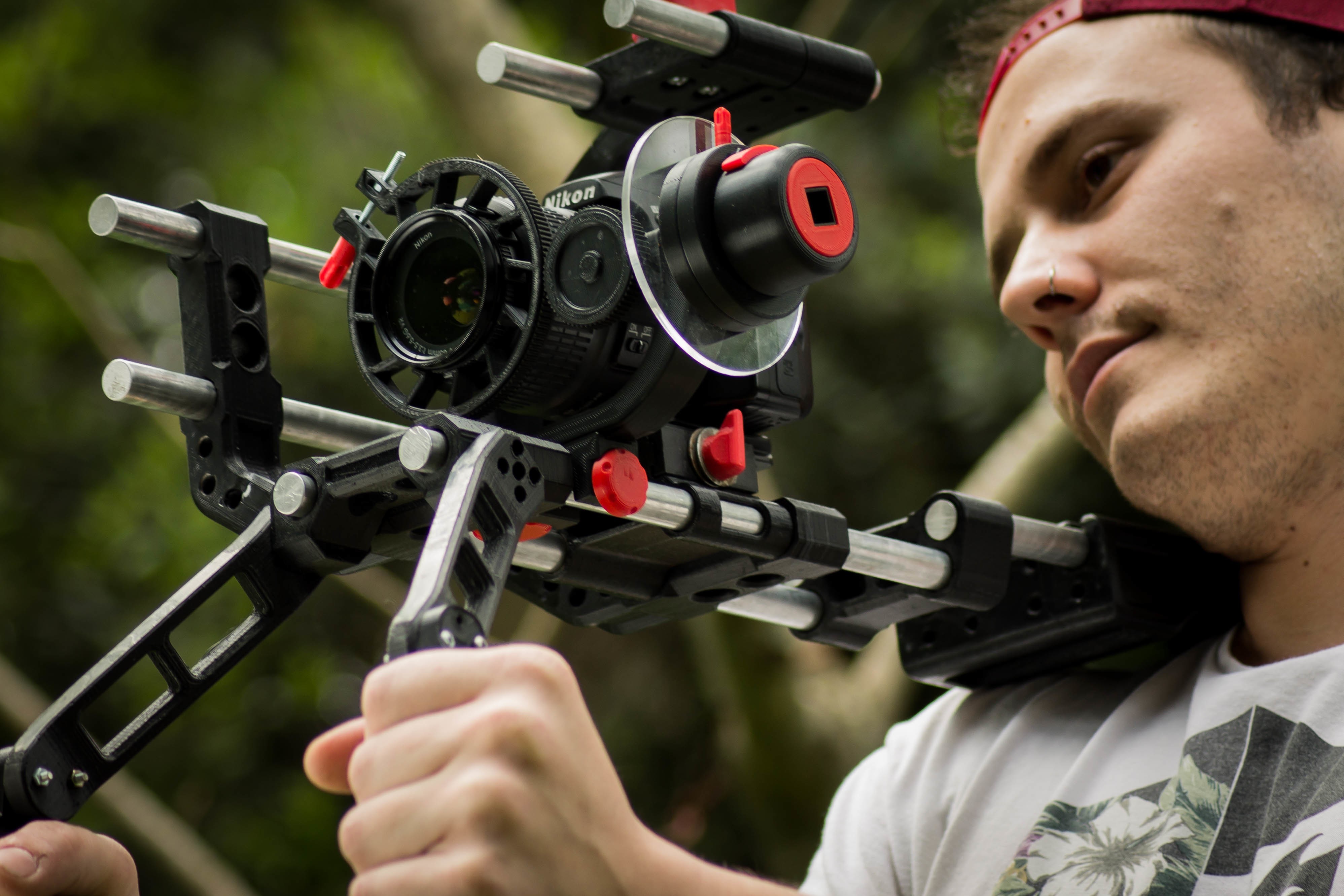

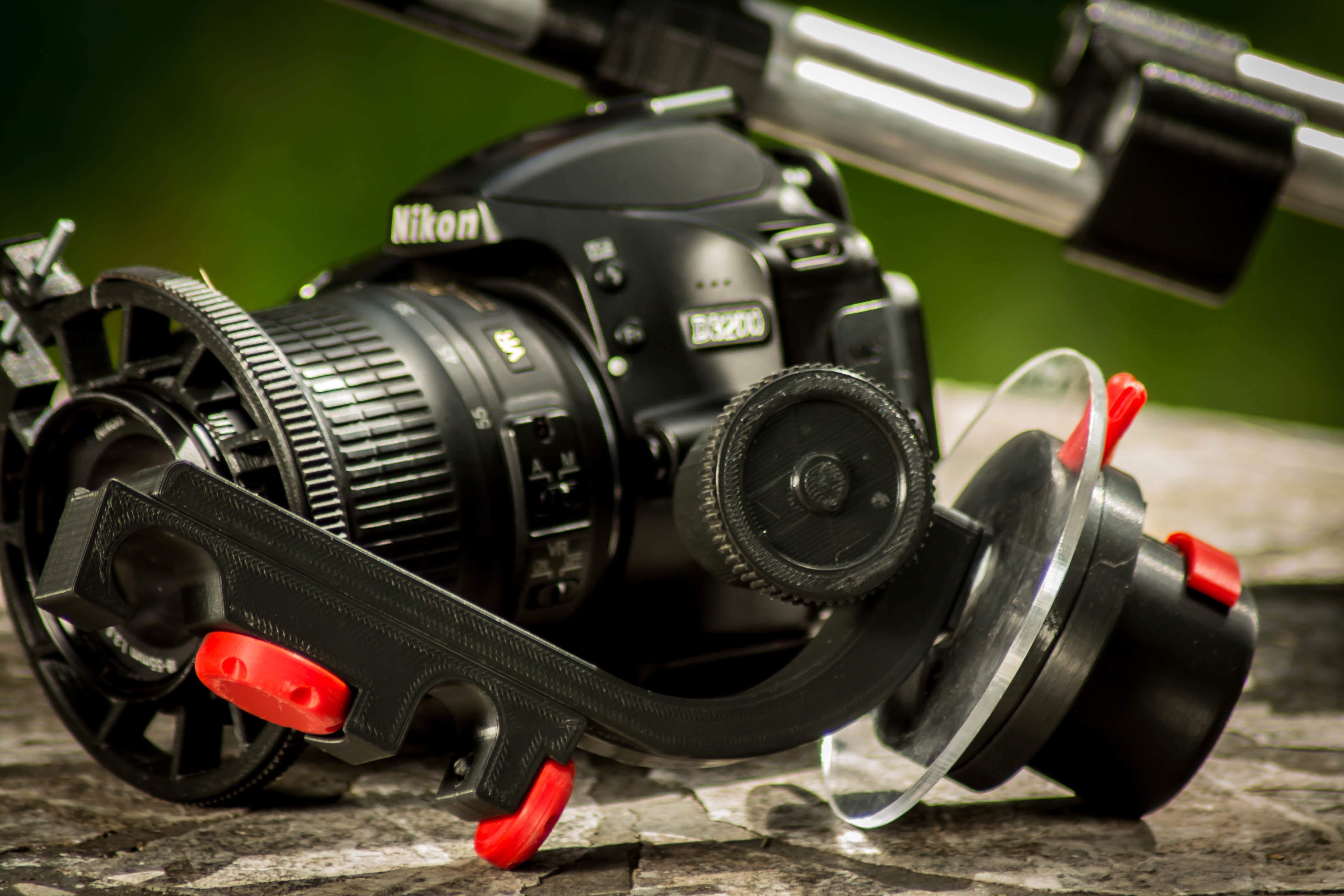

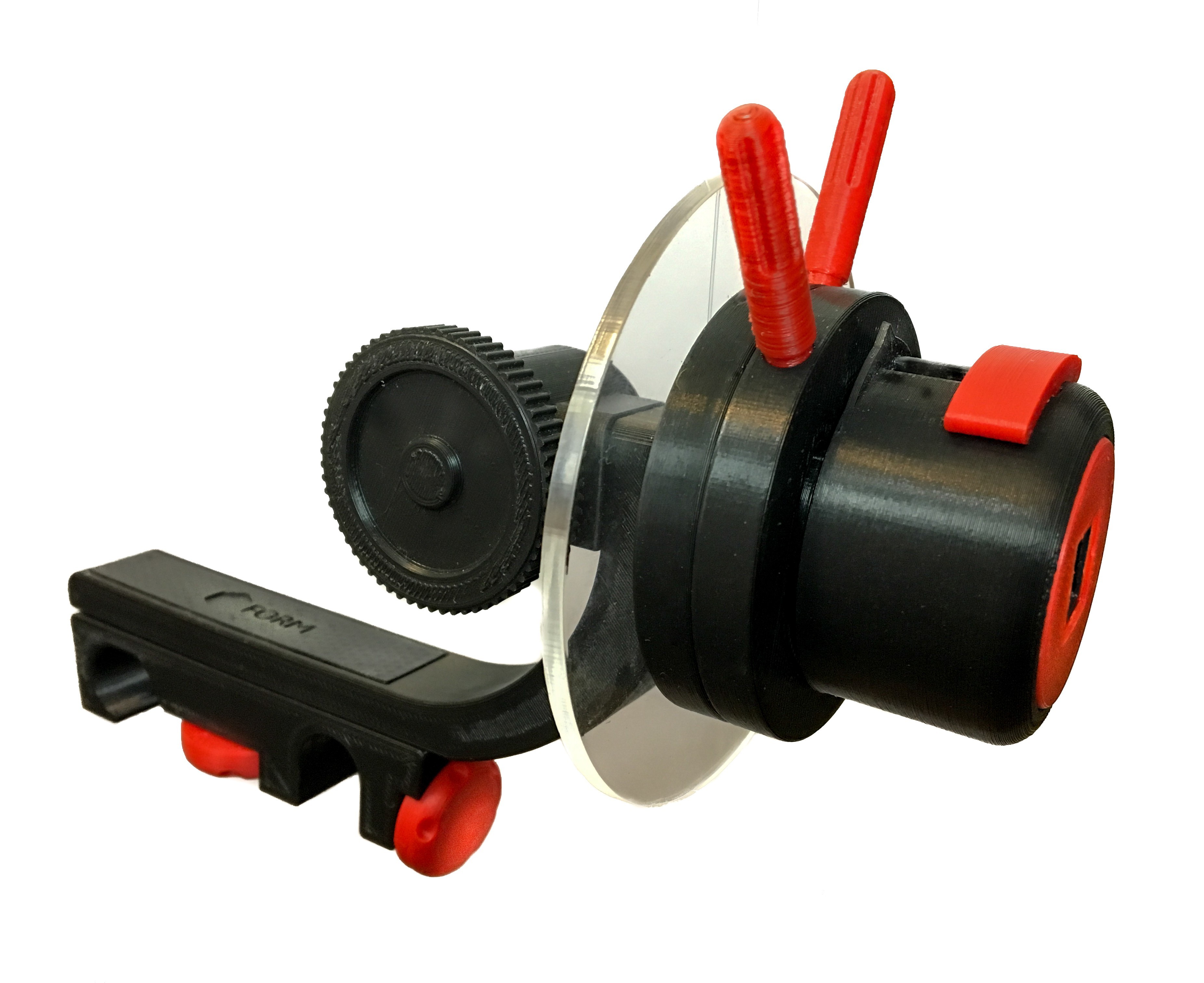

Designed for intensive use, high sensitivity and precision. It has two adjustable turning stops, a scoring board and a lateral adjustment slide. Quick Release system for 15mm bars. For an optimal transmission rings are used on the lenses.

In addition you will need:

Instant Adhesive

3mm acrylic cut (planes included)

Threaded rod M3

Screws M8 x 30mm 2 units

Screws M3 x 20mm 1 unit

Screws M3 x 30mm 4 unit

M3 nuts 7 units

M8 nuts 2 units

Belt GT2 6mm x 2 meters

Gears:

Linear crowns for axes: 3/32 of 27 teeth 1 unit

Pinion of 8 teeth 2 units

Axes

Stainless steel 3/32 57mm 2 units


3D printing settings

FDM technology. Material Abs. Infill variable depending on the mechanical properties of each piece, from 40% to 100% infill. Maximum layer height 0.2. Some pieces require support material.

3D printer file information

  • 3D design format: ZIP Folder details Close
    • Modelado y Factorys.zip

    Learn more about the formats

  • Last update: 2018/04/09 at 11:37
  • Publication date: 2018/04/03 at 00:16
