Folgertech Kossel 2020 Rev B parts [Revised]

3D model description

Recreated the parts for Rev B version in DesignSpark Mechanical. Putting both .STL and .rsdoc up in case anyone wants to modify them. I have parts printed from these models installed on my printer. Used original part STLs provided by folgertech to recreate parts.

The PSU cover is for this switch: http://www.amazon.com/gp/product/B00F4MGRRE?psc=1&redirect=true&ref_=oh_aui_detailpage_o04_s00

14 gauge wires coming from control board fit through mesh holes.

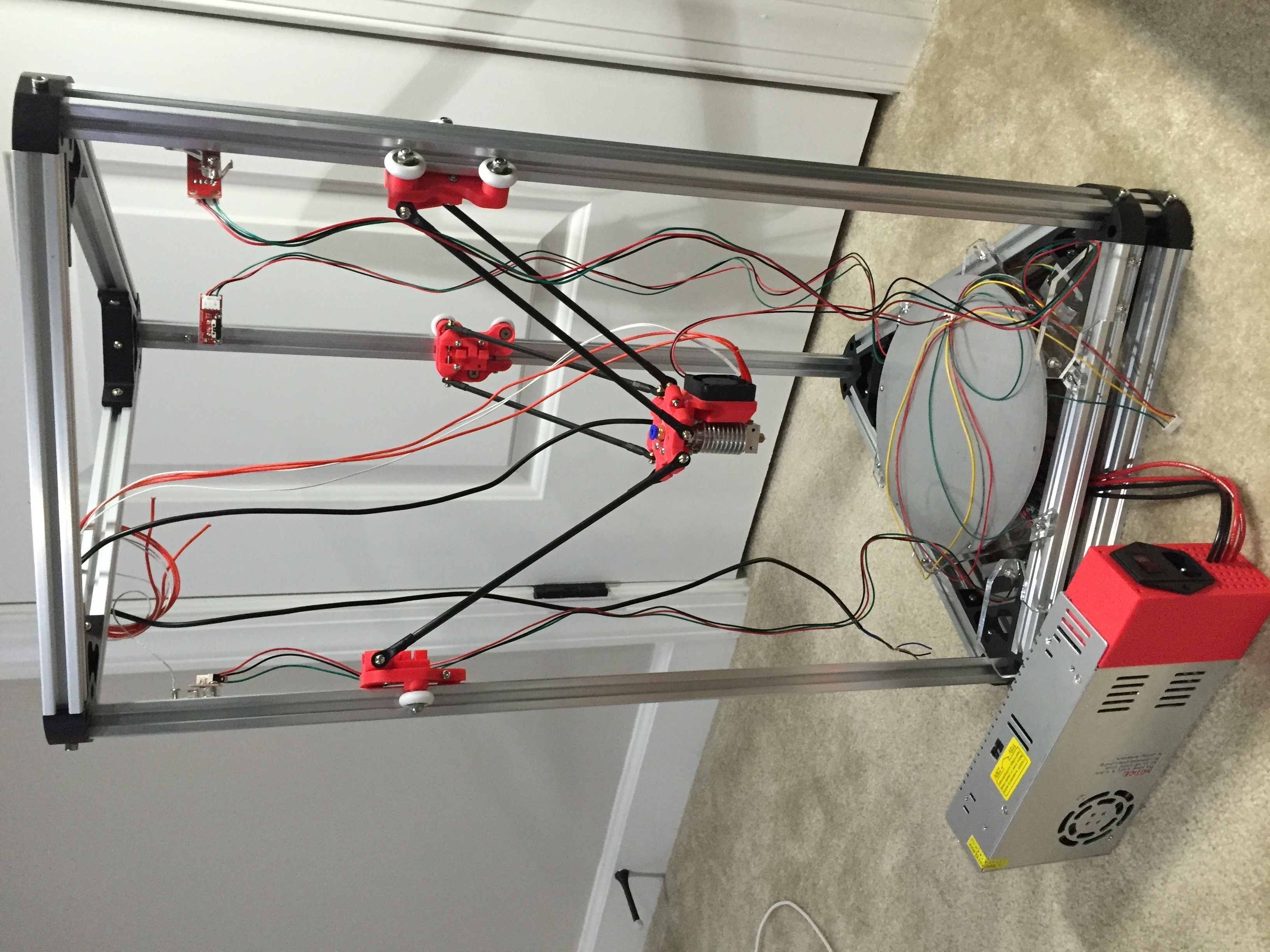

Printer is still a work in progress, so please forgive the pics filled with wires. ;-)

Files have been separated, and revised for corrections.

The blower fan used for the cooler: http://www.banggood.com/3D-Printer-12V-DC-50mm-Blow-Radial-Cooling-Fan-p-980653.html

Cooler fan should be snap-fit. I recommend glue to hole cooler top and bottom together.

  • 3D file format: STL

Tags

Creator

License

CC BY


Best sellers of the category Tool


Add a comment

One comment

If you print it please post pics! I enjoy people using my models.
