Foldable Camera Tripod Accessories

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.7k views
  • 10 likes
  • 136 downloads

3D model description

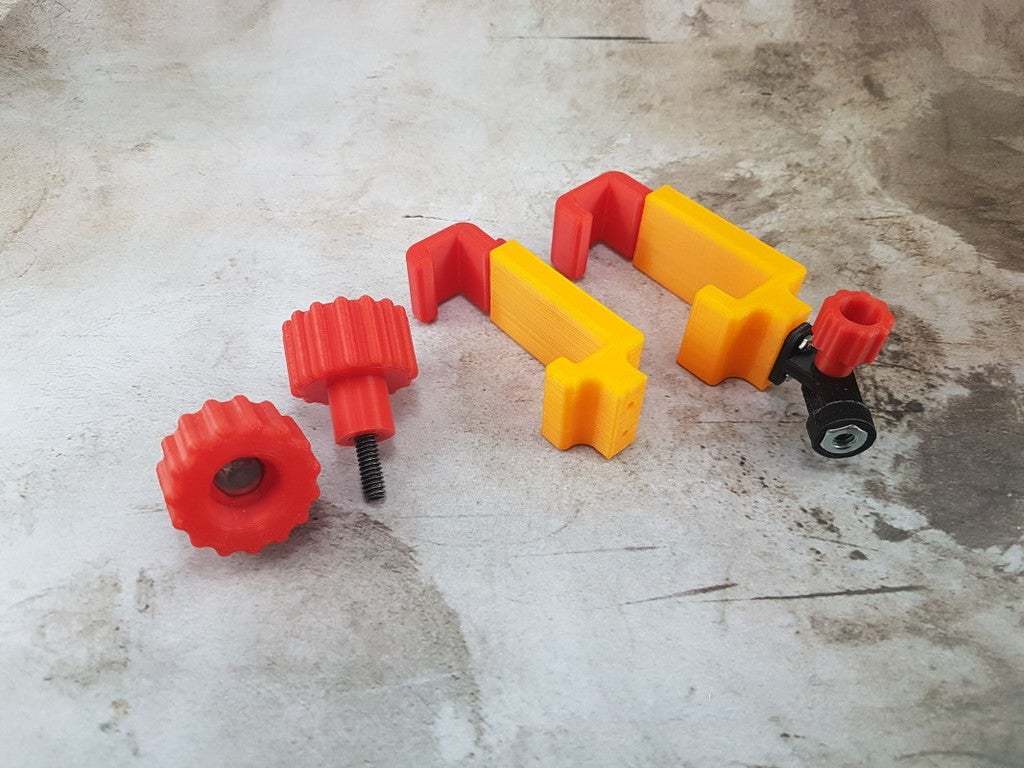

Here is some accessories for the Foldable Camera Tripod Remix.

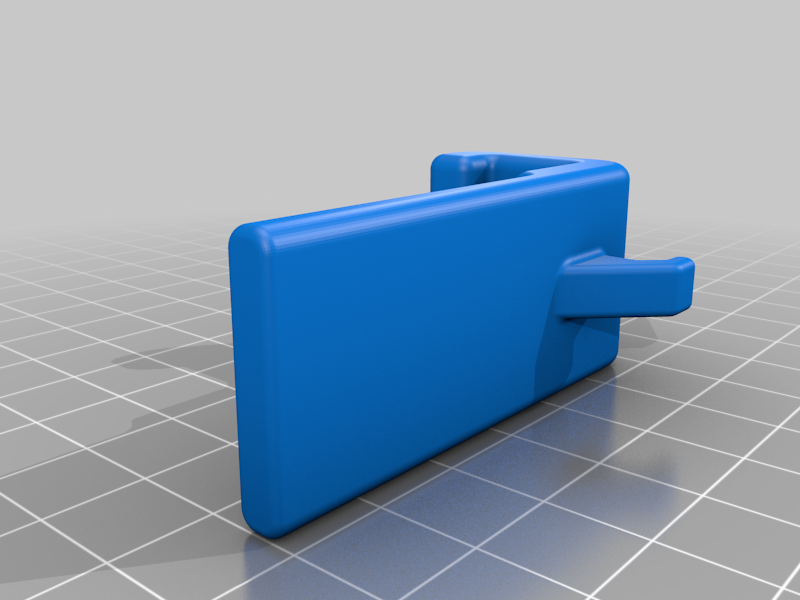

The cell phone mount attachment is a remix from Quadhands Helping Hands Cellphone Mount Attachment by nobble.
I liked the simplicity of the design and the use of a rubber band is simply brilliant! But the original design had the rubber band in front of the screen and I didn't like it. Also the original was made for a thinner phone and it didn't fit mine. So I made it for two thickness: 12 and 16mm. The pictures shows a Samsung Galaxy A50 and Galaxy S7 in a OtterBox case.

You will need:

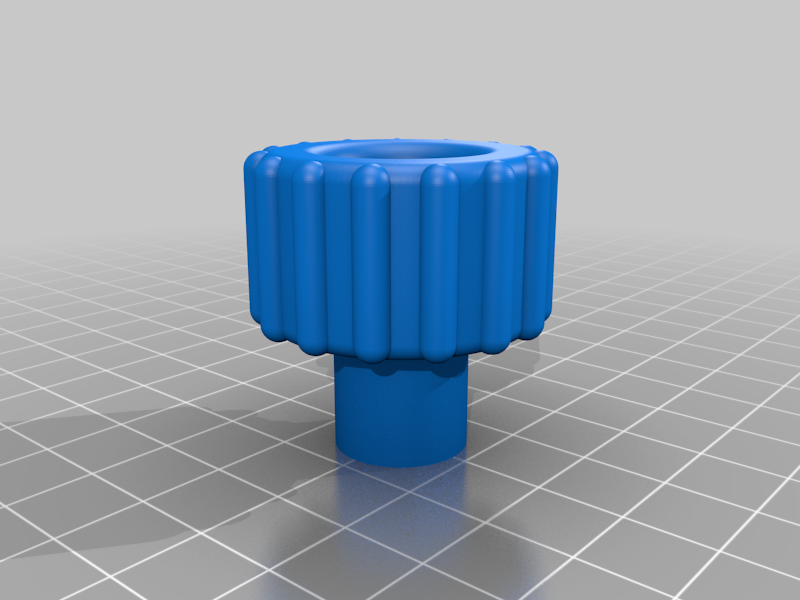

one ¼-20 x 1½" hex or carriage bolt (pick the right thumb bolt)
one M4x20 + two M4 nuts for the swivel part
two M2.5x10 + two M2.5 nuts to attach the clip to the swivel#

You may if you want glue the swivel part to the clip part. Use a piece of filament as a guide pin.

Printing tips:

Print the cell phone mount attachment with support touching build plate only.

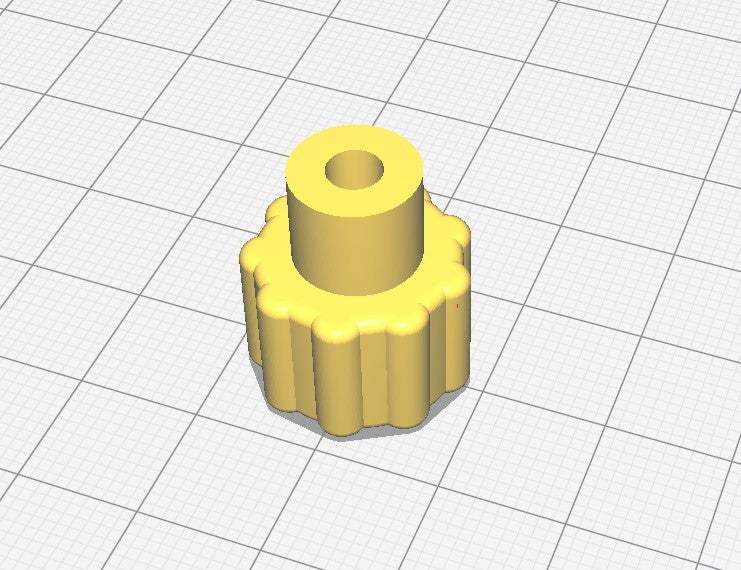

Print the thumb nuts and swivel parts as shown in the picture.
In CURA set the "Top/Bottom" and "Bottom Pattern Initial Layer" to "Concentric" when printing the thumb nuts for a better look.

  • 3D file format: STL

Tags

Creator

Designs 47
Downloads 1.4k
Followers 20

Studied Electronics, full-time Oracle DBA and weekend woodworker!

License

CC BY
