FLSUN QQ-S Bed Level Switch (Direct Sticky plate replacement!)

3D model description

The FLSUN Delta Printer Series QQ-S where delivered with a silly sticky plate for auto leveling.

Later versies came with a switch which you can also buy as an 24$ upgrade. This kit is quite complicated to install and not very nice because you had to open the bottom and end up with wires coming out.

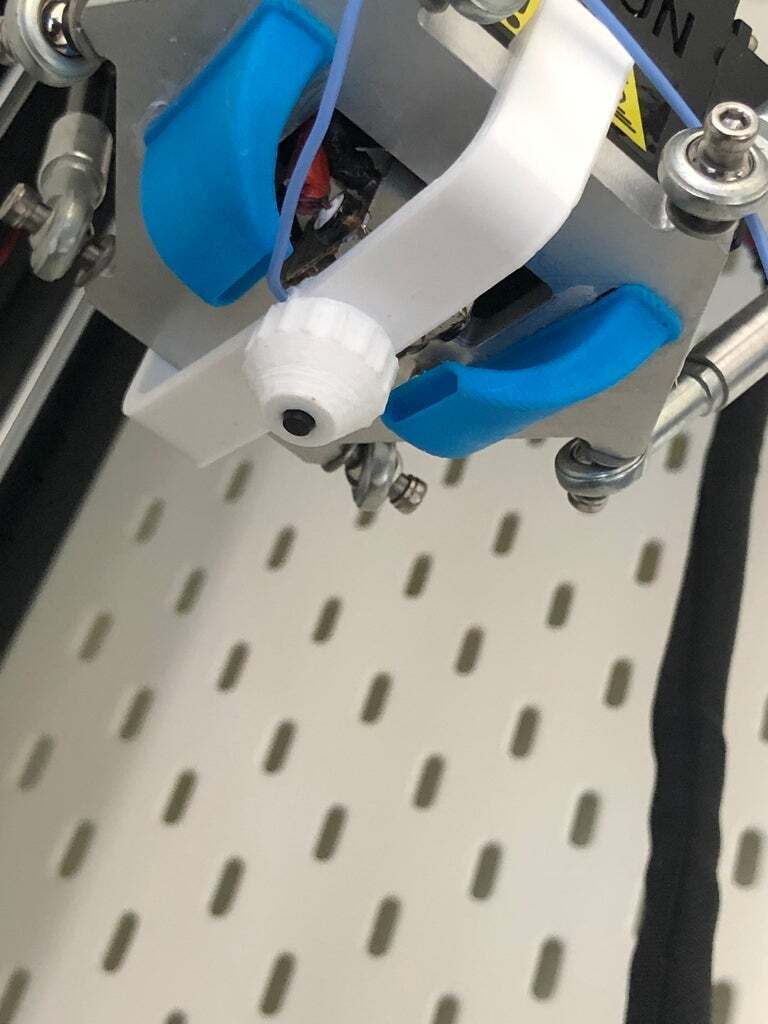

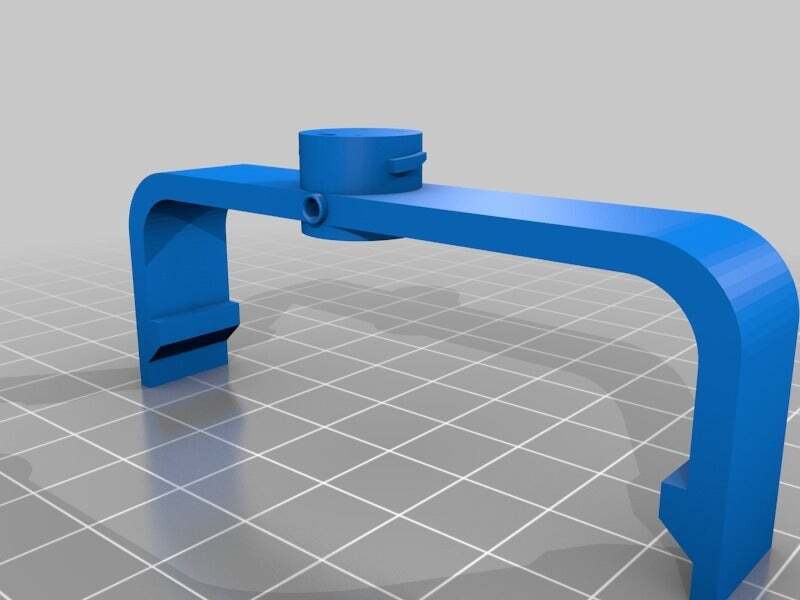

Just finished my own Clip ON auto leveling switch. After all we are makers. Cost of nothing and fun to do.

No need for al the hassle to open the base, rewire anything to end up with loose wires coming out under the printer as with the FLSUN Switch solution.

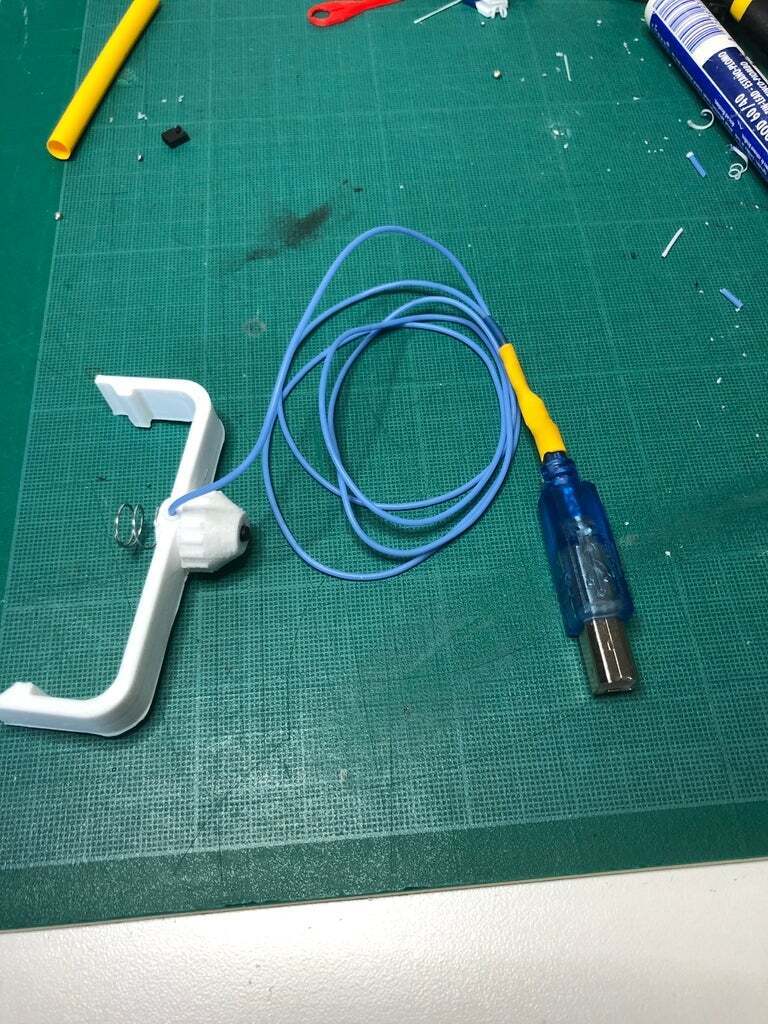

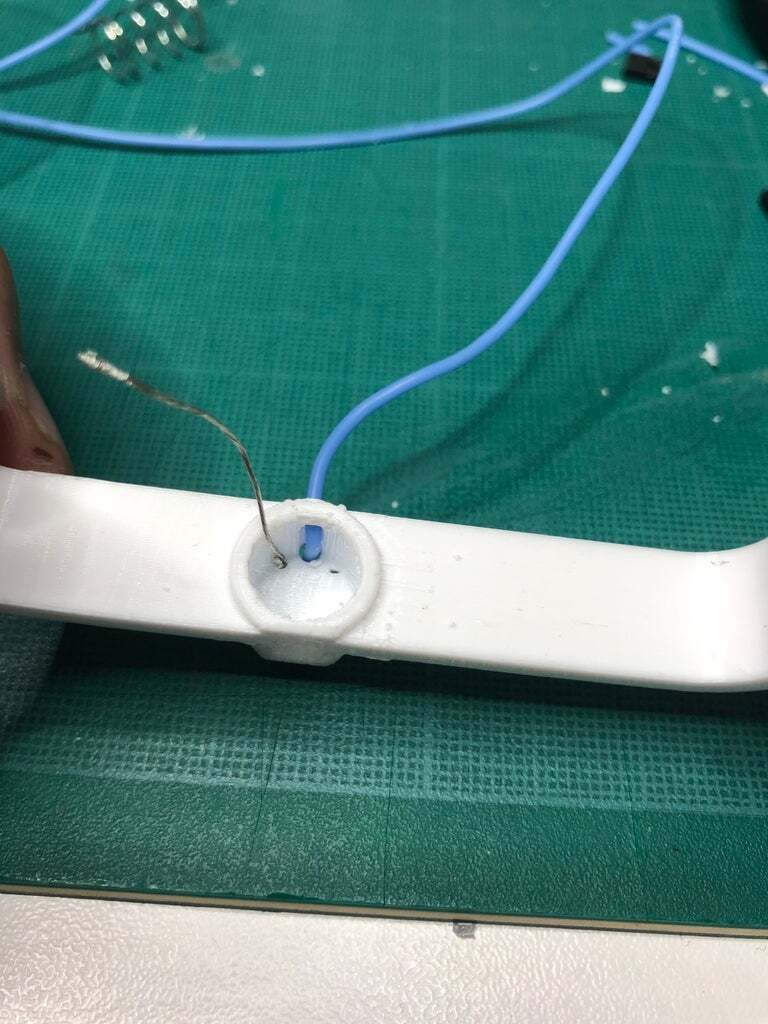

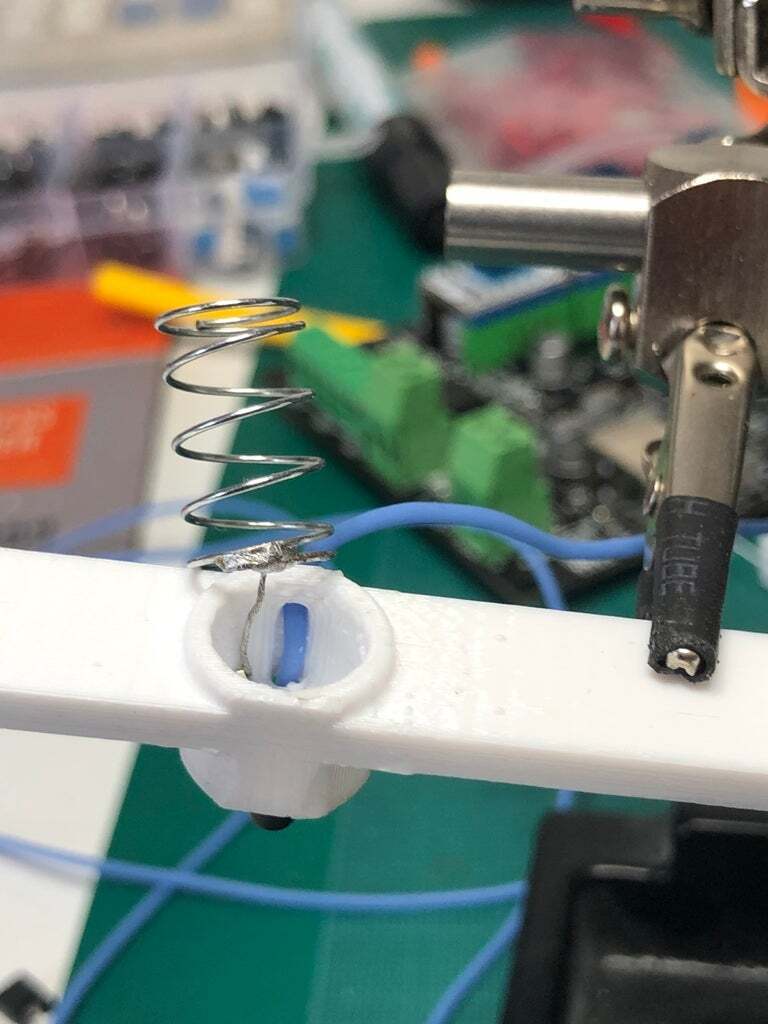

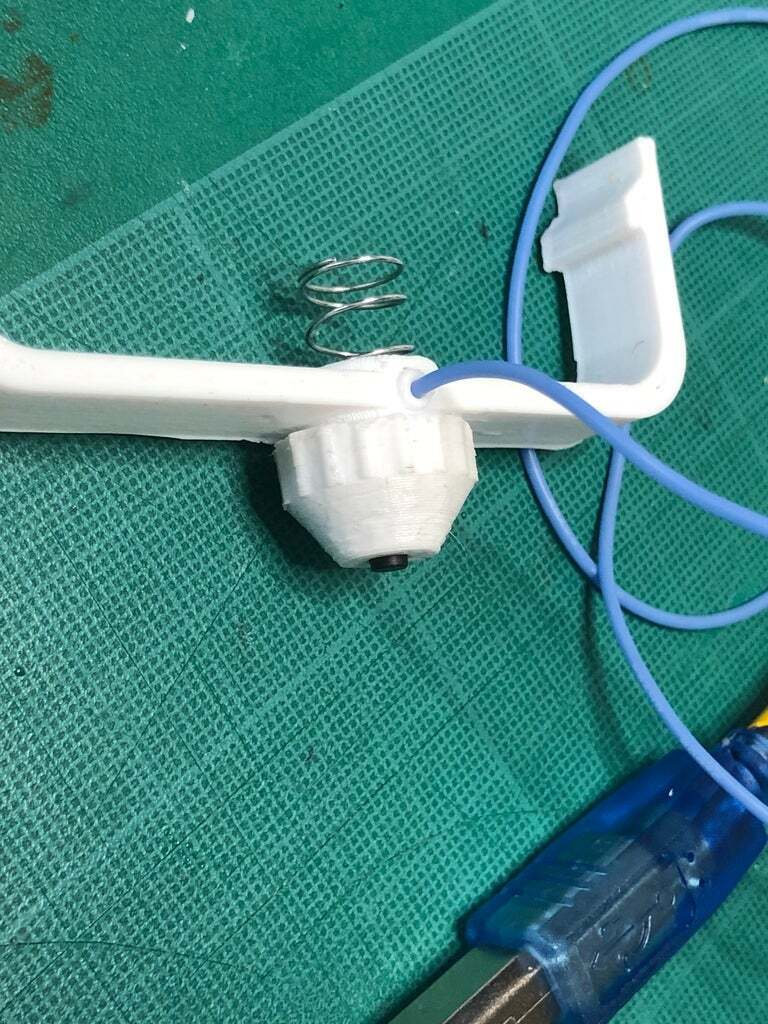

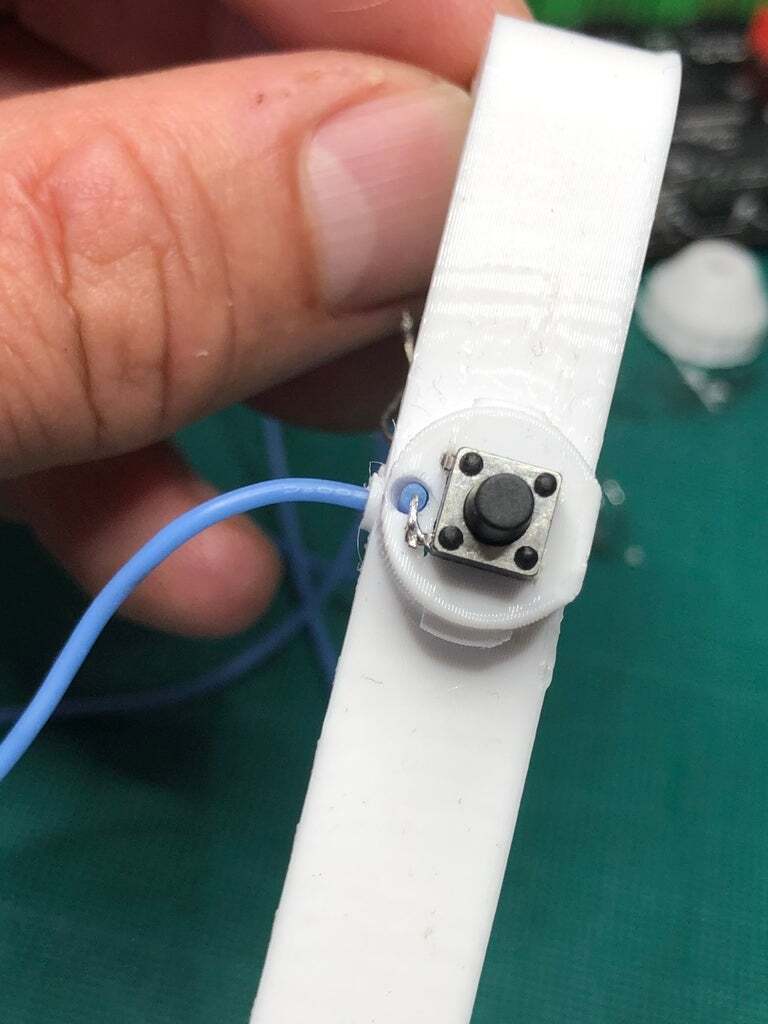

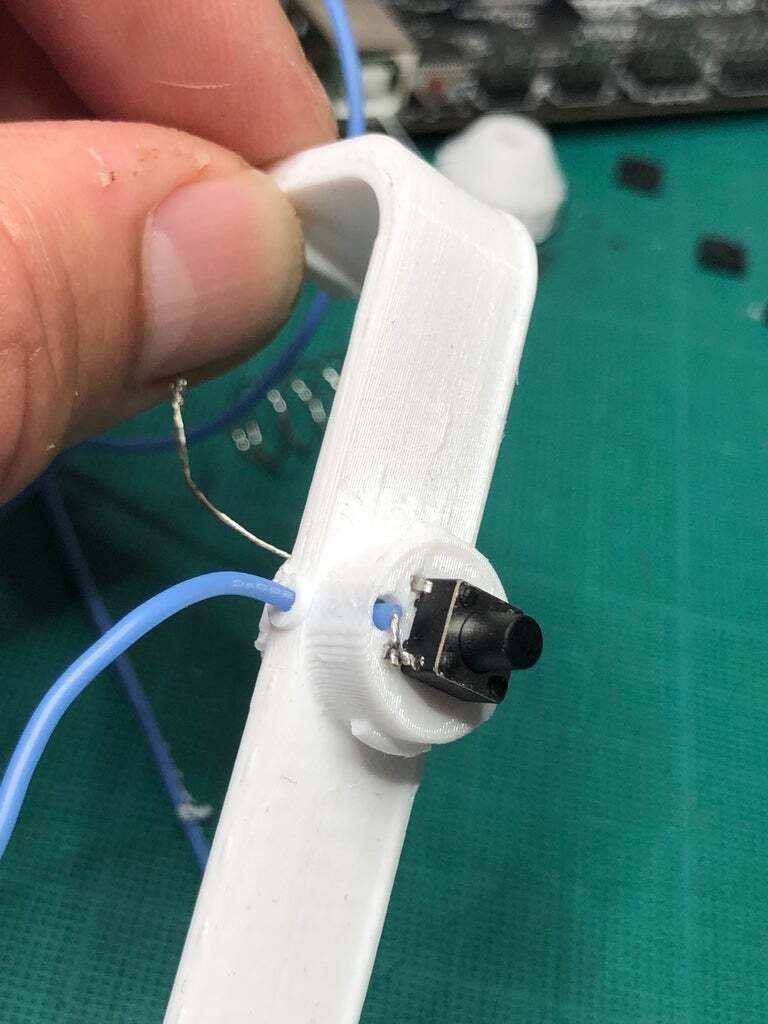

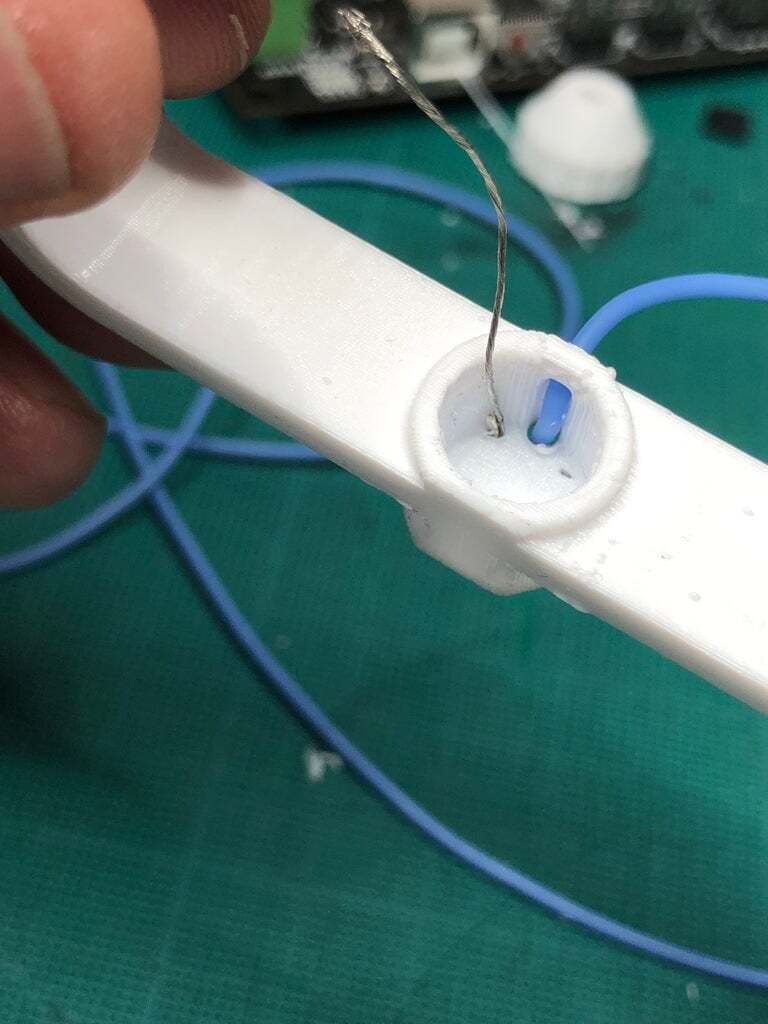

Used a regulair micro switch, a spring laying around (that just fit around the nozzle) to make good ground contact with the heat block, and Fusion 360.

Only to adjust the >Z_PROBE_HEIGT to 4.5 in the Robin Mini config.txt en re-flash.

https://youtu.be/JjT5ktiIY2o

  • 3D model format: STL

Tags

Creator

Designs 45
Downloads 1148
Sales $6
Followers

Hi there,

Just recently (One year ago) I discovered 3D printing and in addition 3D printing. I love tinkering my designs together in Fusion 360. Mostly inspired by things witch have some use. I'm always open for new ideas. If it's within my skills to make it, I'm happy to have a go with it.

Have fun making!
