Filament Swatch Remix

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 131 views

3D model description

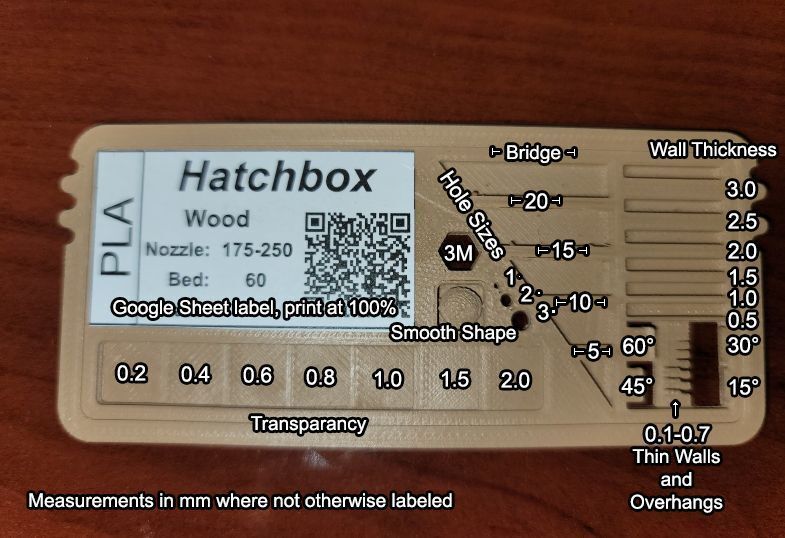

Added to JimTiffinJr's swatch. Taking B-Dizzle's comment about overhangs being a bridge test, altered these overhangs to not be supported on the sides. Moved the wall thickness test up with equal spacing between them to have space for a small wall thickness test. Added small diameter hole test, a M3 bolt test, and a smooth/thin wall test with the sphere.

I've also made a Google spreadsheet for printing the labels.
https://docs.google.com/spreadsheets/d/1sWyXKjbQ7fJqG6qStKVCCnseagG1aF3OA-8gCDlvRBY/edit?usp=sharing

Techsider made an Excel (XLSX) label: https://www.thingiverse.com/thing:4698734

JimTiffinJr made a holder for this swatch shape https://www.thingiverse.com/thing:4670035

My sketchup file is included for those would would like to take their hand at altering this.

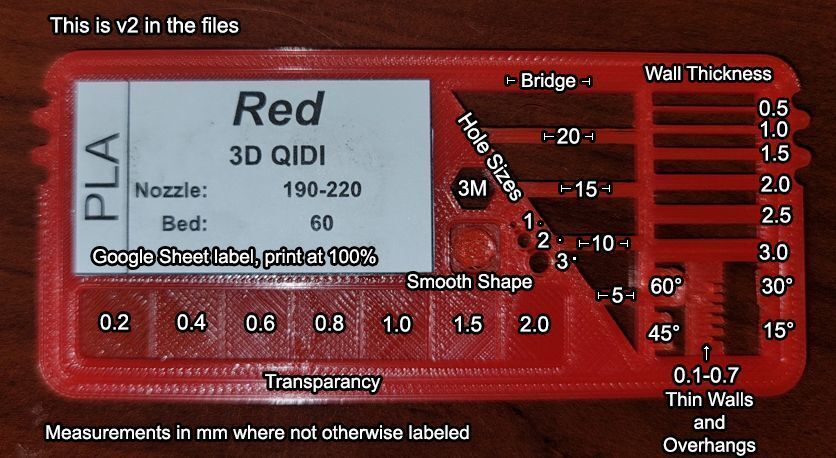

Edit 12/29/2020: Added a second version without a bottom of the bridging to make it easier to see the quality of that. Also dropped the floor from the wall thicknesses.


3D printing settings

-

3D printer file information

  • 3D design format: SKP and STL Folder details Close
    • Filament_Swatch_remix.skp
    • Filament_Swatch_remix_v1.1.stl

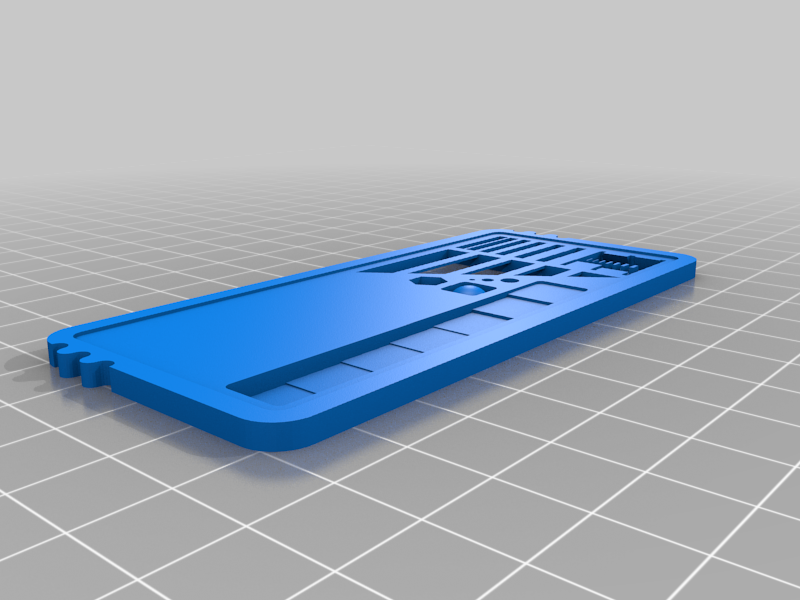

    • Filament_Swatch_remix_v2.1.stl
  • Publication date: 2021/07/24 at 01:10

License

CC BY
