Filament Spool Holder

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 132 views

3D model description

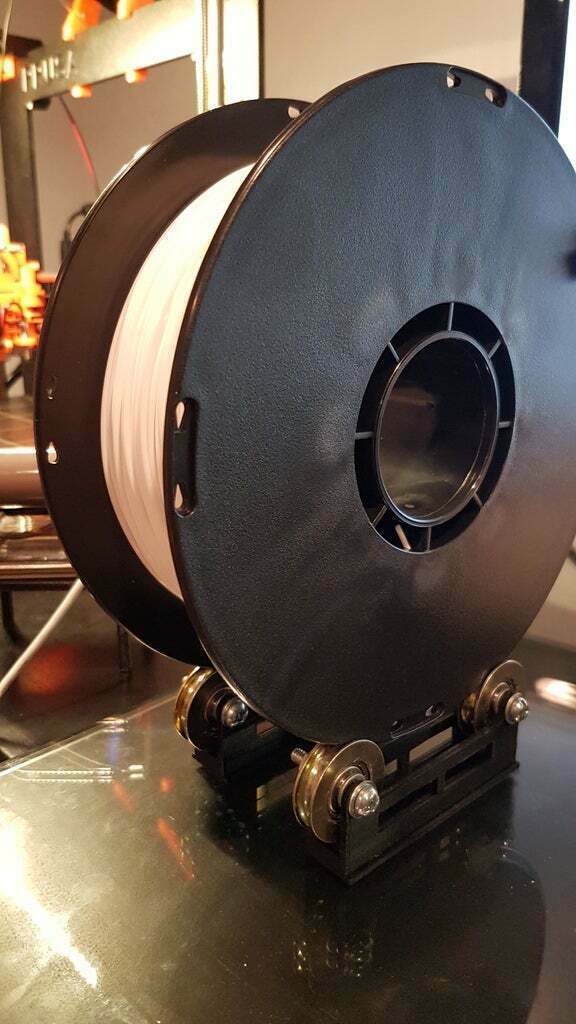

I took the Universal Filament Spool holder design by DDeGonge888 and recreated it and adjusted the sized to suit my supplies on hand.

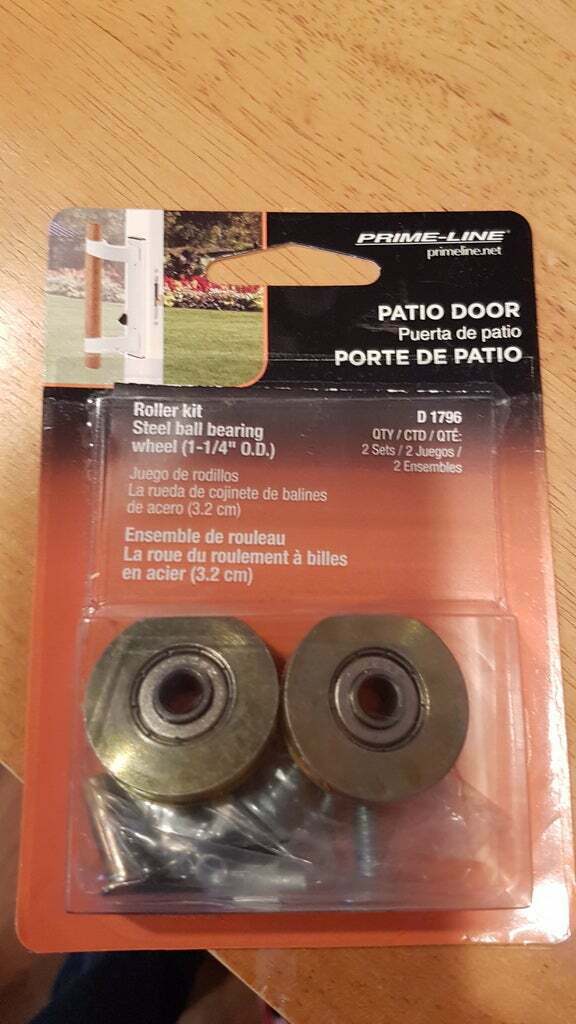

The largest factor was my rollers. I look around my local big box hardware store, and found no bearings. Being impatient and not wanting to wait for a package to arrive in the mail. I went with rollers for a sliding door, they have built in bearings and come two to a package. The package was about 6 dollars. The really nice thing about them is that they already have a built in groove that the spool edge fits into nicely.

For securing the rollers I just used extra machine screws 10-24 1 1/4", nuts, and washers I had on hand. 1" screws would work too, I just didn't have any handy.

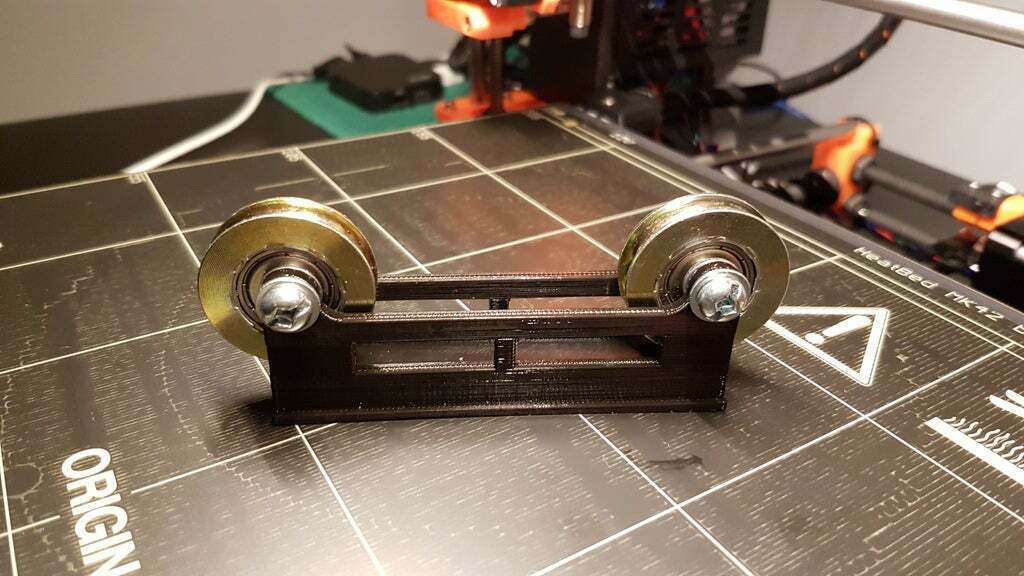

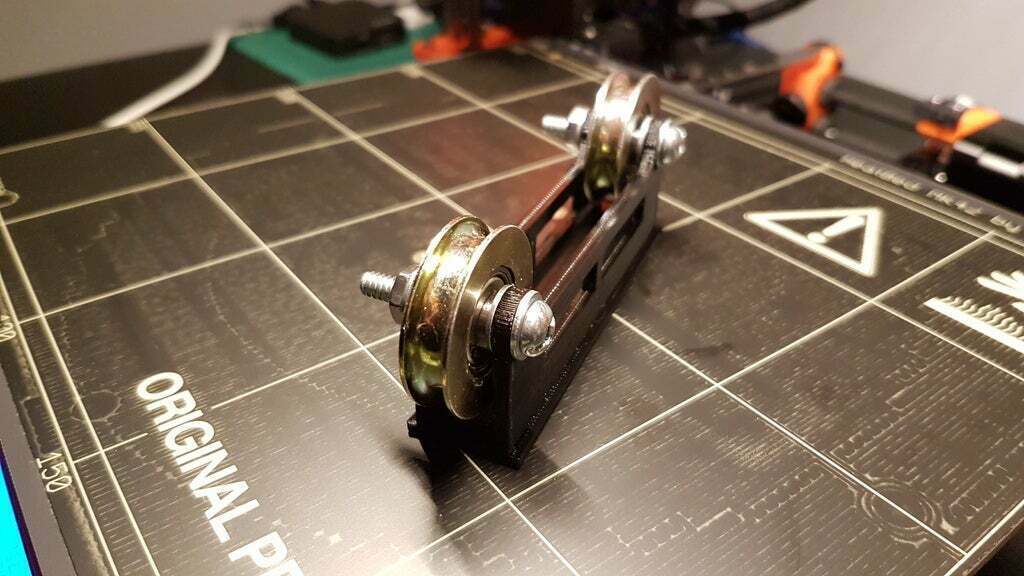

(screw-washer-plastic-washer-bearing-washer-plastic-washer-nut) Fits nice a snug and rotates freely.

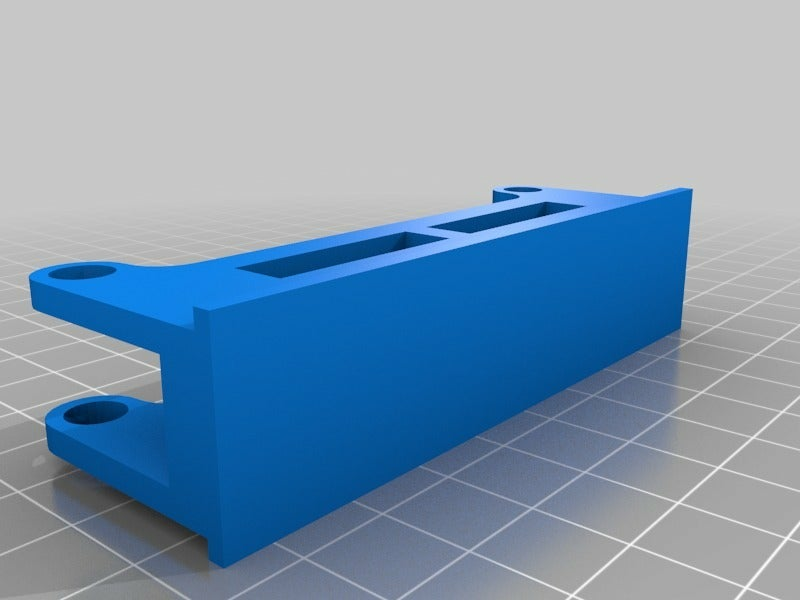

.IPT file is included so you can modify to fit your own solution.

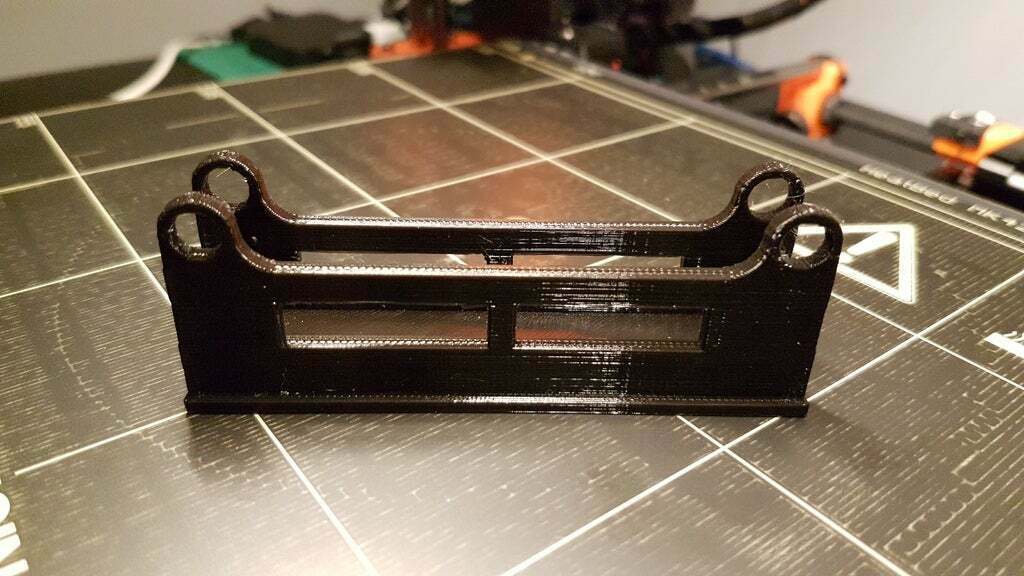

I would rotate it so the base is down for printing. Also you'll need to make sure your printer can do some bridges or add supports if it's a trouble spot for you.

3D printing settings

-

  • 3D file format: STL
  • 3D model size: X 90 × Y 32 × Z 22 mm
  • Publication date: 2021/03/29 at 03:33

License

CC BY SA

Tags

Creator

I'm just a Dad who enjoys 3d printing and a multitude of other interesting projects.
