Filament guide with Hinge for a Fan - Anet A8

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.1k views
  • 9 likes
  • 75 downloads

3D model description


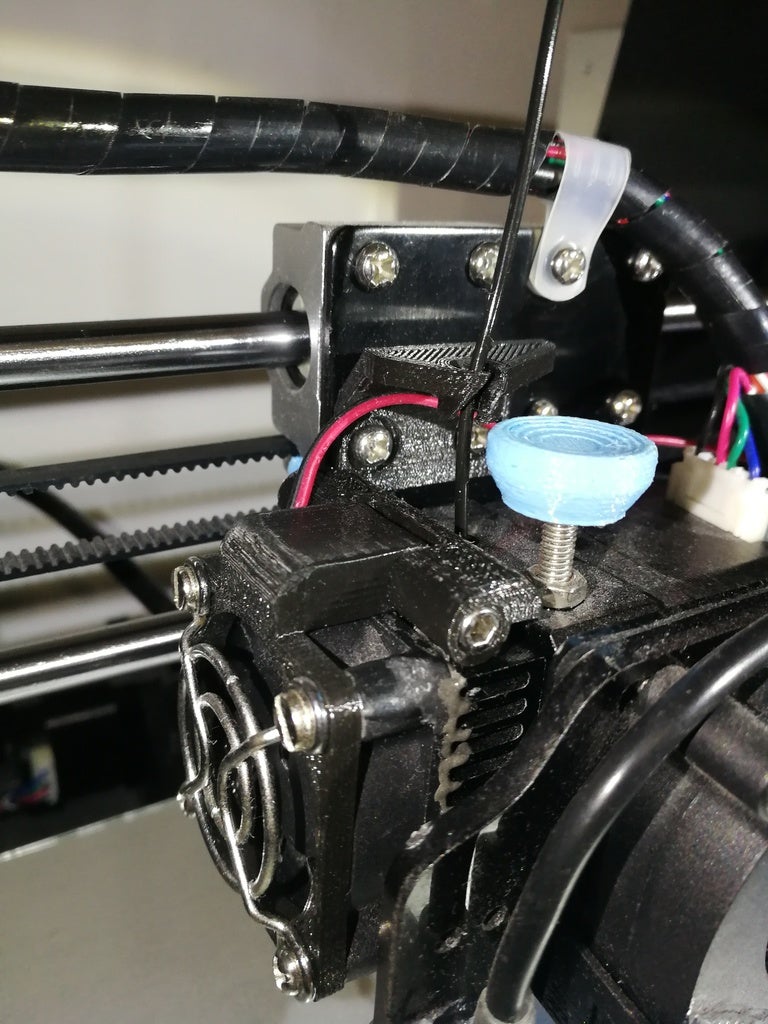

Added a new version (the black filament parts) those work even better:
"new_HINGE2.STL"
"new_HINGE1.STL"

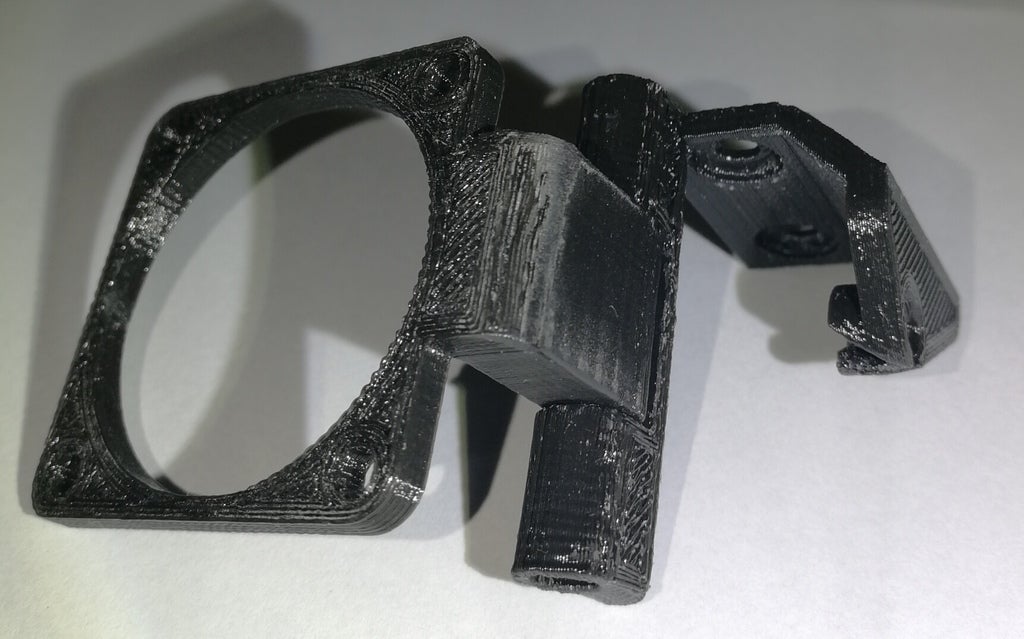

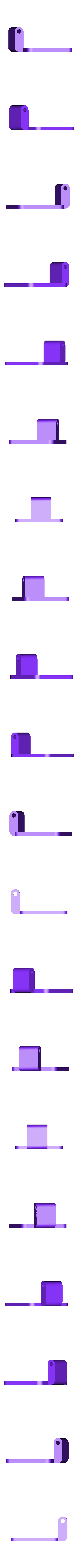

PRINT THE PARTS THE WAY YOU SEE IN THE PICTURES OF THE 3D PRINTED PARTS, USE SUPPORTS ONLY ON "new_HINGE1.STL"


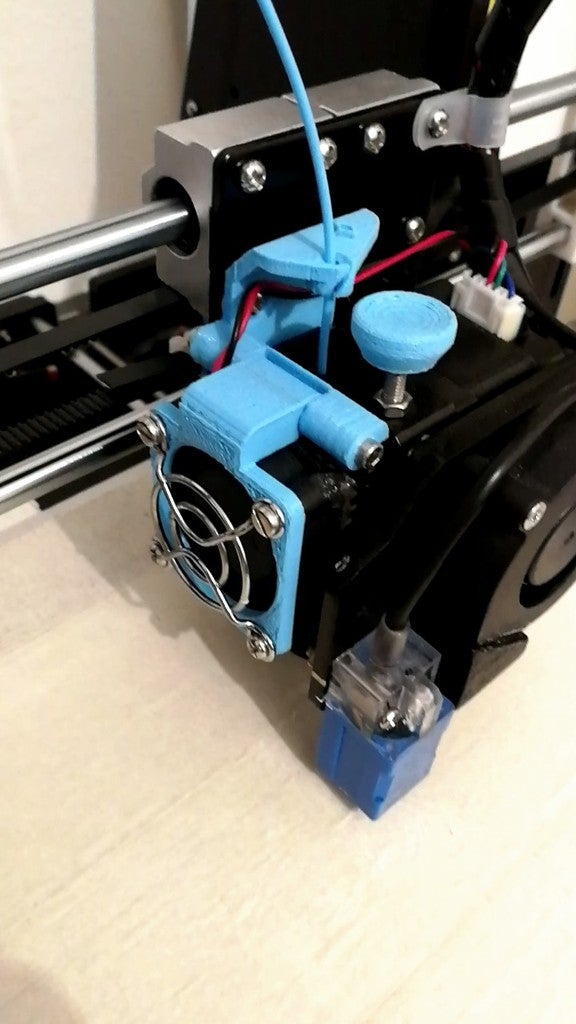

STEPS:
1) Use Cyanoacrylate to the fan screw holes to fix 4 x M3 nut threads.
2) Use the 2 x M3 screws to fix the extruder motor to the extruder carriage.
3) Cut a little bit of the heatsink at the bottom to be able to open easily.
4) Fix the fan to the heatsink with some thermal resistant glue (DIRECTION OF THE FAN: the fan must blow air into the heatsink).
5) Print or feel free to remix the STL file to improve your 3D printer.
6) use 1 x M3 (50mm long aproximetly) and 1 x M3 nut thread for the hinge.

|| DONE ||** Future update: To add a hinge to be able to easily open the extrusion chamber.
