Face shield holder

?
Creation's quality: 4.5/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 8.5k views
  • 18 likes
  • 1k downloads

3D model description

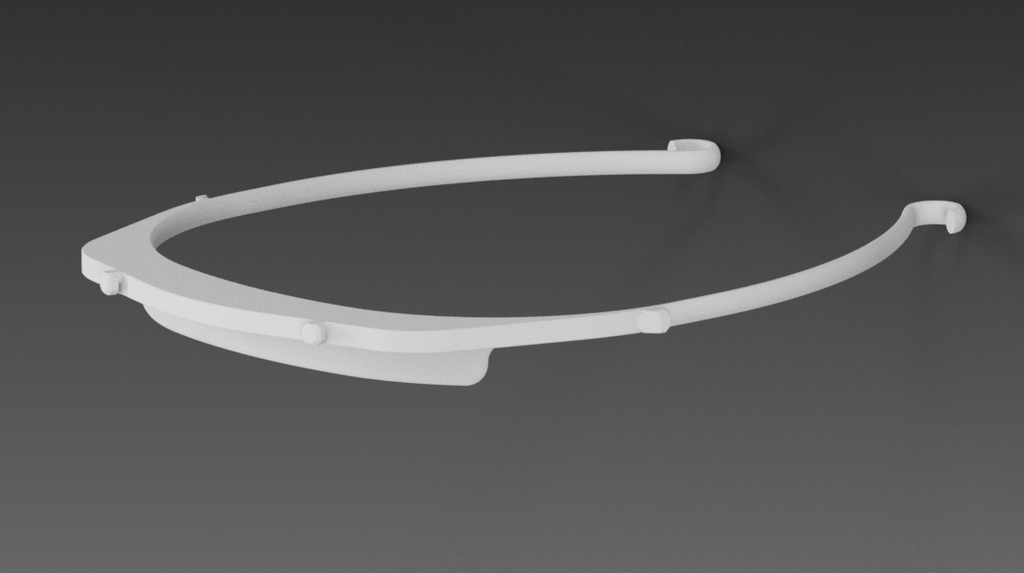

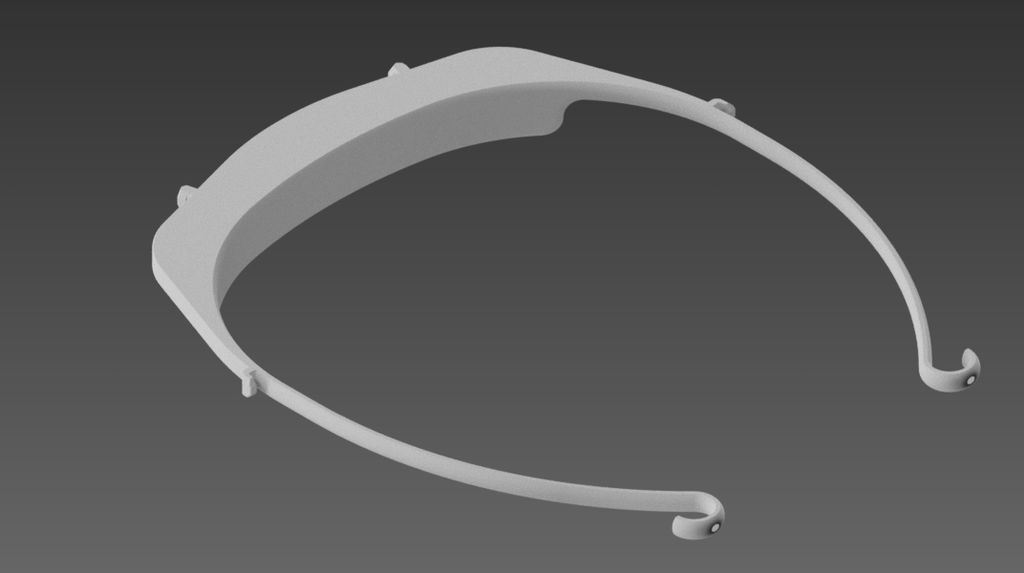

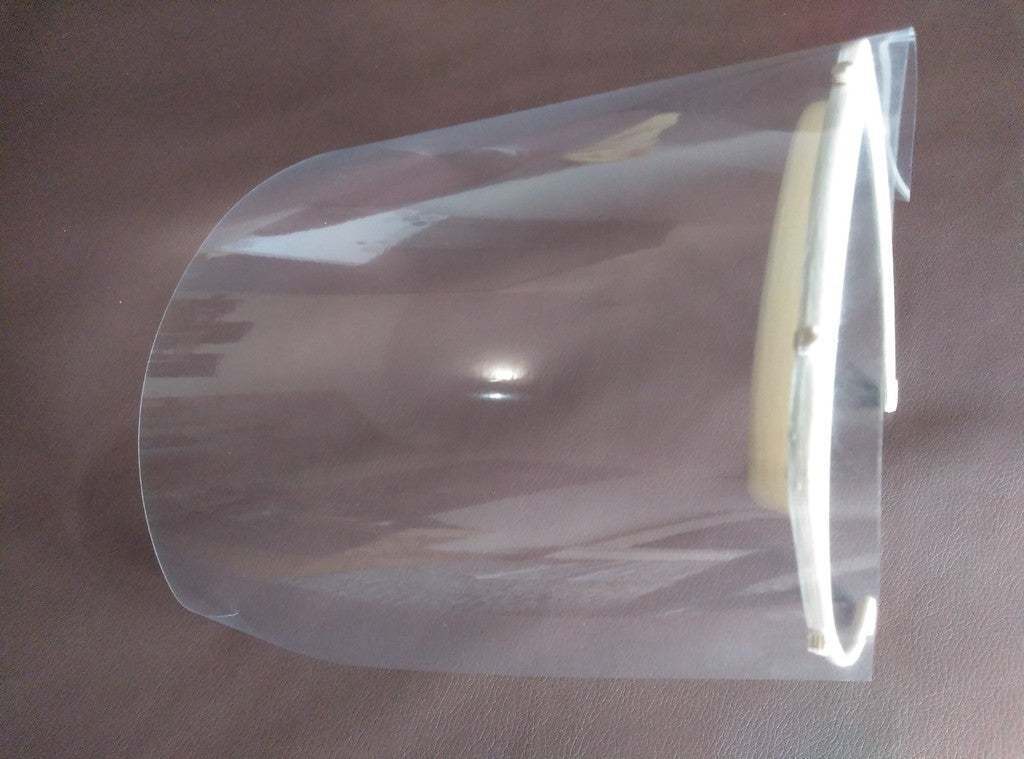

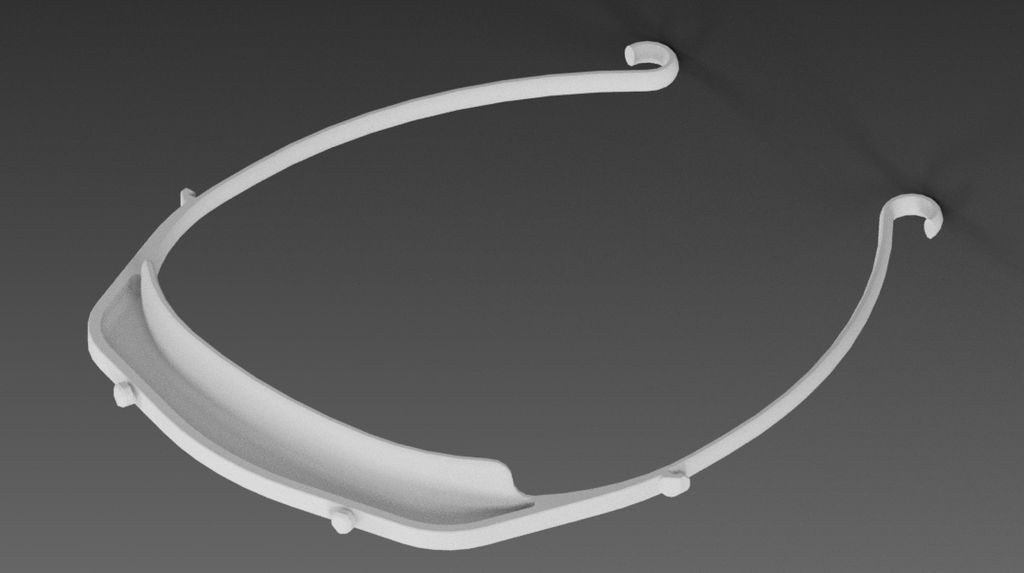

Face shield using a transparent A4 sheet.

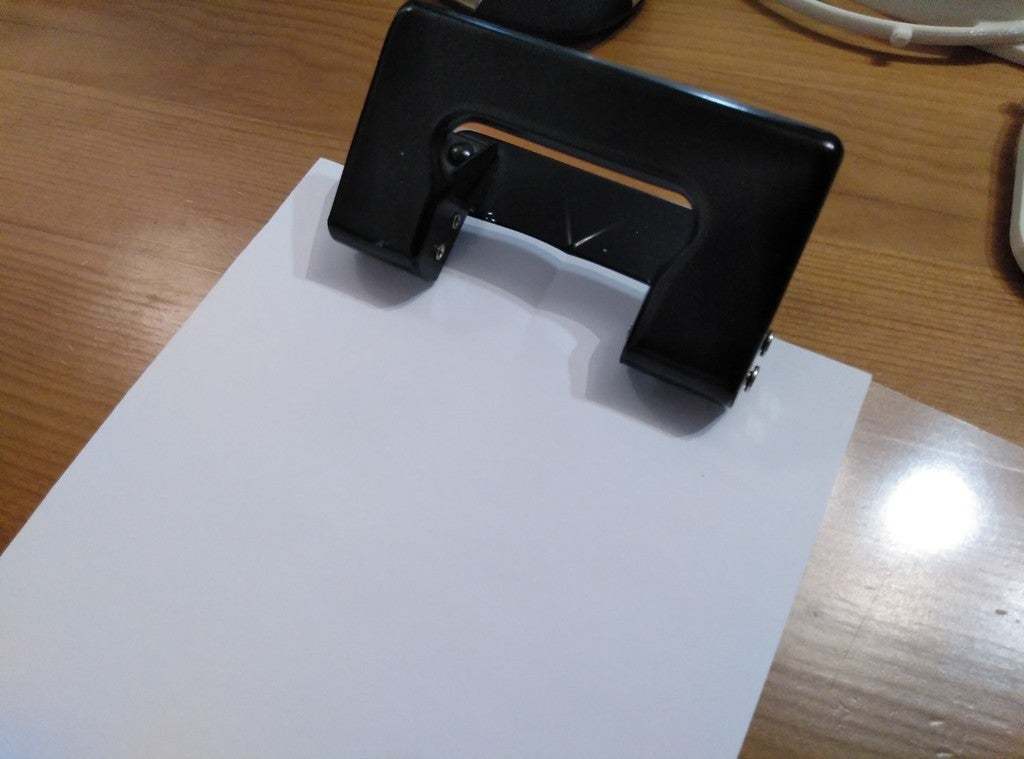

The holes can be done with an european hole punch. Fold an A4 sheet of paper 2 times and use the marks, or use a hole puncher to A5-E and open the holes in each side of the sheet (please see photos attached).

It's comfortable, covered on top and it holds the sheet quite firmly although it's quick to replace.

  • 3D file format: PDF, STEP, and STL
  • Last update: 2020/04/08 at 11:32
  • Publication date: 2020/03/26 at 09:26

Tags

Creator

Designs 12
Downloads 2.2k
Followers 14

License

CC BY


Best sellers of the category Tool


Add a comment

2 comments

Hello Nathan,

I'm sorry I forgot to added the file with the dimensions...

I've just updated the page with a JPEG and a PDF file with the dimensions in mm and inches!

Thank you, and stay safe!

Luis

Hello,

I'm in the US and have printed out about 5 of these so far. I can't seem to get the hole spacing right because I'm using US Letter paper and don't have the a 2 hole european punch. Would you be able to provide the center-to-center distance of the four holes. I would like to make a drilling jig to drill the holes accurately. Thanks so much.

Nathan
