3D model description

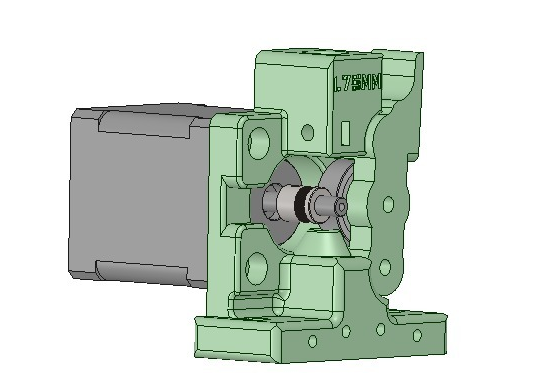

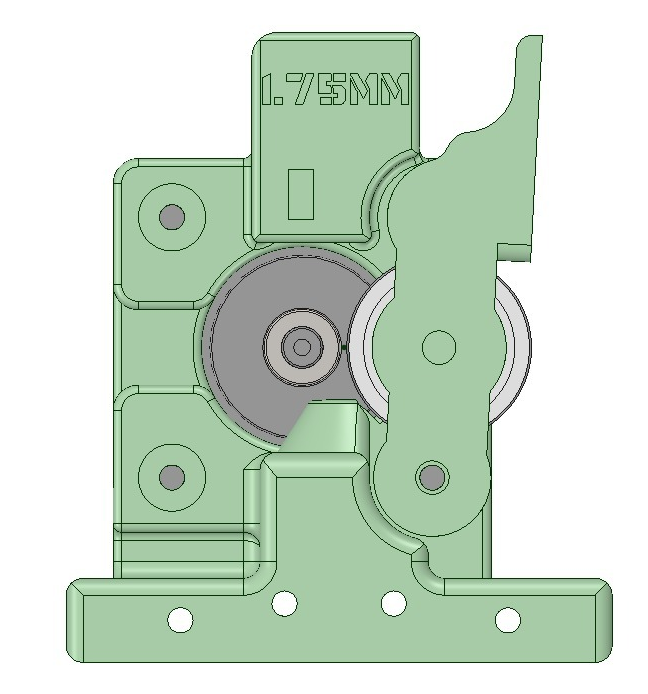

This extruder is the one used on the Scalar M and Scalar XL 3D Printers for 1.75mm filament heating heads.

This extruder is compatible with the Bowden and direct versions of Scalar.

To use this extruder in direct mode, you can use the following adapter:
http://www.thingiverse.com/thing:1215618
(you need to print the version compatible with your heater (E3D, AllInOne, Etc.)

This extruder allows you to install a pneumatic connector with a 1/8 "BSPT thread and compatible with 4mm outer diameter and 2mm inner diameter tubes

3D Modular Systems
3D Printers Evolutives

http://www.3dmodularsystems.com
Twitter: https://twitter.com/3dmodularsystem
Youtube: http://www.youtube.com/c/3DModularSystems3DPrinters

3D printing settings

Filling 100%

3D printer file information

  • 3D design format: STL Folder details Close

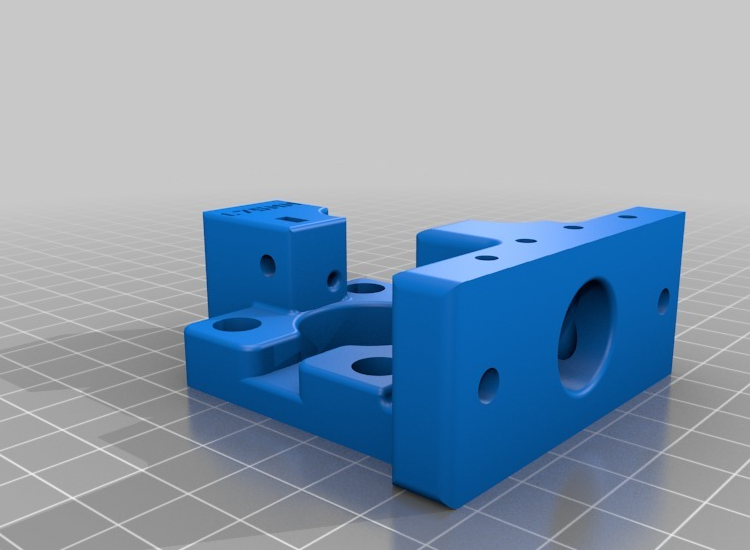

    • DirectDrive_Body_v2.stl
    • Extruder_Arm_through.stl

    Learn more about the formats

  • Publication date: 2016/10/04 at 17:16

License

CC BY SA
