Estlcam Mach3 CNC Mpcnc Controller Handheld Housing *please like*

3D model description

Building my MPCNC 2019

Leave a like to Support me in the #XYZCHALLENGE

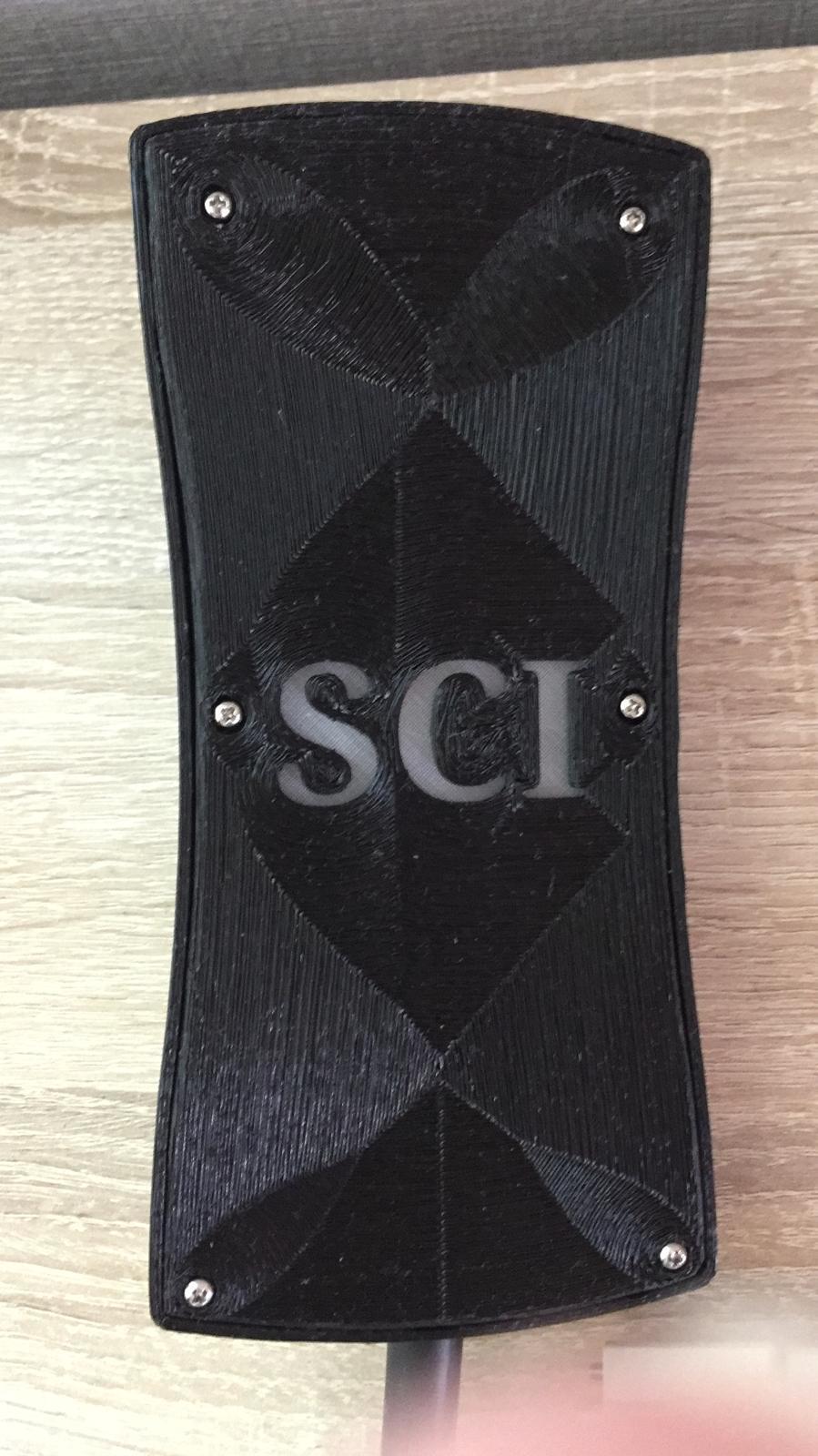

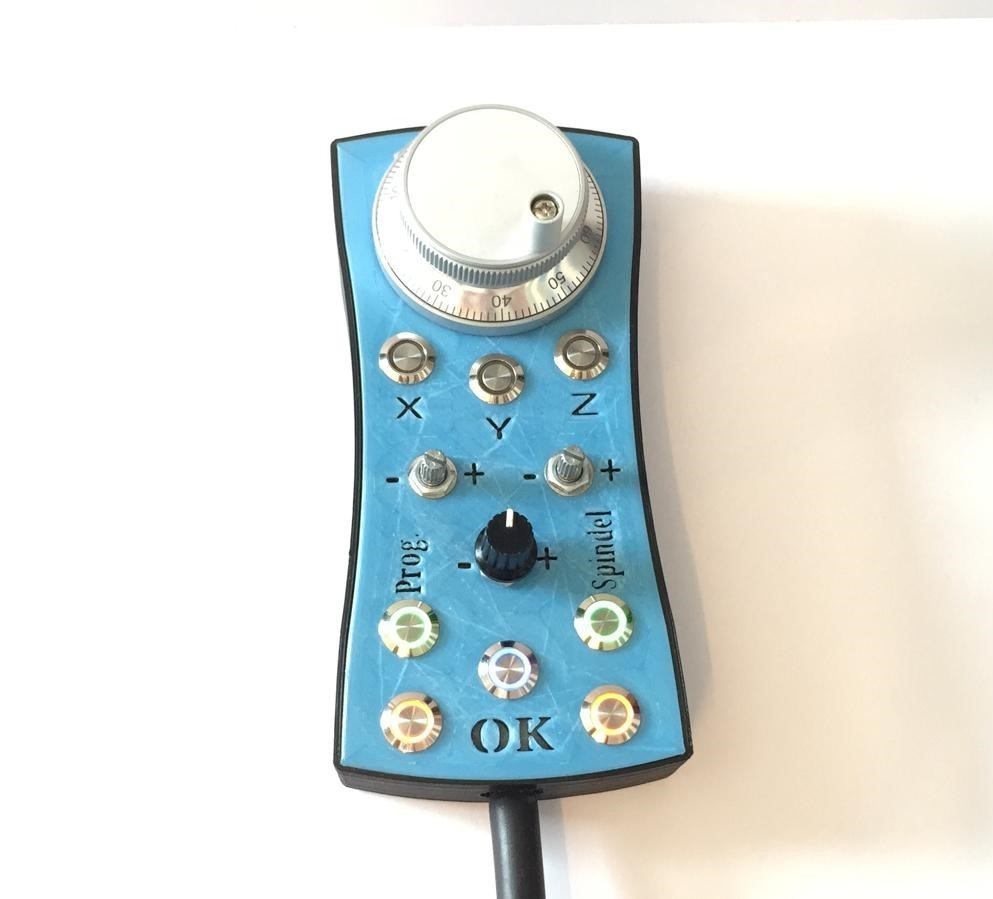

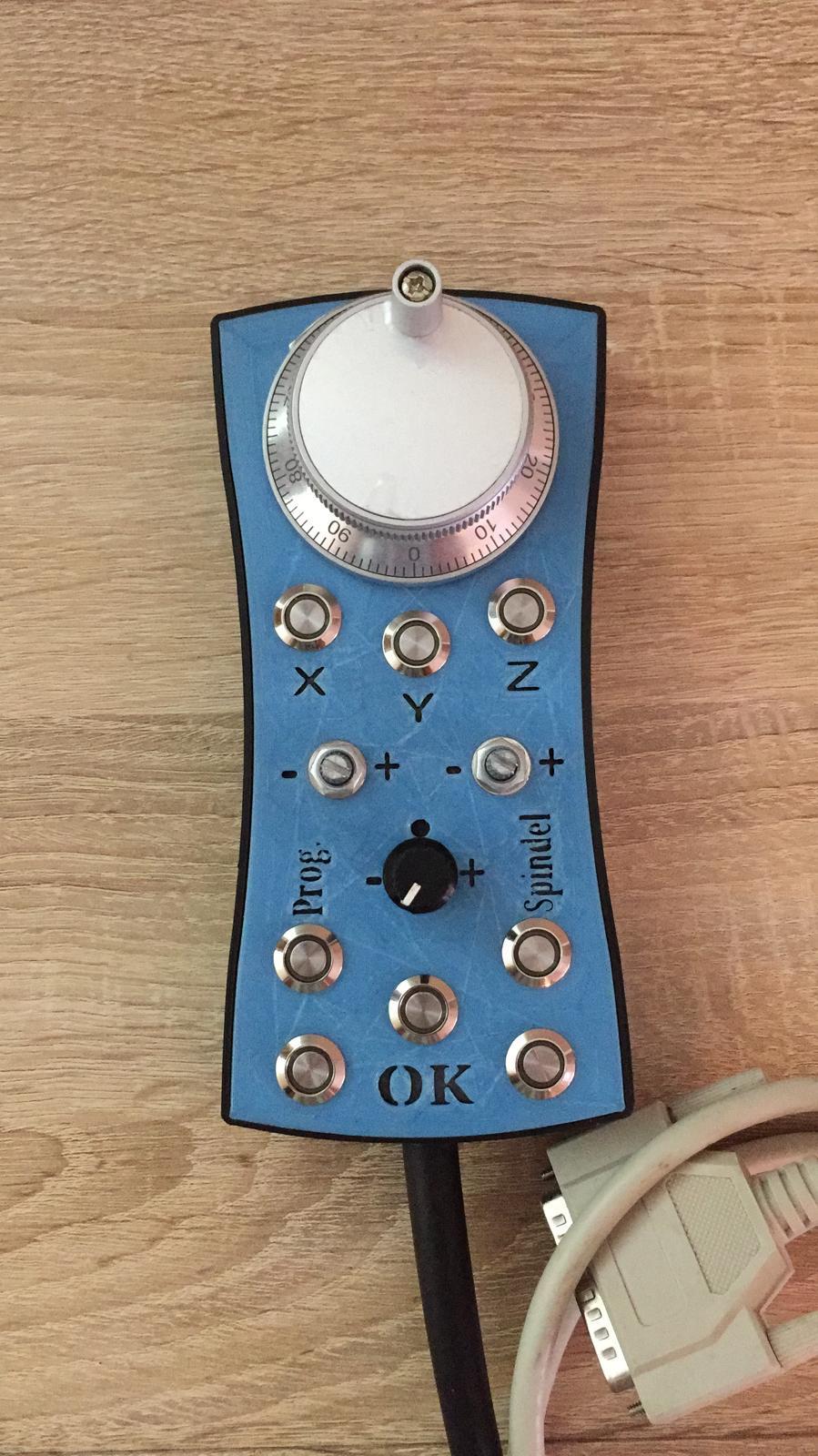

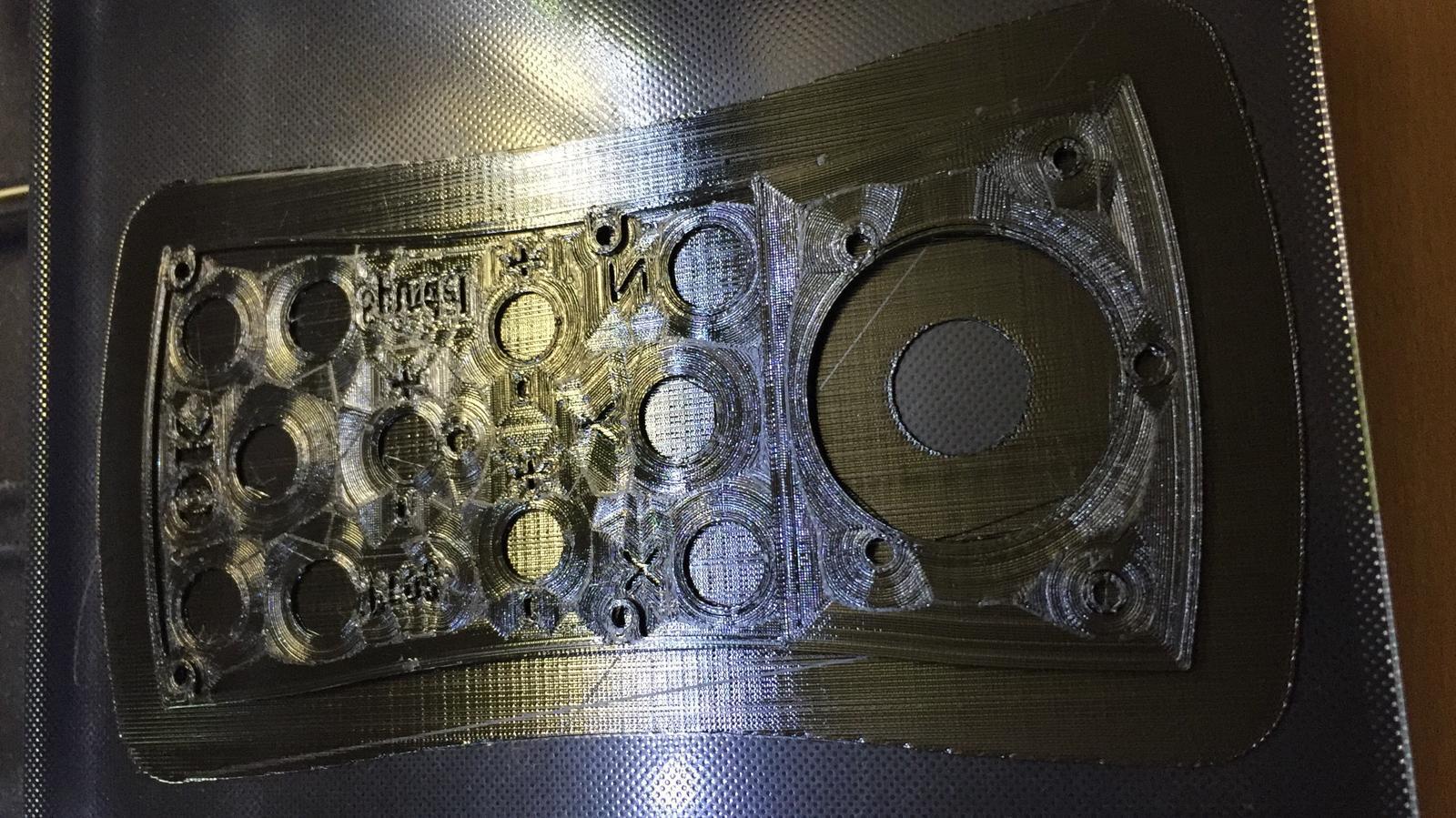

This is my smaller Version of the pretty common Handheld Housing .
Also if you print those Inlays in White its possible to add also a Backlight .

I used Lightened Switches form Aliexpress. 60mm Rotary Encoder and the Potis are also from Aliexpress. So youll get a pretty awesome Controller for your CNC for less than 50 $.

I still wait for the last Parts to make it perfect. I will show more Pictures when its done.

Feel Free to contact me if you have some Ideas to make it better.

I wired it up to use it with the Arduino Mega 2560 and with Estlcam. Its pretty awesome.

Encoder -https://de.banggood.com/custlink/DDmDJyDppi (5 Volts needed)
Push Buttons - https://short1.link/evrUDZ (5 Volts needed)
Push Buttons Update 12V - https://de.banggood.com/custlink/G3vKCdGdfO (will change to 12V because of my housing lightning)
Arduino Mega on Sale NOW - https://de.banggood.com/custlink/Gvv3phvWGI
Endstops i use - https://de.banggood.com/custlink/G3mKpdGCve (5 needed)
Nema 17 Step Engine - https://de.banggood.com/custlink/vKmKJYGcCh (5 needed)
Isolate all Contacts with - https://de.banggood.com/custlink/vmK3JYKCWJ

I bought the other Switches in a local Store. You need also two Rotary Poti Switches with 4,7kOhm and one Rotary Switch 2P6T 2 Pole 6 Position

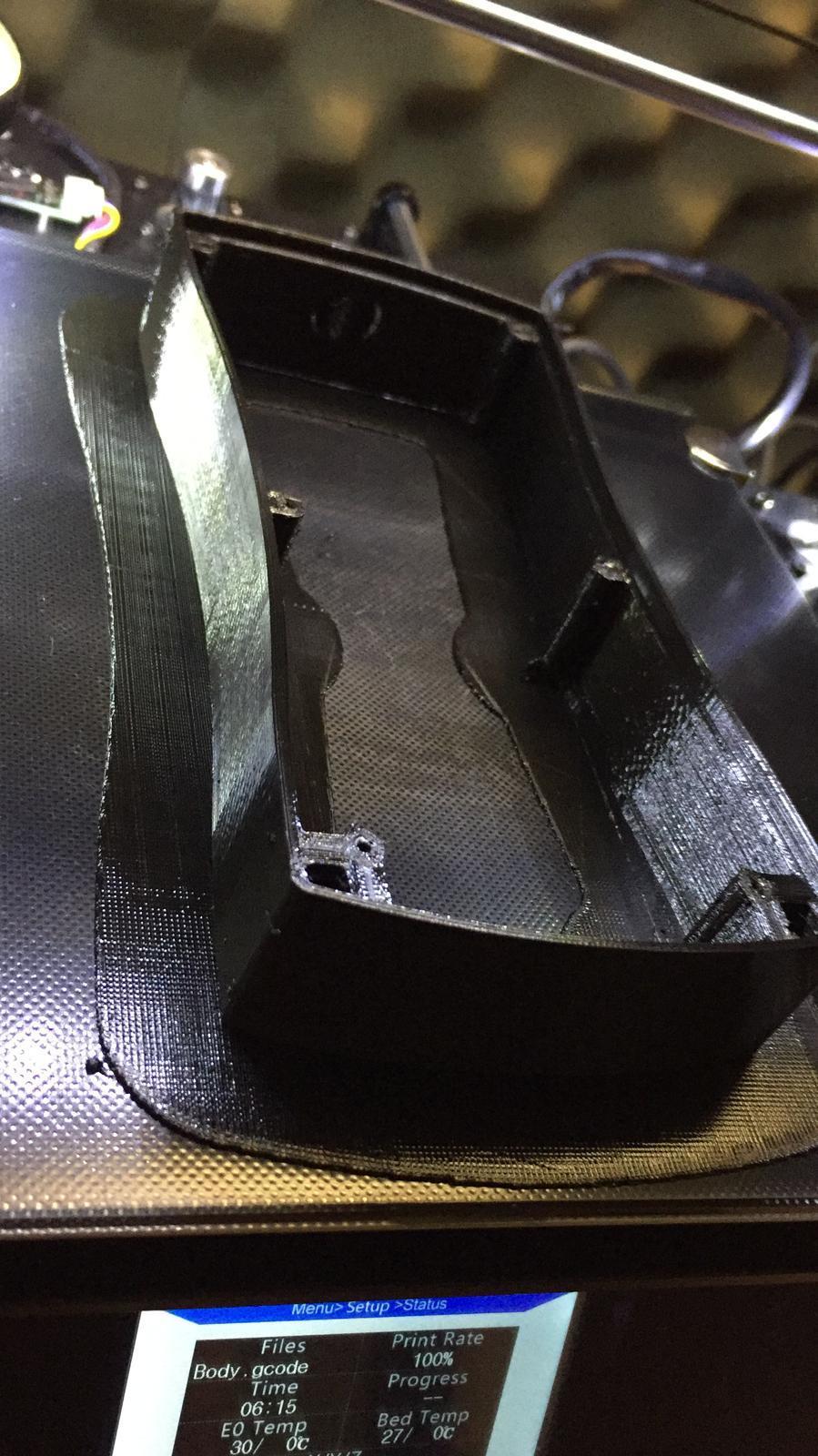

3D PRINTING SETTINGS
0.16 Layer high
60% Infill
Heated Bed on
Printed with PLA Filament
Support on

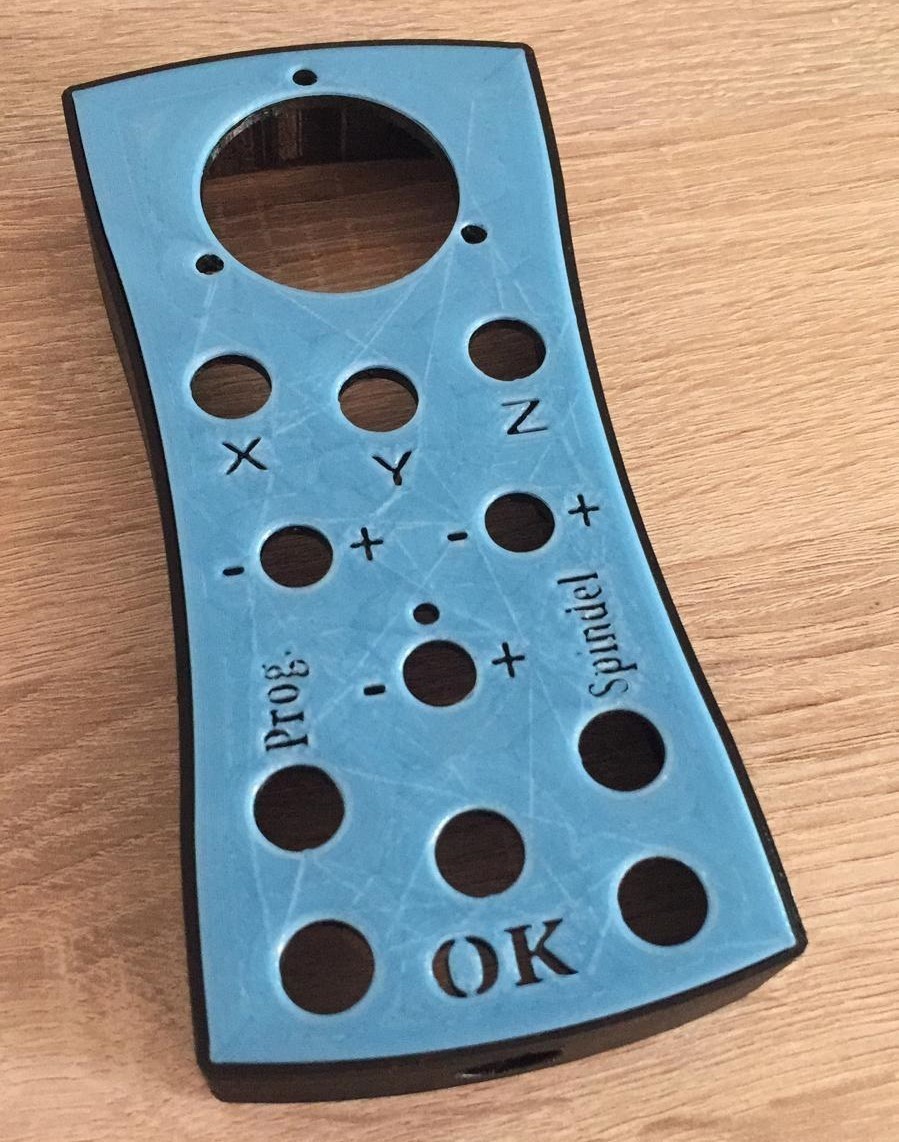

Print the Inlays in White so youre able to light the Housing from the Inside to light up the Letters. Ill use 12V for the Light inside with a seperate cable. You may have to use a D-Sub 37 Connector to set up all functions. D-Sub 25 works without the Backup Lightning ( Lights in Switches will still work / they need 5v)

UPDATE : Here youll find my Holder for this Controller, keep your space nice and structured -> https://cults3d.com/en/3d-model/tool/mpcnc-jog-wheel-mounting-plate

Visit this Site to get it run - https://www.estlcam.de/handrad.php
its on german, maybe use google translator

I Set it up like in the Link and it works perfect, Mega 2560 -> TB6600-> Nema 17

Tool lenght Sensor, Touch Plate, Milling Cutter Cooling , Endstops and a lot more will also come.

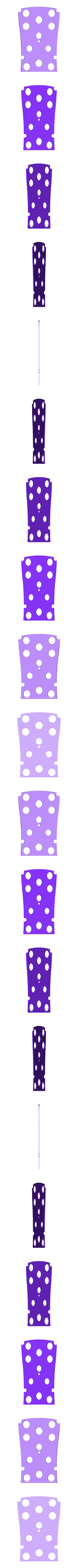

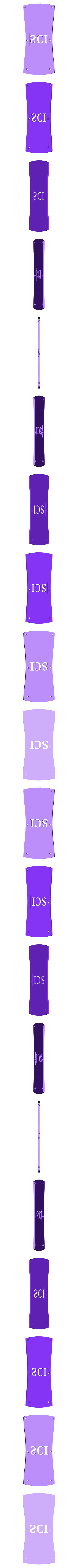

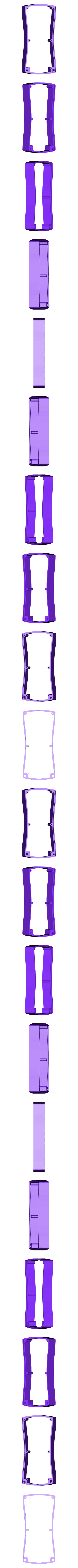

  • 3D model format: STL

Tags

Creator

Designs 12
Downloads 62
Sales $88
Followers

Im into 3D printing for many Years. Started with self Made RepRap Mendel as a first step. Creating Tools and Spare Parts and also Machines is my main Goal.
