Shoulder pad for DSLR type GH4, 5D

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

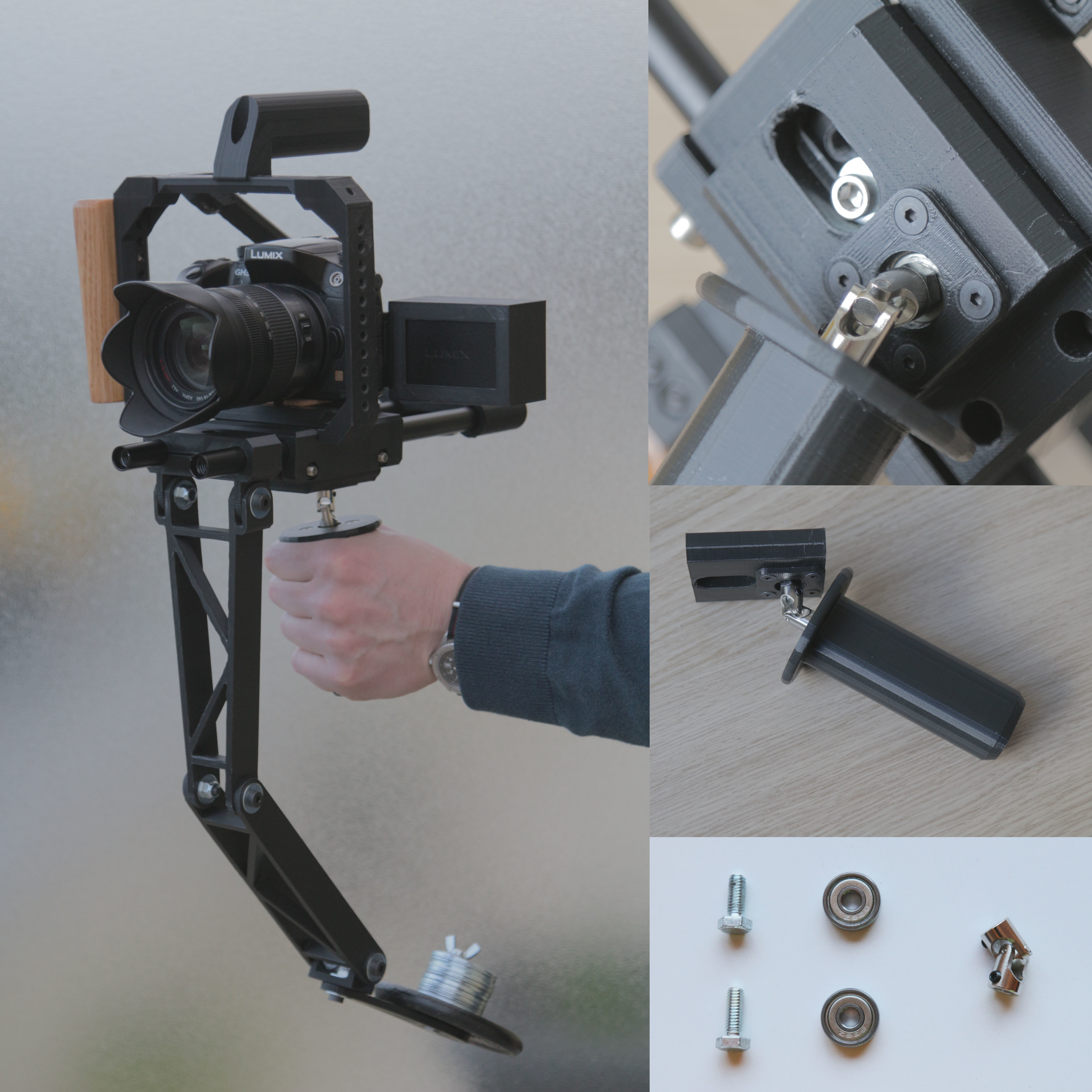

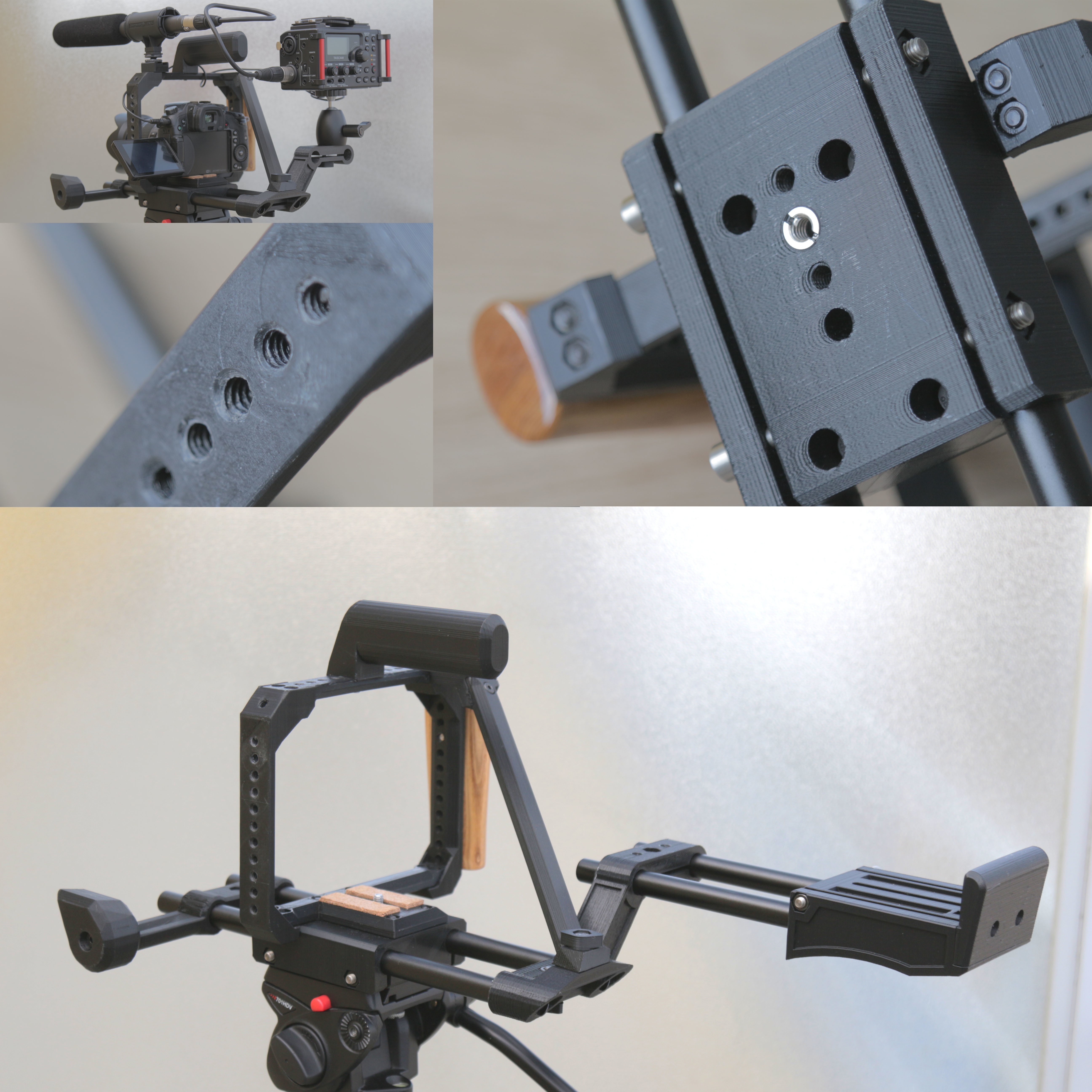

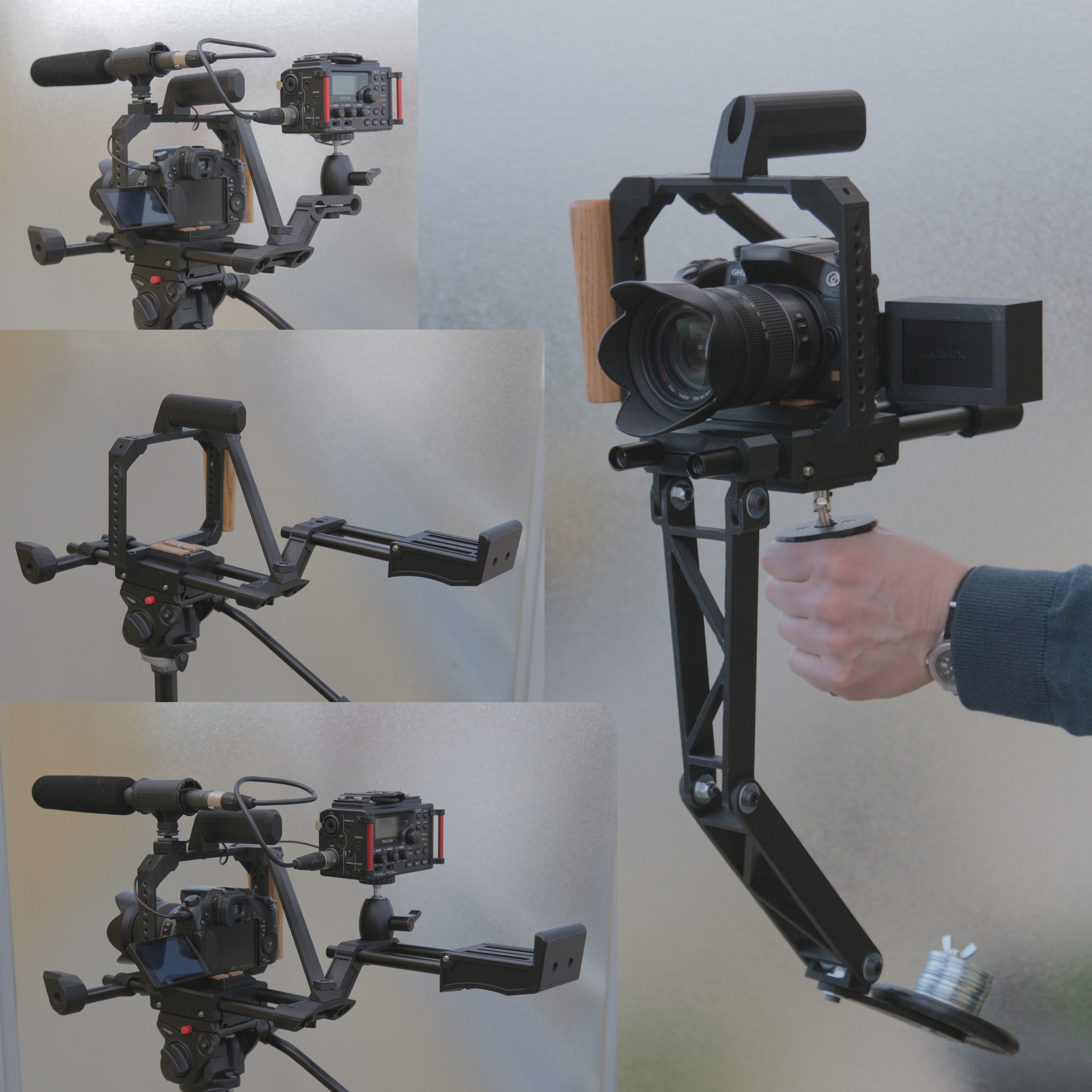

I wanted to find the ergonomics of a hand camera while using boxes type GH4 or 5D.
This solution offers both great possibilities of evolutions (standard 60mm inter-axes, 15mm bars, addition of accessories), and remains compact.
The cage is made up of four pieces with 1/4 "tapped holes (called" photo ")

Additional rooms:
3 screws M6 x 85
2 screws M6 x 20
6 Nuts M6
8 screws M5 x 16
8 screws M5 x 12
16 M5 nuts
5 screws UNC 1/4 "x 1/2"
Adapter 1/4 "to 3/8"

3D printing settings

Nozzle: 0.4
Thickness: 0.2
Filling: 25%

3D printer file information

  • 3D design format: STL Folder details Close
    • Ep_Barre_Basse.stl
    • Ep_Barre_Droite.stl
    • Ep_Barre_Gauche.stl
    • Ep_Barre_Haute.stl
    • Ep_Deport.stl
    • Ep_Jambe.stl
    • Ep_PoigneeGauche.stl
    • Ep_Poignee_Droite.stl
    • Ep_Poignee_Sup.stl
    • Ep_Support_Epaule_Coupe.stl
    • Ep_Support_Epaule_Coupe2.stl
    • Ep_Support_Poignee_Avant.stl
    • Ep_Support_Semelle.stl

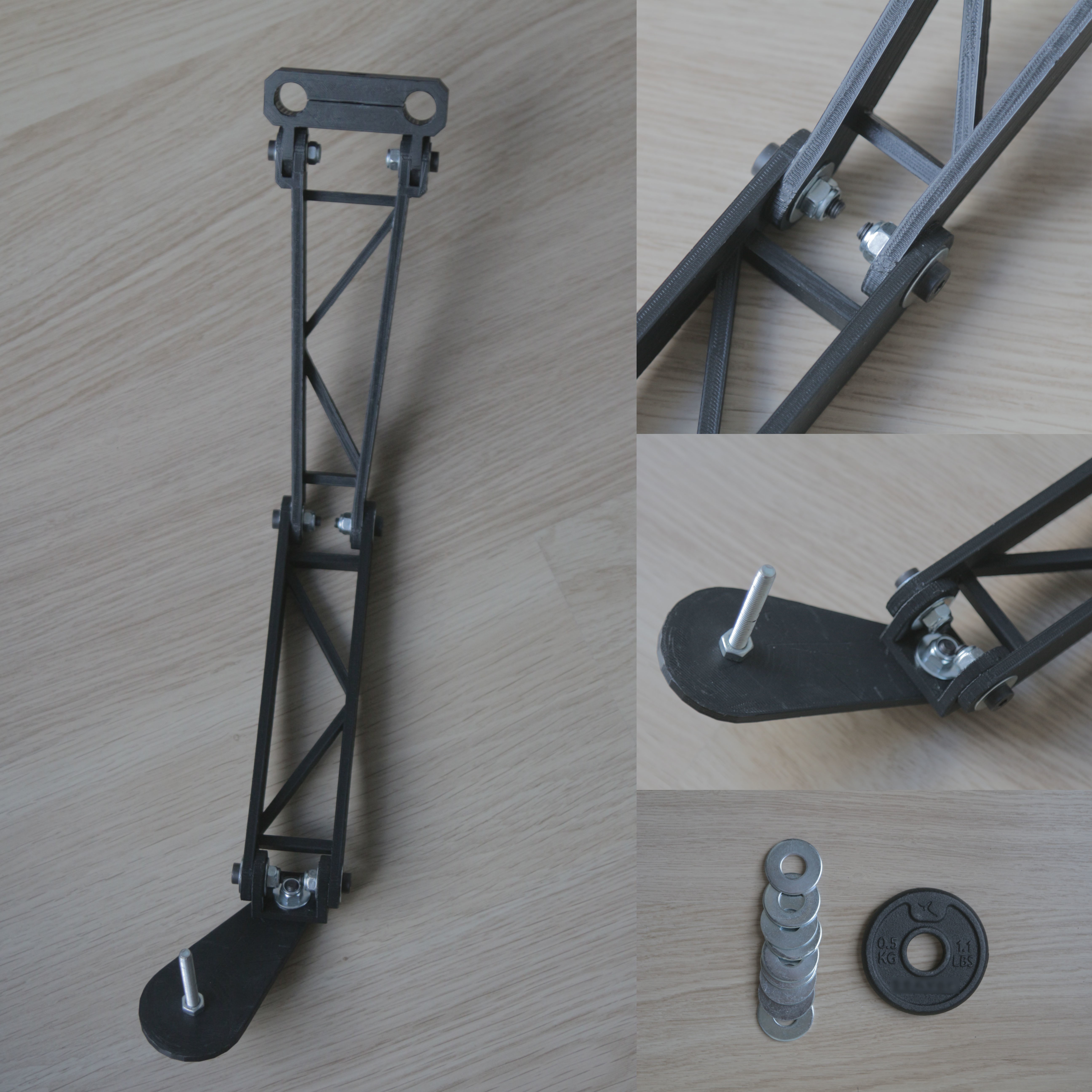

    • Stab_Bras1.stl
    • Stab_Bras2.stl
    • Stab_Capot_ContreSemelle.stl
    • Stab_Capot_Poignee.stl
    • Stab_ContreSemelle.stl
    • Stab_Piece4.stl
    • Stab_Poignee.stl
    • Stab_Semelle_Poids.stl
    • Stab_Support_Bras.stl
