ball bearing assembly

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.6k views
  • 9 likes
  • 178 downloads

3D model description

I tried to make a ball bearing in one pass.

I didn't find it precise and obvious enough to do.

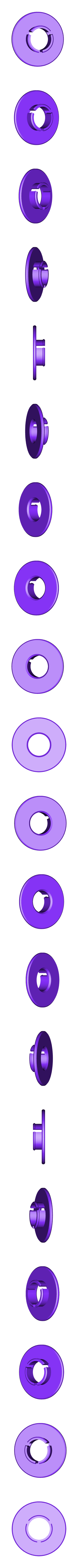

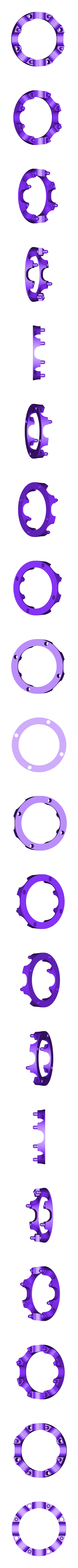

so I rotated in two passes, first the balls and then the inner and outer rings.

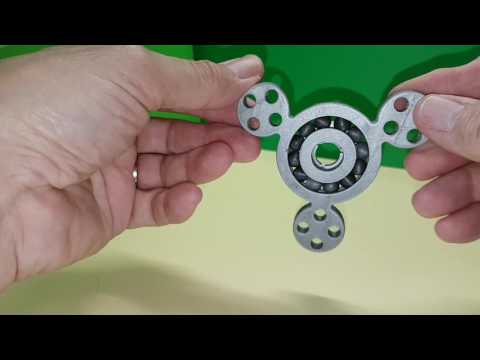

Everything is explained in the video.

https://www.youtube.com/watch?v=hj19-bQK_bA

short form

https://www.youtube.com/watch?v=TVoB3-zZ_LY&feature=youtu.be

There is good rolling and non-slip.

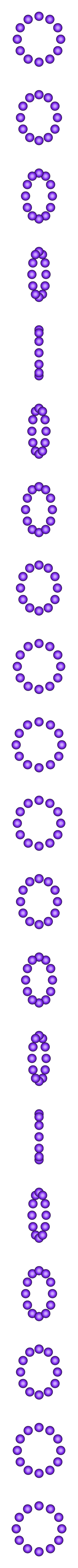

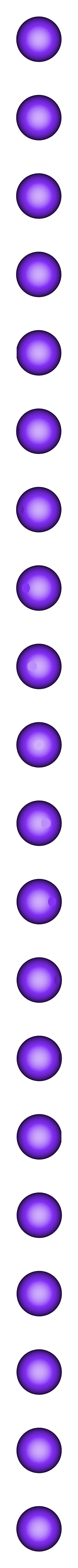

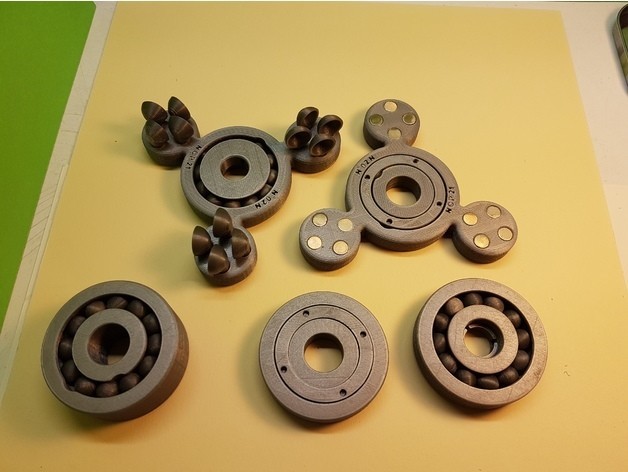

I made two principles, with 12 marbles and with 8 marbles.

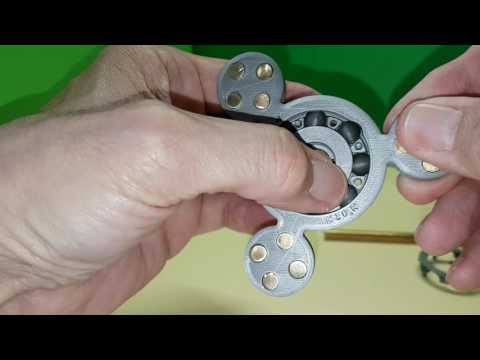

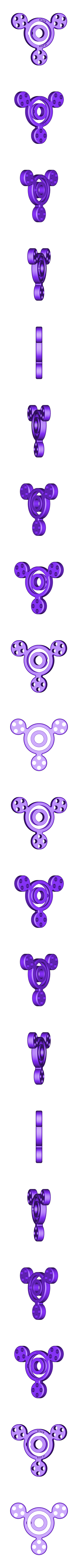

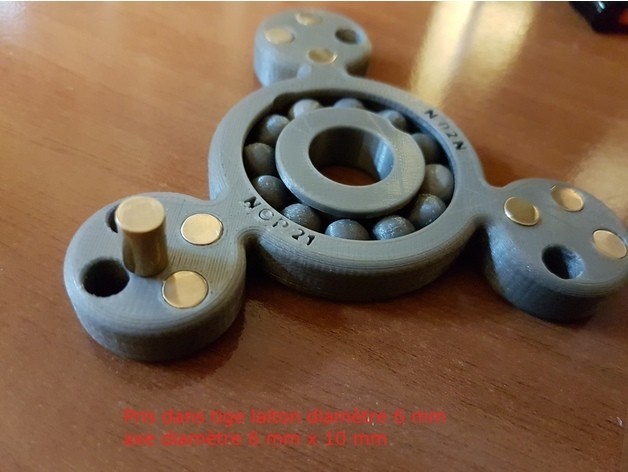

two more little spinners.

NOP21

3D printing settings

Printer Brand:

Ultimaker

Printer:

Ultimaker 2

  • 3D file format: STL
  • Publication date: 2018/06/28 at 14:39

Creator

Designs 158
Downloads 35.7k
Sales US$15
Followers 723

Ancien chef d'entreprise, aujourd'hui à la retraite. Passionné d'impression 3D

License

CC BY NC ND
