Ender 5 Strong bed supports

?
Creation's quality: 4.4/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 6.1k views
  • 20 likes
  • 282 downloads

3D model description

I had tried a few tray reinforcements from other creators, but I couldn't find a strong enough solution.

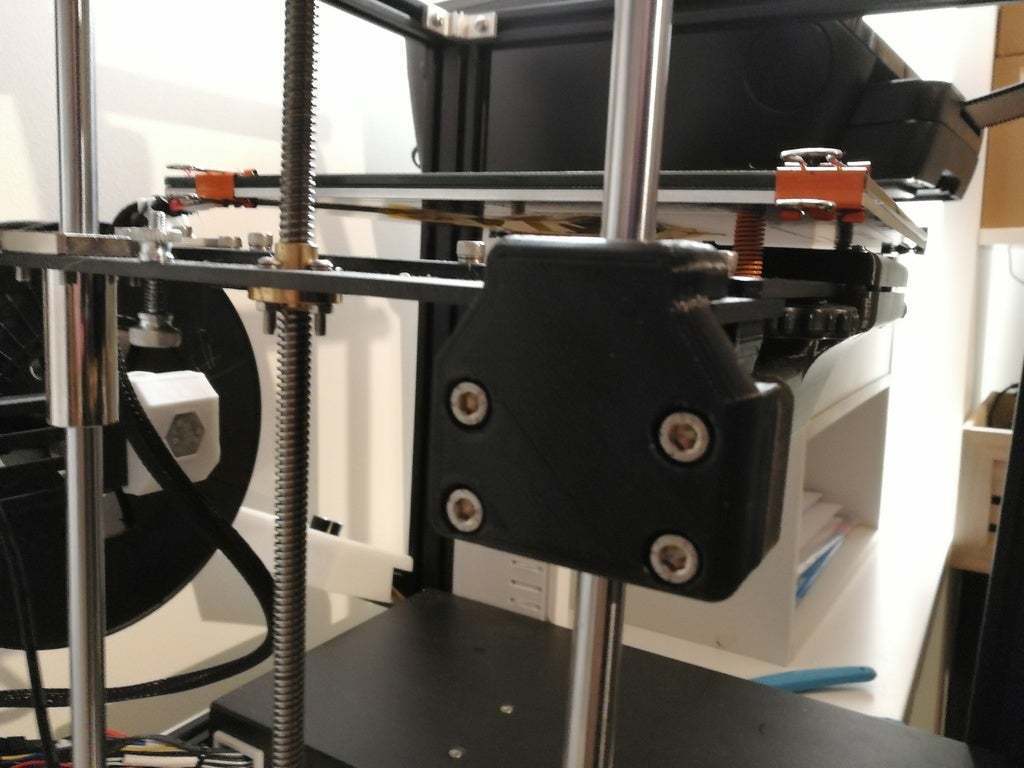

The hook system that you usually see to hold the bed is not static, so I opted for a counterplate with 6 M5 screws to guarantee a "flat" support on the plate.

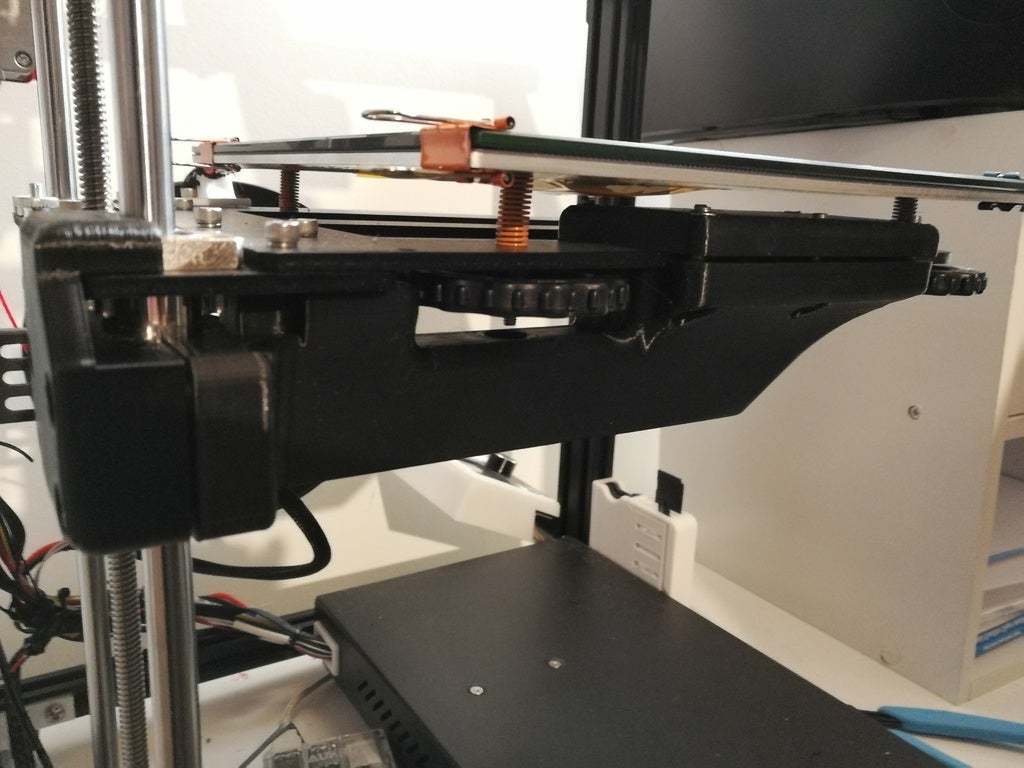

Also, the clevis system on the ball bushing that we usually see has a tendency to slip and slide down, so I kept this system and added a hook that catches the top of the ball bushing to prevent slipping.

so I made this reinforced support.

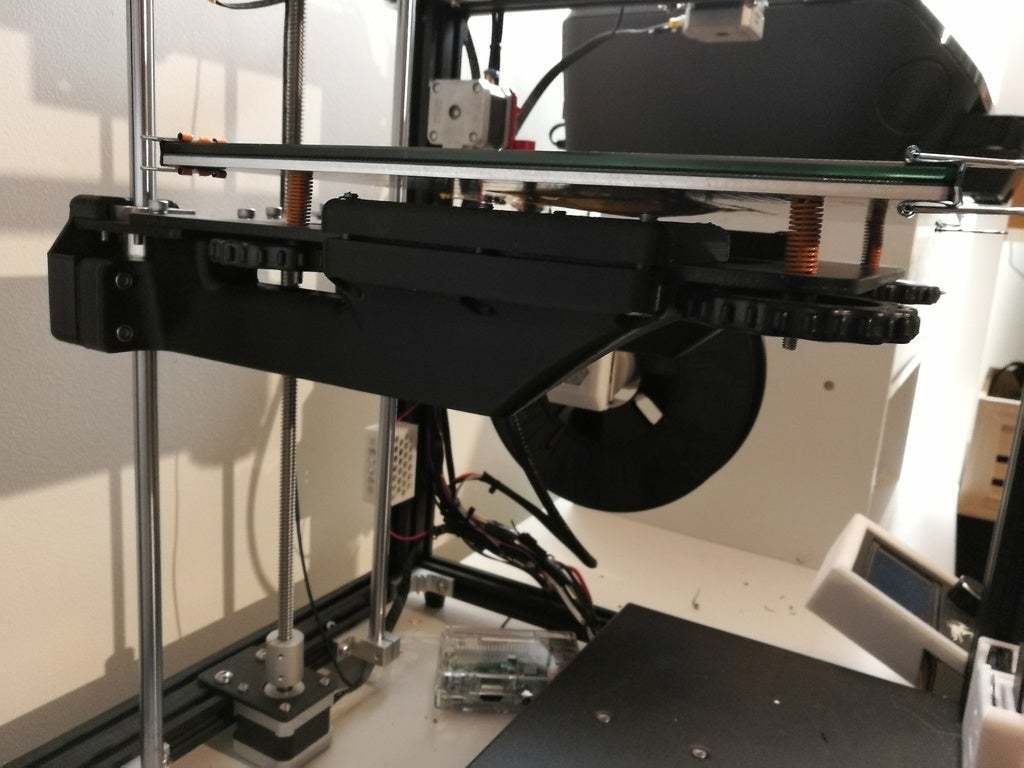

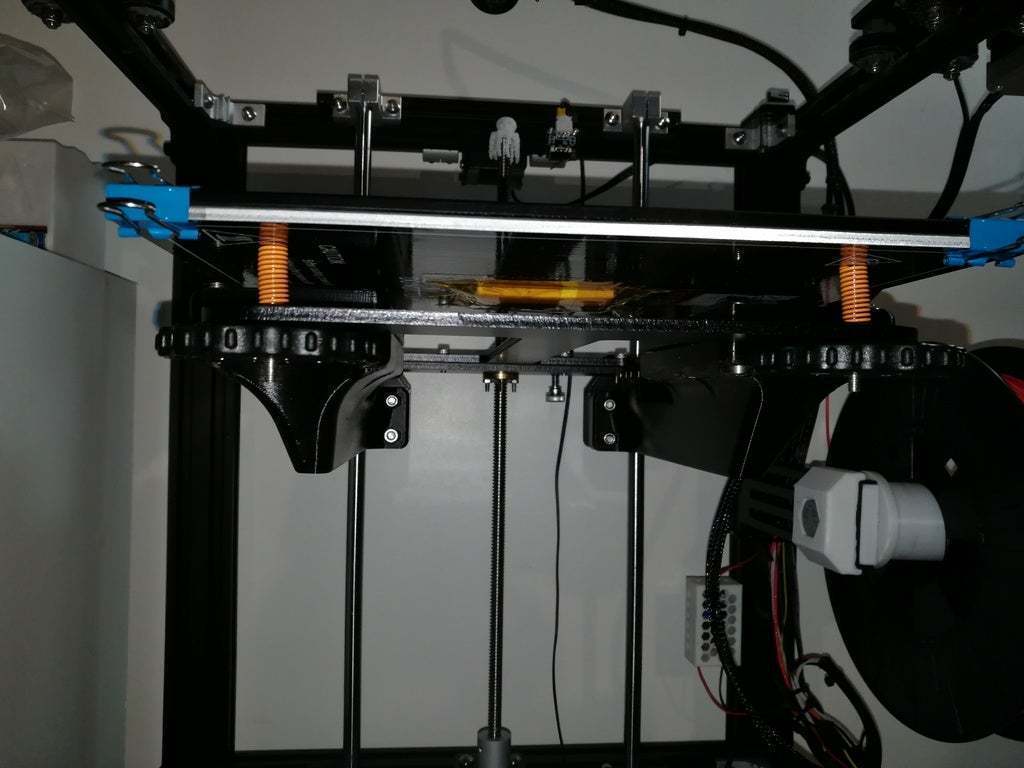

It fits with the original bed adjustment knobs. The sections are quite thick but I wanted something robust.

necessary screws:

8x CHC M5x30

12x CHC M5x20

WARNING:

For the original bed, there is 4mm of play left with the Z300 electric box.

For the modified bed (glass plate or other) prefer the file "Arm V2".

3D printer file information

  • 3D design format: STL Folder details Close

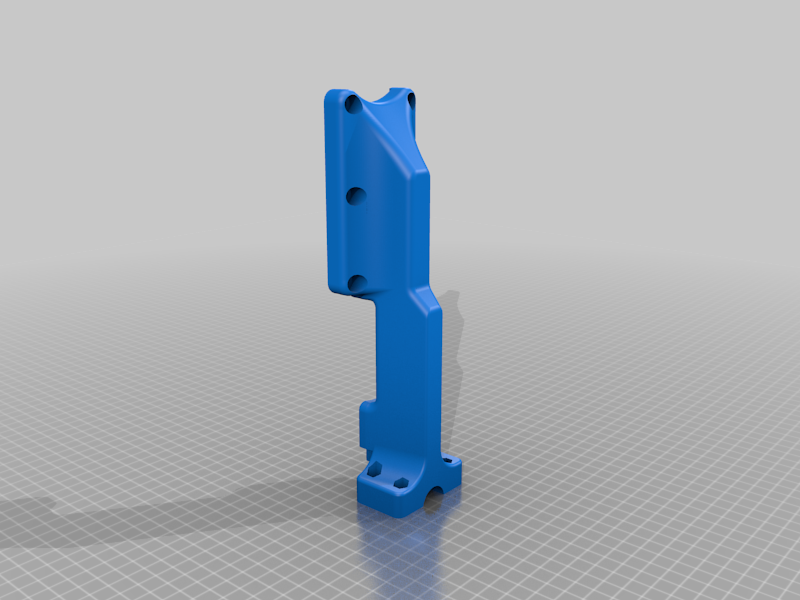

    • Bras_V2.STL
