Ender 5 Plus - Linear Rail Mod (Remix)

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

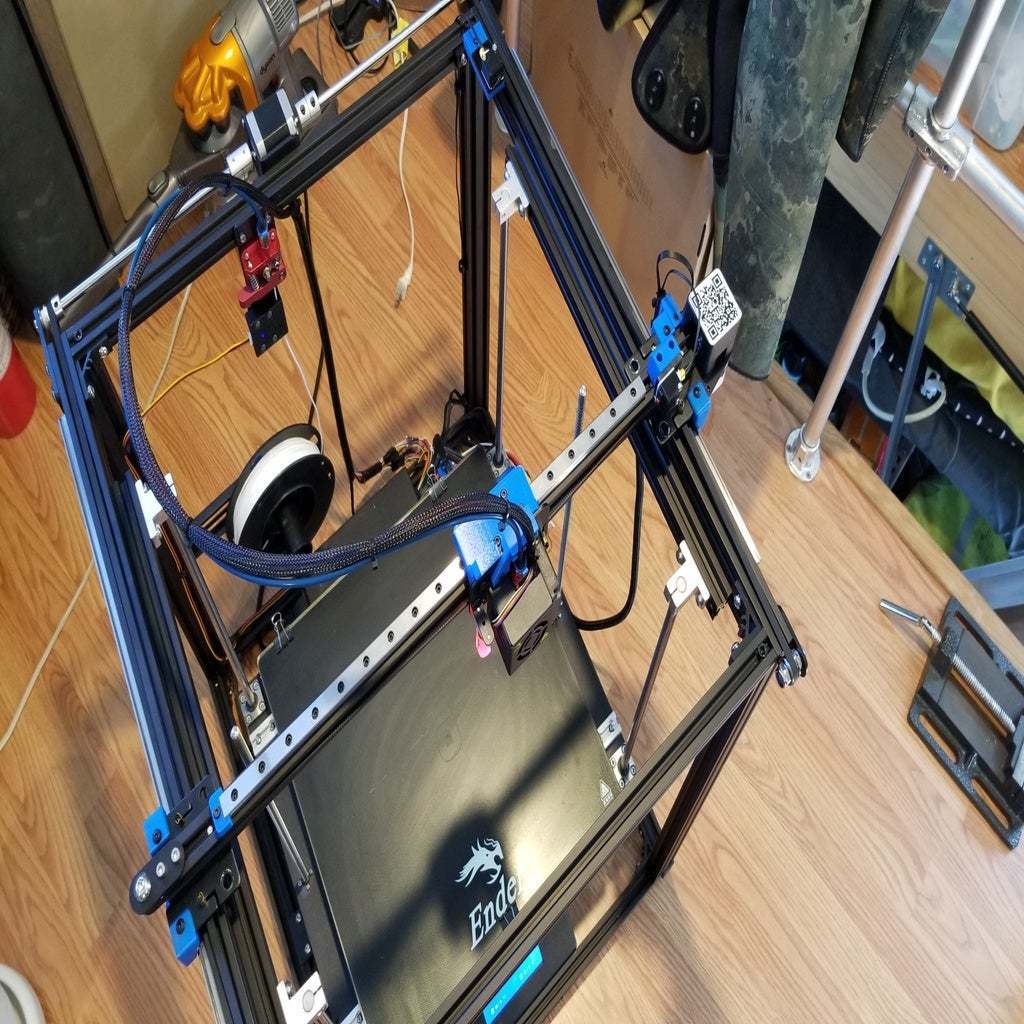

To modify the Ender 5 Plus you will need the following:

3x 450mm MGN12H rails
3x MGN12H bearings
66x M3x8mm bolts
66x M3 T-Nuts

All the above will cost about $120 or so.

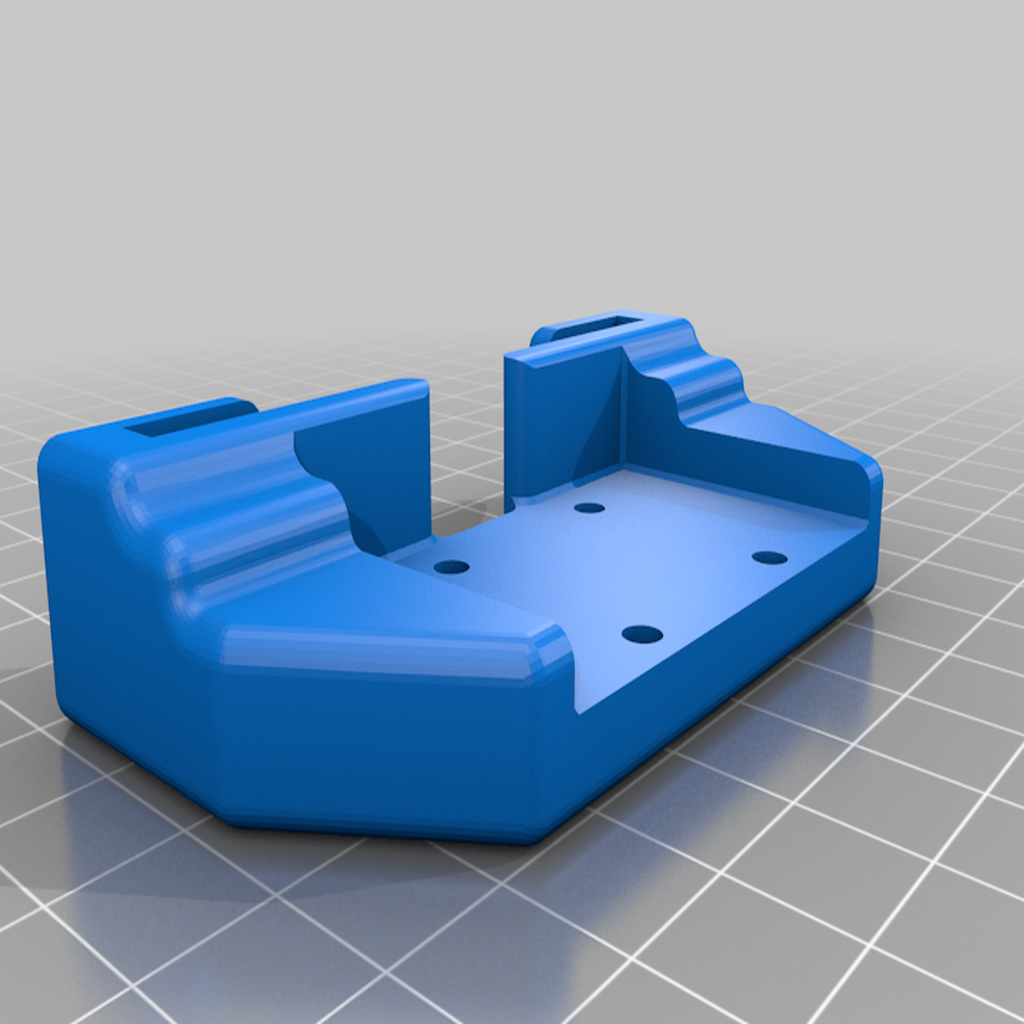

Print 2 of the Linear_Rail_Adapter_V3

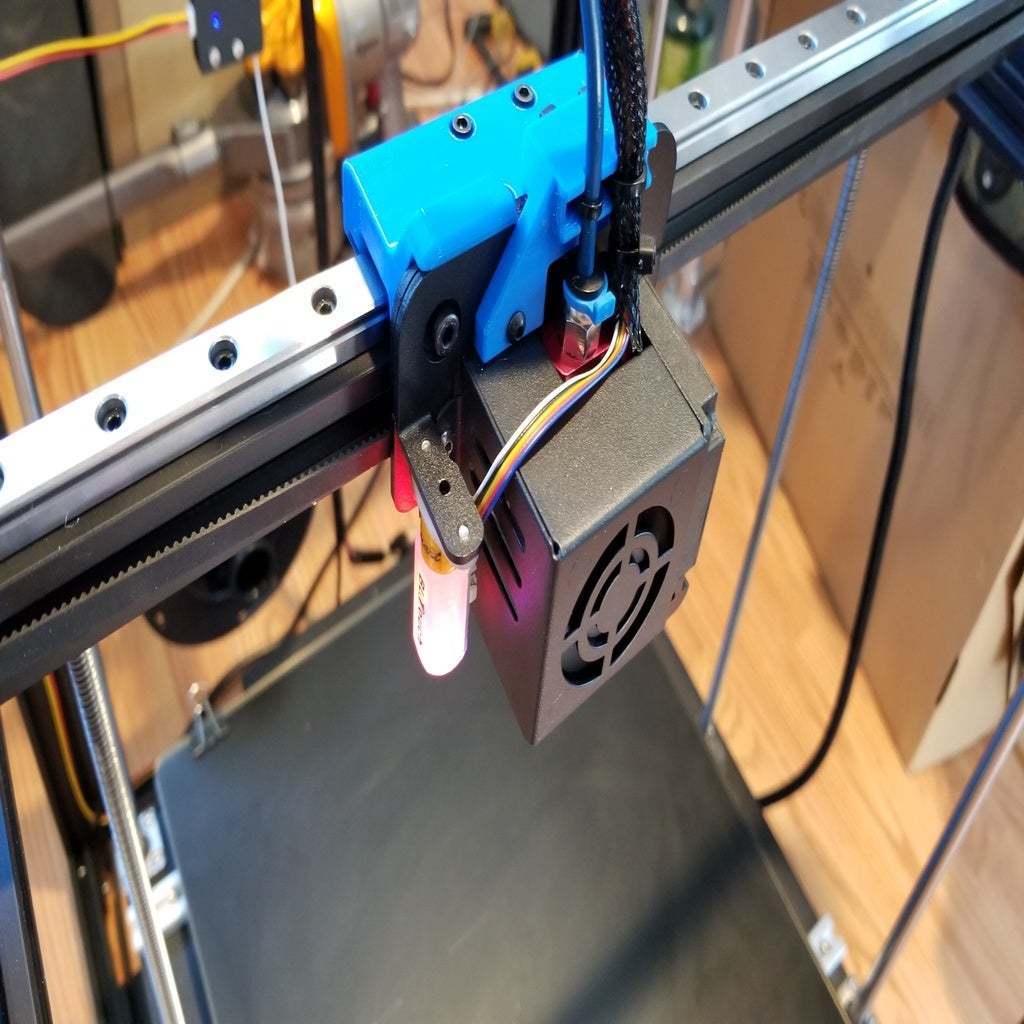

For the X-Axis you will need M4 and M5 bolt and nut. I modified his carriage to use nuts to further tighten the extruder plate to the carriage. DO NOT OVER TIGHTEN. This part doesn't have a lot of stress beyond jogging back and forth on the rail.

When I installed the Linear_Rail_Adapter, I used a couple dabs of epoxy into the screw holes to hold them in more firmly. The M4 bolts that go in there hold it snug but with all the movement, I didn't want it to work loose. You can still unscrew it later on - it just takes more force.

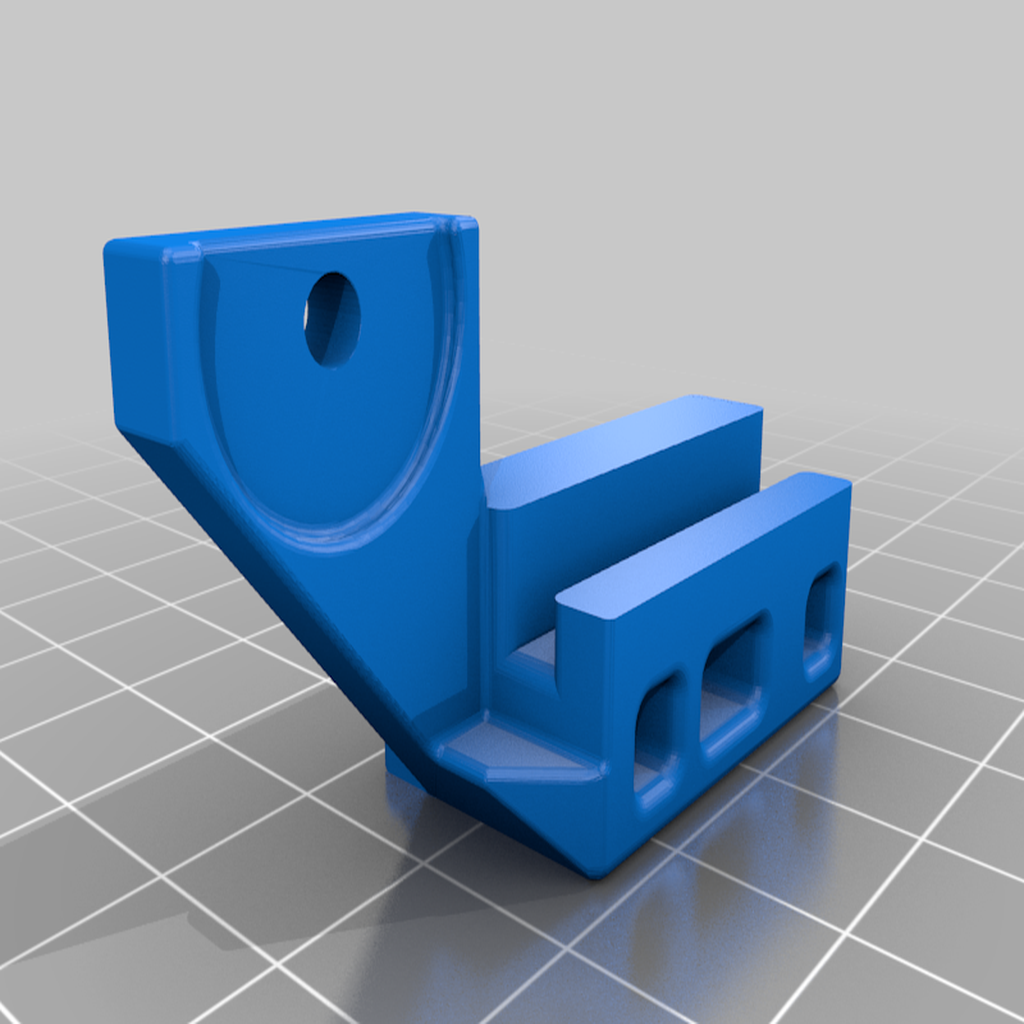

Hot end strain relief has a version for taller pneumatic fittings.

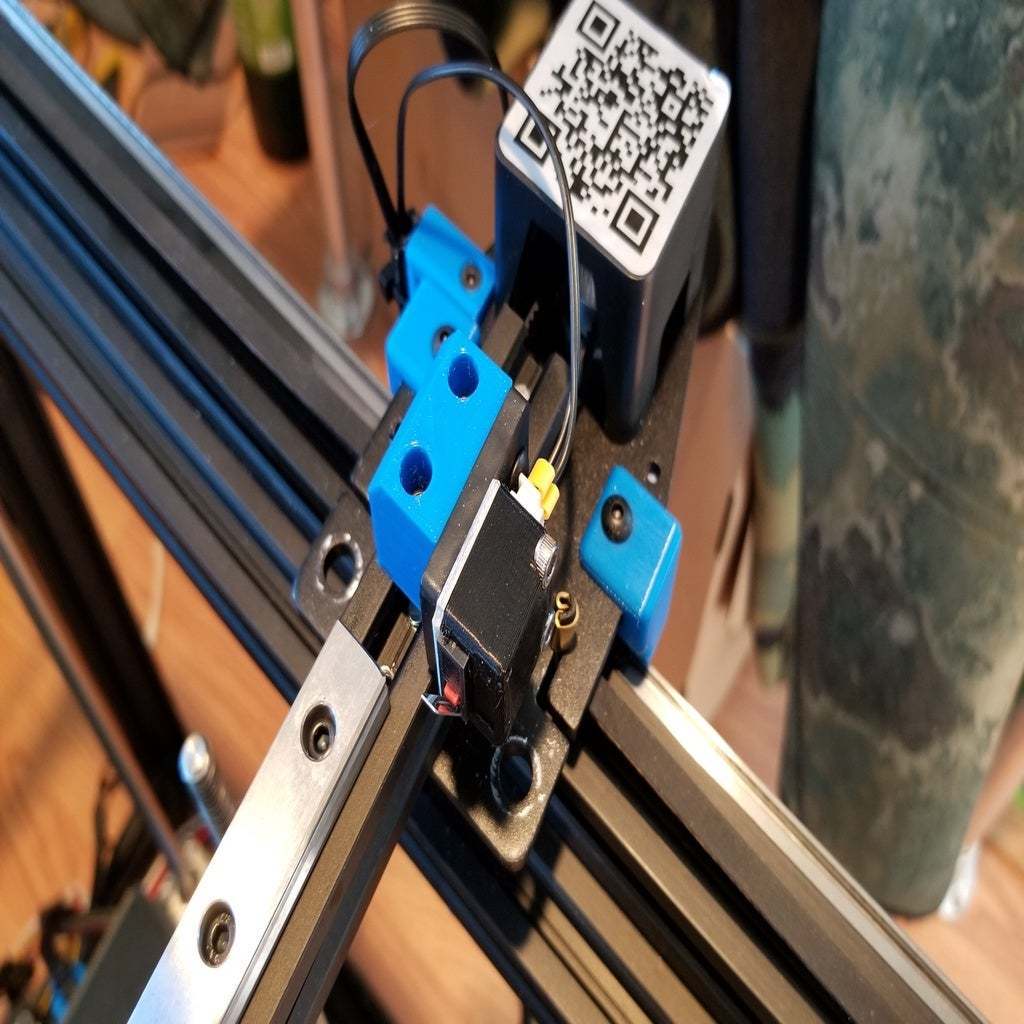

Installation is pretty straight forward. You will need more M3, M4 and T-nuts.

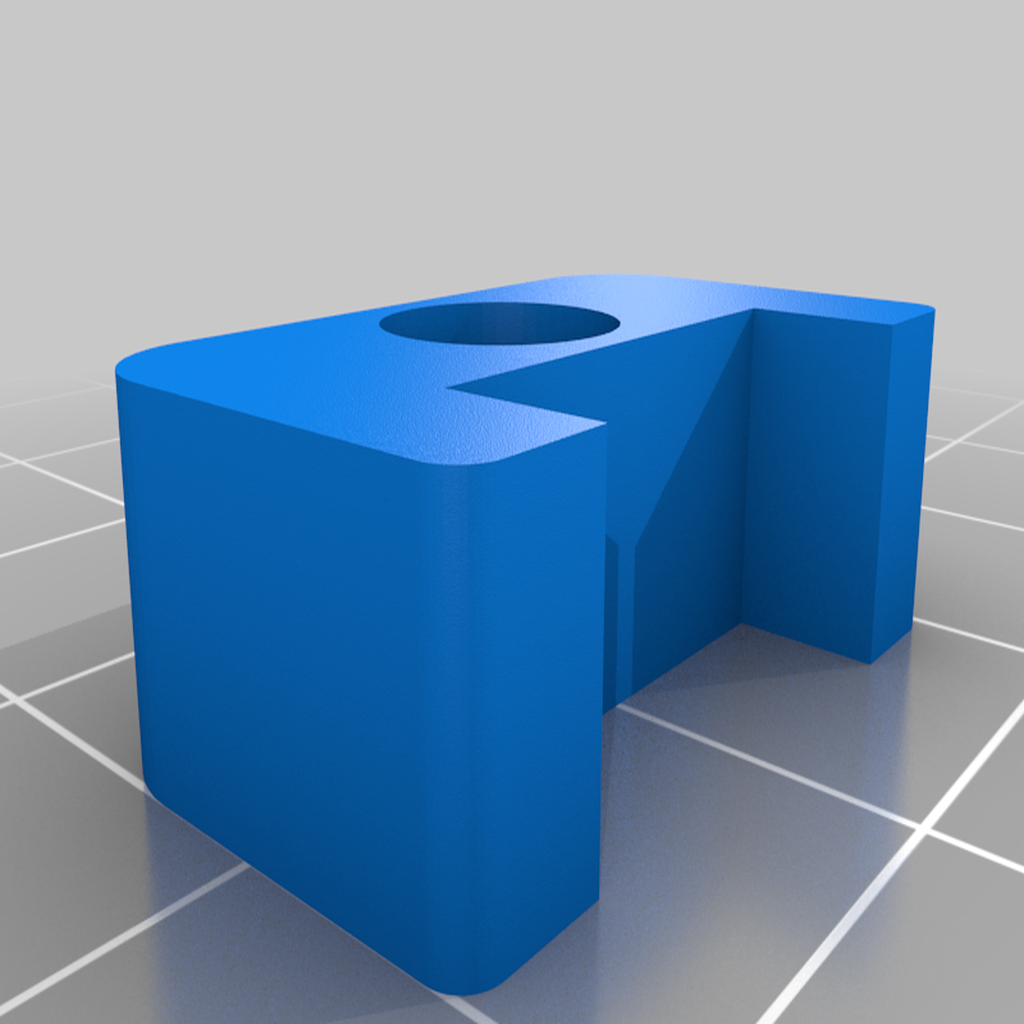

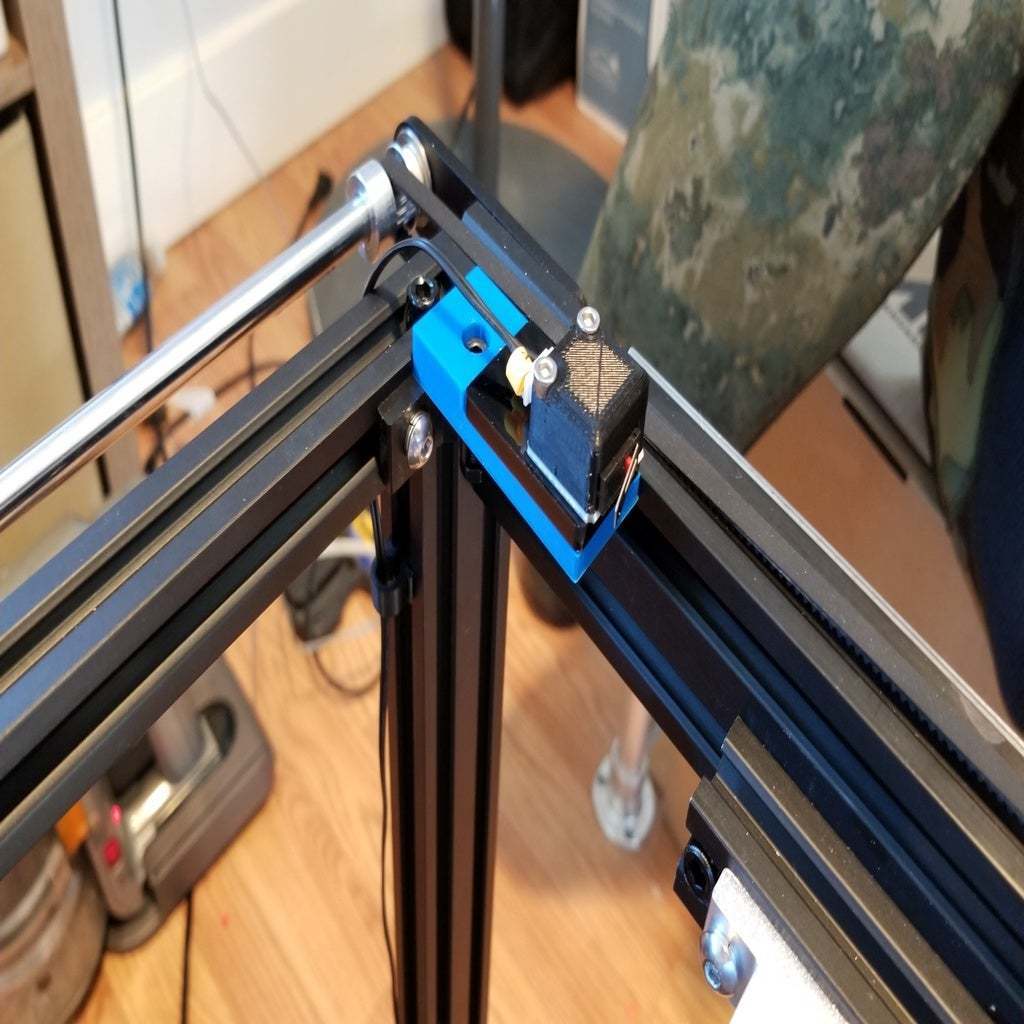

The rail stop has a slightly deeper hole so you can use a shorter screw.

You can print these as well:

End Stop - https://www.thingiverse.com/thing:1110247
Bed Strain Relief - https://www.thingiverse.com/thing:3943537
T-Nuts - https://www.thingiverse.com/thing:3050607
Cable Clips - https://www.thingiverse.com/thing:3955274

3D printer file information

  • 3D design format: STL Folder details Close
    • Hotend_Relief_Linear_Rail_Tall_Fitting.stl
    • Hotend_cable_relief_Linear_Rail.stl

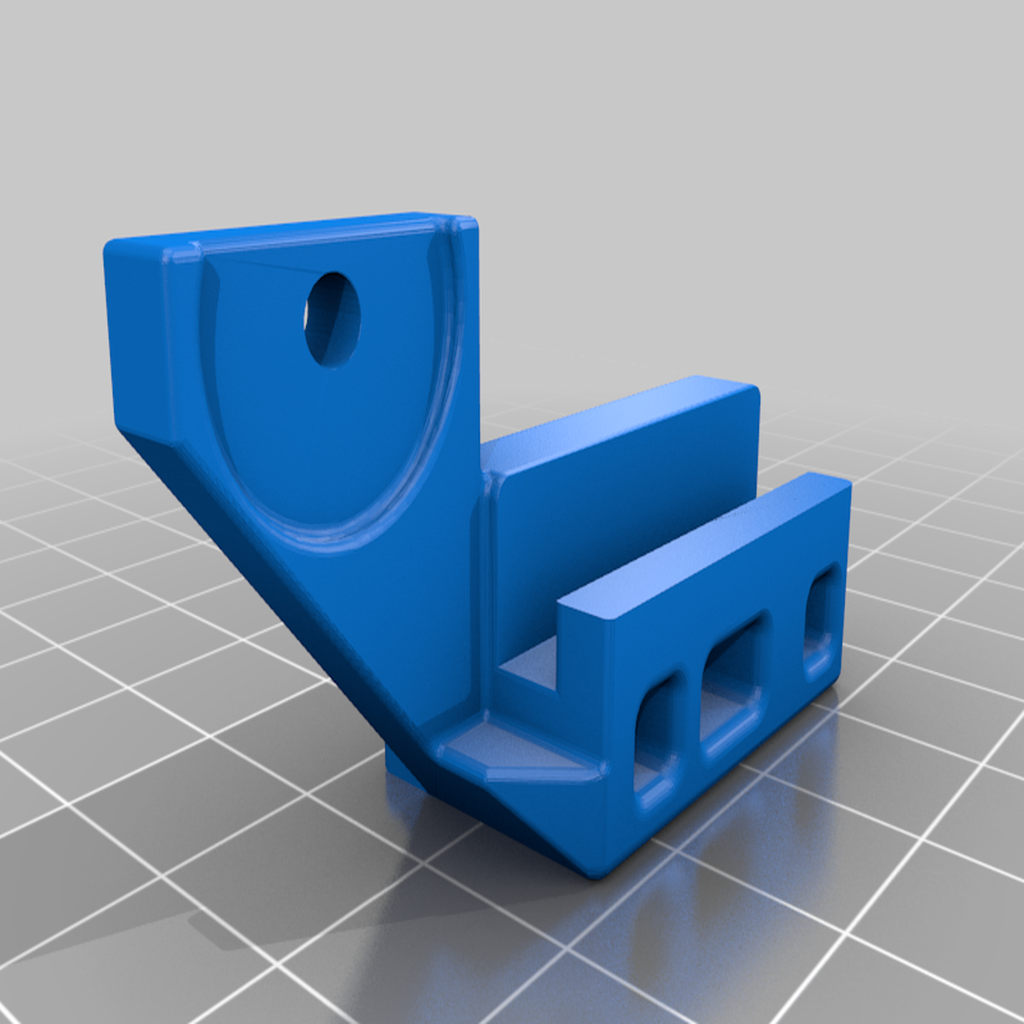

    • Hotend_cable_relief_Linear_Rail_V2.stl
    • Linear_Rail_Adapter_V03.stl
    • MGN_Rail_Stop_DeepHole.stl

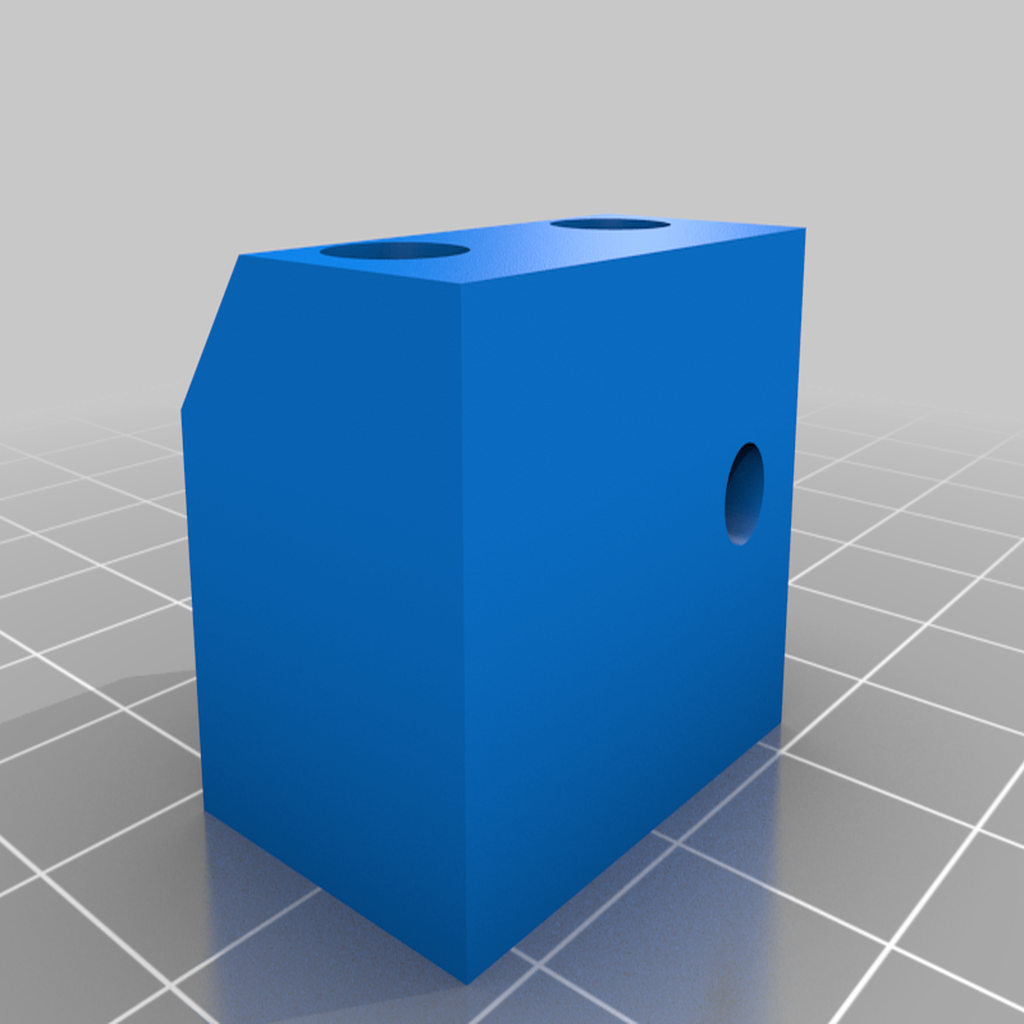

    • XEndStop_-_Ender_5Plus.stl

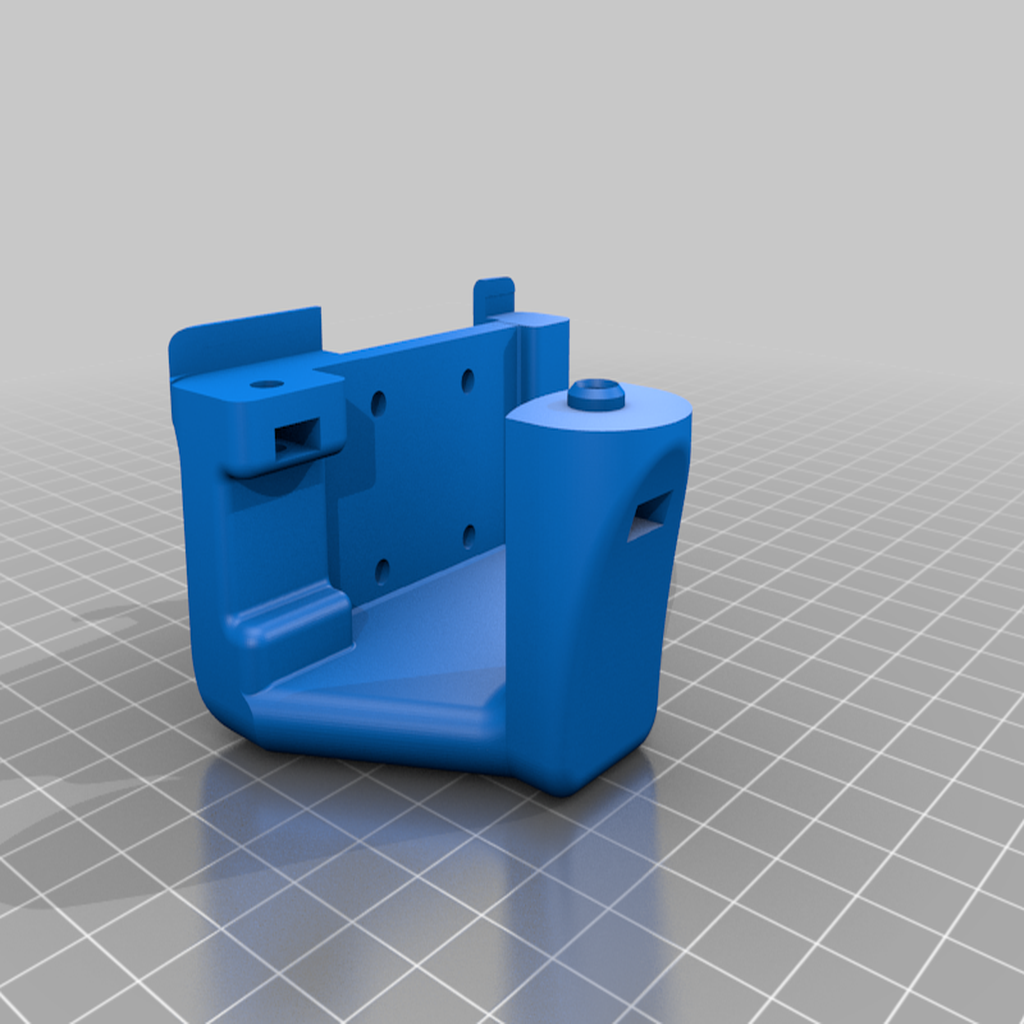

    • X_Axis_Linear_Rail_Mount_final_MOD2.stl
    • X_Axis_Linear_Rail_Mount_final_MOD3.stl

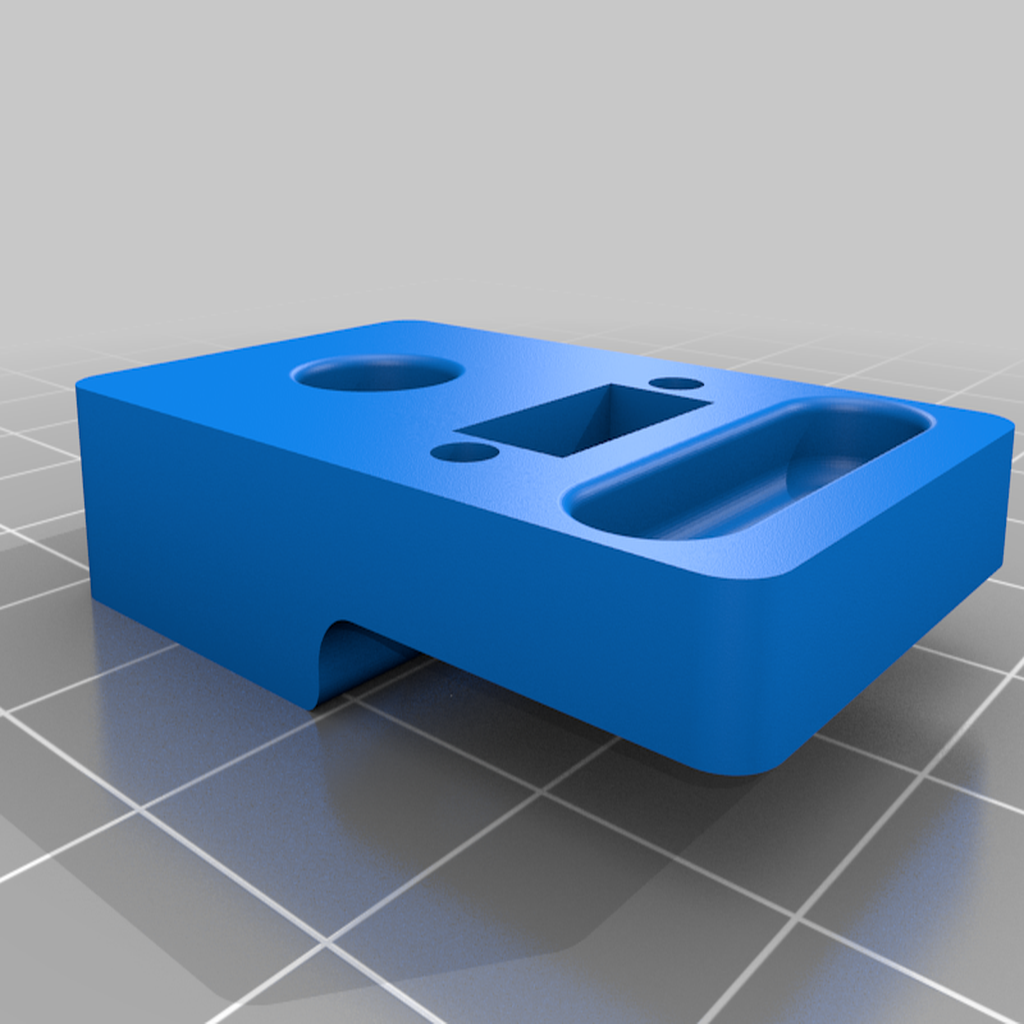

    • YEndstop_-_Ender_5Plus.stl

    Learn more about the formats

  • Publication date: 2020-08-21 at 18:02
    ?
    Published to Thingiverse on: 2019-11-06 at 21:41
