Ender 5 Filament Guide Roller

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.3k views
  • 6 likes
  • 64 downloads

3D model description

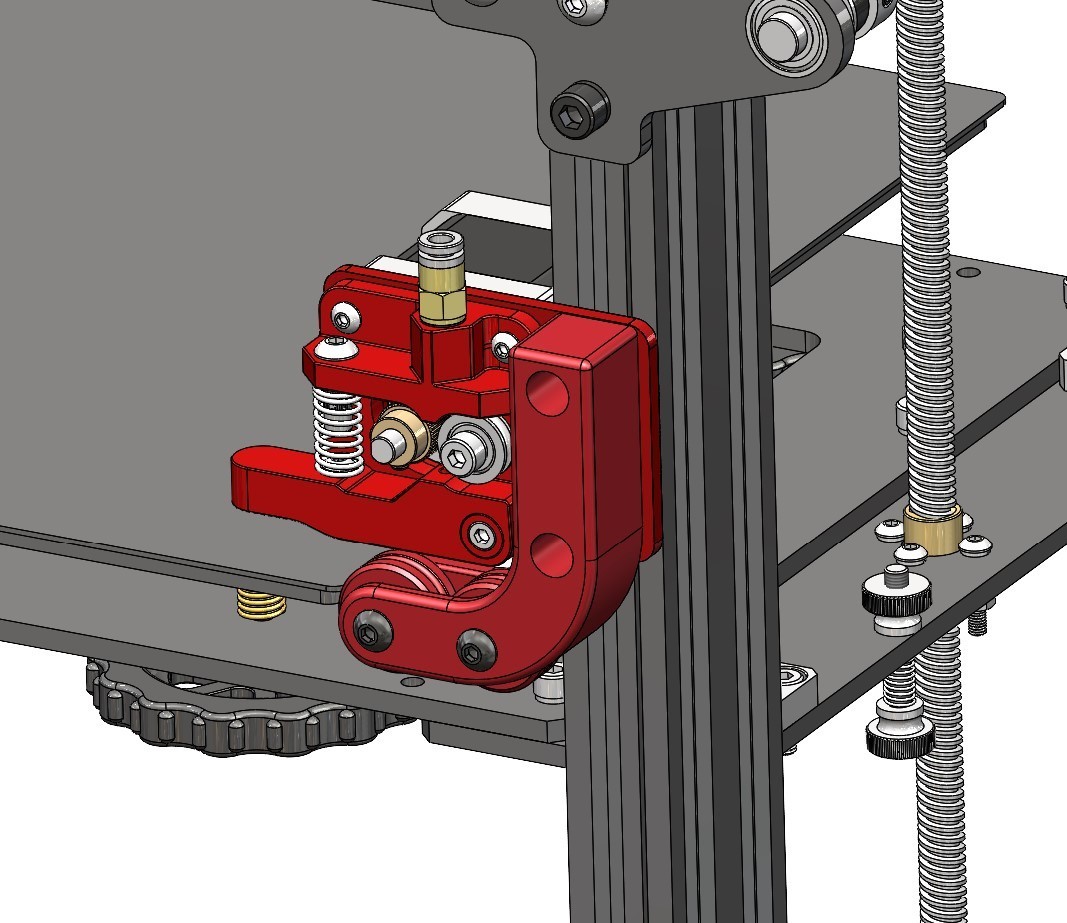

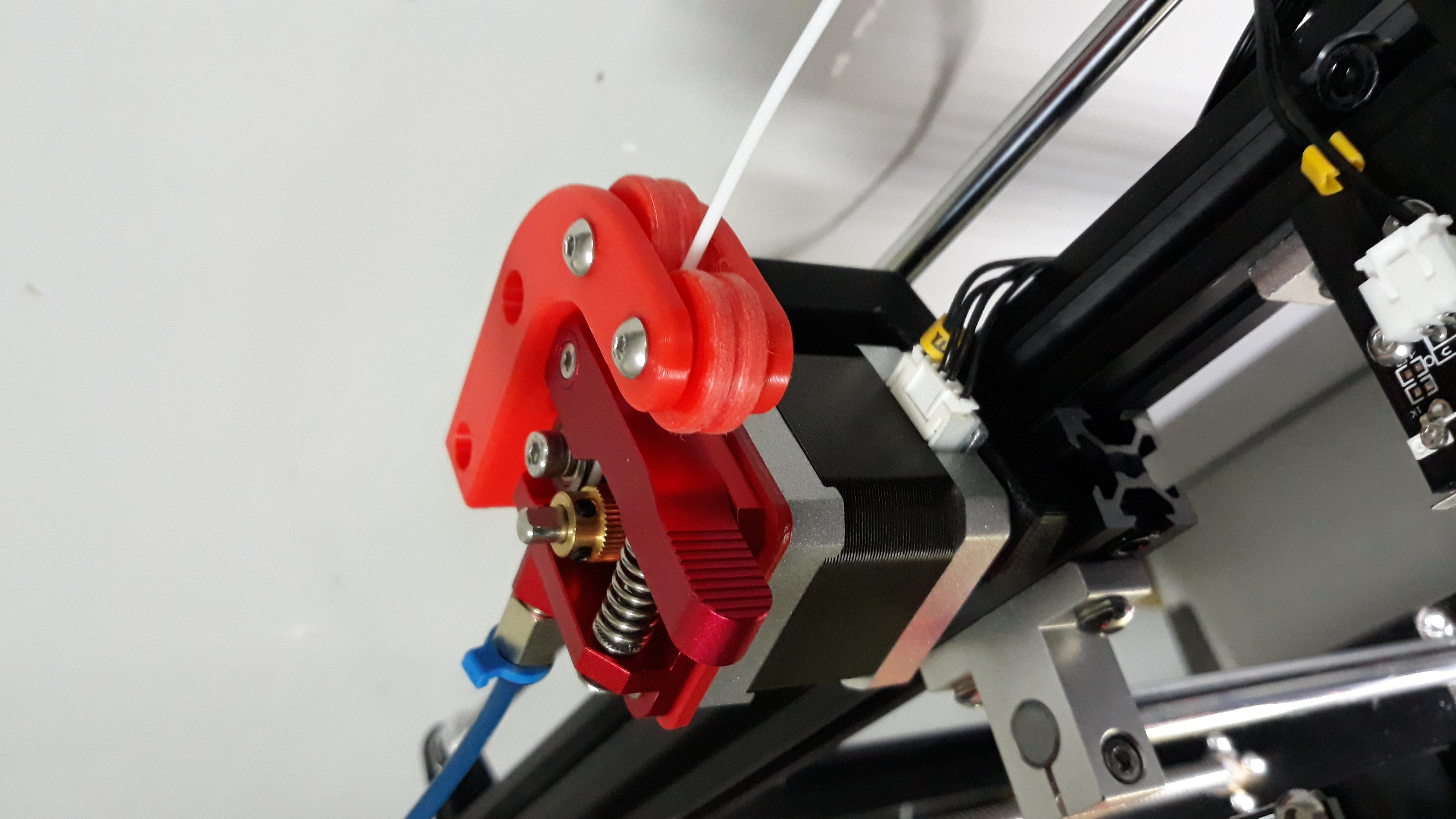

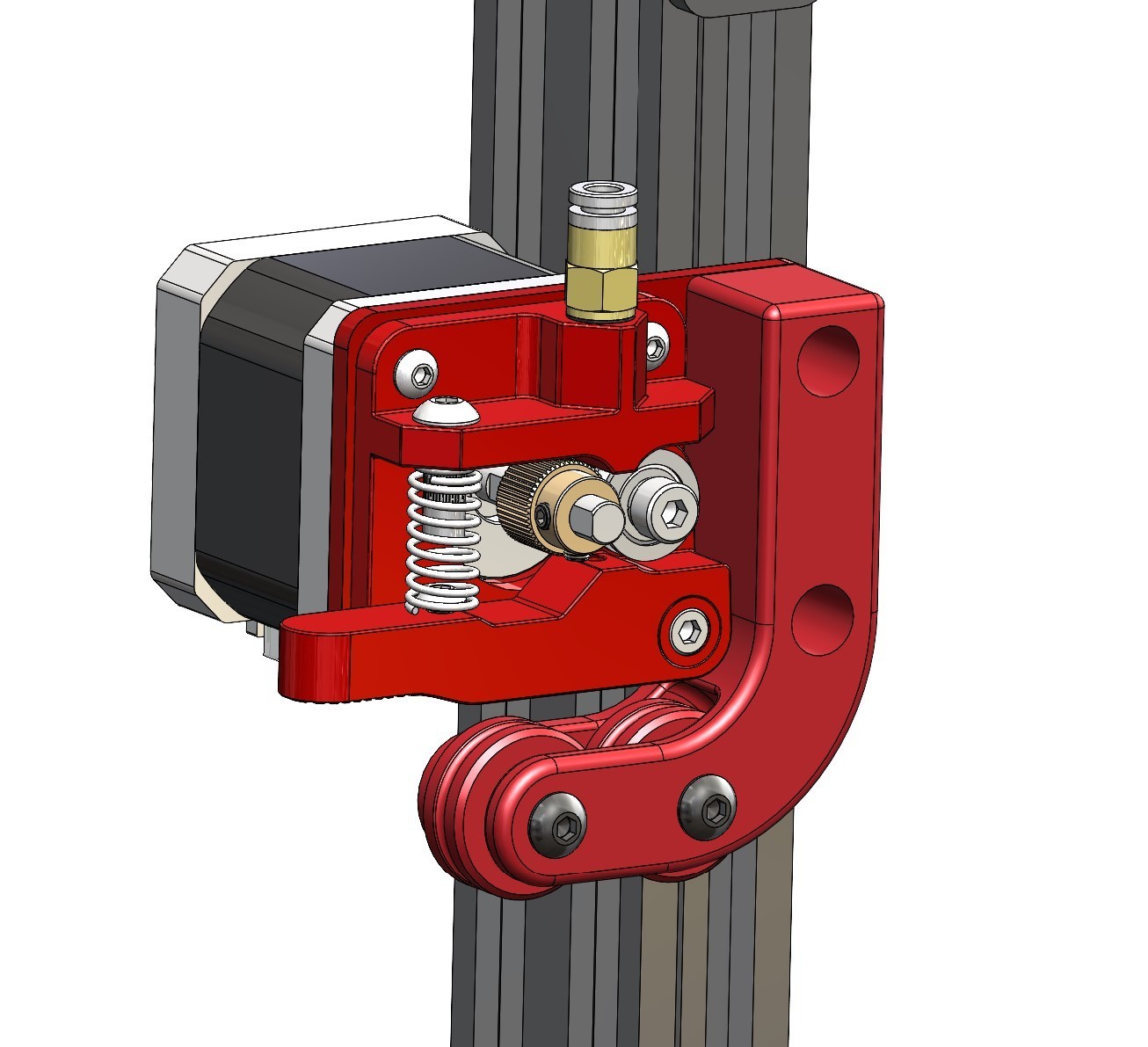

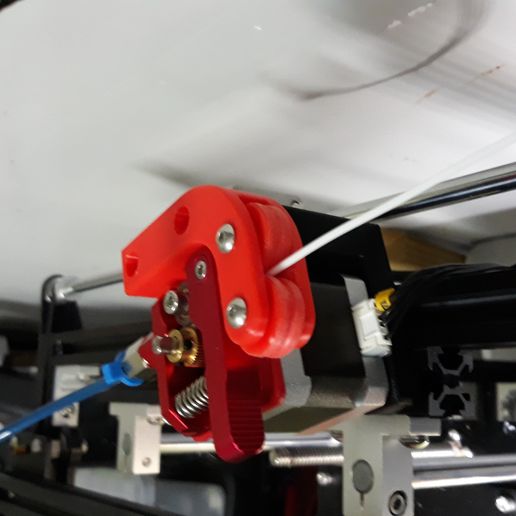

This is a guide roller for myEnder 5 that has 4mm flanged roller bearings I designed to better guide the filament into the extruder and this works really well. I am also including a STEP file of the assembly in case you want to use pins instead of screws or if you need to adjust the counterbores for the mounting screw for the length of screws you might have on hand. I hope this works for as well for some of you.


3D printing settings

.2 Layer Height
.8 Wall
.84 Top / Bottom

3D printer file information

  • 3D design format: PDF, STEP, and STL Folder details Close
    • Ender-5 Filament Guide.pdf
    • Filament Guide Roller Arm.STL
    • Filament Guide Roller with Bearing.STL
    • Filament Guide with Bearing Assembly.STEP

    Learn more about the formats

  • Publication date: 2020/09/05 at 18:18

License

CC BY NC
