Updated Ender 5 Console Cover with Drawers

?
Creation's quality: 4.9/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 7.9k views
  • 18 likes
  • 147 downloads

3D model description

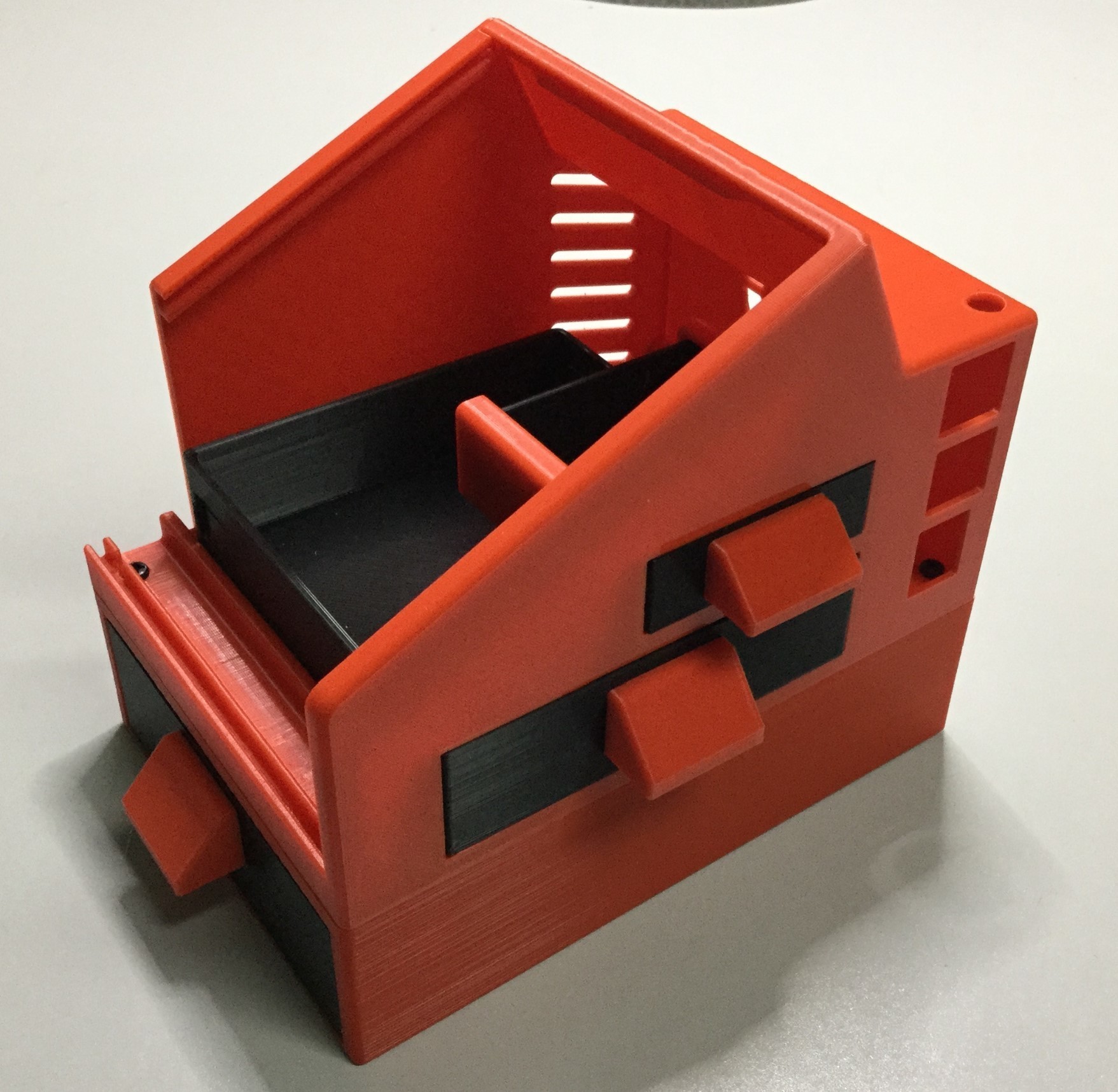

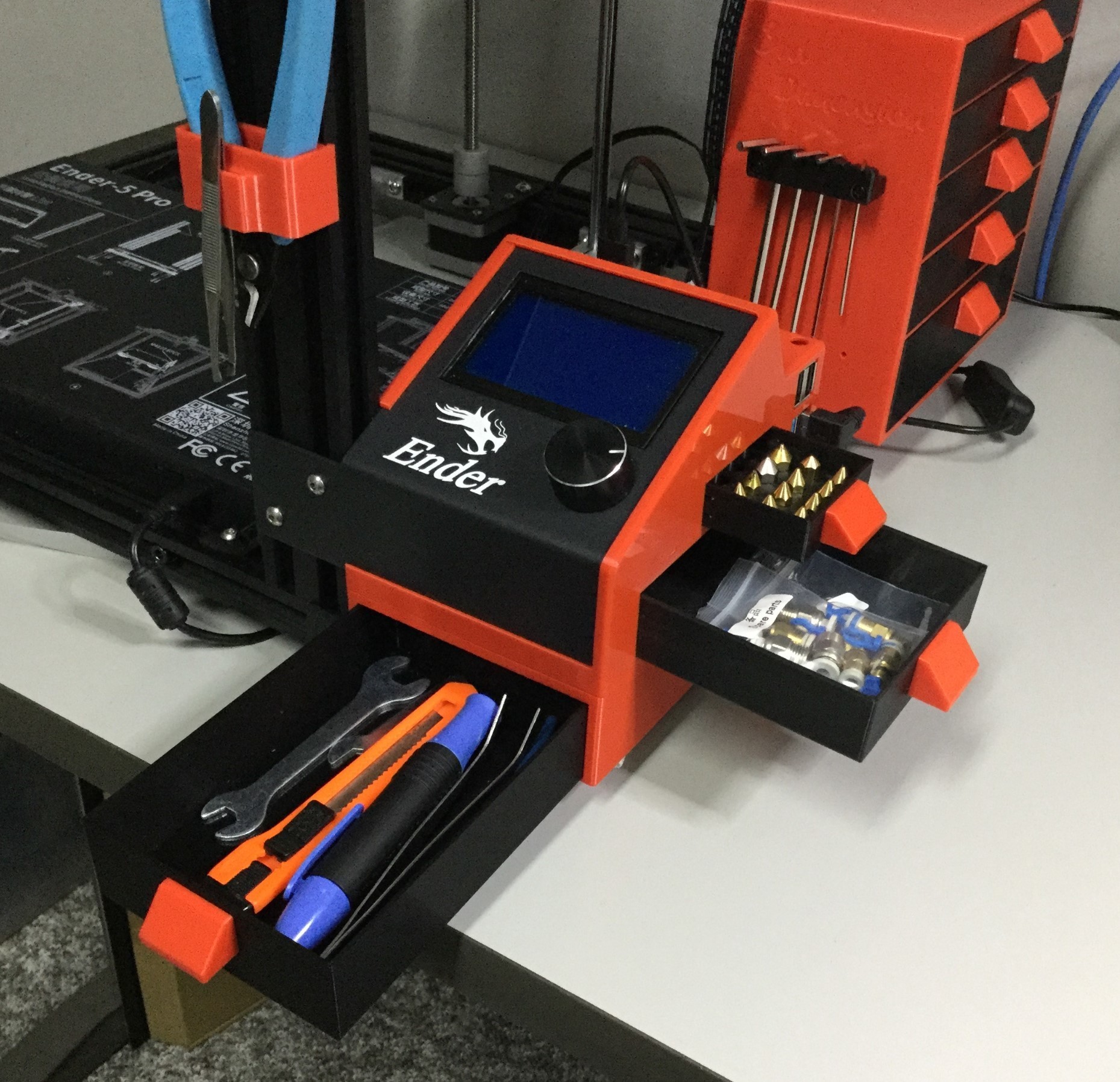

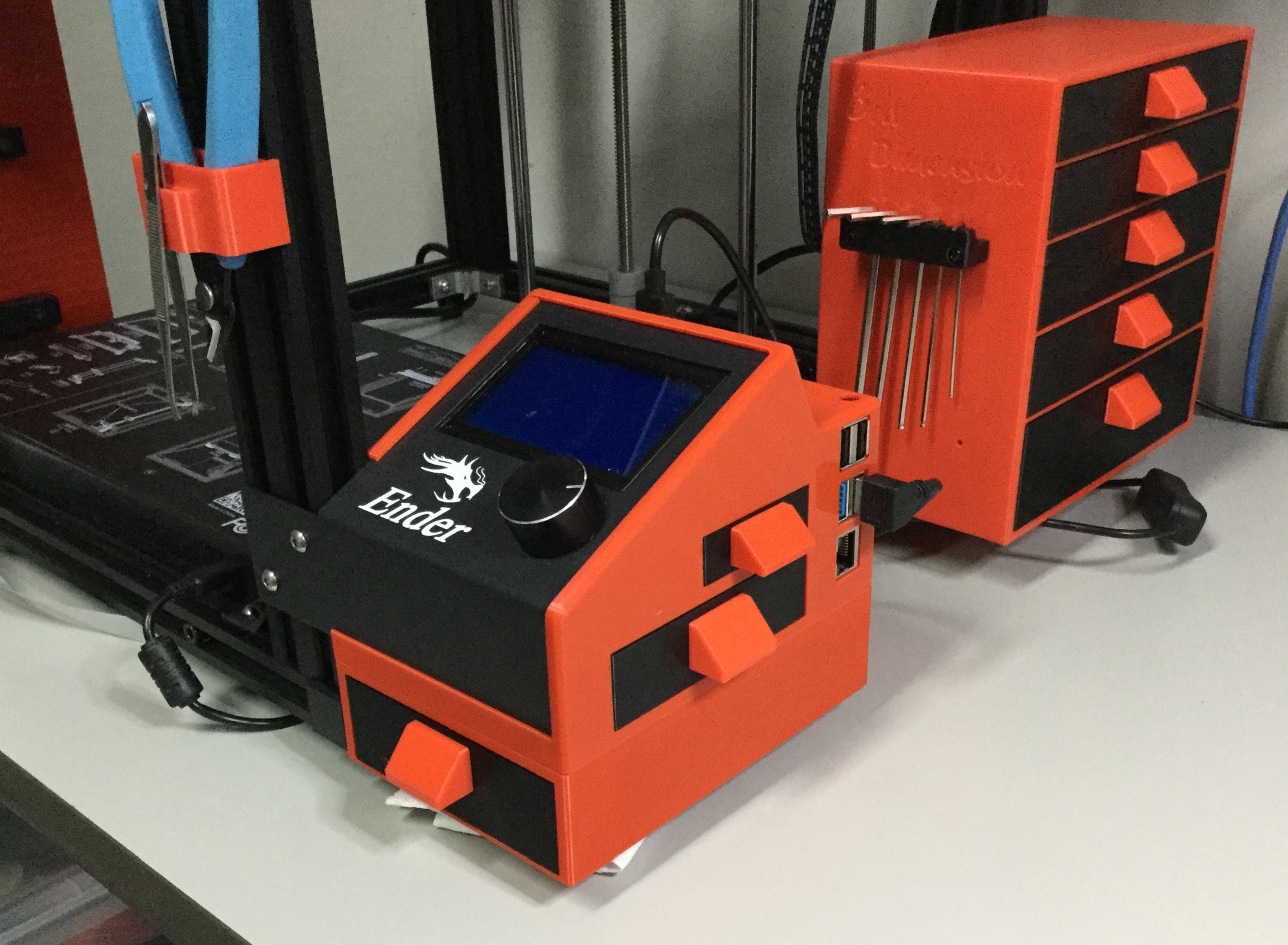

This is an updated version of my console cover with storage drawers that I have added a small 3rd drawer on the side that includes a nozzle holder drawer insert as well. It has my newly designed drawers that have clips so they snap into the cover and work as a drawer stop but can be flexed to easily remove the drawer no screws or tools needed. I also redesigned the side cover to attach with magnets instead of screws which is a big improvement especially if you needed frequent access to your Pi SD card you had to remove screws to remove cover now it just snaps on and off and it works really well.


3D printing settings

Use These Settings
.2 Layer Height
.8 Wall
.8 Top / Bottom Layers

3D printer file information

  • 3D design format: PDF, STL, and TXT Folder details Close
    • 2pc_Cover Bottom.STL
    • Case Assembly.pdf
    • Common Drawer Specifications.pdf
    • Drawer Knob.STL
    • Drawer Stop.STL
    • Long Drawer.STL
    • Nozzel Holder Drawer Insert.STL
    • Nozzle Drawer Knob.STL
    • Nozzle Drawer.STL
    • Pi-3B+_Board Riser Post.STL
    • Pi-3B+_Case.STL
    • Pi-4_Case.STL
    • Pi-4_Riser Post.STL
    • Purchased Item Links.txt
    • Side Cover.STL
    • Small Drawer.STL

    Learn more about the formats

  • Last update: 2020/12/05 at 15:40
