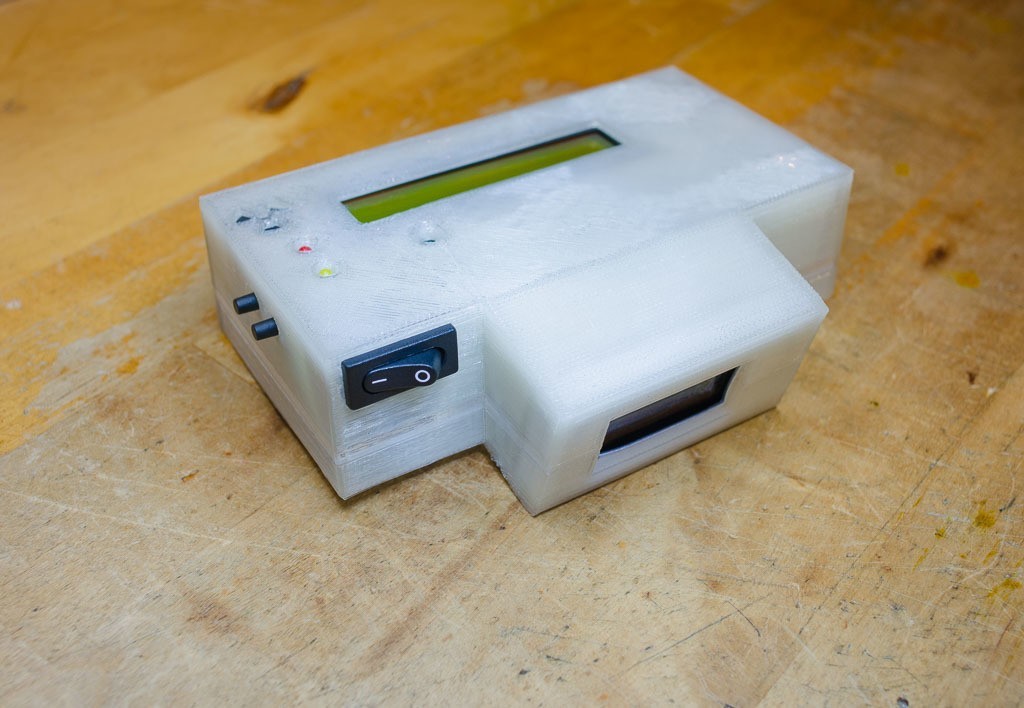

Enclosure SMD-based geiger counter with SBT11 / SBT11A tubes by impexeris

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.7k views
  • 18 downloads

3D model description

(if you have downloaded files earlier than evening of September 21, please re-download. I have made a few corrections)

This is a revised enclosure for the new - SMD based hardware version of the DiY geiger counter (http://www.ebay.com/itm/162018488365 ) by my colleague - eBay vendor impexeris ( http://www.ebay.com/usr/impexeris) .

This enclosure is for use with SBT-11 or 11A ( СБТ-11 or 11A ) Geiger-Müller α,β,γ tubes.

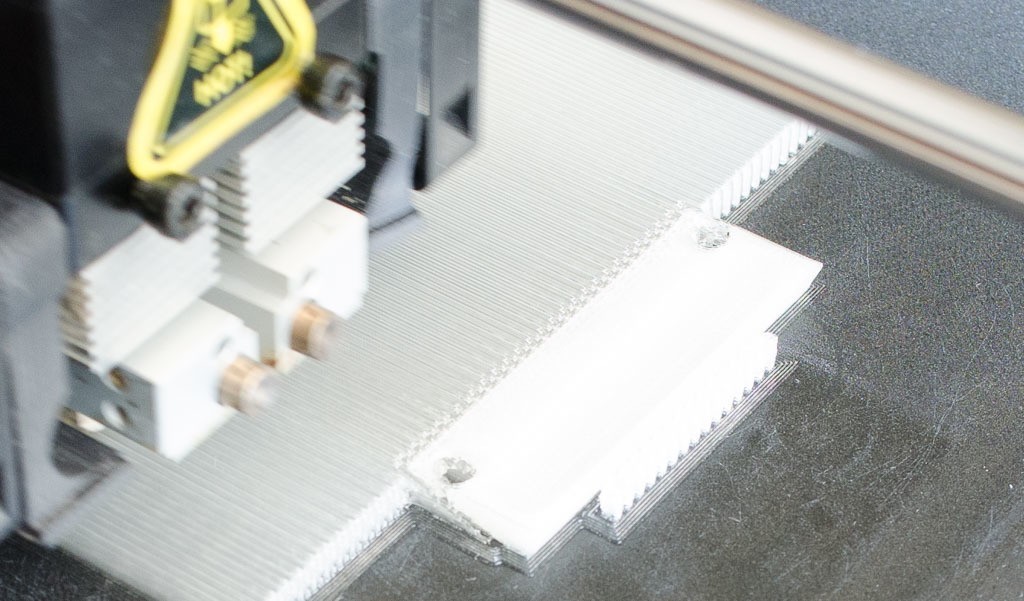

At 0.25mm layer height tube fits nice and tight enough.

I use two 11mm long (with head), , ∅2mm screws for enclosure case and two to 20mm long (with head) ∅3mm bolts for the tube extension.

related links:
http://arduino-geiger-pcb.blogspot.com
https://github.com/impexeris/DiY-Arduino-Geiger-Counter-SMD

3D printer file information

  • 3D design format: STL Folder details Close
    • Cover_for_the__SBT11_window.stl
    • Cover_with_paper_filter_insert_for_SBT11_window.stl
    • Cover_with_wider_filter_insert_for_SBT11_window.stl
    • P5_Top_for_sbt11.stl
    • P5_bottom_for_sbt11.stl
    • P5_bottom_for_sbt11_with_accessible_battery_compartment.stl
    • SBM11Assembly_nonprint-2.stl
    • SBM11Assembly_nonprint.stl
    • batterycompartmentcover.stl

    Learn more about the formats

  • Publication date: 2018/09/18 at 15:51

License

CC BY
