east3D Gecko duetwifi mount and 5" panel-due housing
- 605 views
- 0 likes
- 7 downloads
3D model description

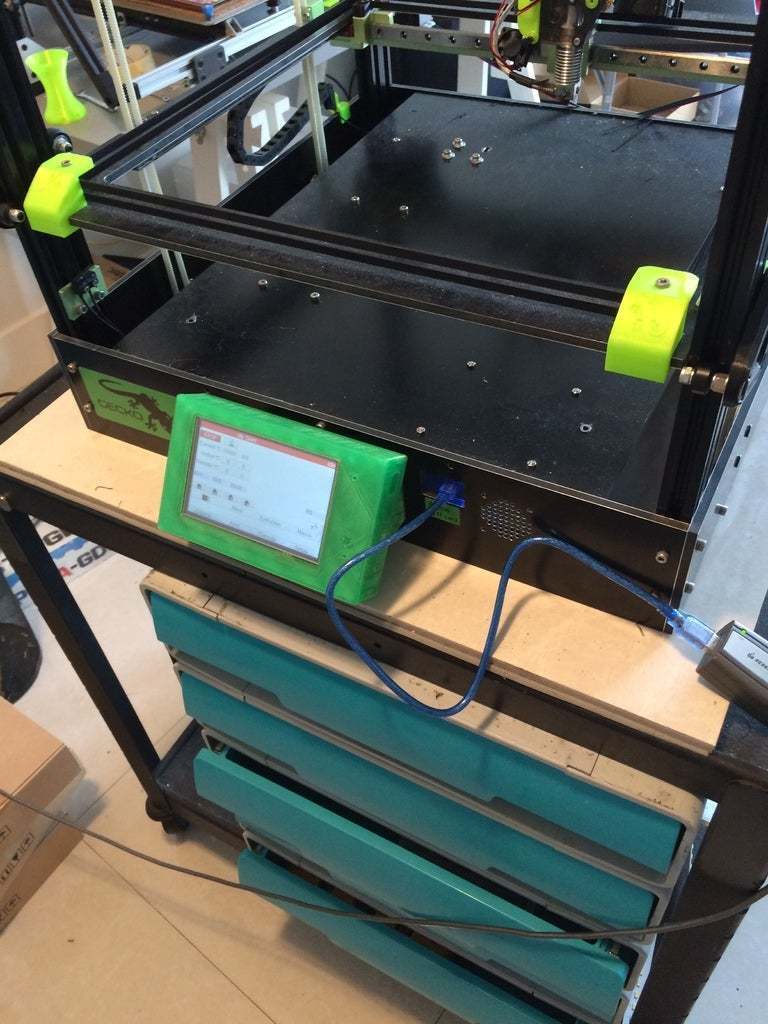

this is a duet wifi mount and paneldue enclosure set for the East3D gecko.

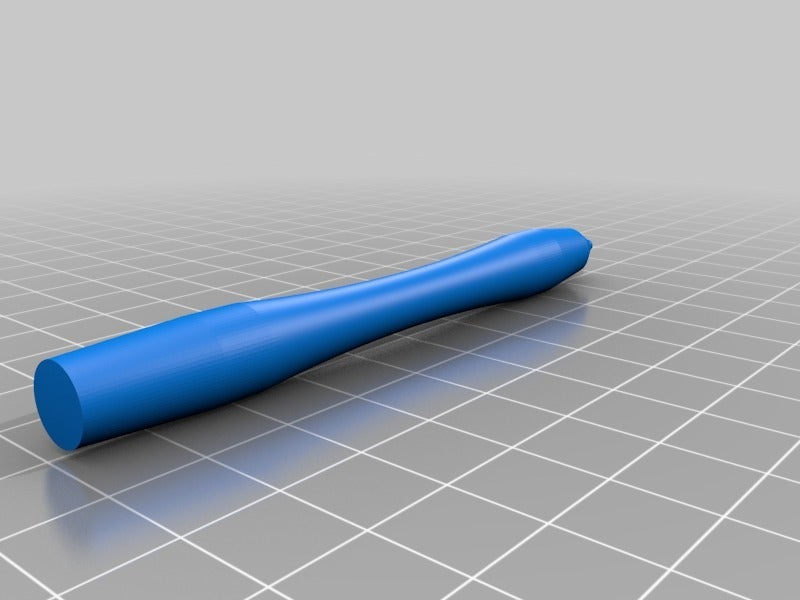

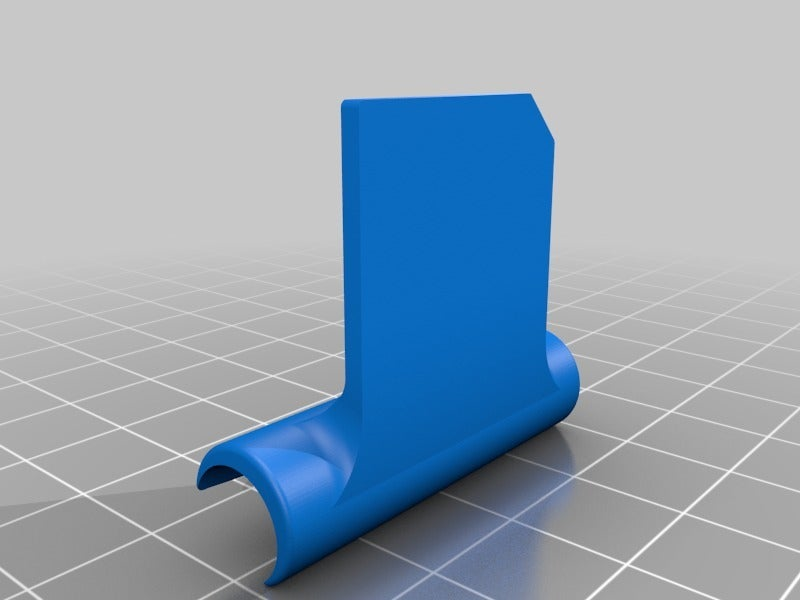

(Added a paneldue touch-pen and sd card slot pen holder for the top of the paneldue)
(models may not be properly positioned on build plate)
how to instal :
1- build your screen and instal the 4 pin cable.

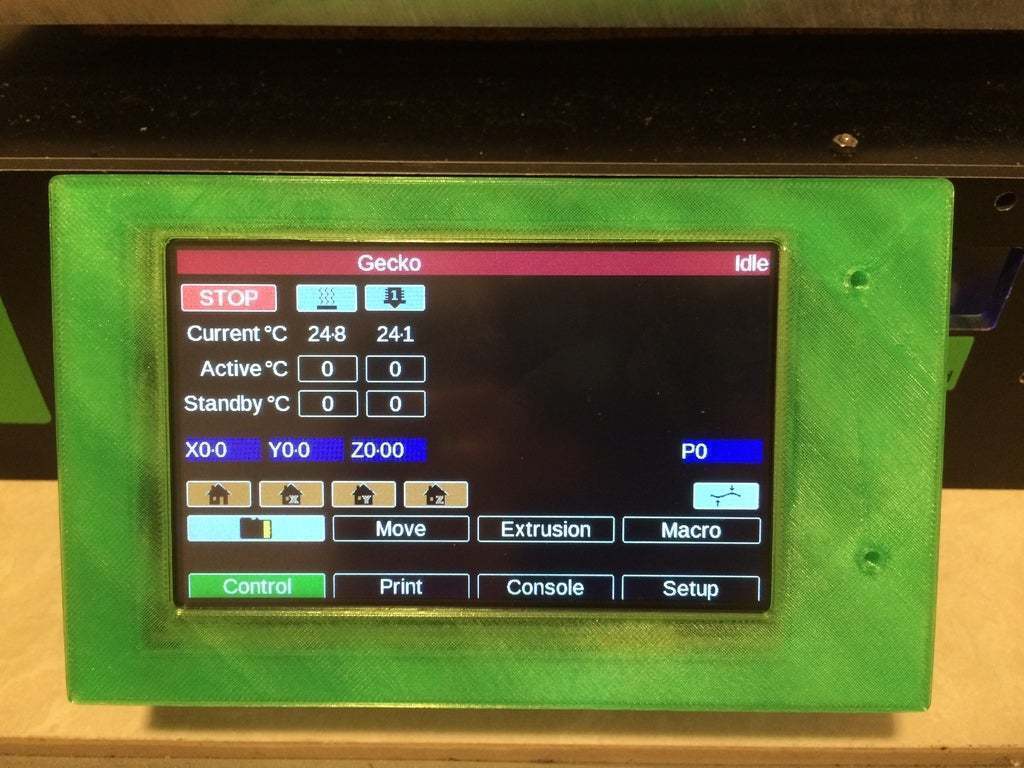

2- instal and screw the panneldue into the faceplate of the new housing.

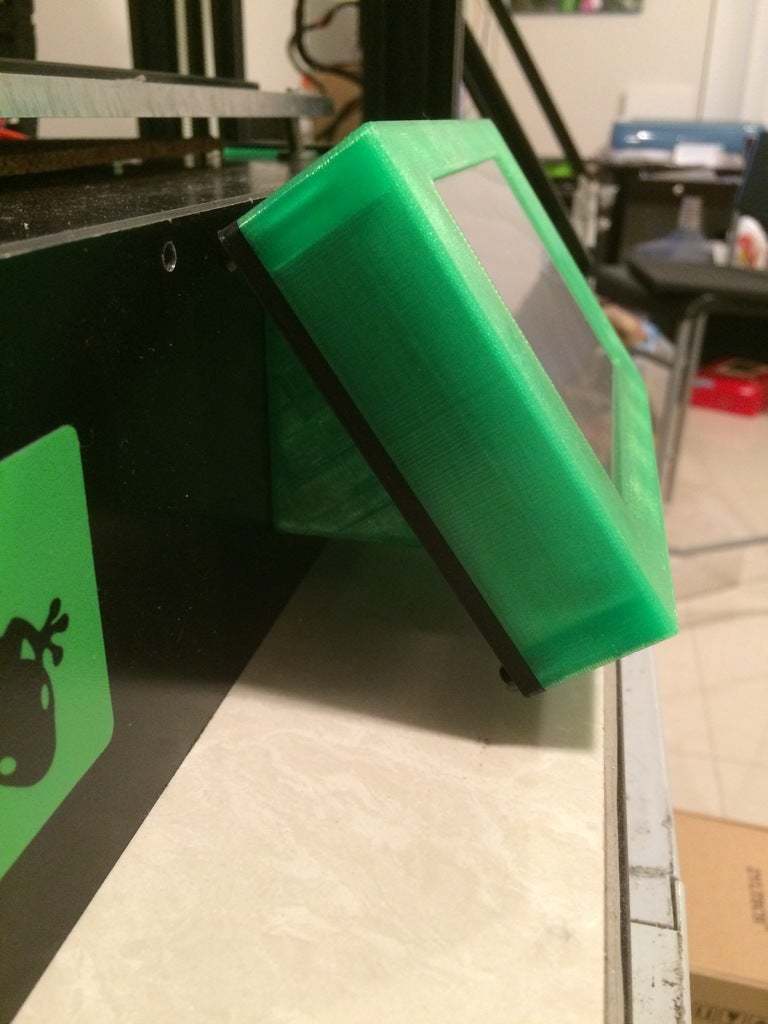

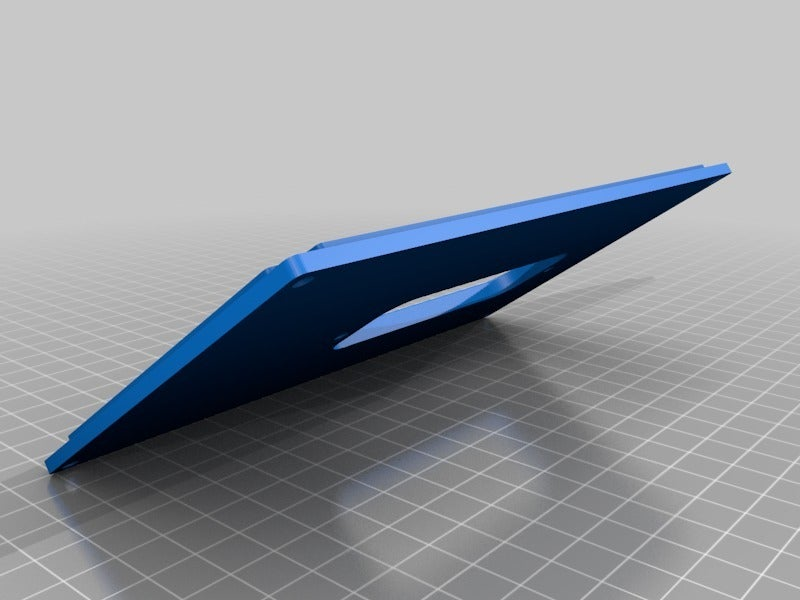

3- screw the paneldue housing back plate to the base.
4- screw the paneldue housing back plate and front together.

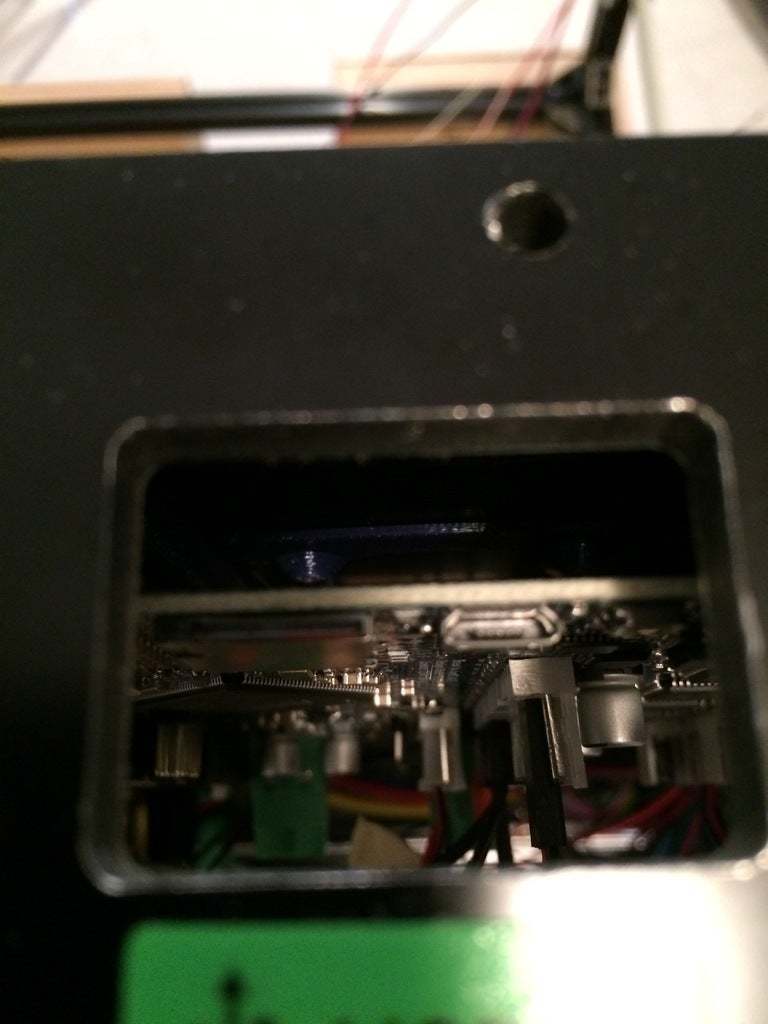

5- run the 4pin wire thru the big hole where the original screen was then

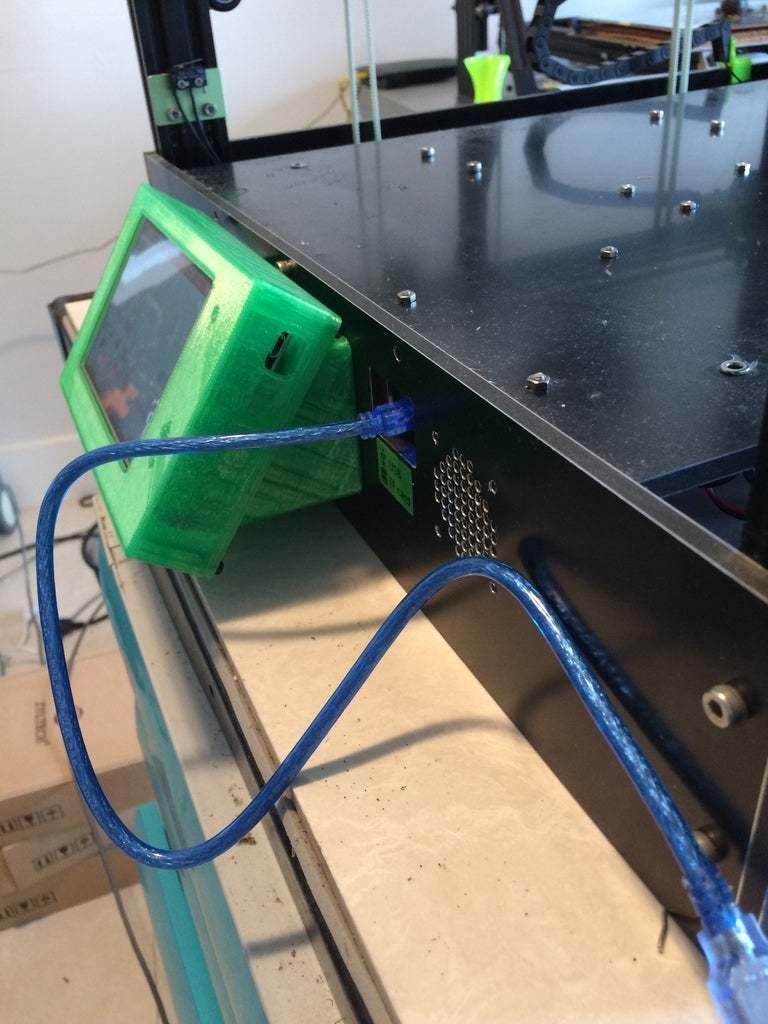

mount and screw in the base from backside of the geckos face plate thru the screen mounting holes.

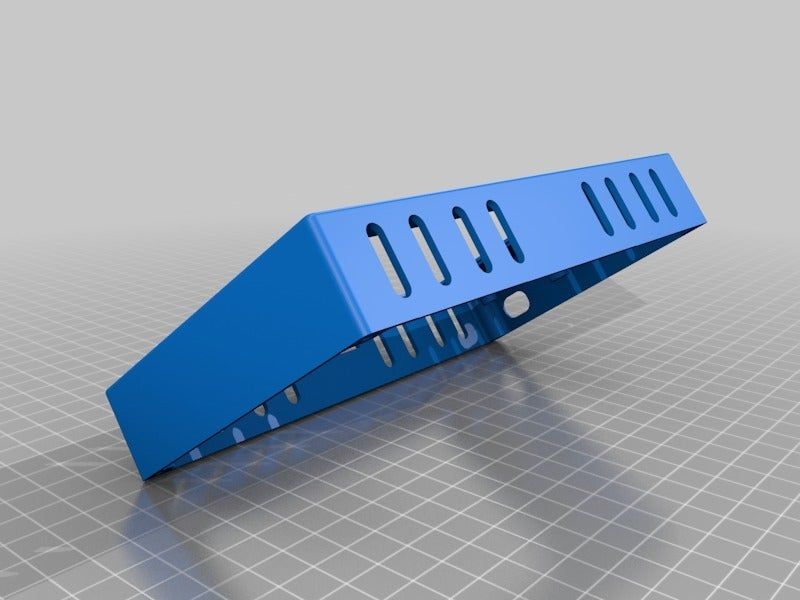

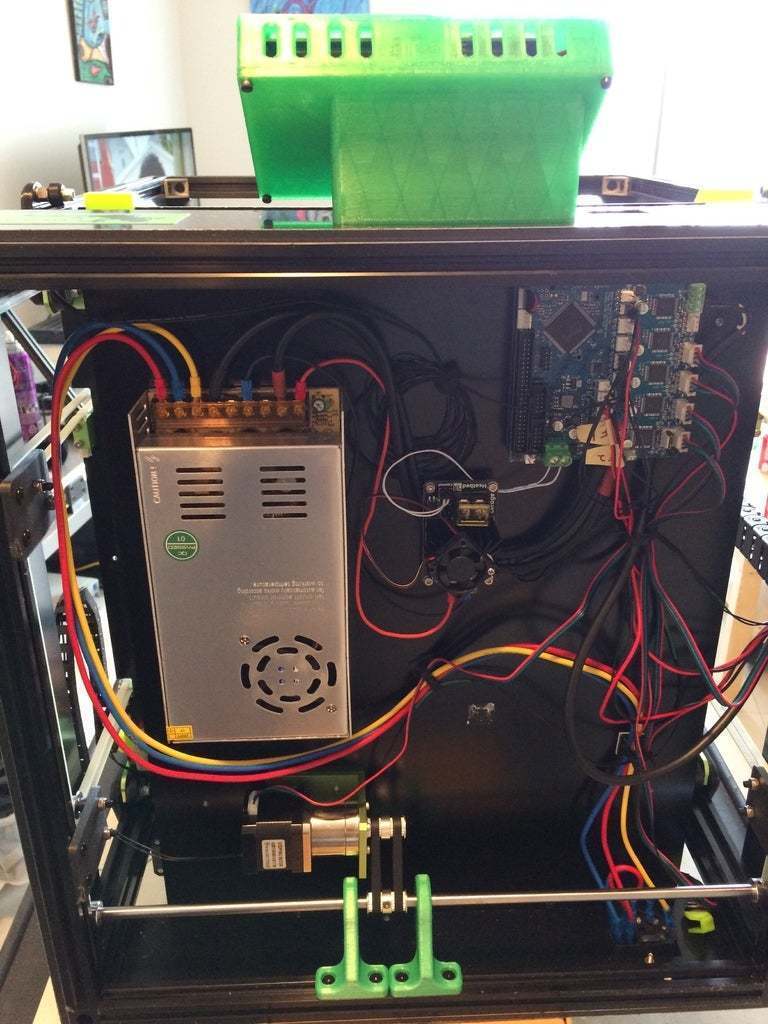

6- instal the duet wifi mount to the original lerdge hole pattern using the original screws.
7- mount the duet wifi to the mount. wire up and done.
what you will need.
4x-m3x4mm (to mount the panel due in the case)
1x-m3x6mm (to screw down the panel due board)
4x-m3x6mm (to connect the back panel to the front of the screen case)
2x-m3x6mm (to connect the screen case to the base)
and the original m3 screws from the lerdge screen is used to attach the base to the geckos face plate screen mounting holes.
