E3DV6 Anet ET4

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 3 likes
  • 40 downloads

3D model description

Hey, guys,

here is my E3DV6 support model for the Anet ET4, it is composed of 3 parts:

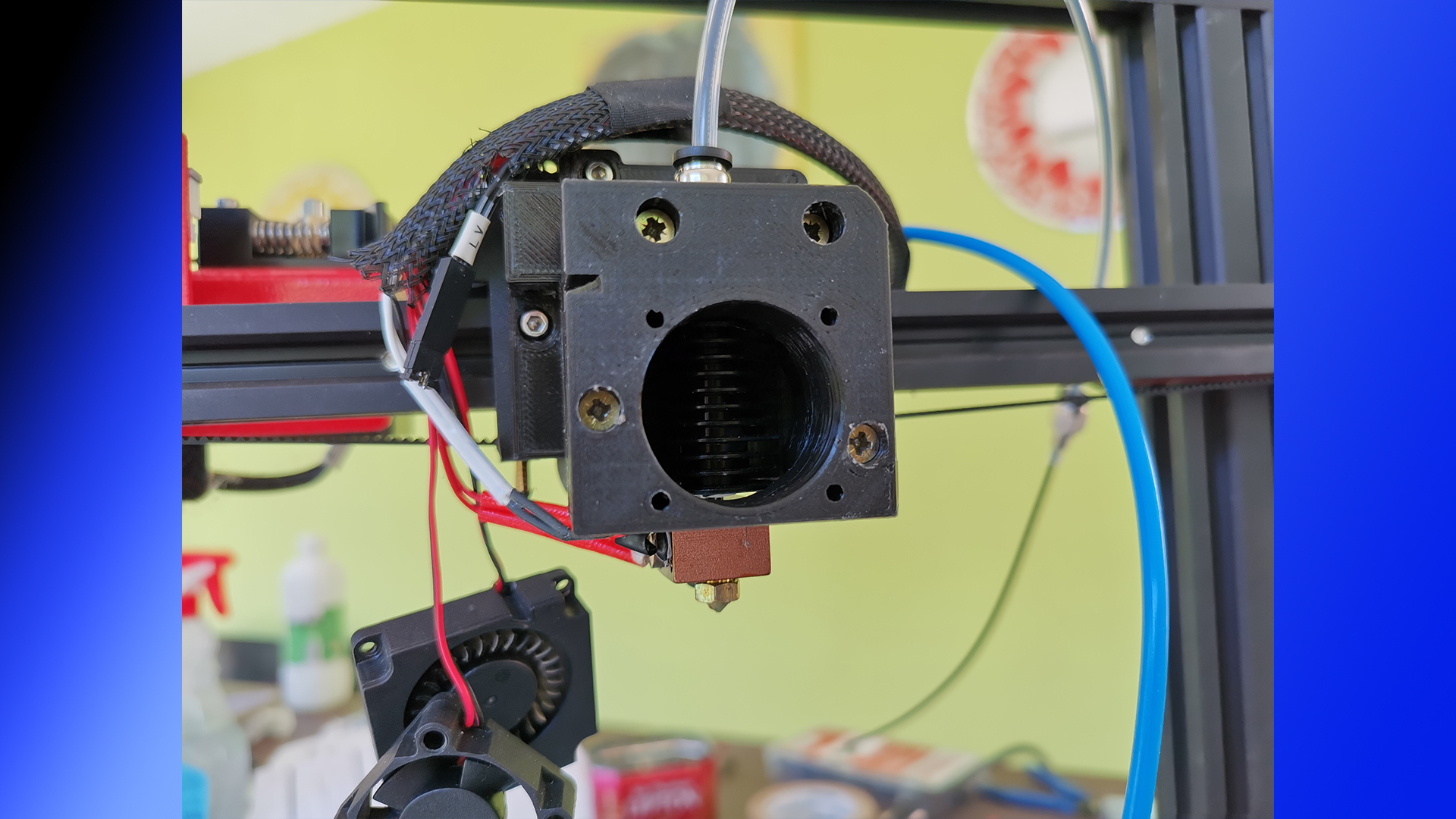

The support to be fixed on the trolley

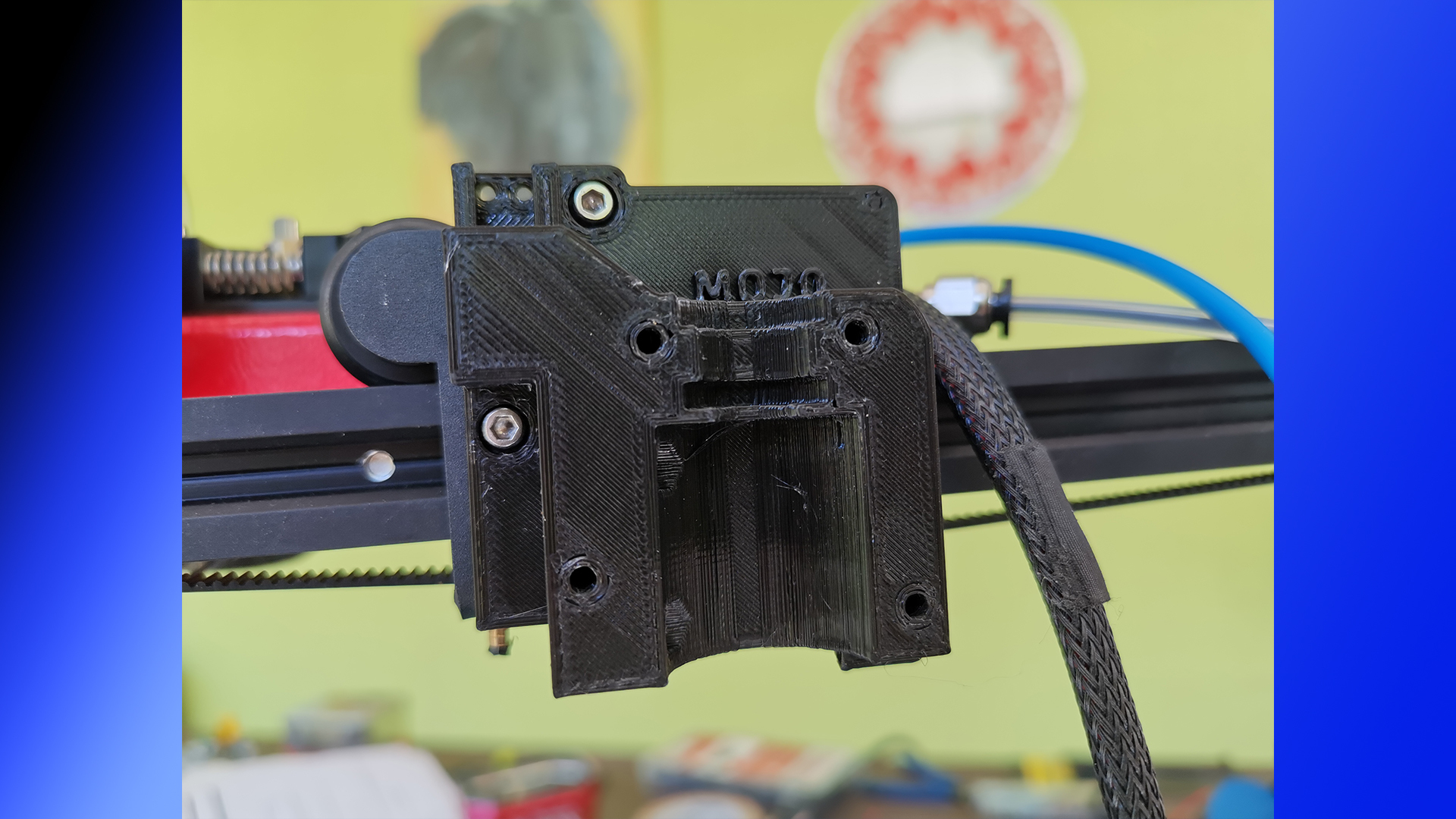

The front support to be fixed on the trolley's one

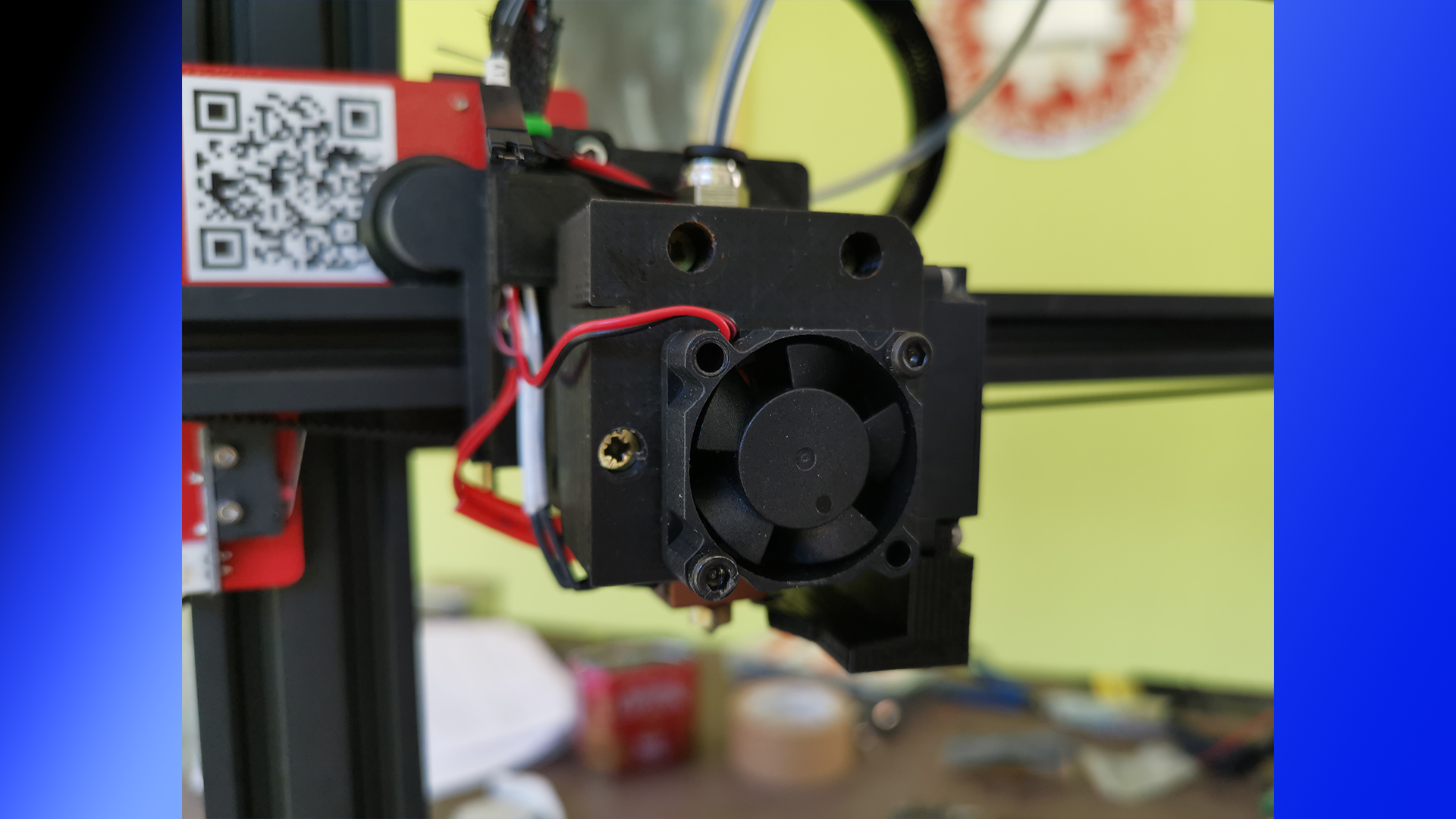

The fan to be installed on the original radial fan

I have also created a thread grommet on the trolley support part, you have to block the threads with a 2mm rizlan.

For the installation I advise you to tighten your bed as much as possible to avoid possible collision, I would not be responsible if this happens :)

for automatic leveling, the best solution I found at the moment is to put a very thin double-sided tape on the foam so that it sticks to the heating block for the adjustment.

3D printing settings

Printing in 0.2 or less

Speed 60 mm/s

Temperature 200 for the bus to be adapted according to your filament

Tray 55

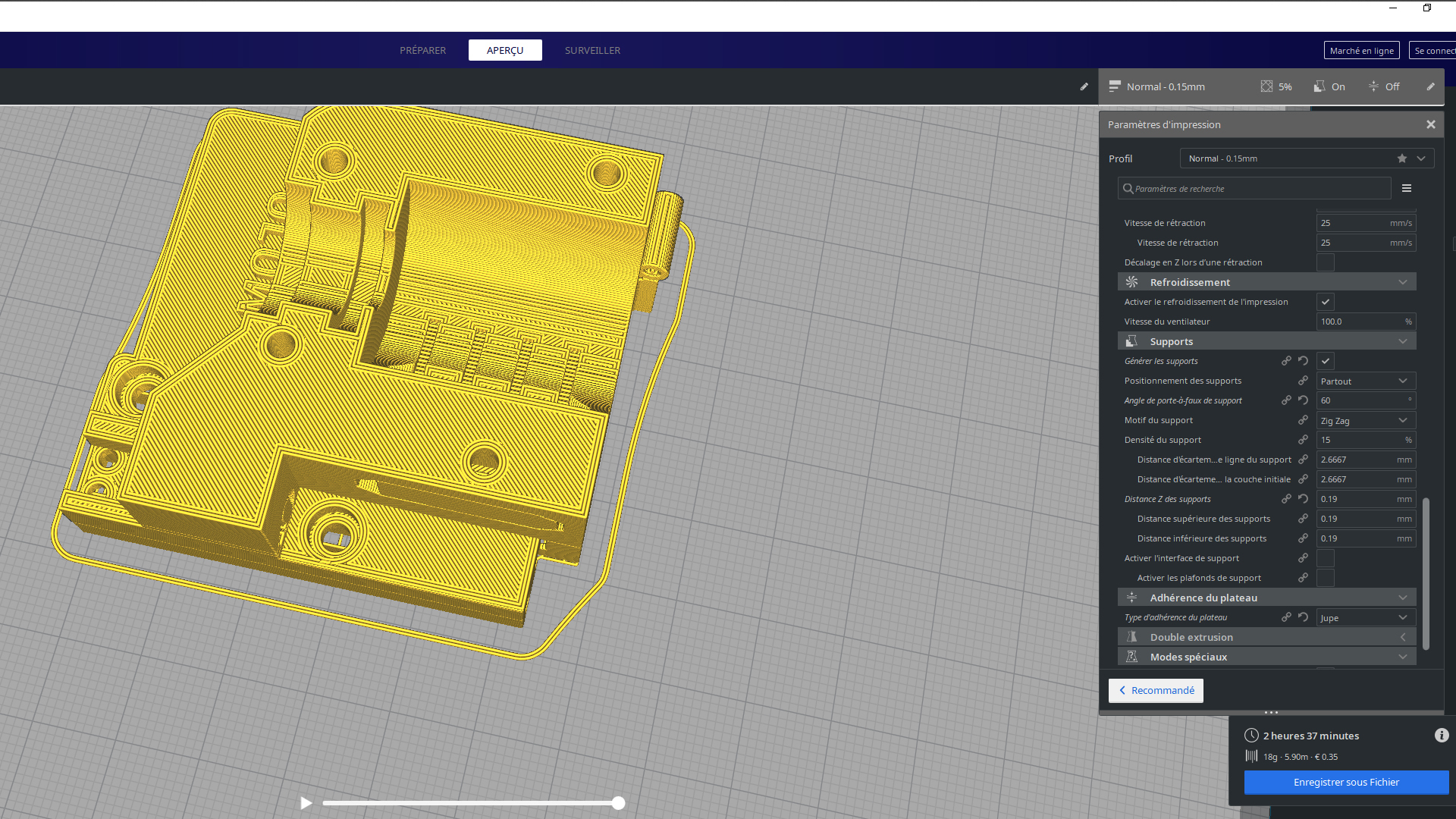

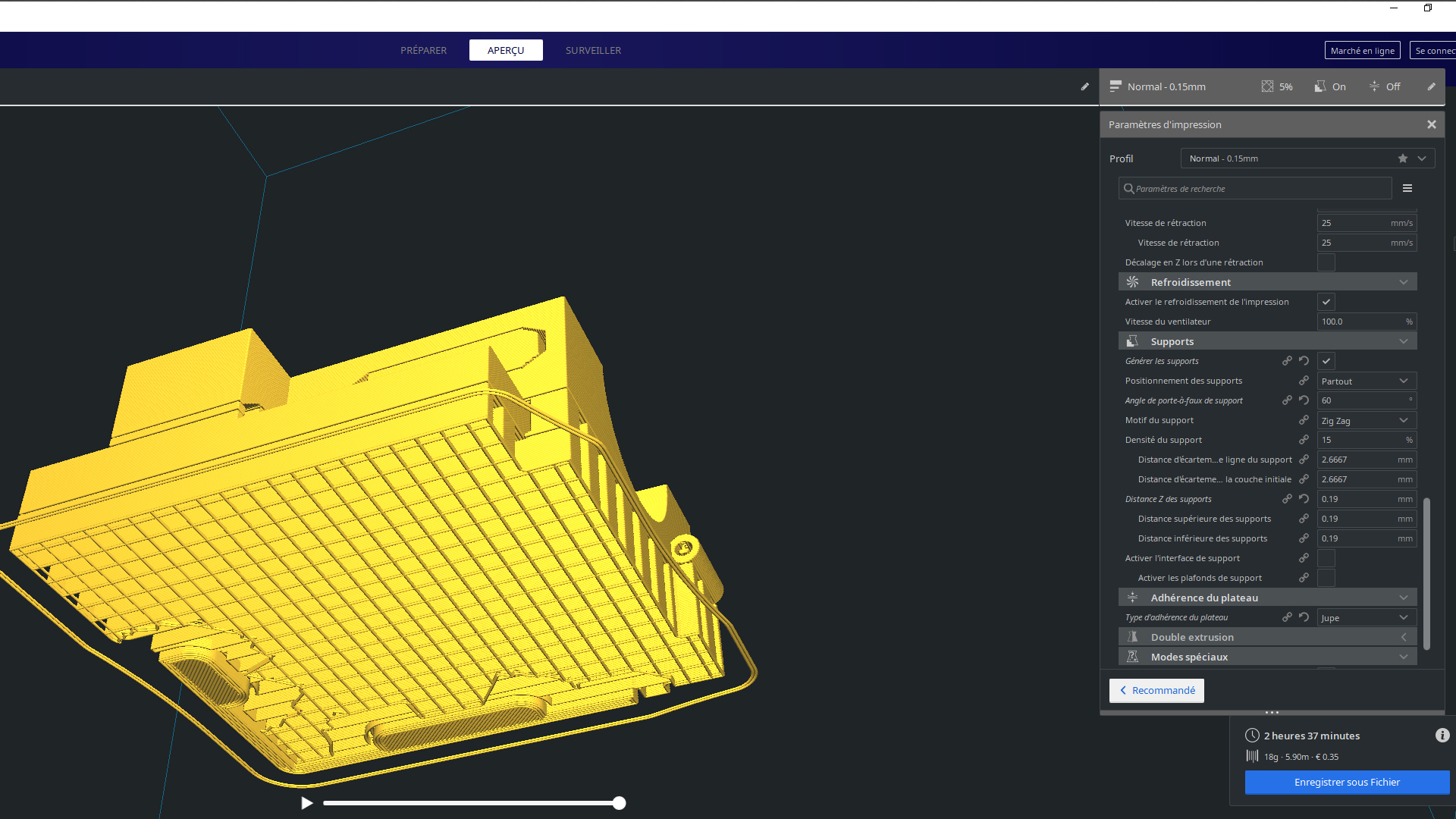

For the sense of impression and the supports I put you captures.

For the front panel look at the video available here: https://drive.google.com/file/d/1R10OaA6g-_ieb8C9oQlNmDAdjLKDZkvG/view?usp=sharing

  • 3D file format: STL
  • Publication date: 2020/06/16 at 17:28

Tags

Creator

Designs 35
Downloads 829
Followers 12

Une idée modélisé.
Une modélisation imprimé.
Créons par passion.

Bienvenue dans le monde de l'impression.

License

CC BY NC SA
