E3D-V6 Water Cooled V1.0

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.1k views
  • 3 likes
  • 42 downloads

3D model description

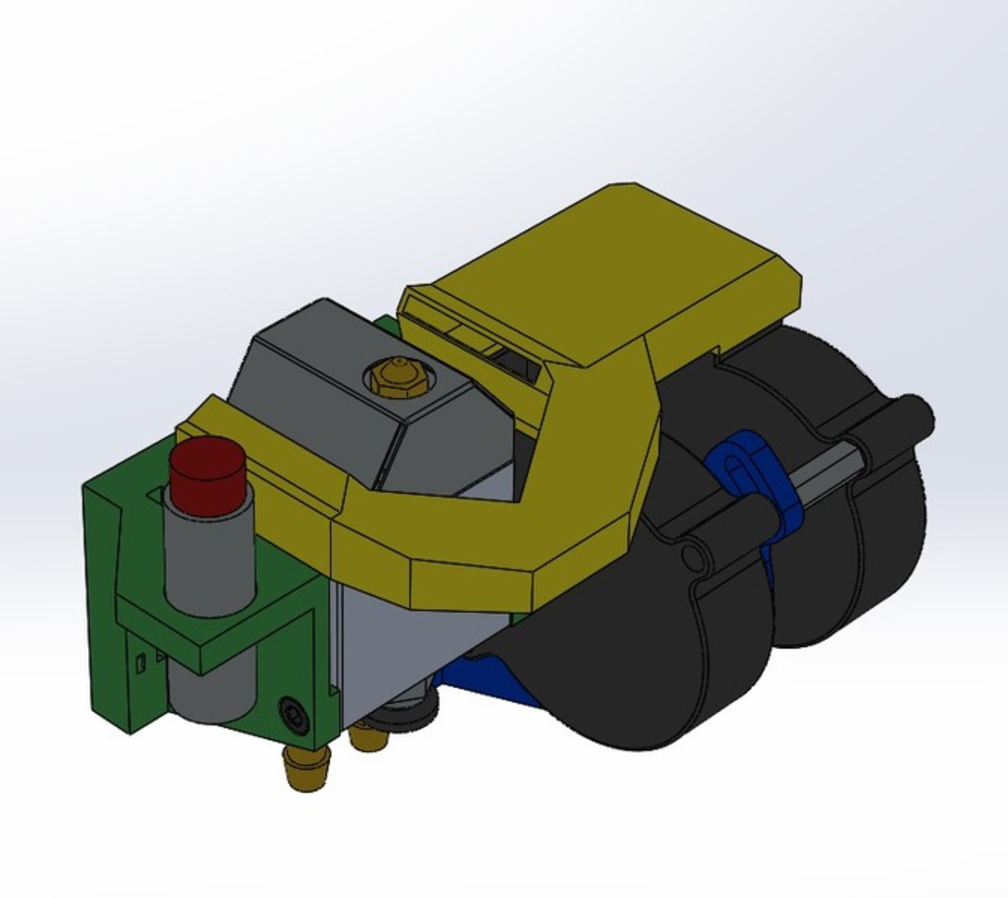

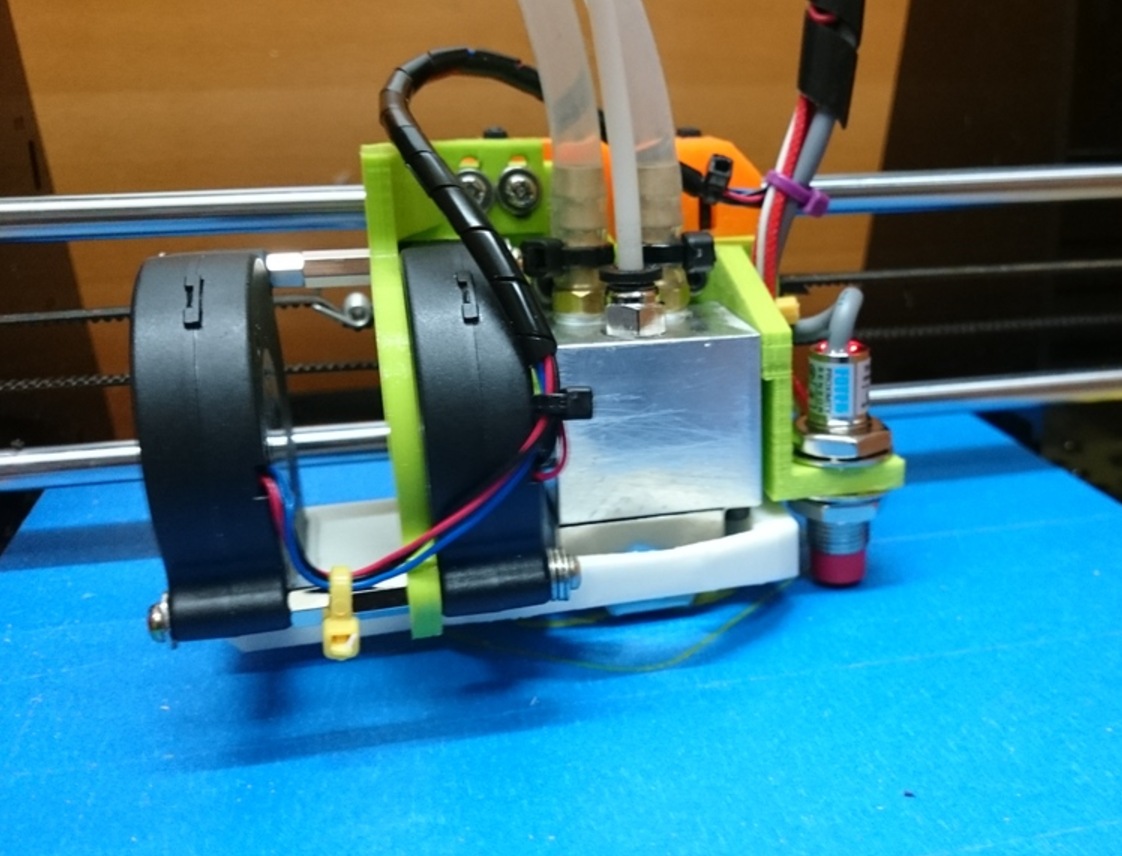

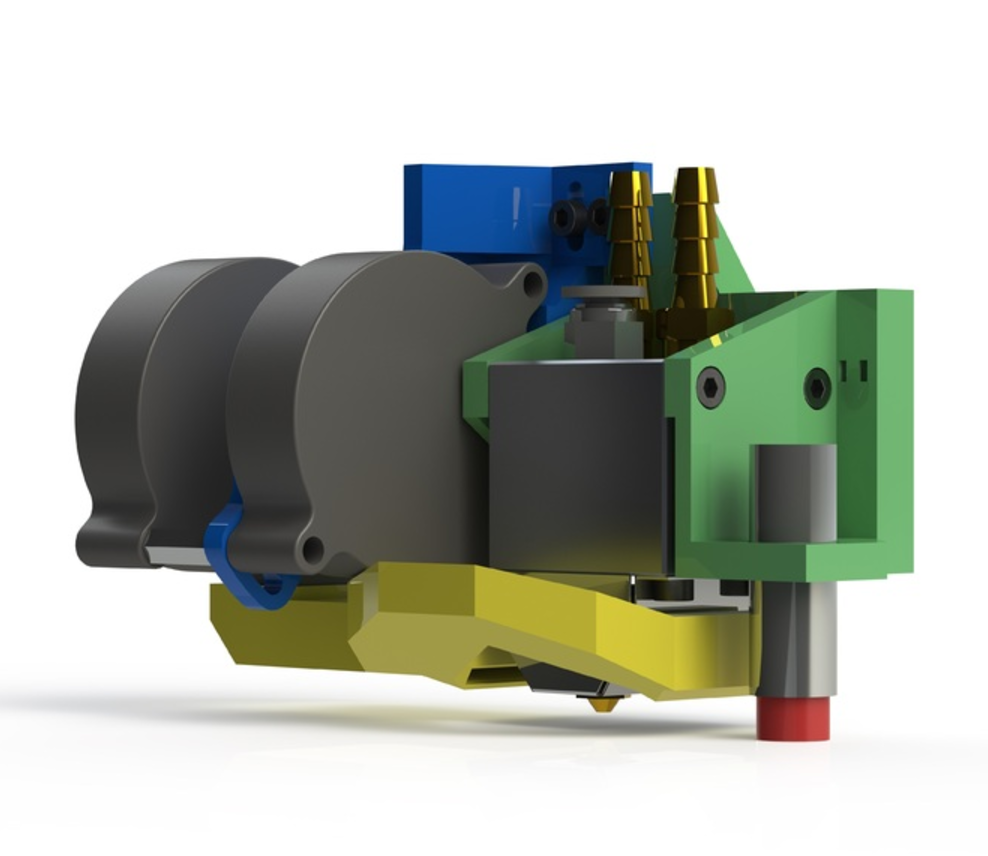

Water cooled block made from 30mm 30mm 35mm aluminum。
CAD file, "Heat Sink.PDF"。

Part list

Hose Barb Fitting 1/8 male * 1/4 hose X2
Seal Plug 1/8 male X1
5mm inner diameter hose 1.5M

Tools
Drills:8.2mm(for 1/8 male tap)、6.1mm(for M71 tap)、4.2mm、2.6mm(for M30.5 tap)
Taps:M7、M3、1/8PT

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • 5151fan_fix.STL
    • Archive.zip
    • fan_duct_V2.stl
    • hotend_fix.STL

    Learn more about the formats

  • Publication date: 2017/06/01 at 11:19

License

CC BY
