e3d V6 Kossel Rostock Delta effector

Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1 like

3D model description

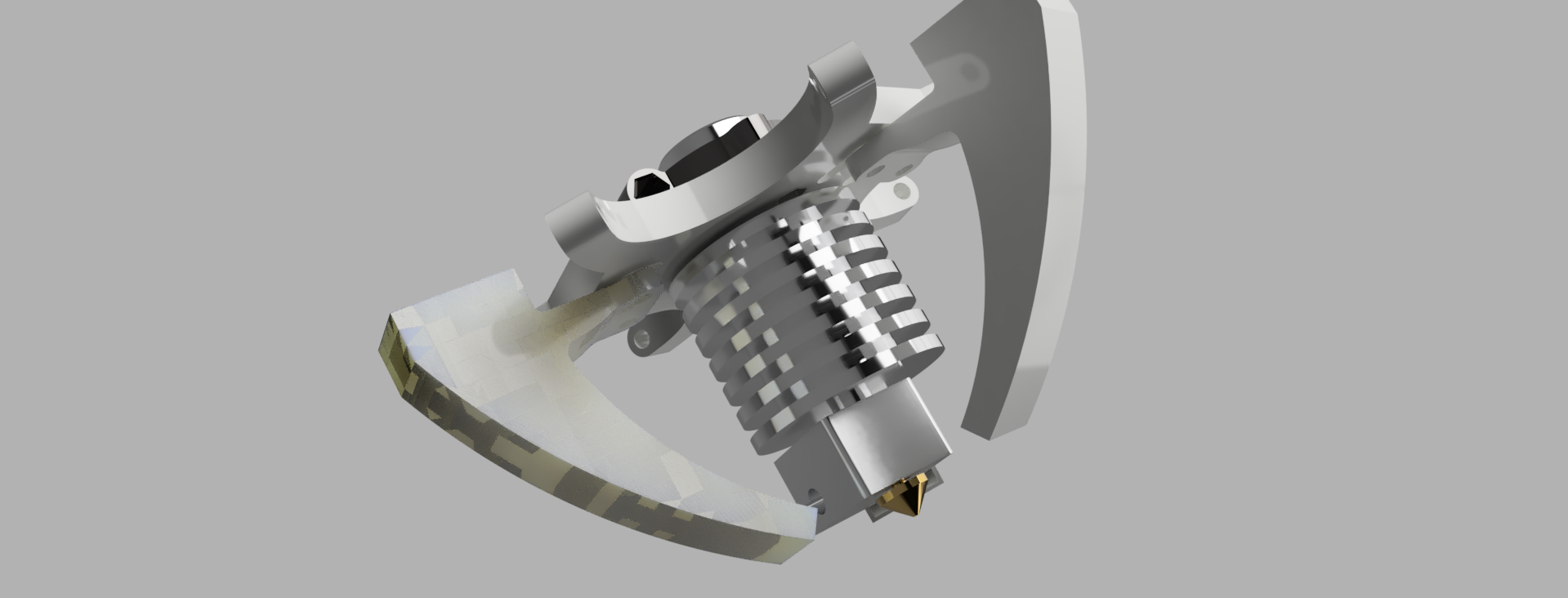

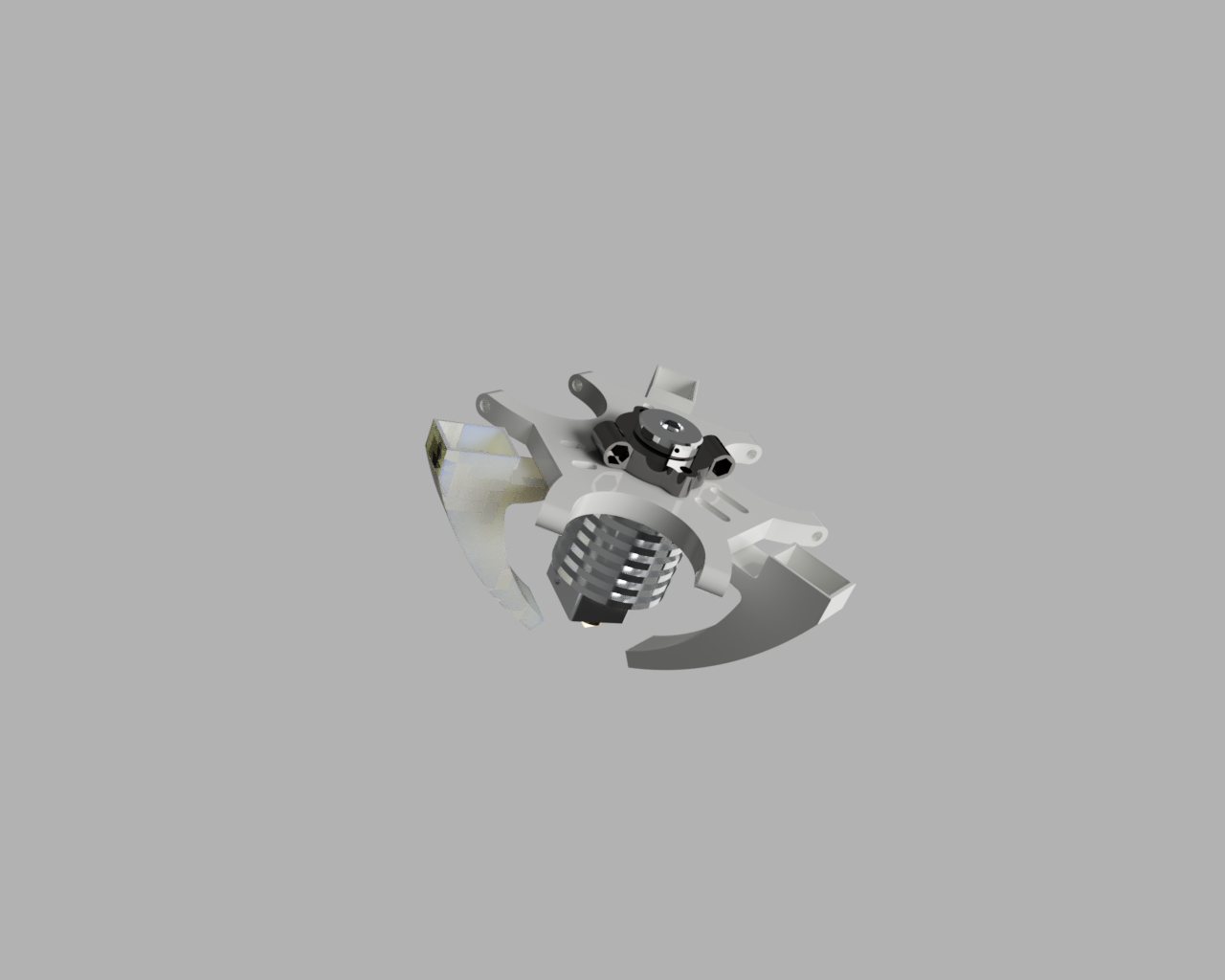

A new effector compatible with the E3d V6. Within the pack you get 3 cooling nozzles of which you don't need to use all three. The whole effector uses M3 bolts and nuts. Use the stock fan or an aftermarket cooler for the cooling of the heatsink.

The nozzles use 5015 blowers that will sit over the top without the need for hardware.

You will require;

8x M3 nuts
8x M3 x 12mm long

Within the effector and clamp includes pre-set holes for you to fit the nuts into the part, I'd suggest to use heat on the nut and press into the part for it to be held permanently.

The nozzles can also be adjusted so you can get the perfect placement around your heatblock/sock.

I'd suggest you use at least 20% infil and 0.2mm or smaller layer height to hold the tight tolerances required for the top of the heatsink.

You may require the use of support within the nozzle if you are not able to do bridging without significant drooping.

The distances on the arms for your delta settings is 42mm. The offset from the centre of the effector to the rods is 37mm.

As this is a prototype please ensure you are aware this is an alpha product and may not entirely work till all of the issues have been found and resolved. Until then please do alert me to any potential issues or modifications you may desire.

For commercial use - please contact me.

  • 3D file format: STL
