E3D univeral hot end adapter clamp

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 144 views
  • 2 downloads

3D model description

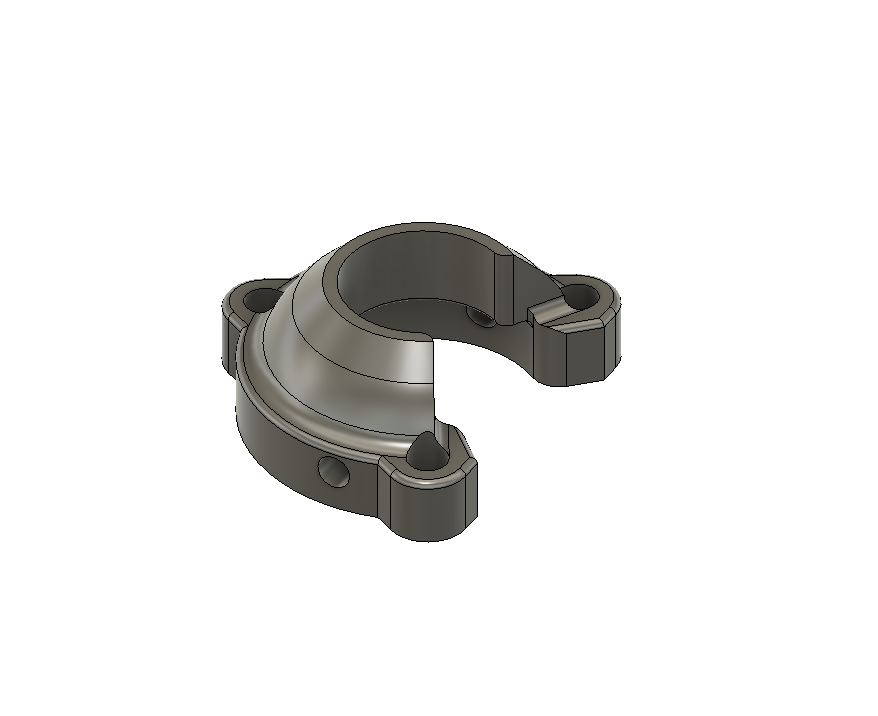

This is a little clamping bracket I designed in order to mount an E3D all metal hotend to my Zonestar printer which has a sheet metal hot end carriage.

To mount, print just the first layer and use it as a template to mark out the mounting holes on the top of the carriage. Centre punch and drill out to 3.6 - 4.0mm (and expand the centre hole to 10mm).
Press hot end heatsink flange into the clamp and tighten with two 3mm grub screws.
Screw in place with three small coarse screws or M4 machine screws.

3D printing settings

PLA is not suitable for high temp application.
Recommend PETG, ASA or ABS. Nylon or PC if you're fancy.

Level your bed or the mating surface will be warped.

Layer height 0.1 - 0.15mm
Brim width 10mm
Concentric top/bottom pattern
Zig zag support with 60% density
High infill density recommended, I used 50%

Approx 30x30x11mm, 30m-1h print time.

  • 3D file format: STL
  • 3D model size: X 27.6 × Y 11 × Z 28.5 mm
  • Publication date: 2020/09/05 at 17:53

Tags

Creator

Designs 13
Downloads 69
Followers 3

Hello! I am a tinkerer and engineering enthusiast from Christchurch, New Zealand.
I have an Ender 3 V2 and a Zonestar Z6FB.
I am glad to provide all my CAD work for free as an ameteur, but if you want to return the favour, please give feedback on any designs you print of mine!

License

CC BY NC SA
