Dual 30x30 E3D Fan Holder

3D model description

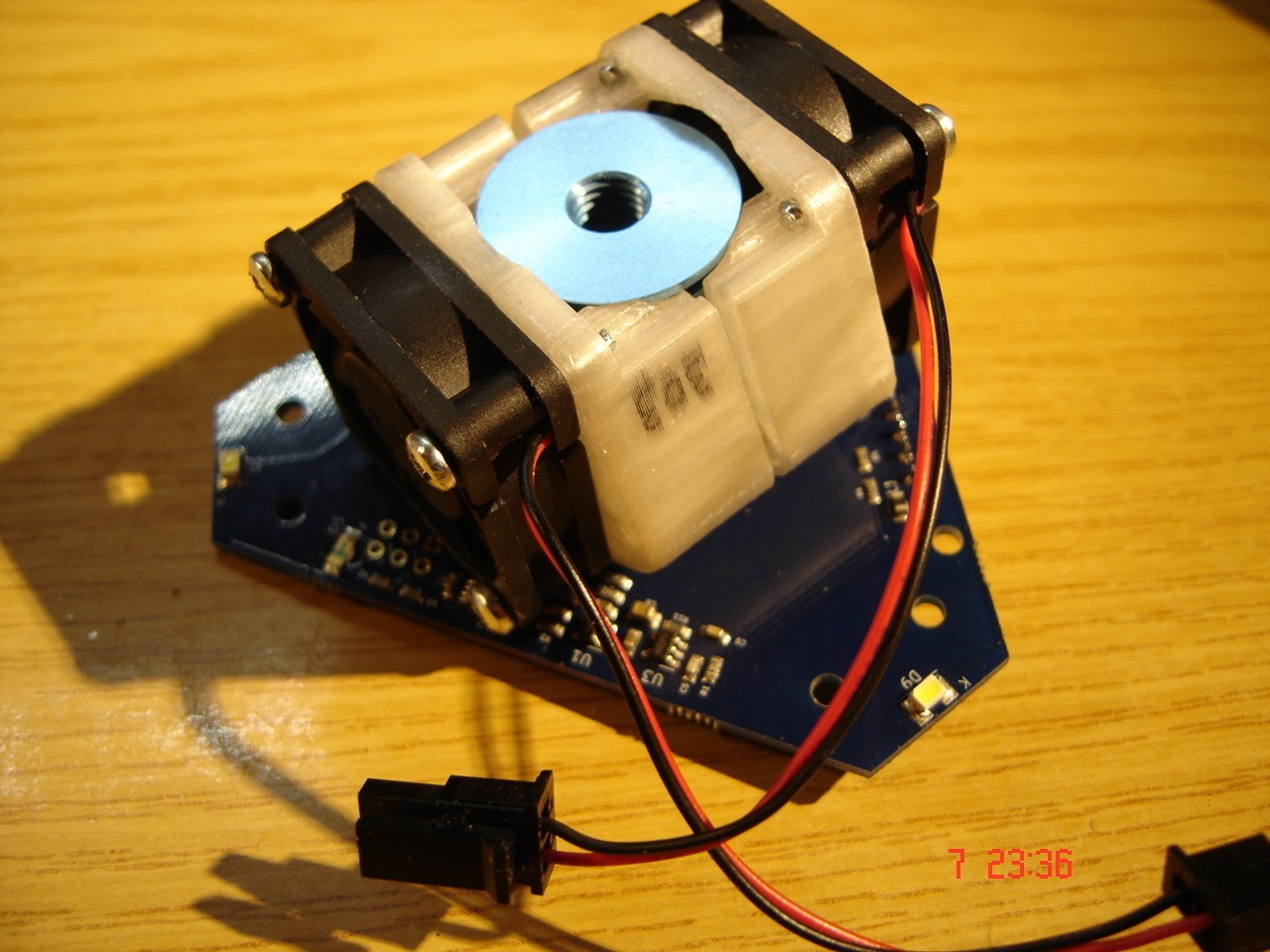

Here do you have a fan support for E3D V6 Hot End to install two 30x30 fans.

Very good cooling system.

I have connected both fans in series for noise reduction. Both 12V fans in series to 12V power supply, means 6V to each fan. to get less noise with only 12V fan with 12V power supply.

Result: Less noise than E3D original fan, with more cooling effect than a Noctua 40x10 fan.

I recommend to print it with a heat resistance filament, as PolyCarbonate, but you can try with High Temp PLA or ABS.

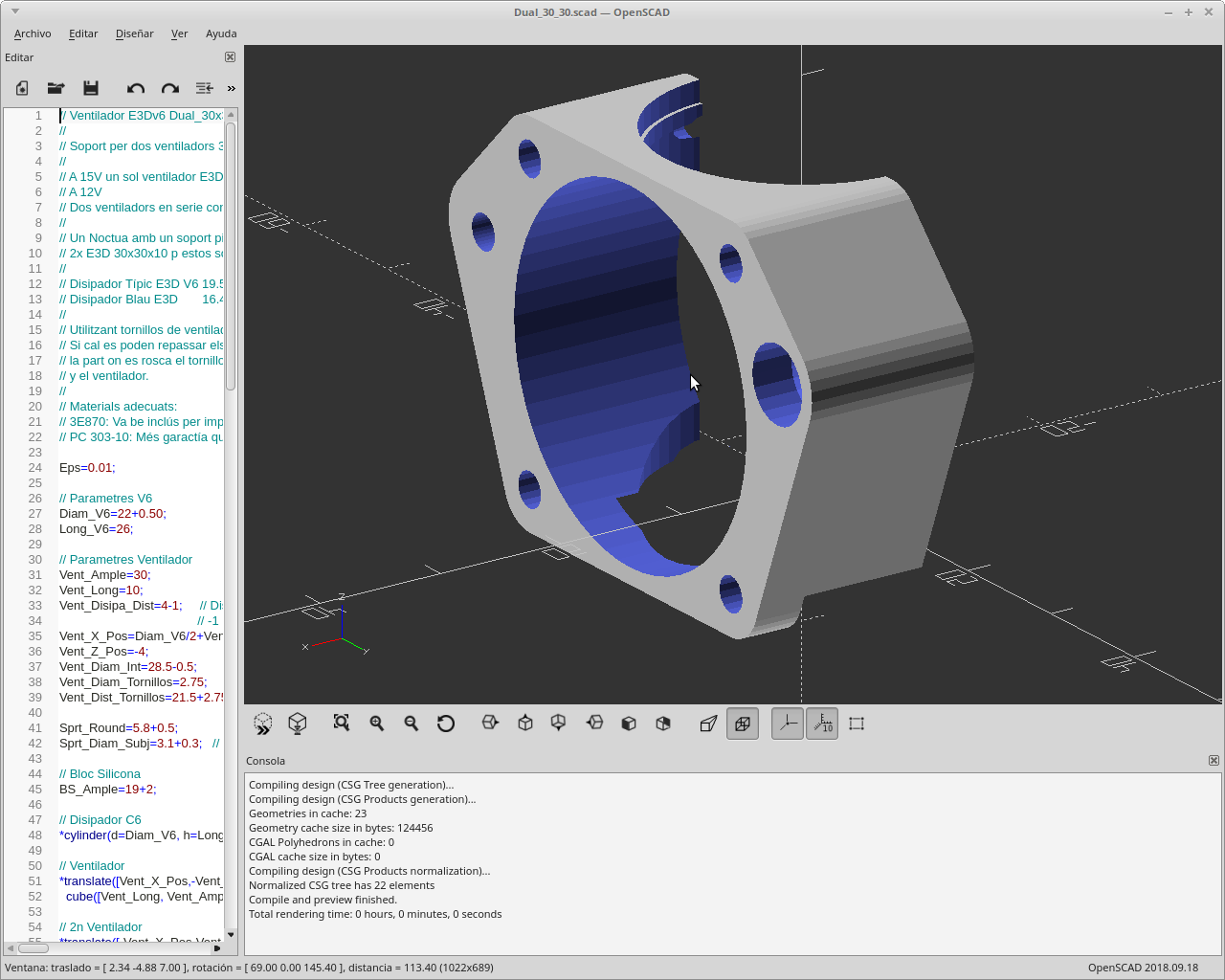

I have tested the model in PLA 3D850, dessign and dessign until get the final shape, and the print it in PolyCarbonate.

I am using PolyCarbonate printed version to print at very high temperatures, I print PC, PSU, PEI, PPSU, and PEEK.

But it you only prints in PLA and ABS, you can print your Dual Fan Support in High Temp PLA as PLA 3D850, PLA 3D870 or ABS.

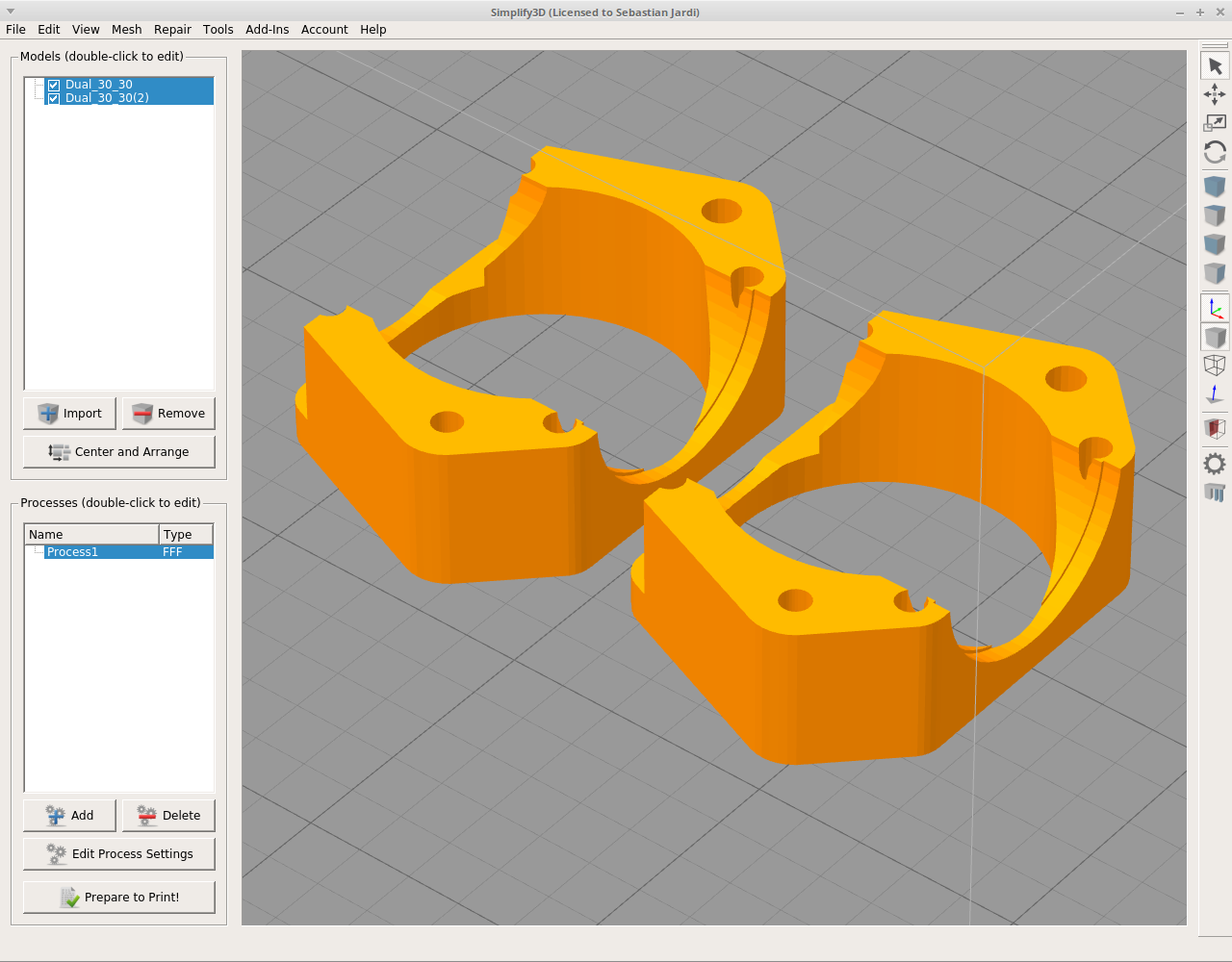

You need print two times this unique stl model, or duplicate it in Simplfy3D.

This version is compatible with Duet3D Smart Effector and E3D Volcano Nozzle.

Ask for a customized version if you need it.

3D printing settings

I recomment 0.4 Diameter Nozzle and 0.2 Layer Height.

You need to print two pieces to mount the two fans in push pull mode.

  • 3D model format: STL
