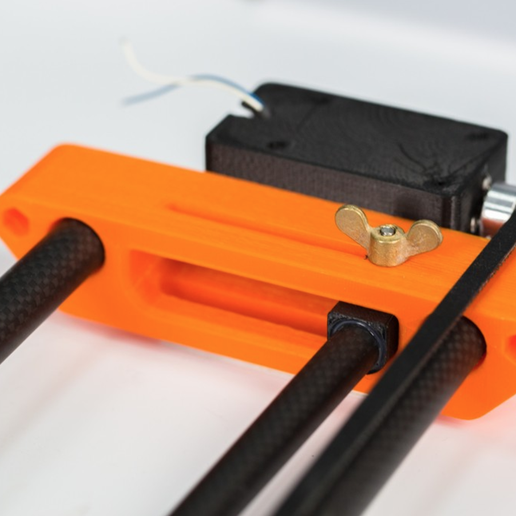

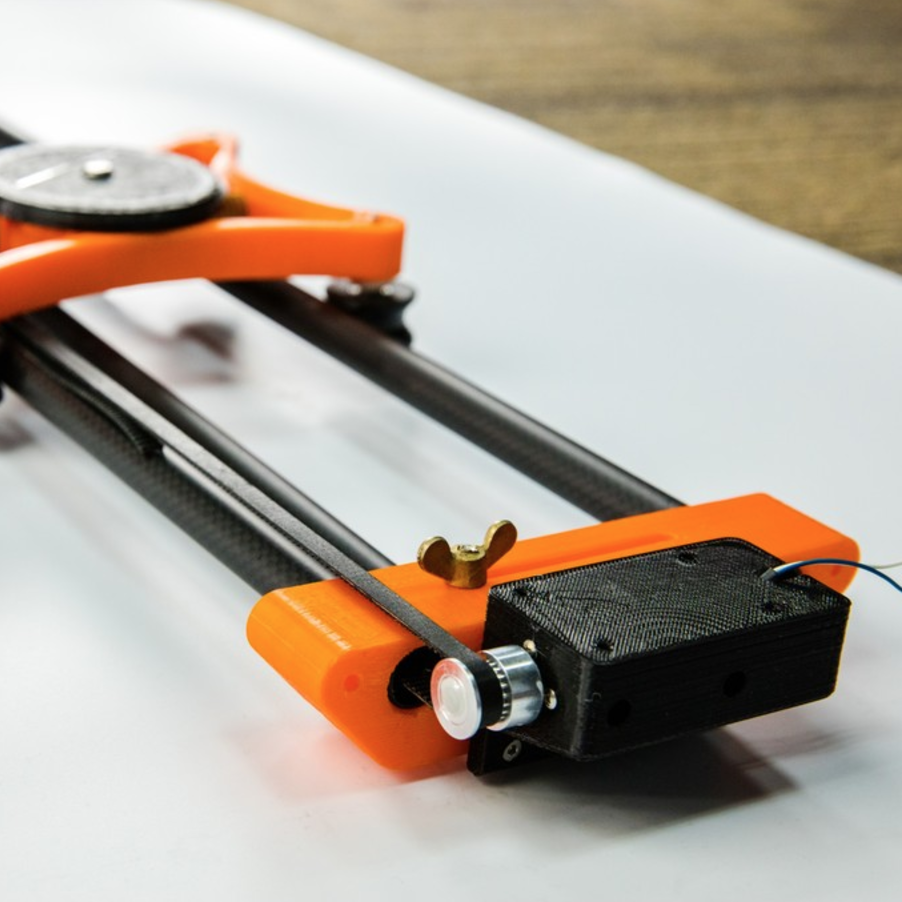

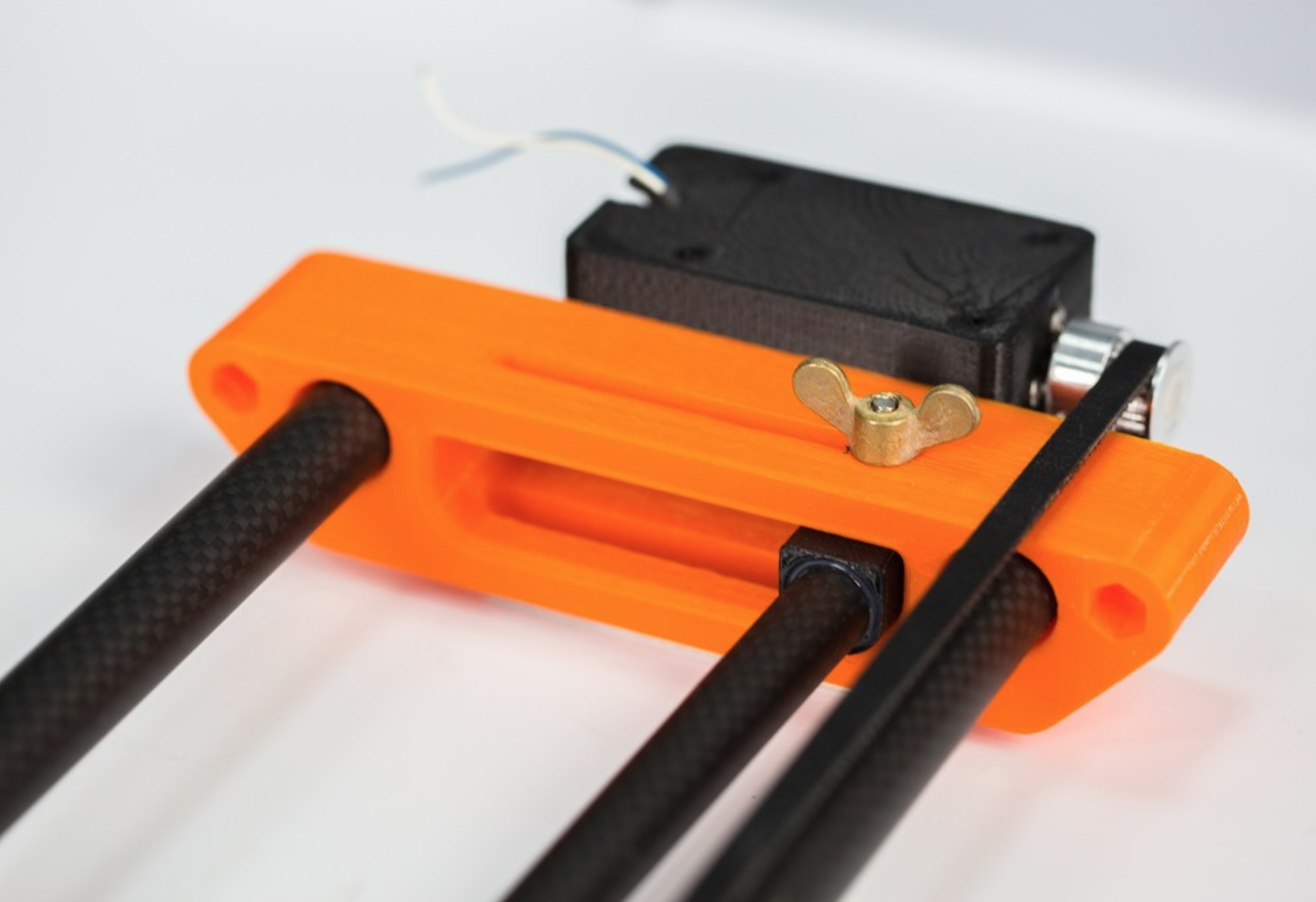

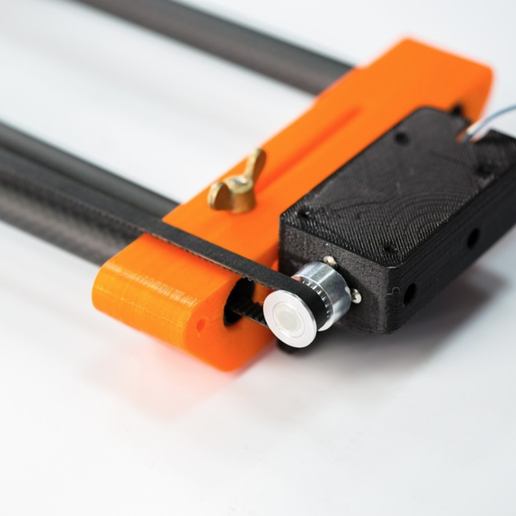

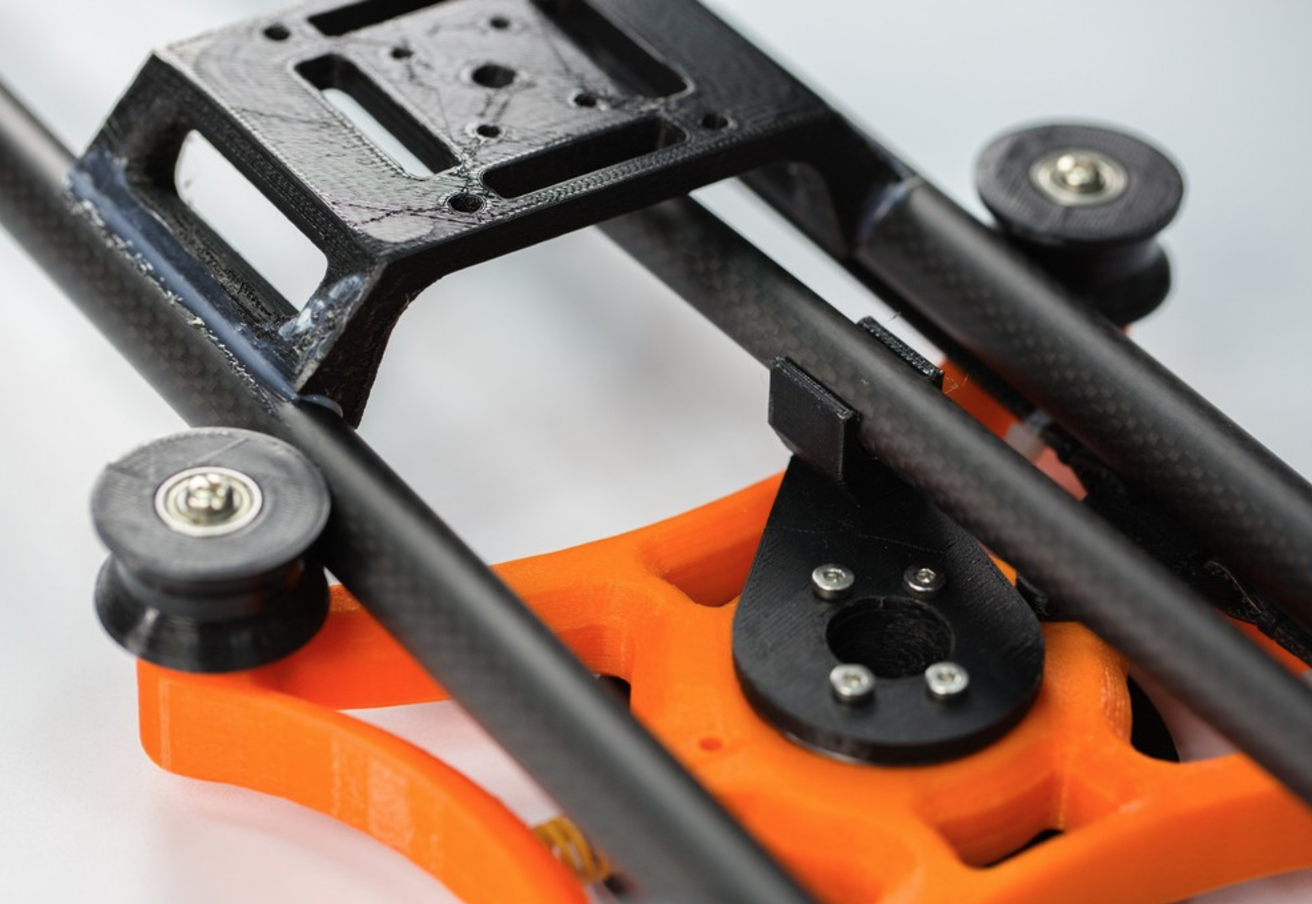

DSLR Camera FollowSlider V2.0

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 5.1k views
  • 37 likes
  • 306 downloads

3D model description

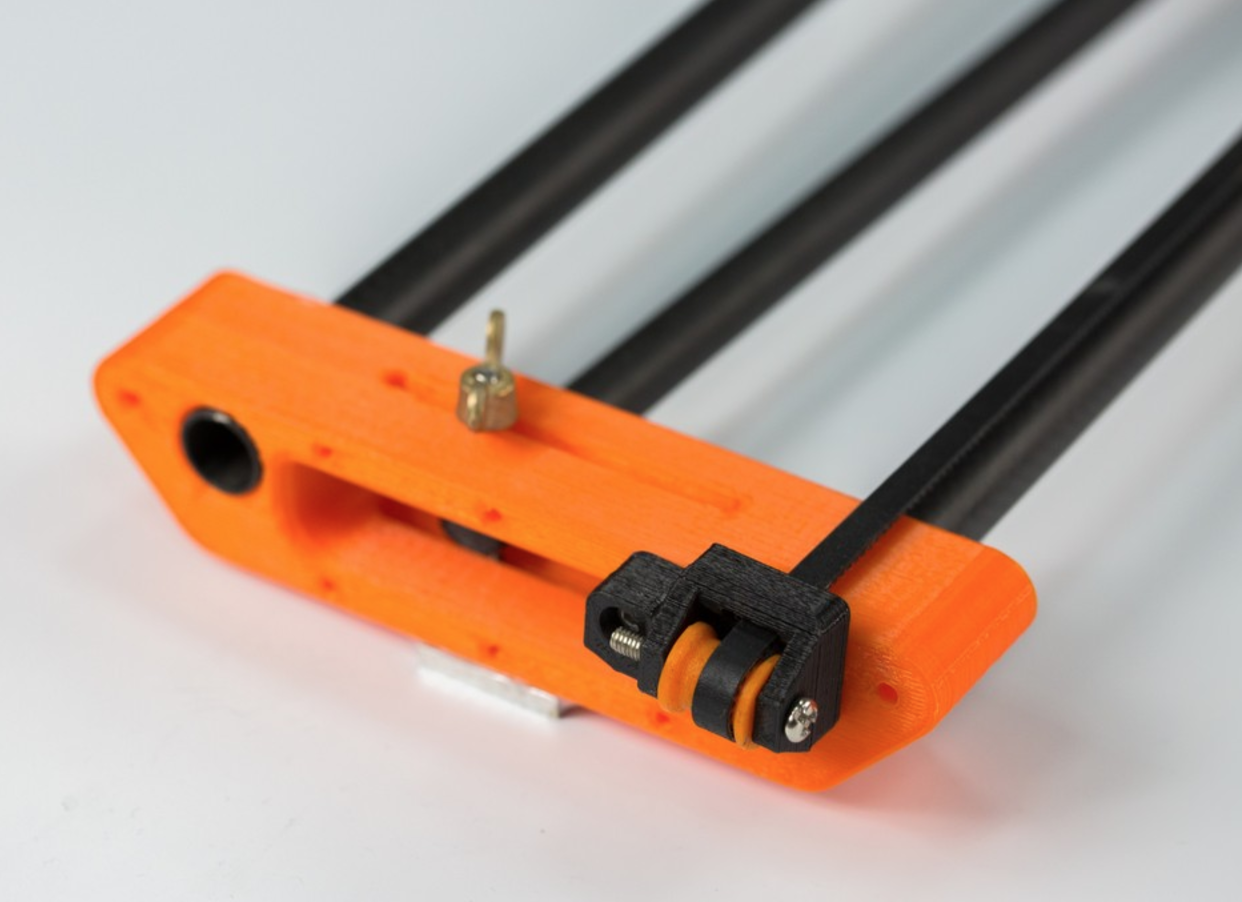

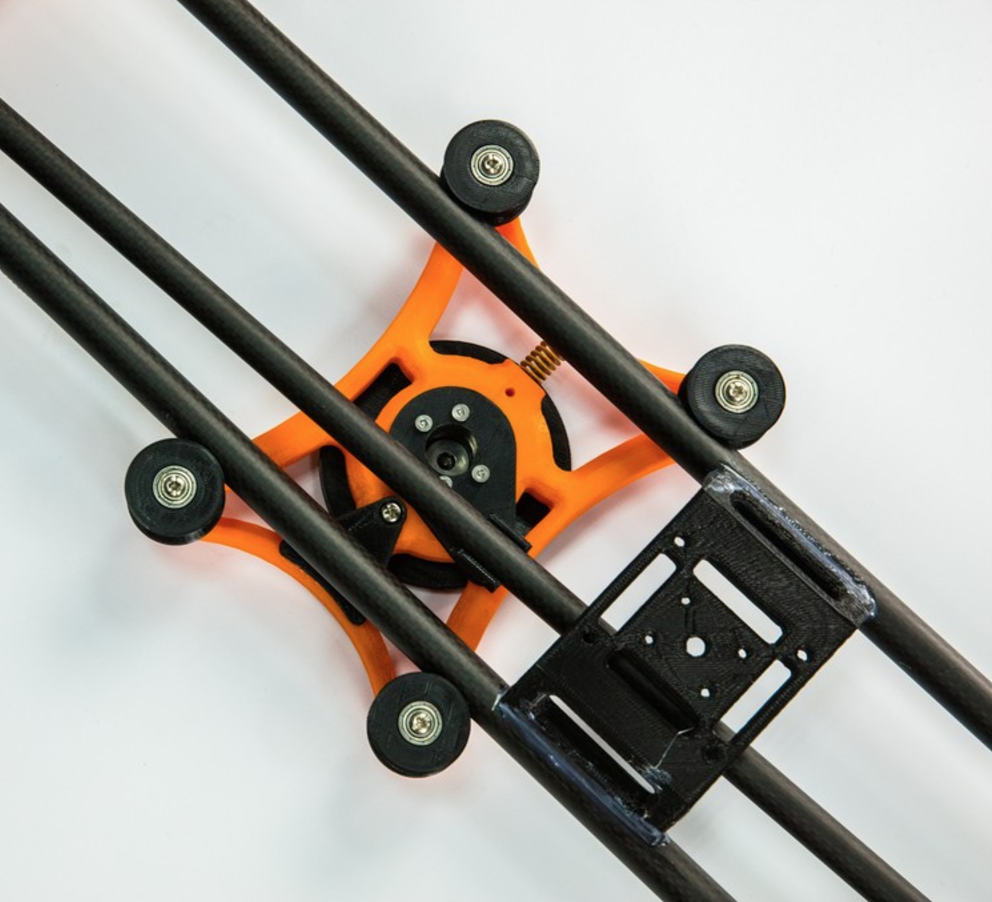

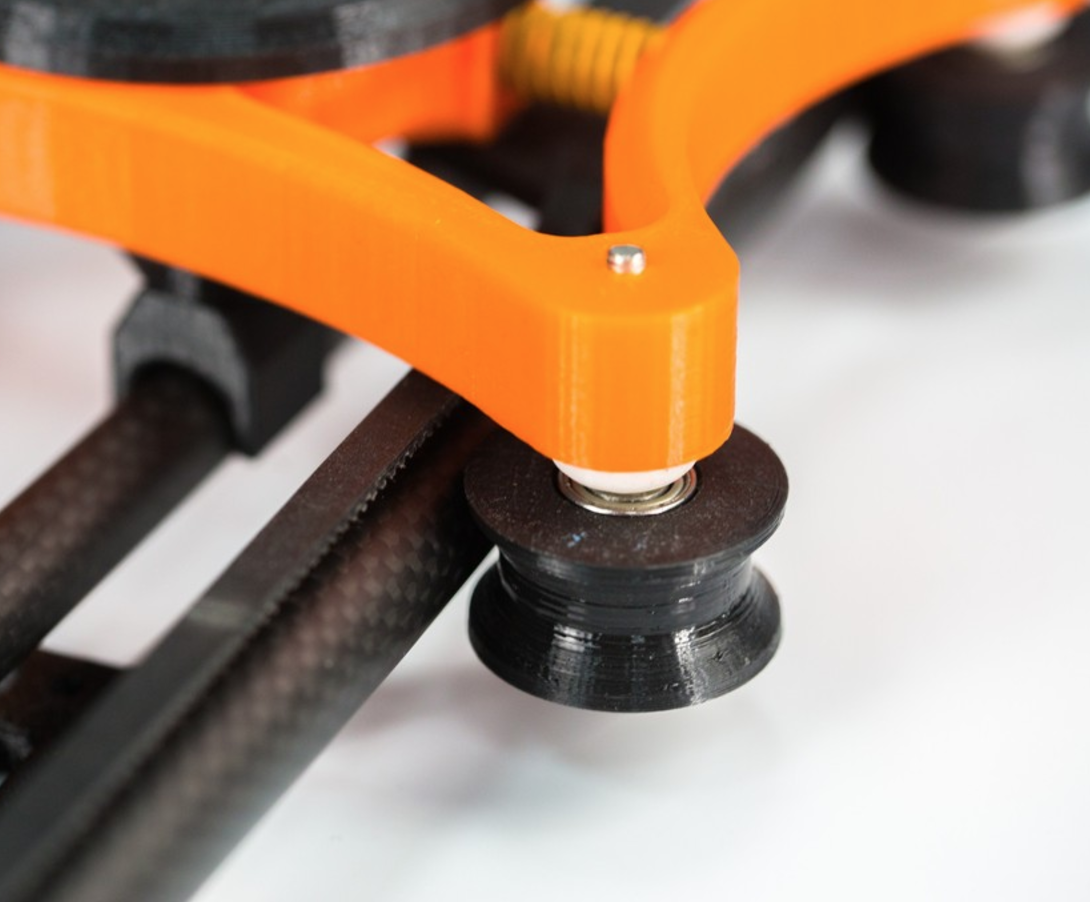

This is my second version of the camera slider with follow function

BOM list:
1M( 15mm) carbon fiber tube ×2
1M (12mm)carbon fiber tube ×1
4135mm bearing ×8
M4 butterfly nut ×2
AB glue ×1
M435mm screw ×6
M425mm screw ×2
M410mm screw ×1
GT2 2mm Belt (2m) ×1
M310mm screw ×5
M3 nut ×1
12V gearmotor : https://www.dfrobot.com/index.php?route=product/product&search=motor&description=true&page=6&product_id=1460


3D printing settings

Printer:
OverLord

Rafts:
No

Supports:
No

Resolution:
0.2mm

Infill:
30%

3D printer file information

  • 3D design format: STL Folder details Close
    • 12MM_Guide.STL
    • 30mmRotatePlatform.STL
    • BearingRod.STL
    • BeltGraber.STL
    • Box.STL
    • Gt2.STL
    • Guiding_Rod_Holder.STL
    • Motor_Mounter.STL
    • RodsBase.STL
    • Rotate_board.STL
    • Slider_Holder_V2.0.STL
    • Slider_Platform_V2.1.STL
    • Wheel_13mm.STL
    • Wheels.STL
    • WheelsHolder.STL
  • Publication date: 2016/11/22 at 11:00

License

CC BY NC SA
