DS18B20 Solar Shield

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 775 views
  • 1 like
  • 22 downloads

3D model description

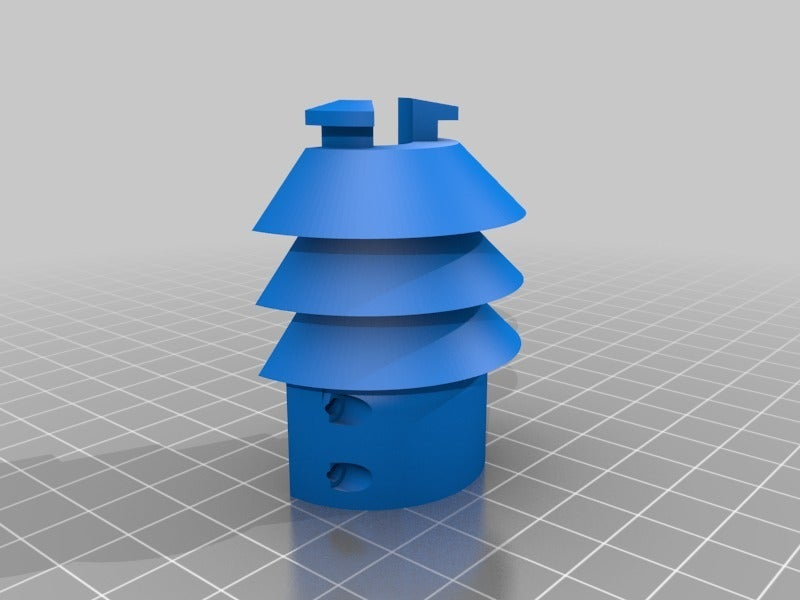

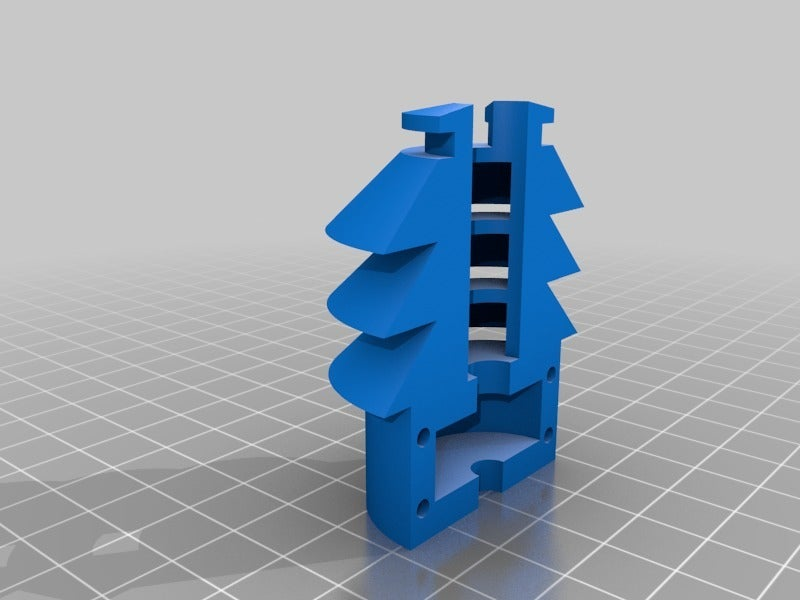

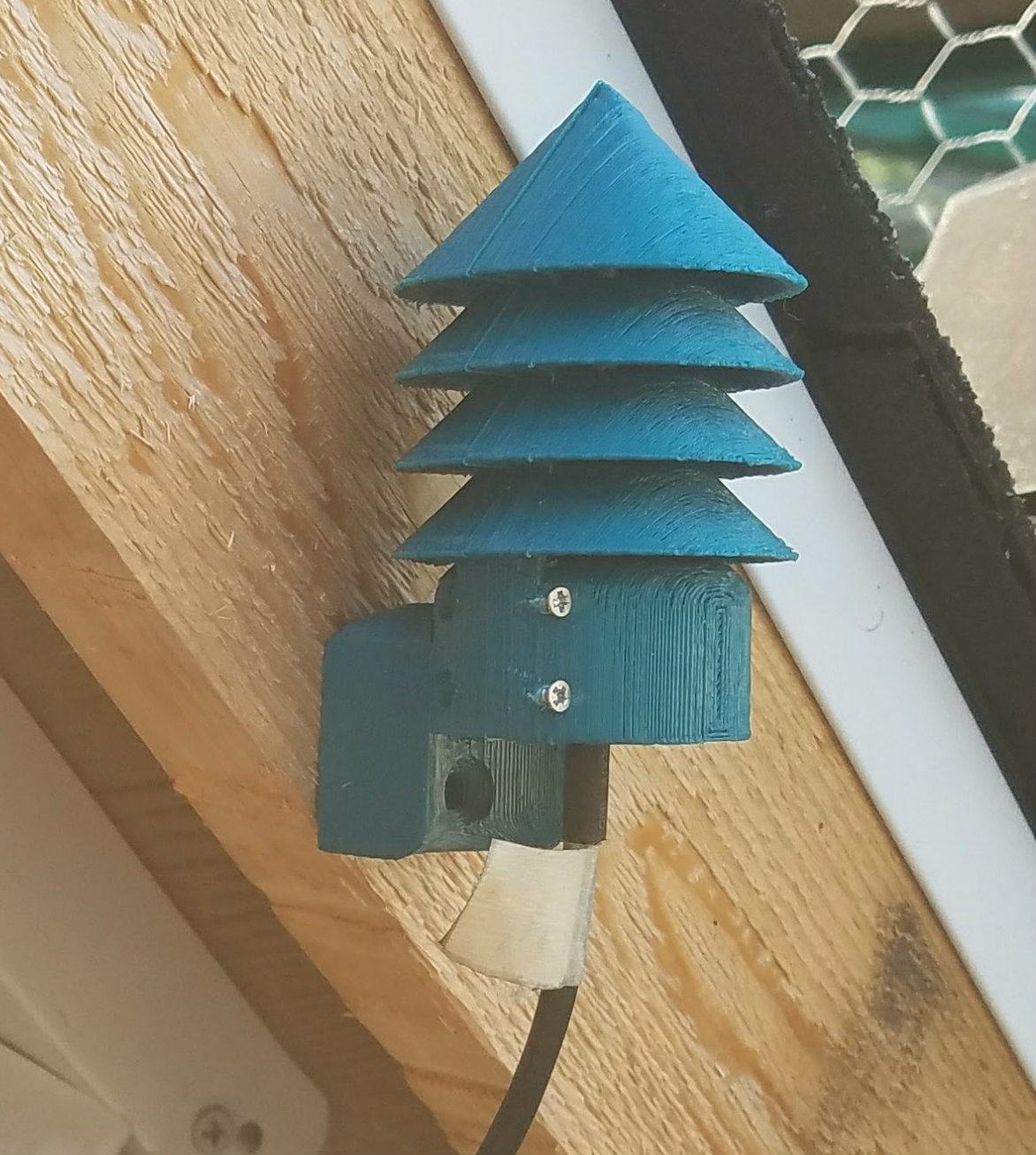

Simple solar/weather shield for the DS18B20 weatherproof temp sensor.
This is version 1. I have plans to make the top a separate piece to ensure better protection from rain.

UPDATE 10/12/17

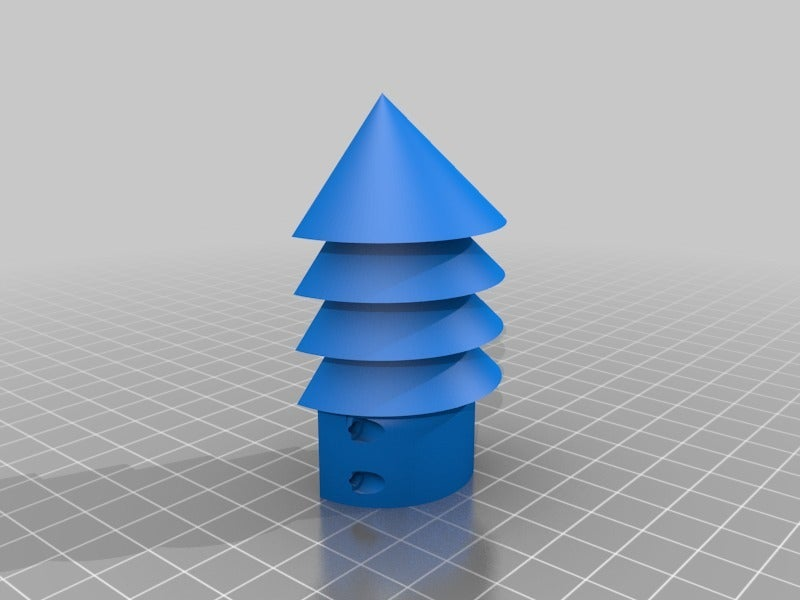

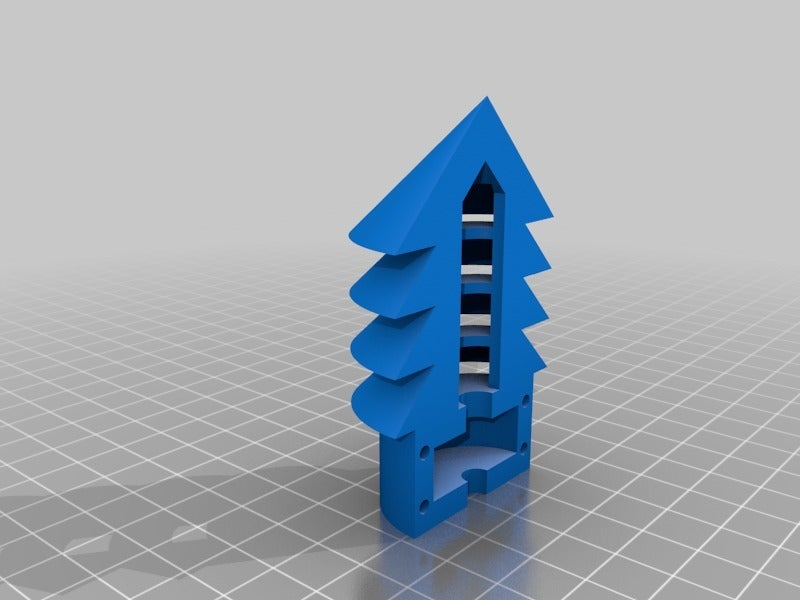

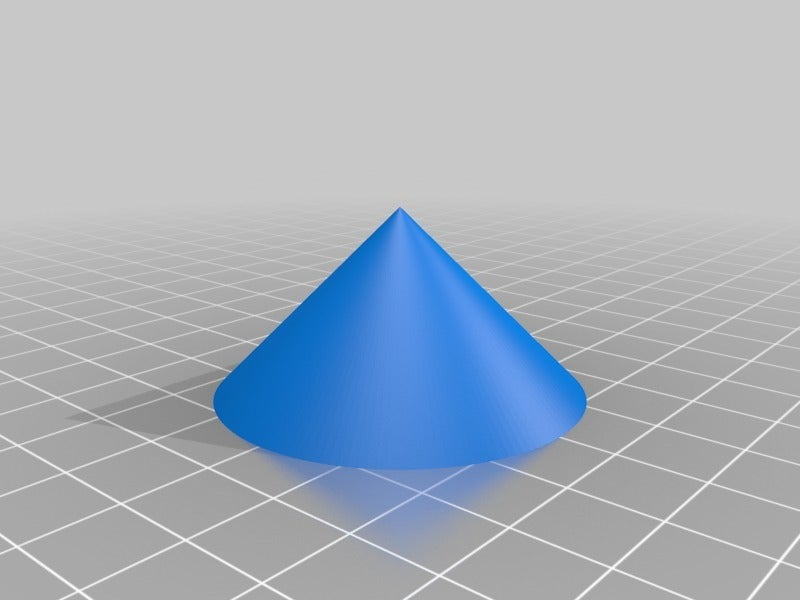

I've added V2 base and cap parts. the cap now fully covers and connects the 2 halves.
I haven't actually printed this yet myself, so you may need to play with the fit some.

hardware:

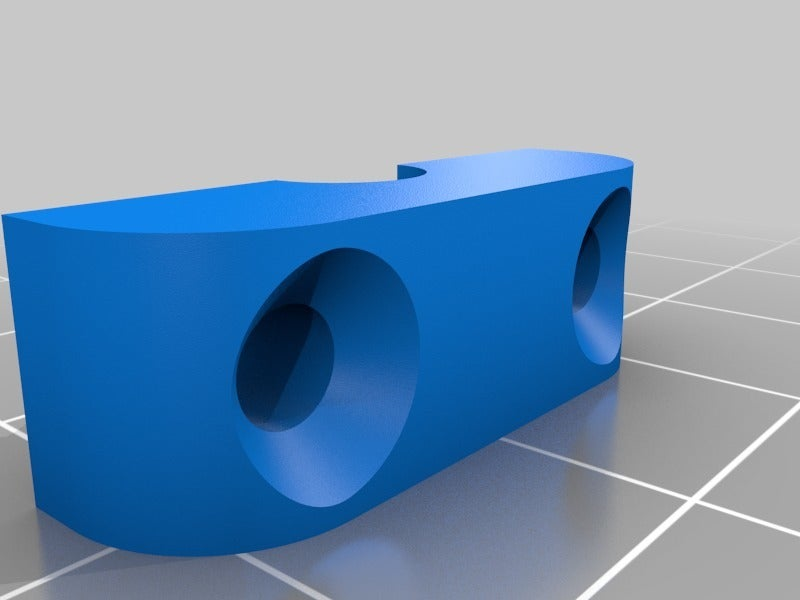

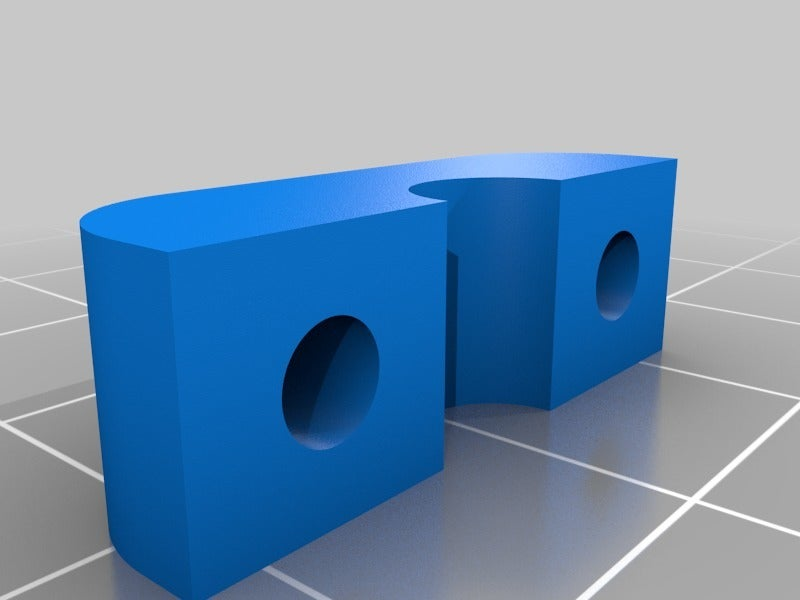

Probe Mount screws 2x M3x12
base screws 4x M3x12
Wall Mount 2x M4x20 (depending on mounting surface)

Designed in On-Shape.

  • 3D file format: STL
  • Publication date: 2020/03/02 at 17:56
