Drilling Bounding Ring

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

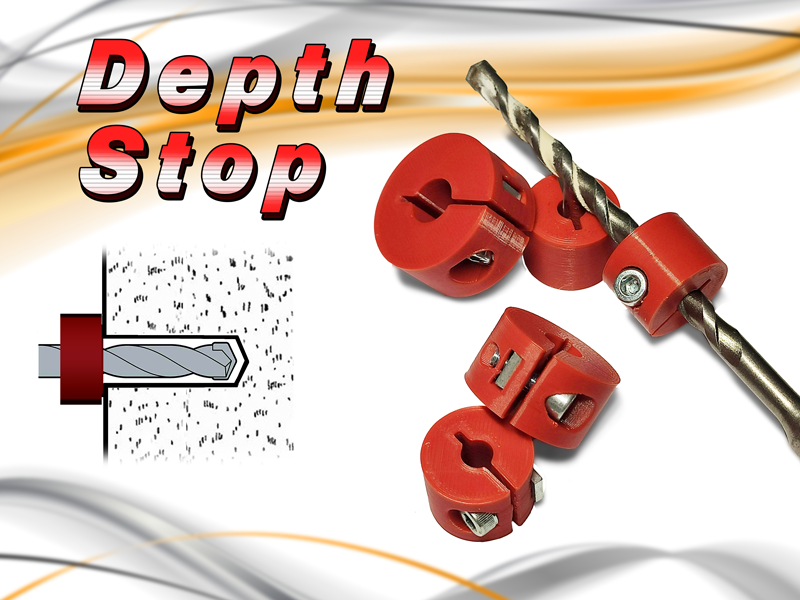

When I needed a depth limiter for the drill, I downloaded models from other authors. These are interesting models with a collet lock. But in fact, they were useless, because the fixation on the drill was insufficient and the limiters simply slipped, especially when working with the hammer drill. So I created my own drilling depth limiter design.
I made three of the most popular diameters for drilling with a hammer drill 6-8-10mm. However, you can use the source file to modify it for yourself.
The model is printed without support, print in place.
To complete it, you will need: M4x12mm Hexagon Socket Screw and M4x7x2 Square Nut.

Parts links below:

-  M4x7x2 Square Nut

-  Multi-function 18 In 1 Universal Wrench Keychain

Thank you for every review, like or donation,
It motivates and helps to implement new projects!


3D printing settings

-

3D printer file information

  • 3D design format: F3D and STL Folder details Close
    • Depth_Stop_10mm.stl
    • Depth_Stop_6mm.stl

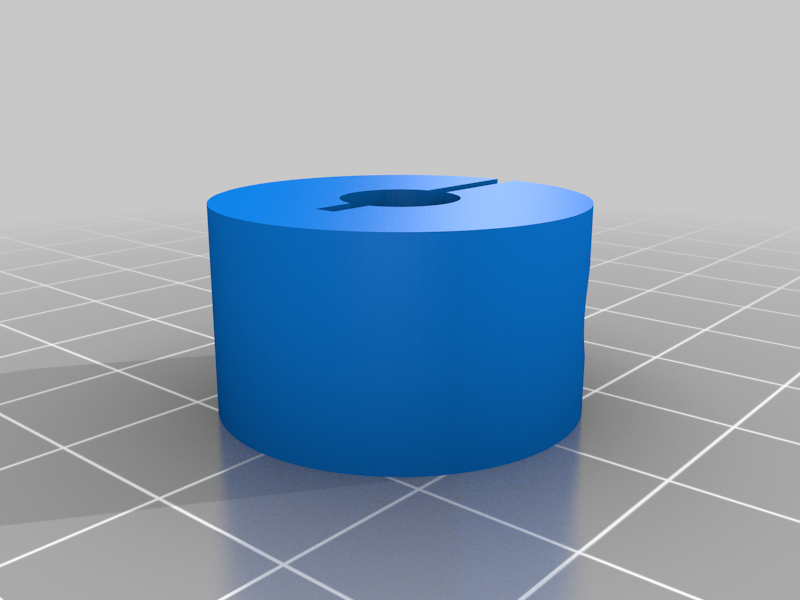

    • Depth_Stop_8mm.stl
    • Drilling_Bounding_Ring_v2.f3d

    Learn more about the formats

  • Publication date: 2021-05-18 at 01:13
    ?
    Published to Thingiverse on: 2021-05-17 at 17:02
