Drakon reinforced extruder

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

This is remix of old version of extruder designed by AxMod3DPrint

The main idea was to reinforce original design.

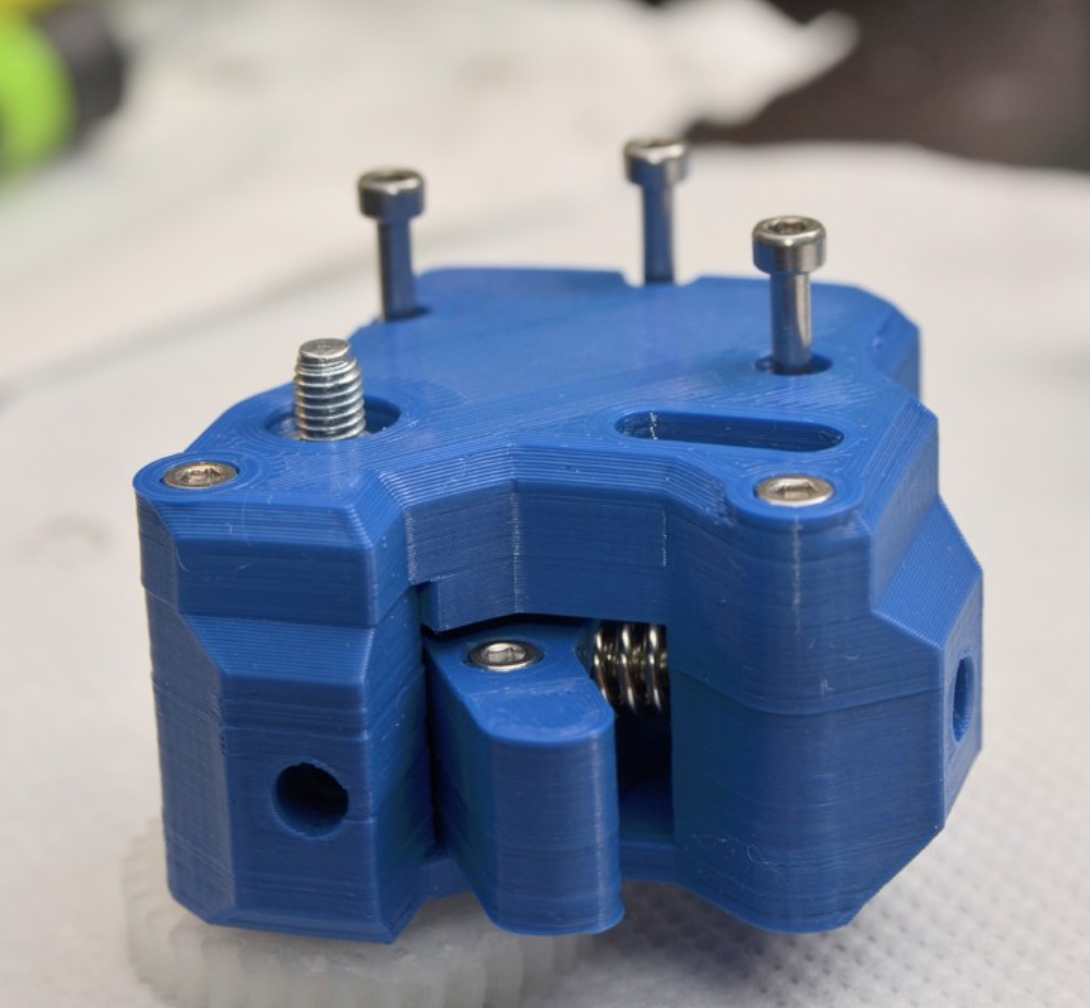

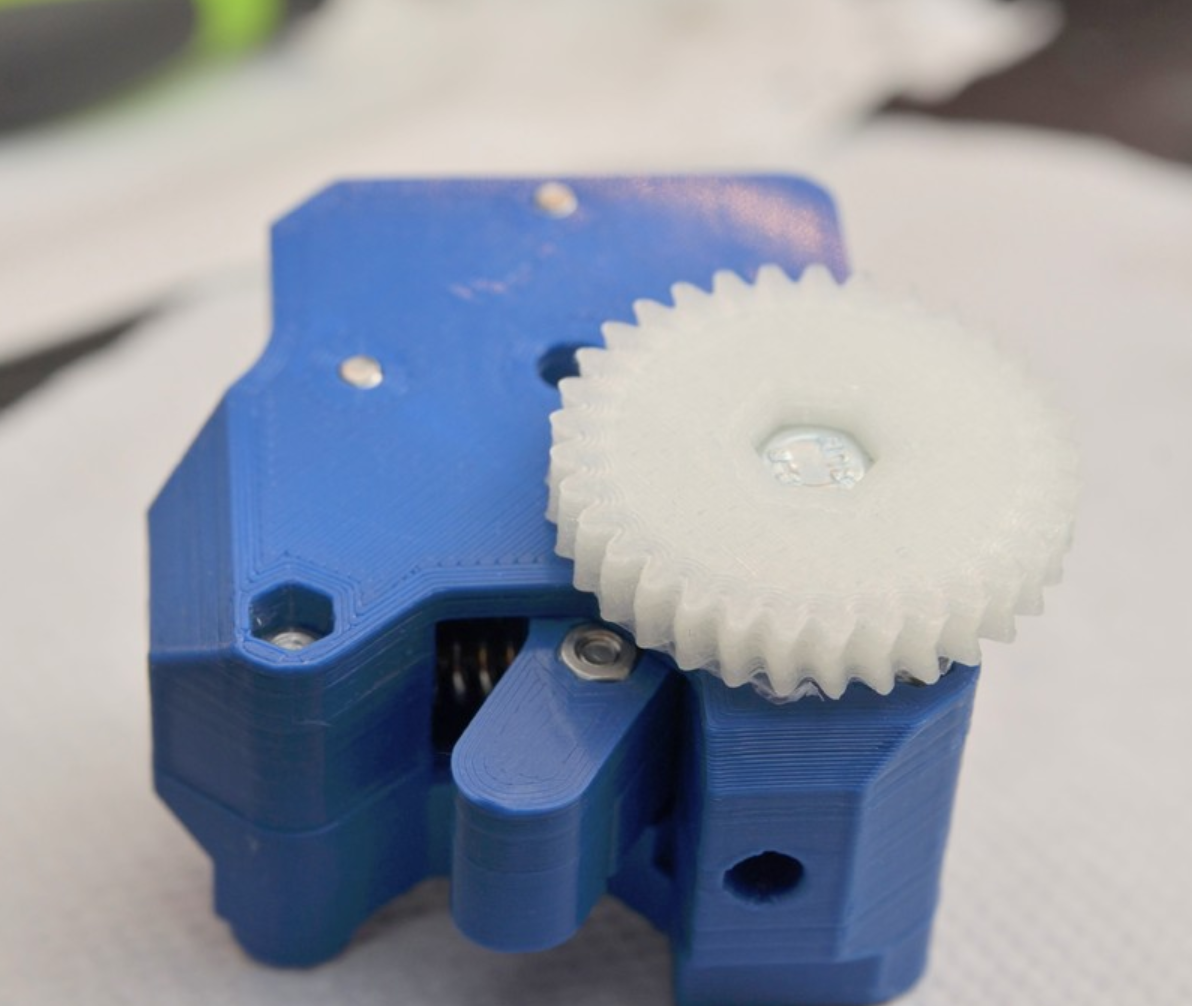

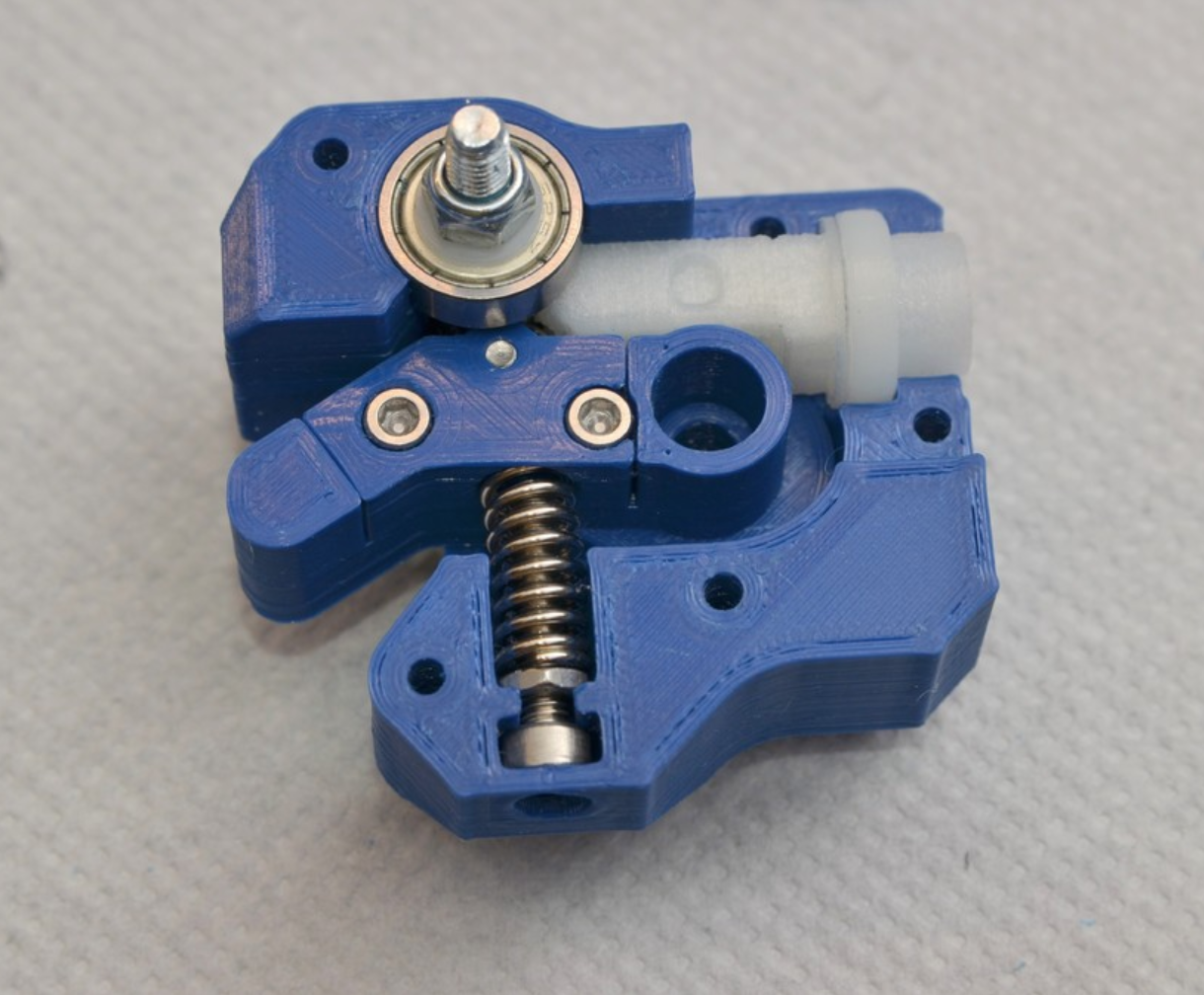

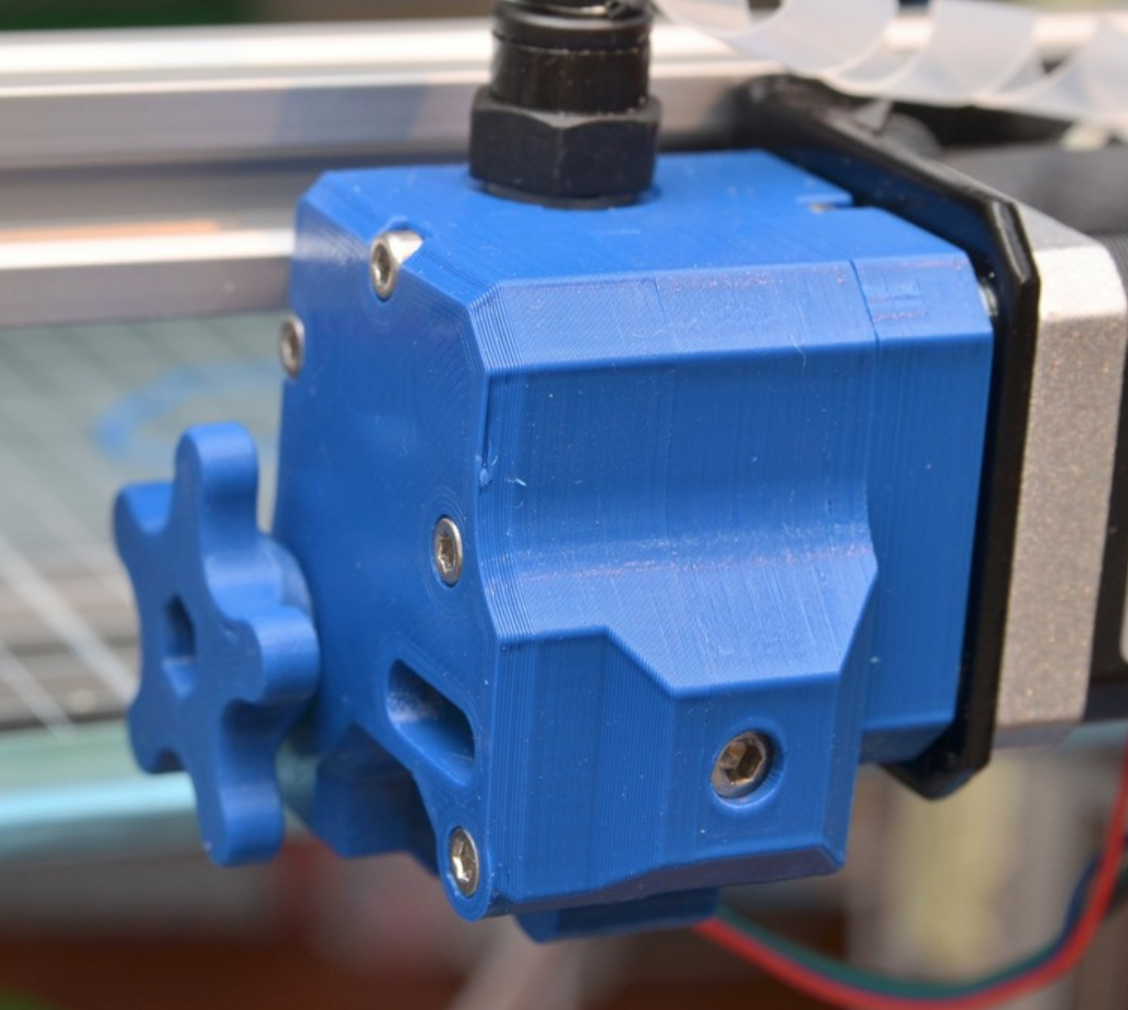

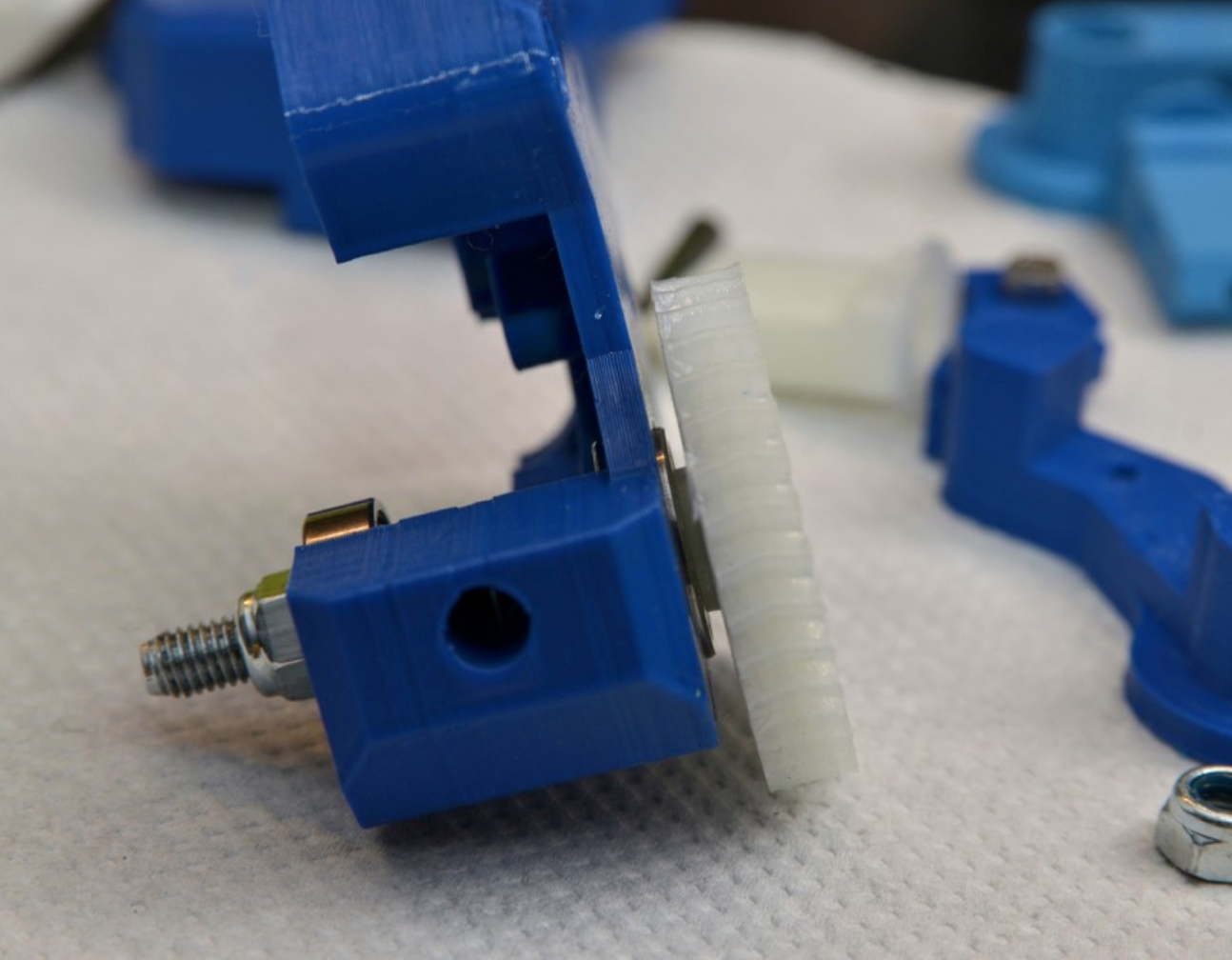

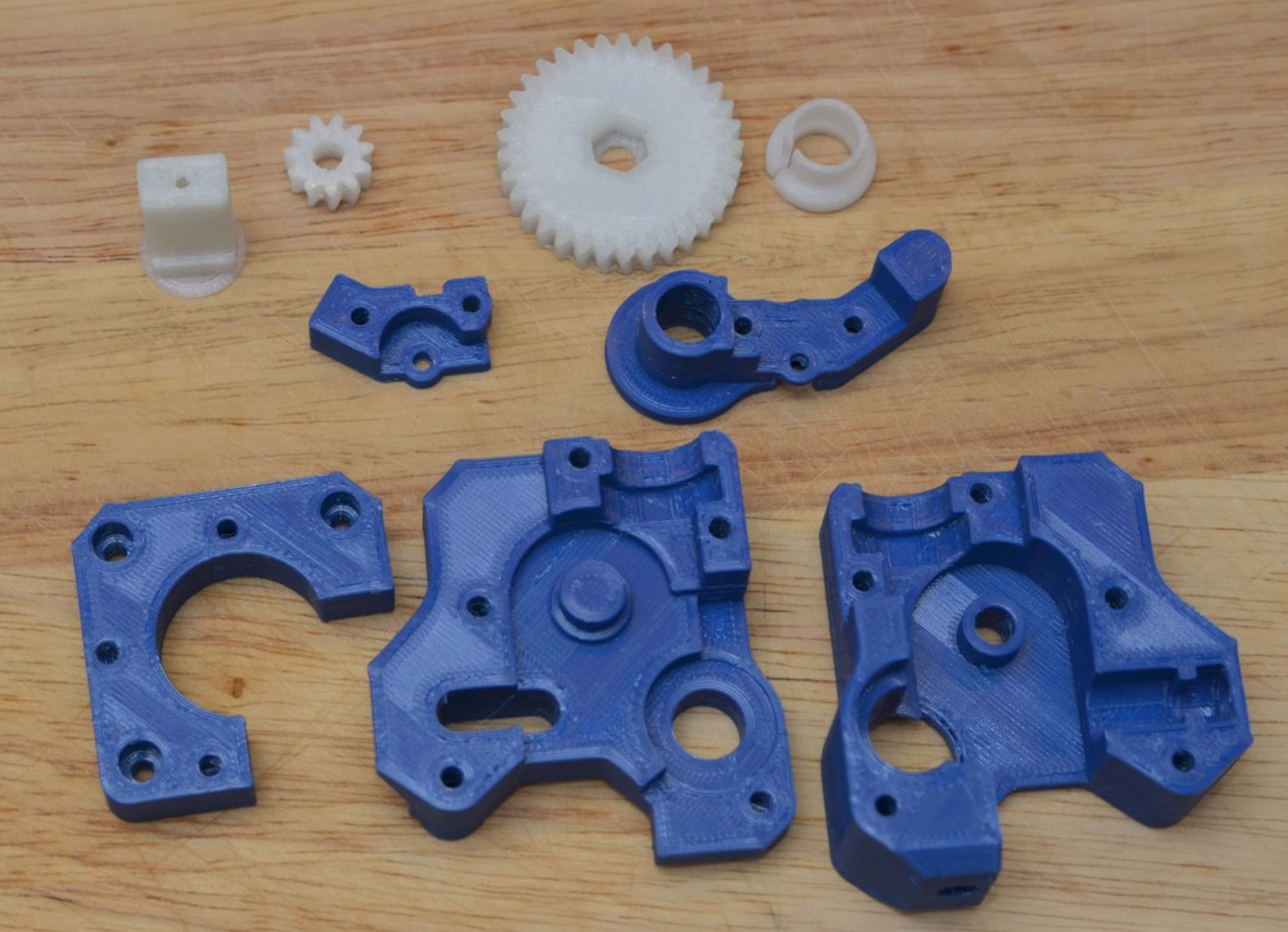

Refer to original instructions and attached photos

The dragon_idler part in this remix has 3 variants

Original mbot-dextr-p4.stl
Reinforced mbot-dextr-p4b.stl
Splitted mbot-dextr-p4.1.stl + mbot-dextr-p4.2.stl (to avoid supports)
Split version requires 2 small M3 bolts

Dragon*.stl files added as is from original design
Groove Mount Adaptors can be used from the original design. I've attached one for E3D just what I used as a reference.

3D printer file information

  • 3D design format: STL Folder details Close
    • Drakon_Filament_Guide.stl
    • Drakon_Groove_Mount_Adaptor_E3D_Threaded_Bowden_Coupling.stl
    • Drakon_Large_Gear.stl
    • Drakon_Small_Gear.stl
    • mbot-dextr-p1.stl
    • mbot-dextr-p2.stl
    • mbot-dextr-p3.stl
    • mbot-dextr-p4.1.stl
    • mbot-dextr-p4.2.stl
    • mbot-dextr-p4.stl
    • mbot-dextr-p4b.stl
    • monst-m5-knob.stl

    Learn more about the formats

  • Publication date: 2018/01/19 at 15:11
