Doweling Jig With Attachments for Any Job

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 3.2k views
  • 14 likes
  • 143 downloads

3D model description

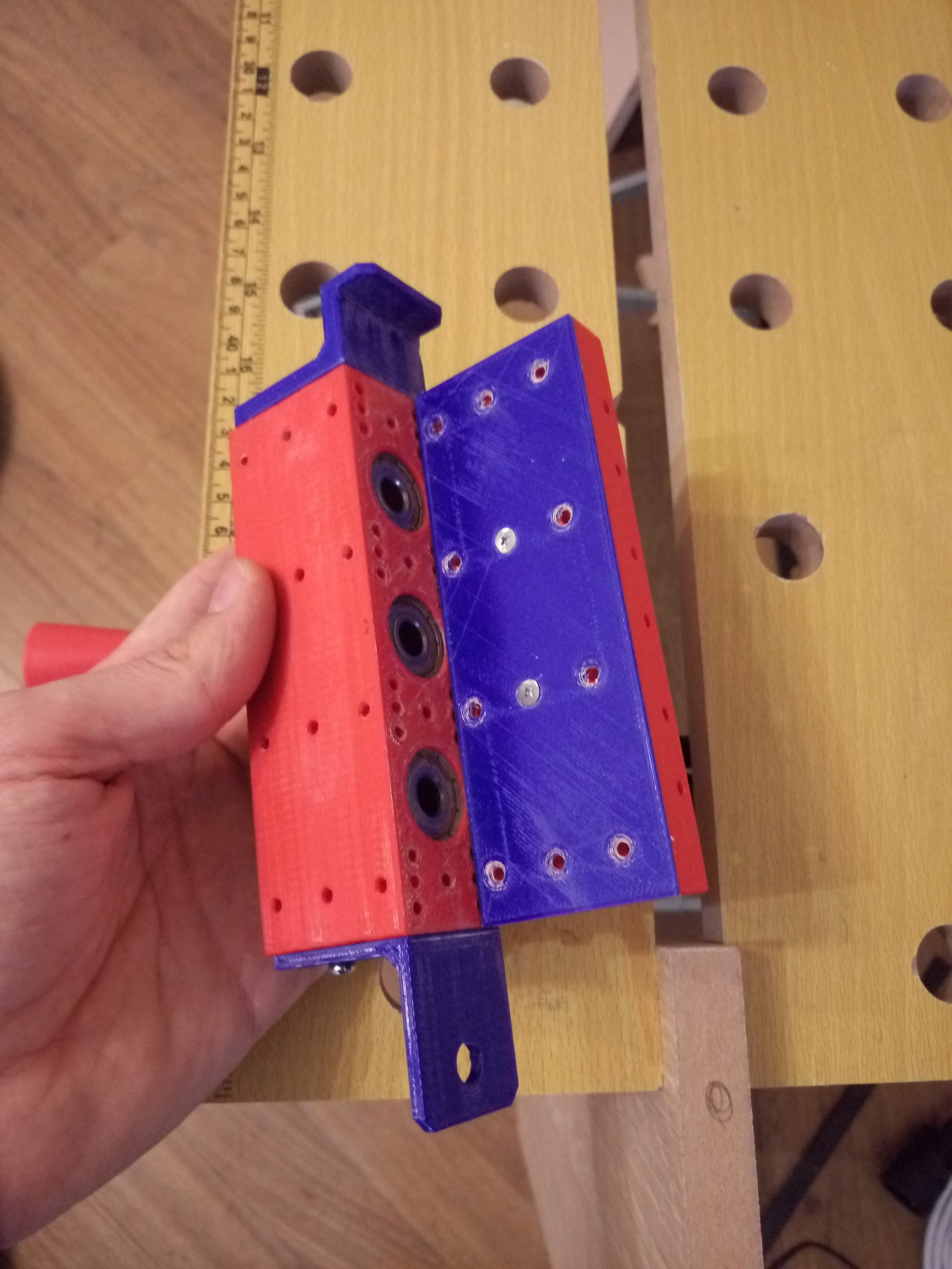

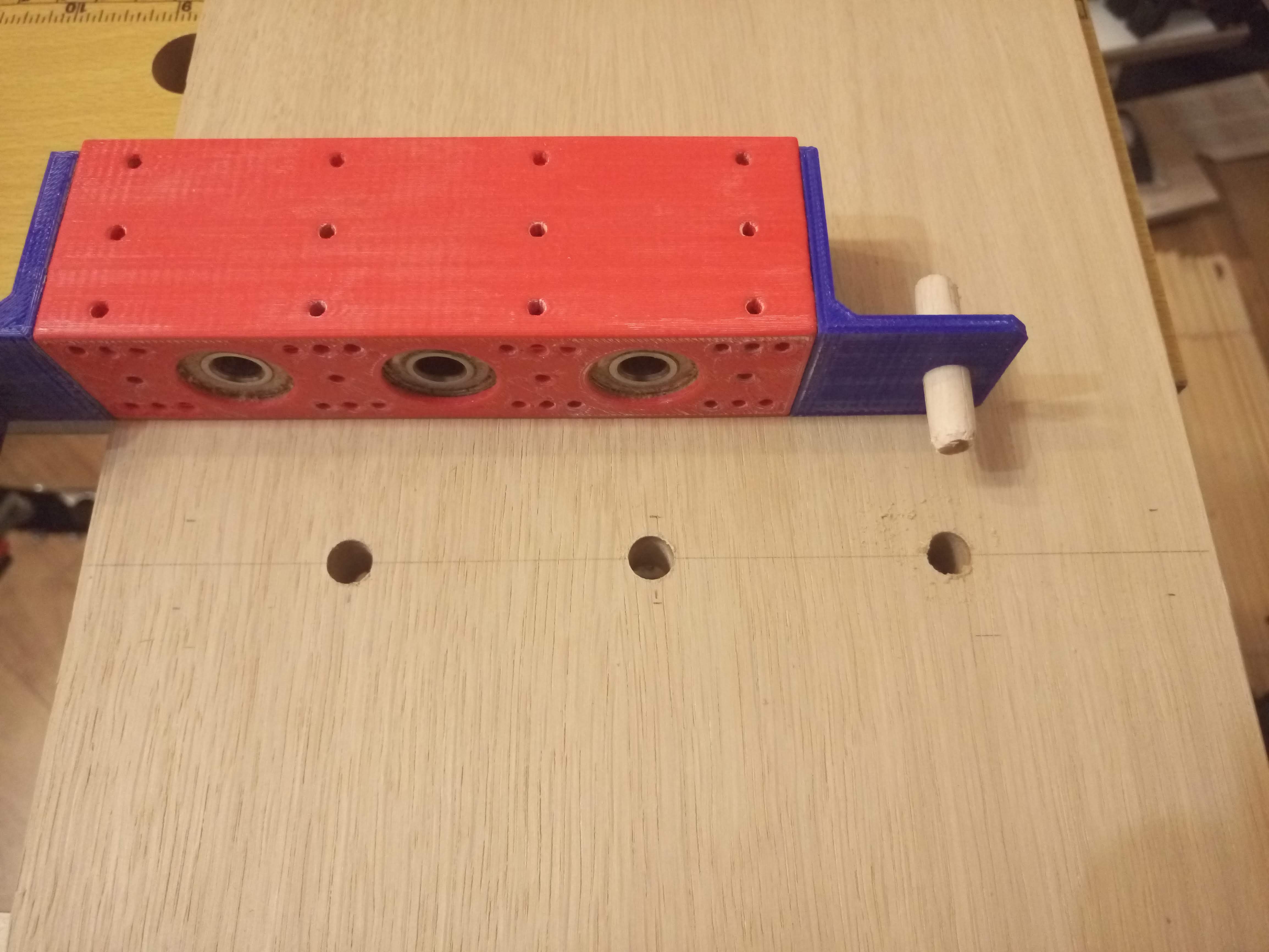

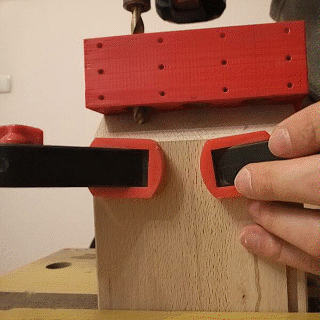

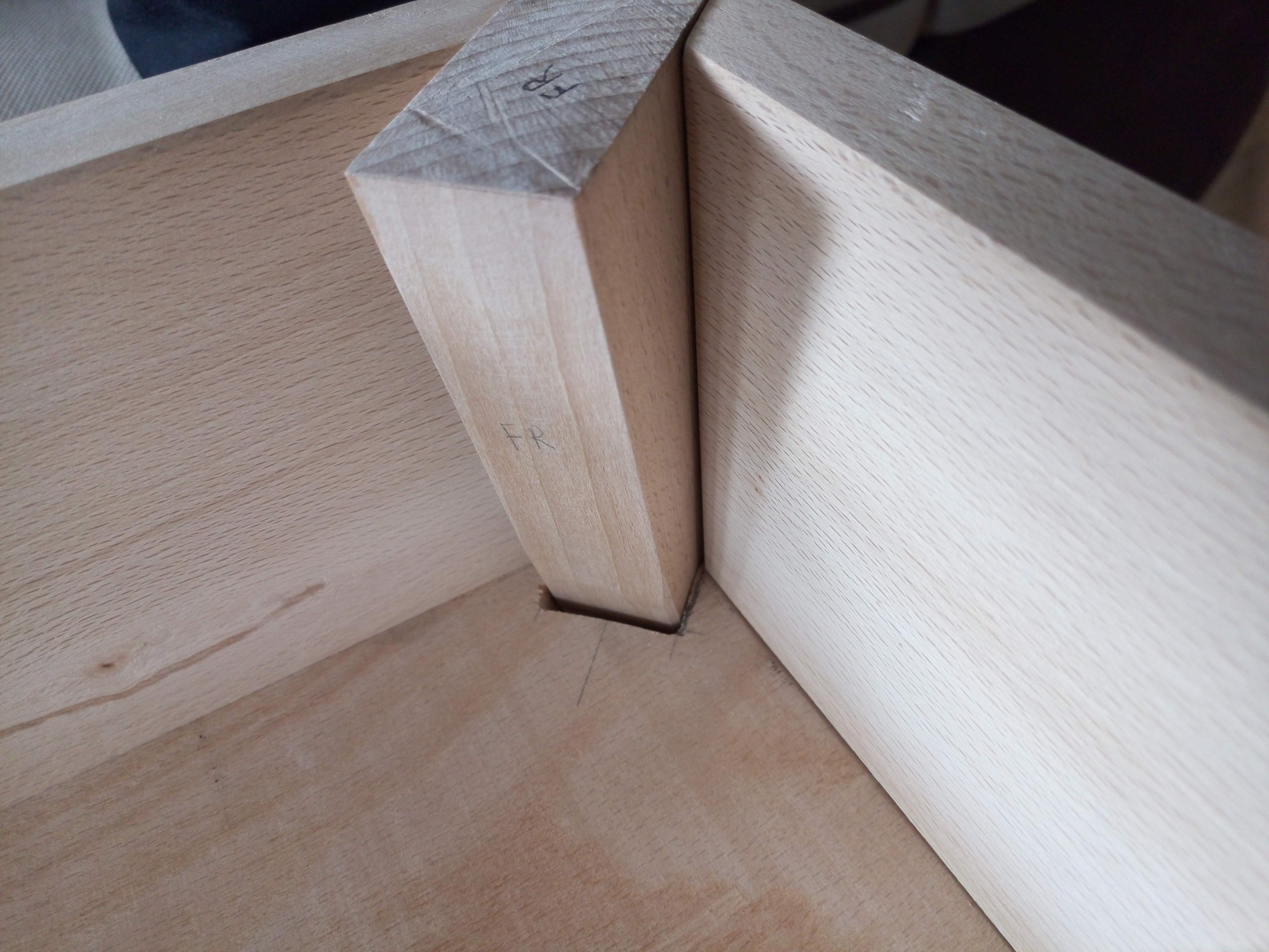

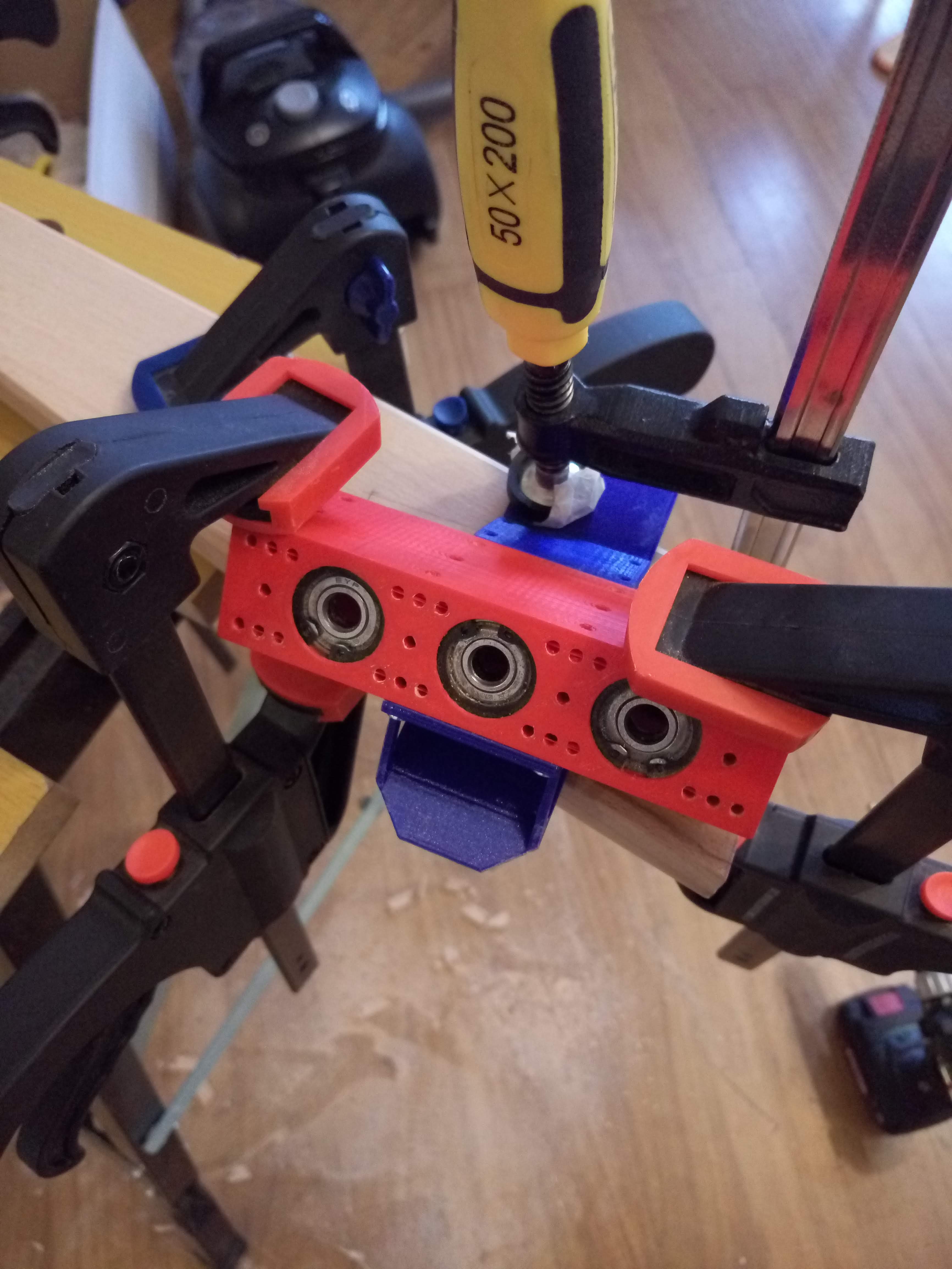

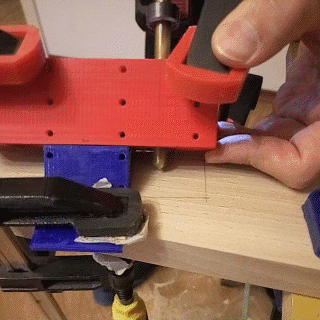

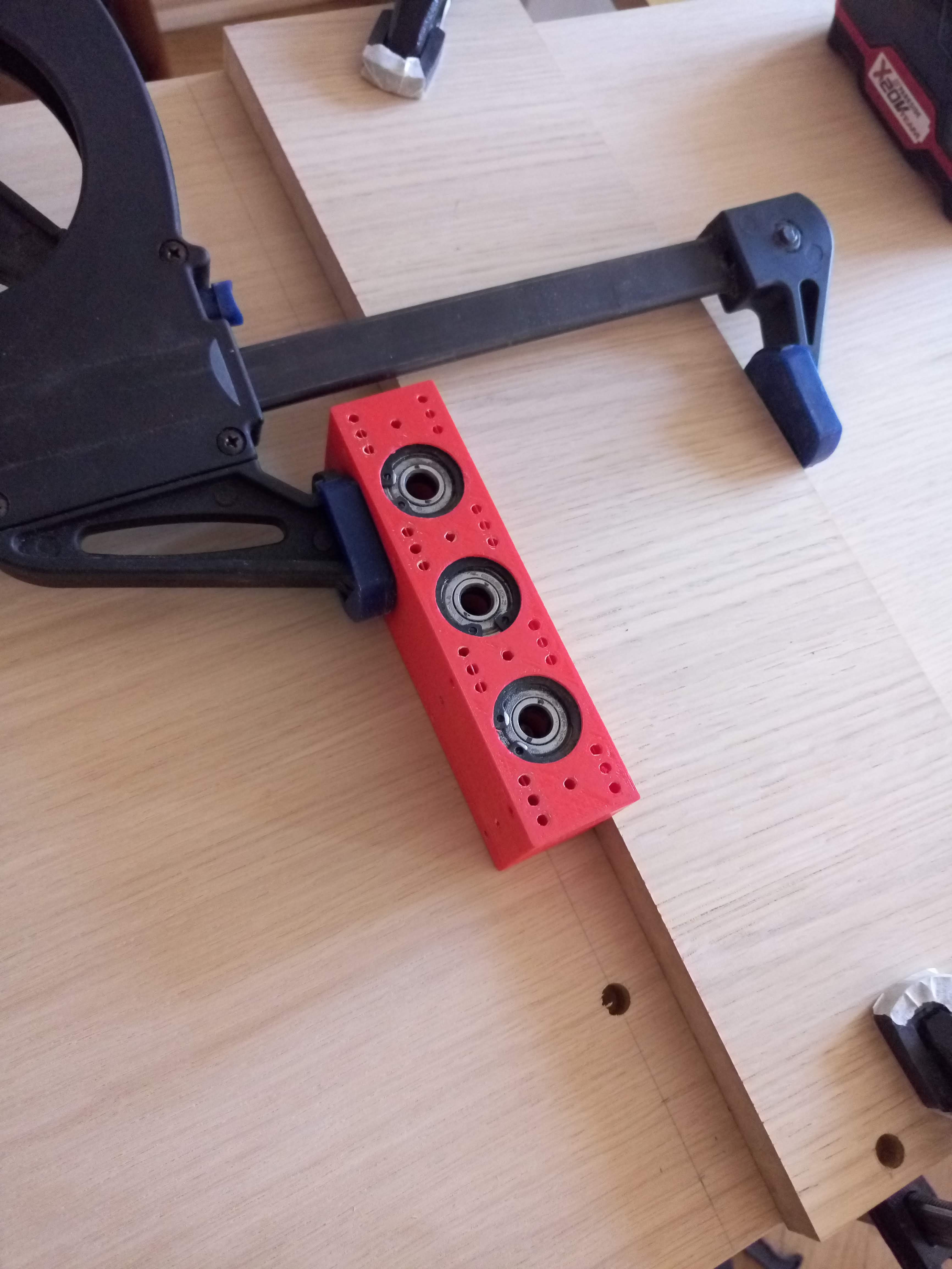

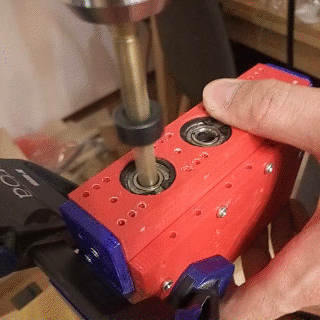

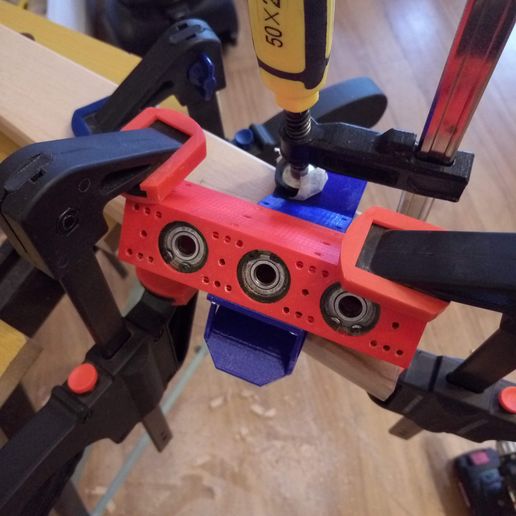

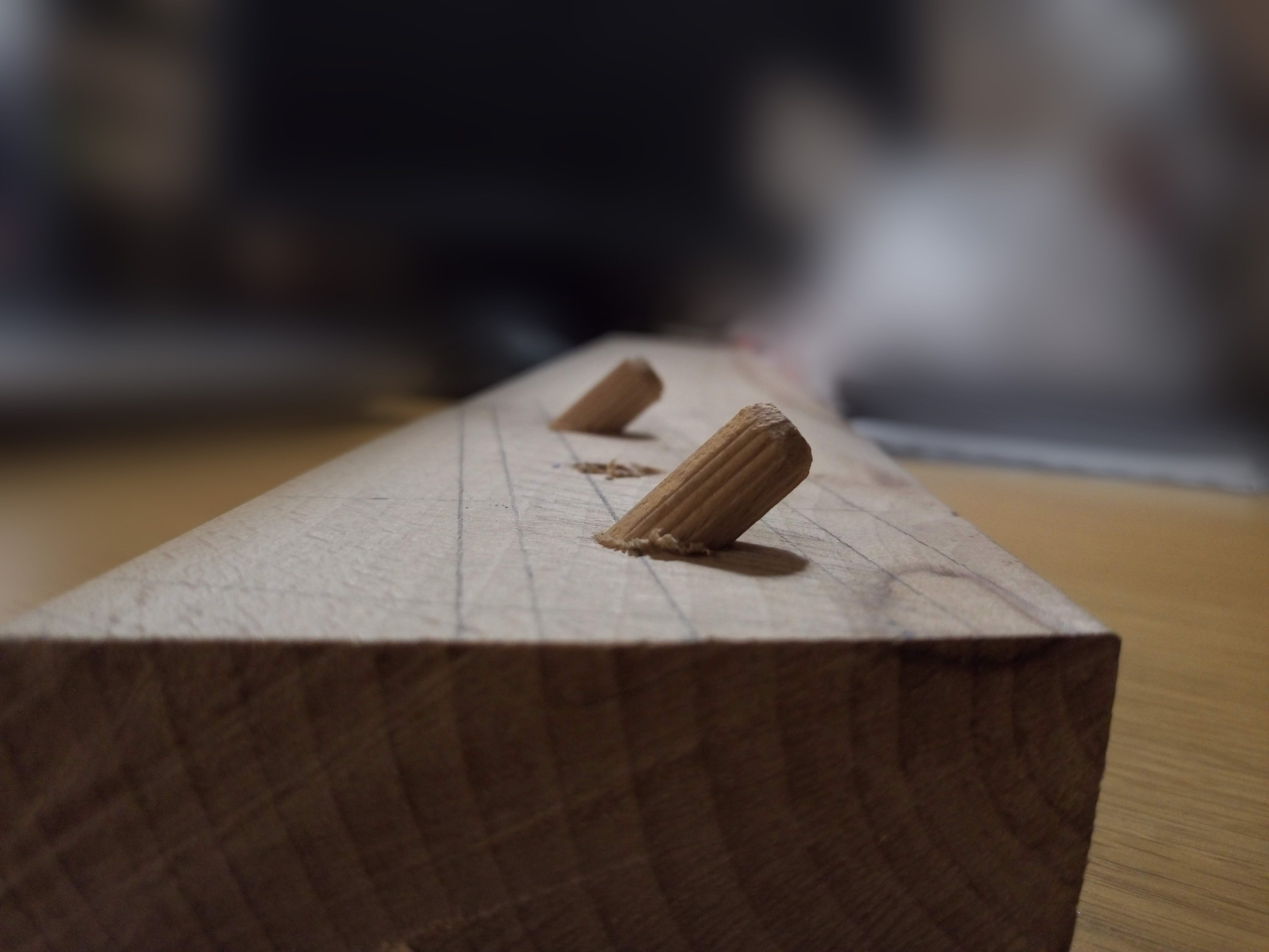

I made this jig with this specific size, because I needed it for a certain project. It appeared to work very well, so I made few attachments, which allow me to use the jig for more various works and connections.

More information:
https://www.instructables.com/id/3D-Printed-Doweling-Jig-With-Attachments/


3D printing settings

Printer Anet A6

Print settings

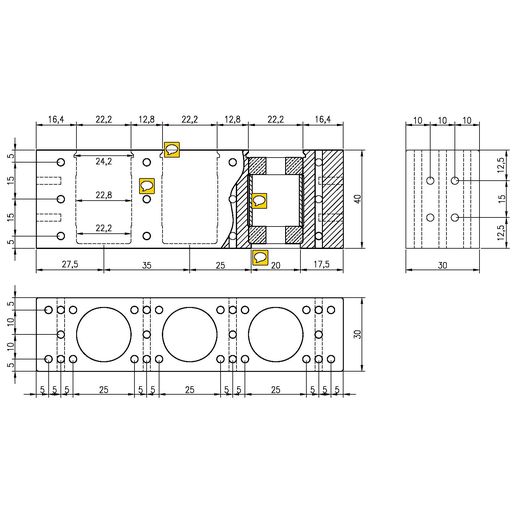

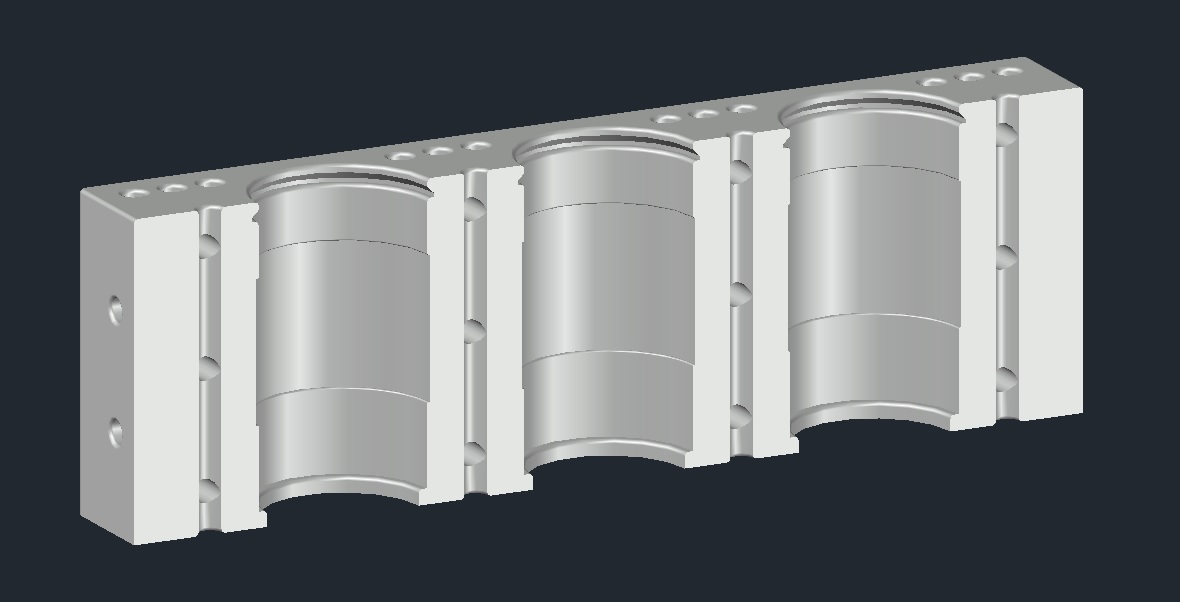

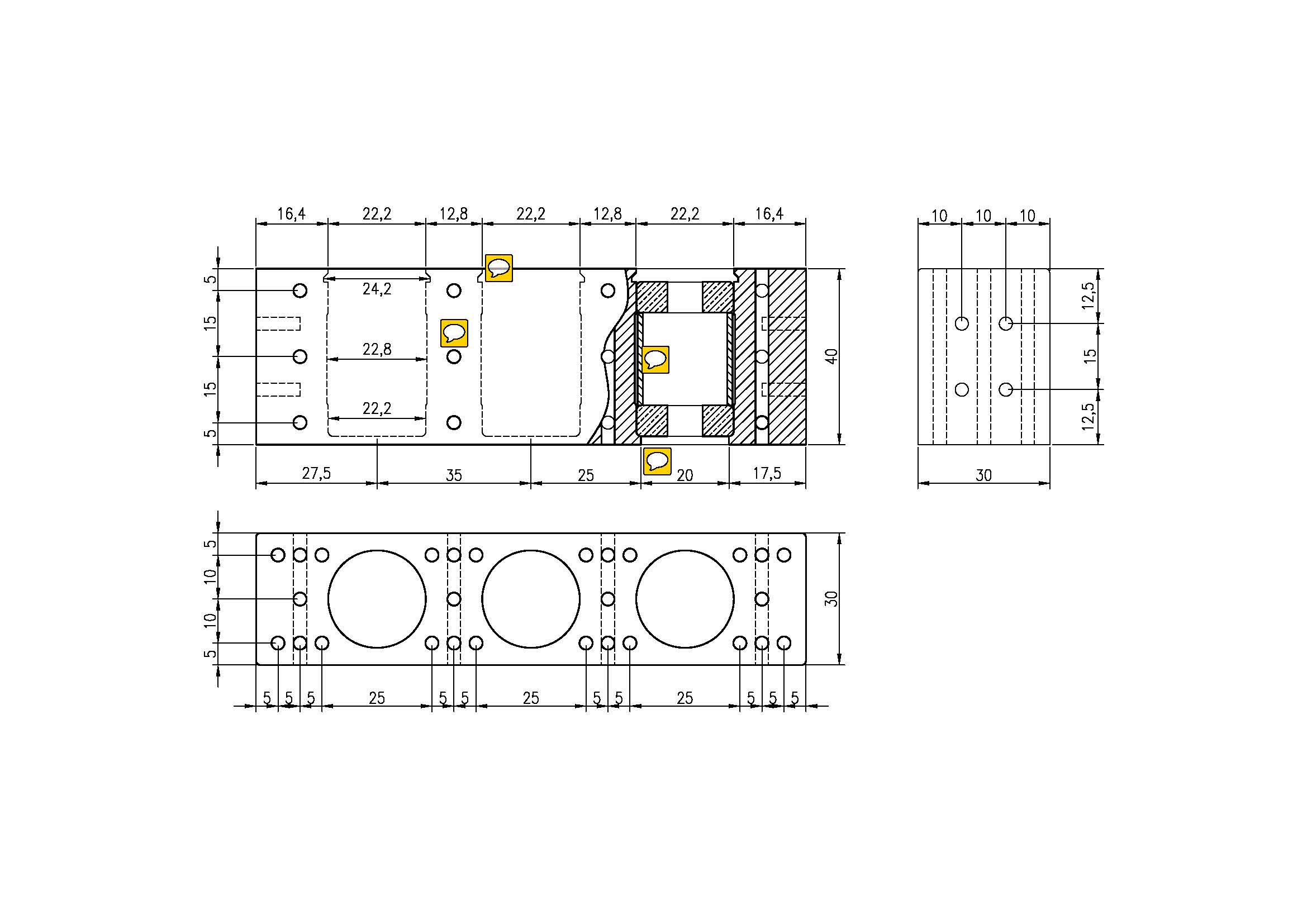

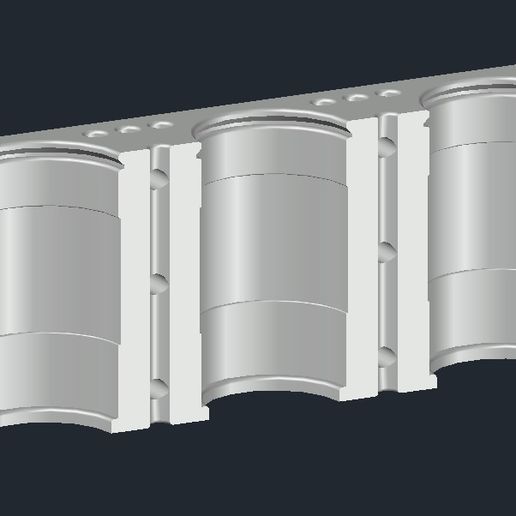

The main body

Material - PLA
Nozzle - 0.4mm
layer height - 0.2mm
Infill density - 40%
Wall thickness - 0.8mm
Plate adhesion type - Brim
Horizontal expansion setting (It depends on the printer). Be careful with this setting: if you increase the value too much, you will have a problem with puting a bearing inside, and If you use a negativ value the outside dimensions of the body won`t be correct.
Attachment Plate

Material - PLA
Nozzle - 0.4mm
layer height - 0.2mm
Infill density - 20%
Wall thickness - 0.8mm
Plate adhesion type - Brim
Attachment all in blue

Material - PLA
Nozzle - 0.4mm
layer height - 0.2mm
Infill density - 100%
Wall thickness- 0.8mm
Plate adhesion type - Brim

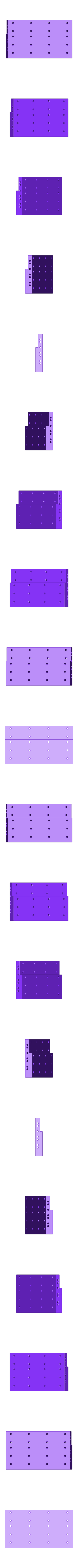

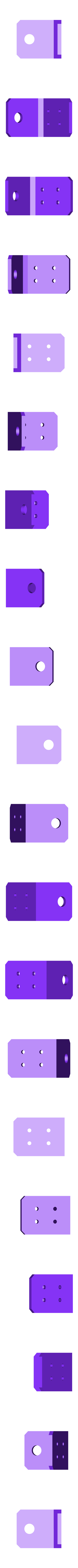

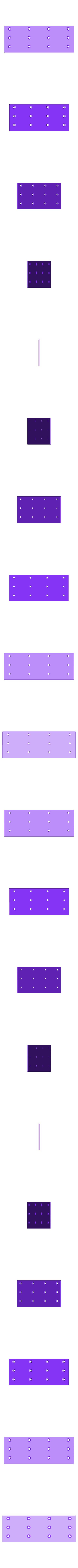

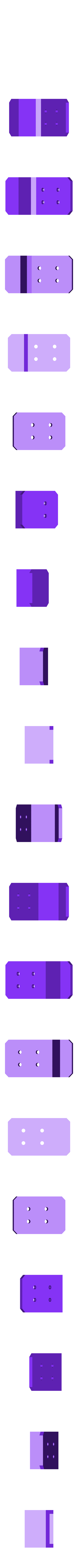

3D printer file information

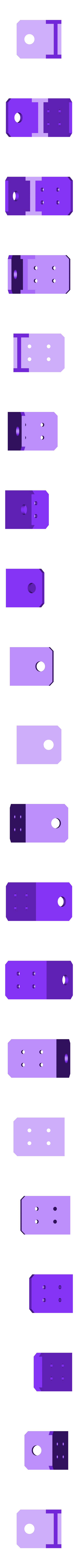

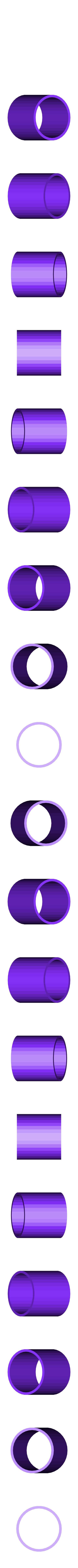

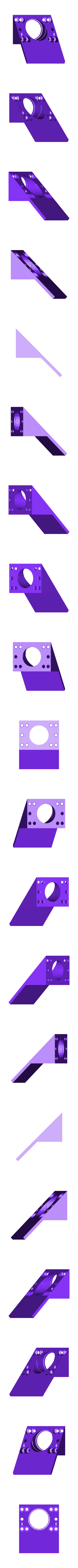

  • 3D design format: STL Folder details Close

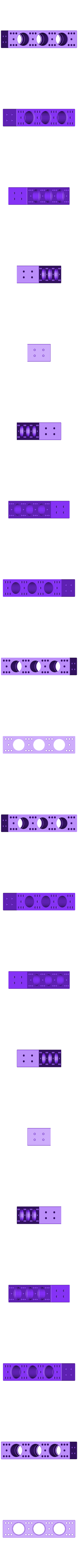

    • jig_attach-20_3mm.stl
    • jig_attach-20_5mm.stl

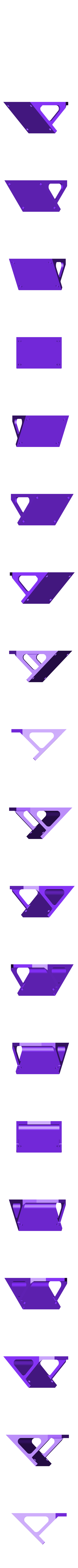

    • jig_attach-45-back.stl
    • jig_attach-45-front.stl

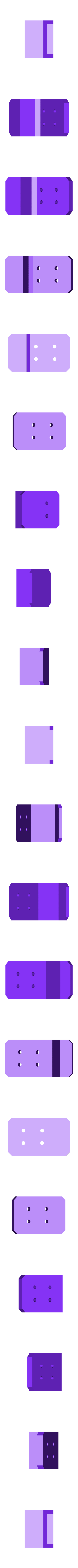

    • jig_attach-hole 25-arm.stl
    • jig_attach-hole 25.stl
    • jig_attach-plate 1.5mm.stl
    • jig_attach-plate.stl
    • jig_attach-separator.stl
    • jig_body.stl

    Learn more about the formats

  • Last update: 2019/07/12 at 11:50
  • Publication date: 2019/07/10 at 21:57
