DOUBLE SCREEN LCD12684 + MKS TFT32 or MKS TFT35

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 562 views
  • 9 downloads

3D model description

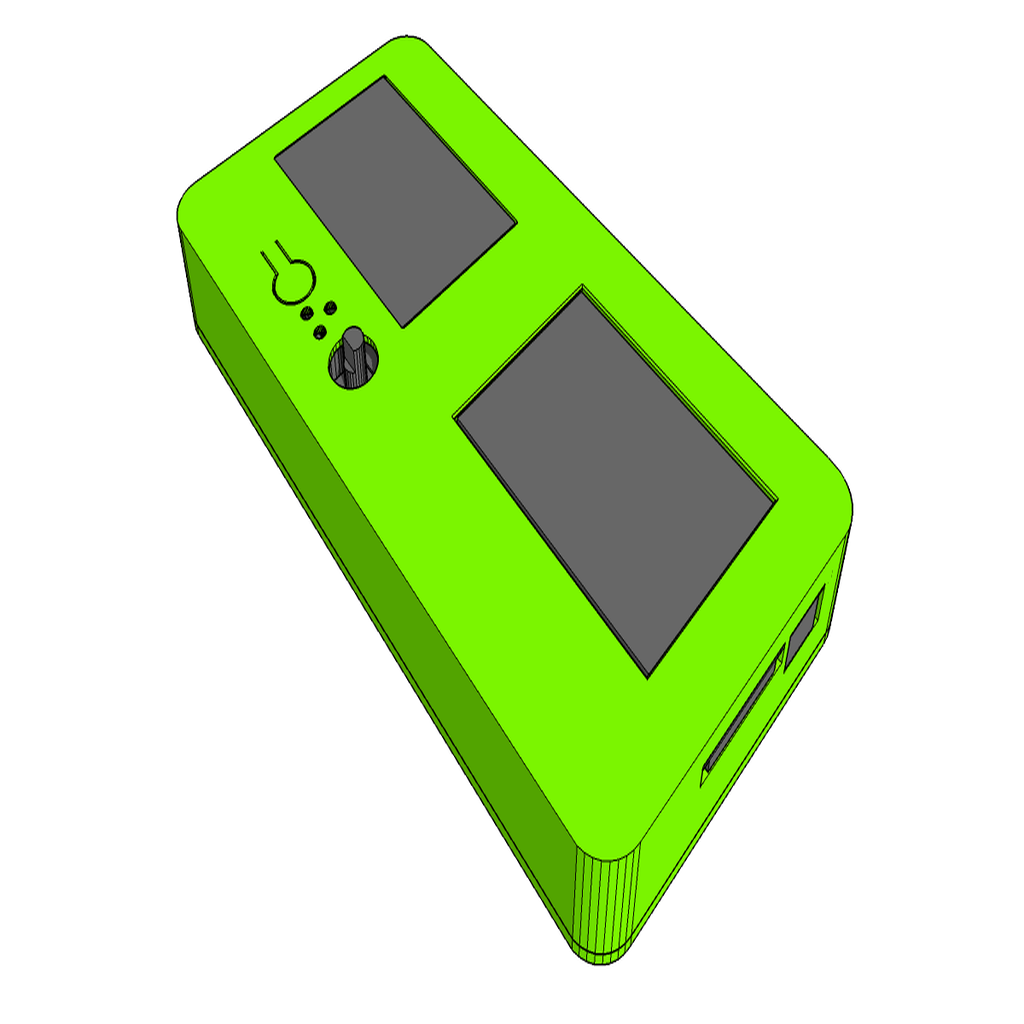

It is a dual display combining a classic 12684 LCD with a MKS TFT 32 or TFT35 touch screen.

blog link: https://clubdagoma.popsell.com/max-38805/311520

            https://clubdagoma.popsell.com/max-38805/304293

necessary:

6 M3-25 screws for closing the rear cover

4 M3-16 screws for LCD mounting

4 screws M3-6 for mounting TFT32 or TFT35

/!\N-BEWARE /!\N

The case has quite large dimensions (220.50mm x 112.20mm).

Therefore, you need to start printing on a large enough printer.

If you have a smaller printer (200x200mm Discoeasy for example) it is possible to print it anyway by placing diagonally and standing up. (do not forget the supports in this case)

EDIT 06/12/2019 : Addition of "Gopro" type fixing accessories (compatible with original or clone brand accessories)

3D printer file information

  • 3D design format: STL Folder details Close
    • double_ecran_LCD_12684_+_MKS_TFT32_+__avec_logo_Dagoma.stl
    • double_ecran_LCD_12684_+_MKS_TFT32_+__sans_logo.stl
    • double_ecran_LCD_12684_+_MKS_TFT35_+__avec_logo_Dagoma.stl
    • double_ecran_LCD_12684_+_MKS_TFT35_+__sans_logo.stl
    • face_arriere_all_version.stl
    • pied_a_fixer.stl
    • pied_à_fixer.stl
    • rallonge_35.stl
    • rallonge_60mm.stl
    • rallonge_85mm.stl
    • support_accessoires_ecran.stl

    Learn more about the formats

  • Last update: 2020/09/14 at 14:48
  • Publication date: 2020/09/11 at 18:55

License

CC BY NC
