Dial Indicator holder for Chad Mod No Support

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 143 views
  • 2 downloads

3D model description

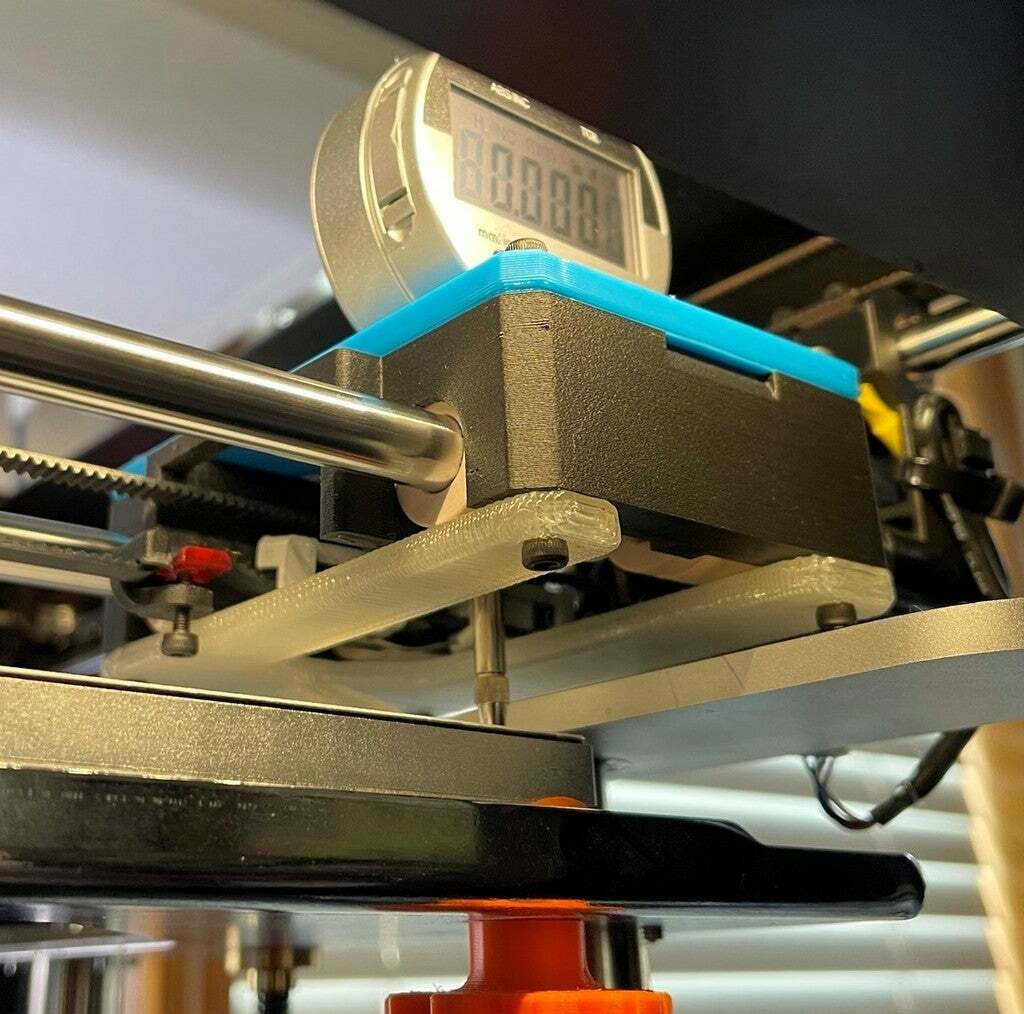

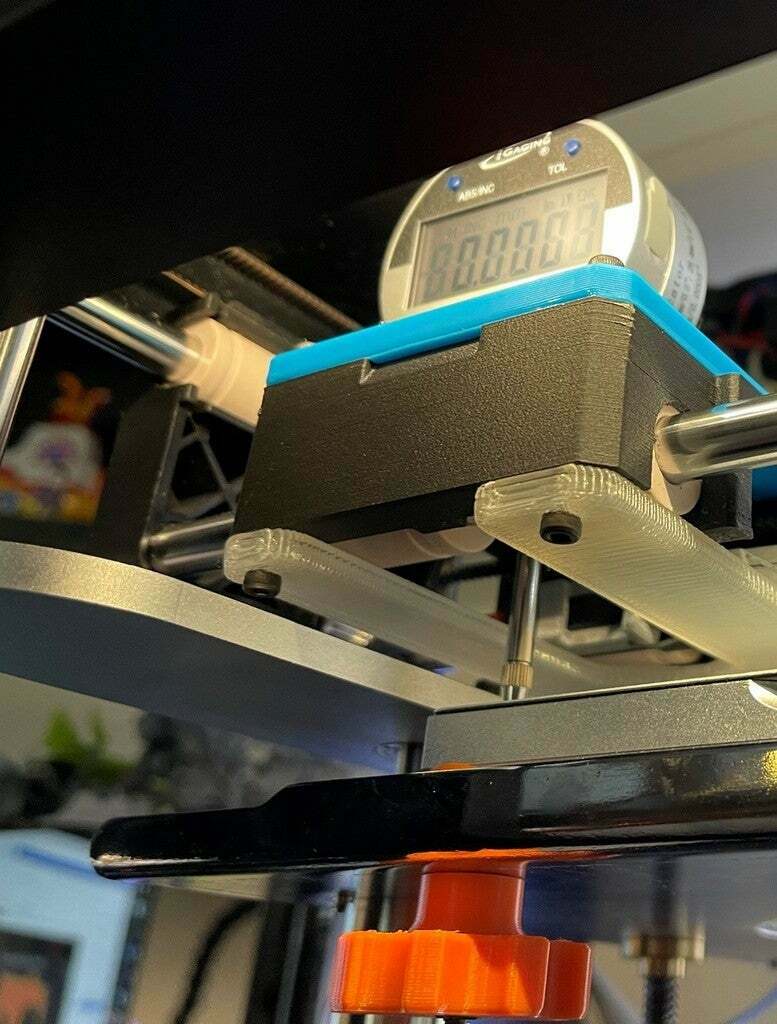

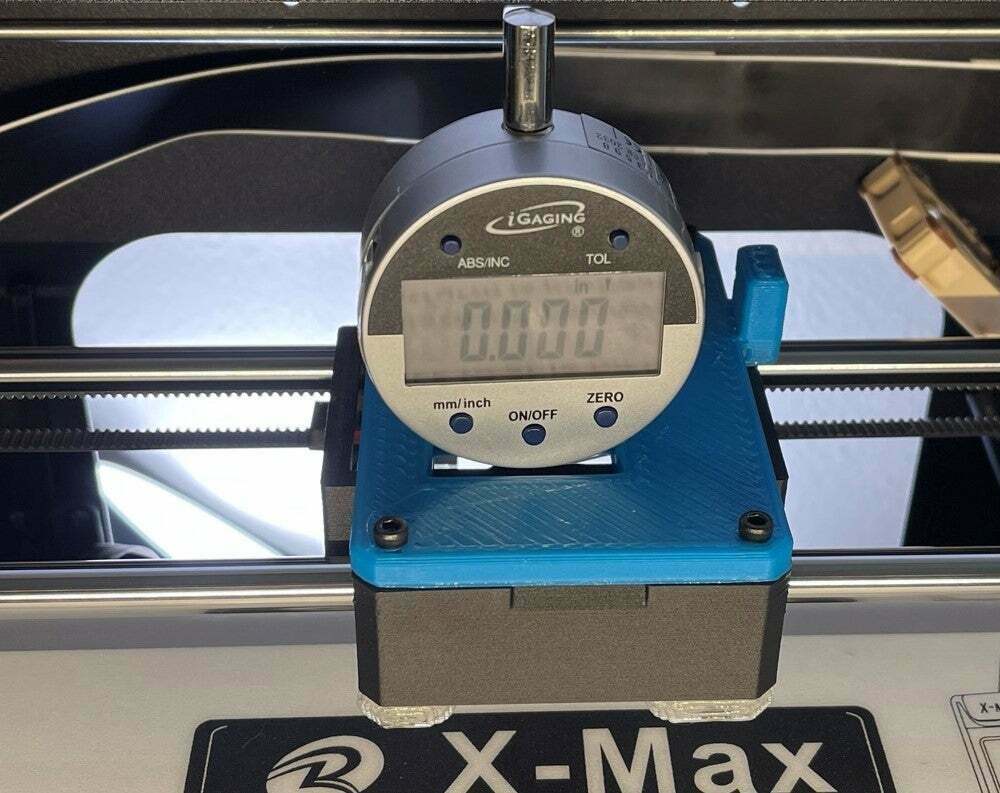

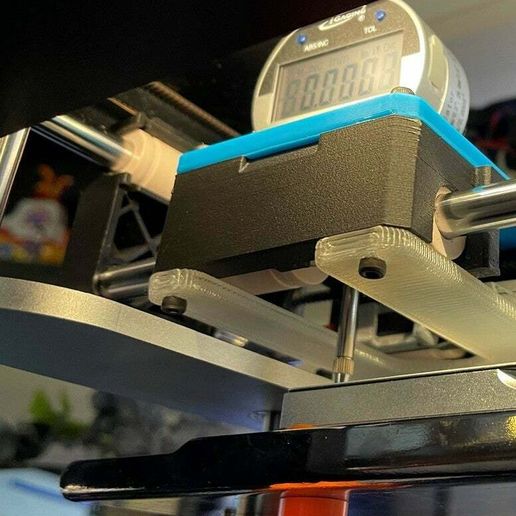

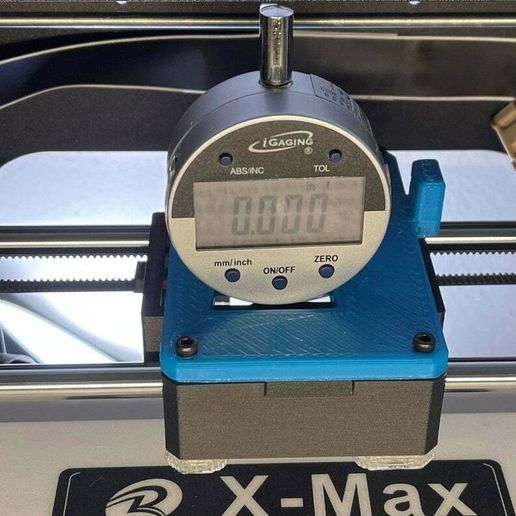

This a remix of Humebeam's dial indicator holder for bed leveling. This version is designed to work with the Chad Mod (https://www.thingiverse.com/thing:3994628) It fits the iGaging digital indicator (Model 35-125) The post is just under 9.5mm. With a 1" indicator this will work with either the E3D Volcano or V6 hotend. Just run the included gcode which is just a copy from the original thing.

Attach with the same screw you use for your extruder assembly.

I include the step file so it is easy to modify for a different indicator. I would highly recommend a digital indicator for this application since it doesn't care what angle you look at it from, the number is always the same.

Print at what ever resolution you want. I printed it with a 1mm Volcano at 0.36mm layer height with a 1.2mm line width. I do like my Volcano

This is a remix from https://www.thingiverse.com/thing:4732026

  • 3D file format: GCODE, STEP, and STL
  • Publication date: 2021/02/17 at 13:11

Tags

Creator

License

CC BY
