3D model description

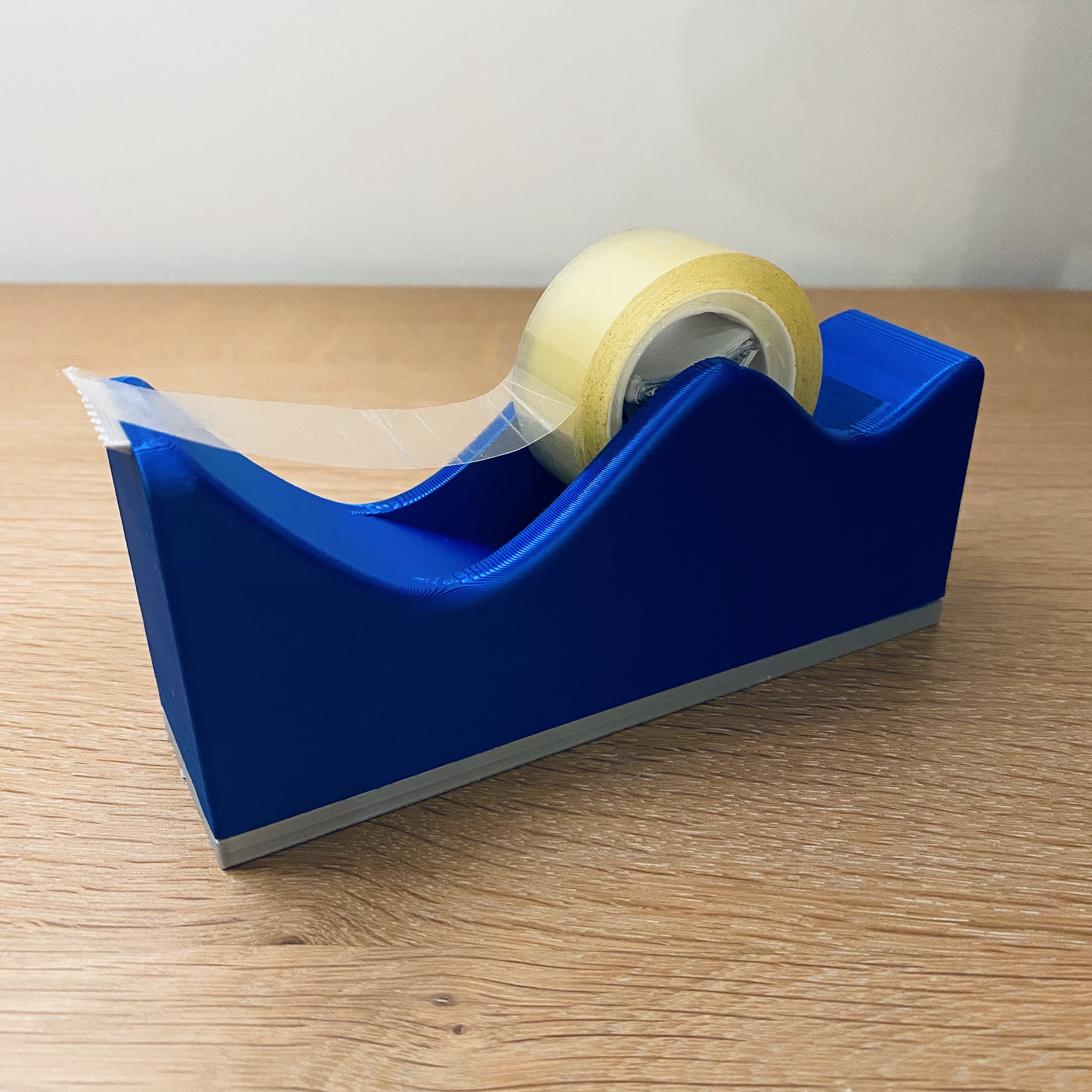

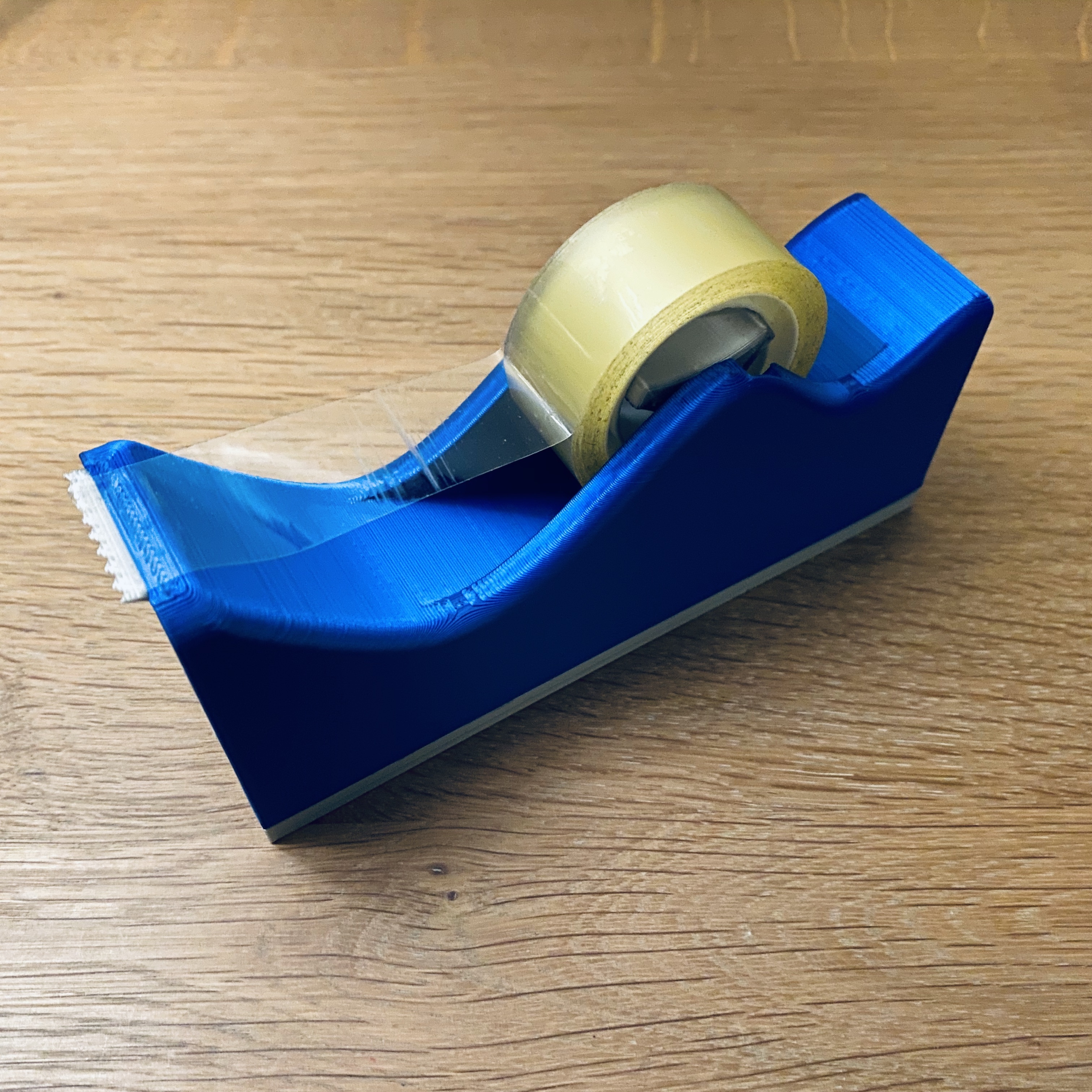

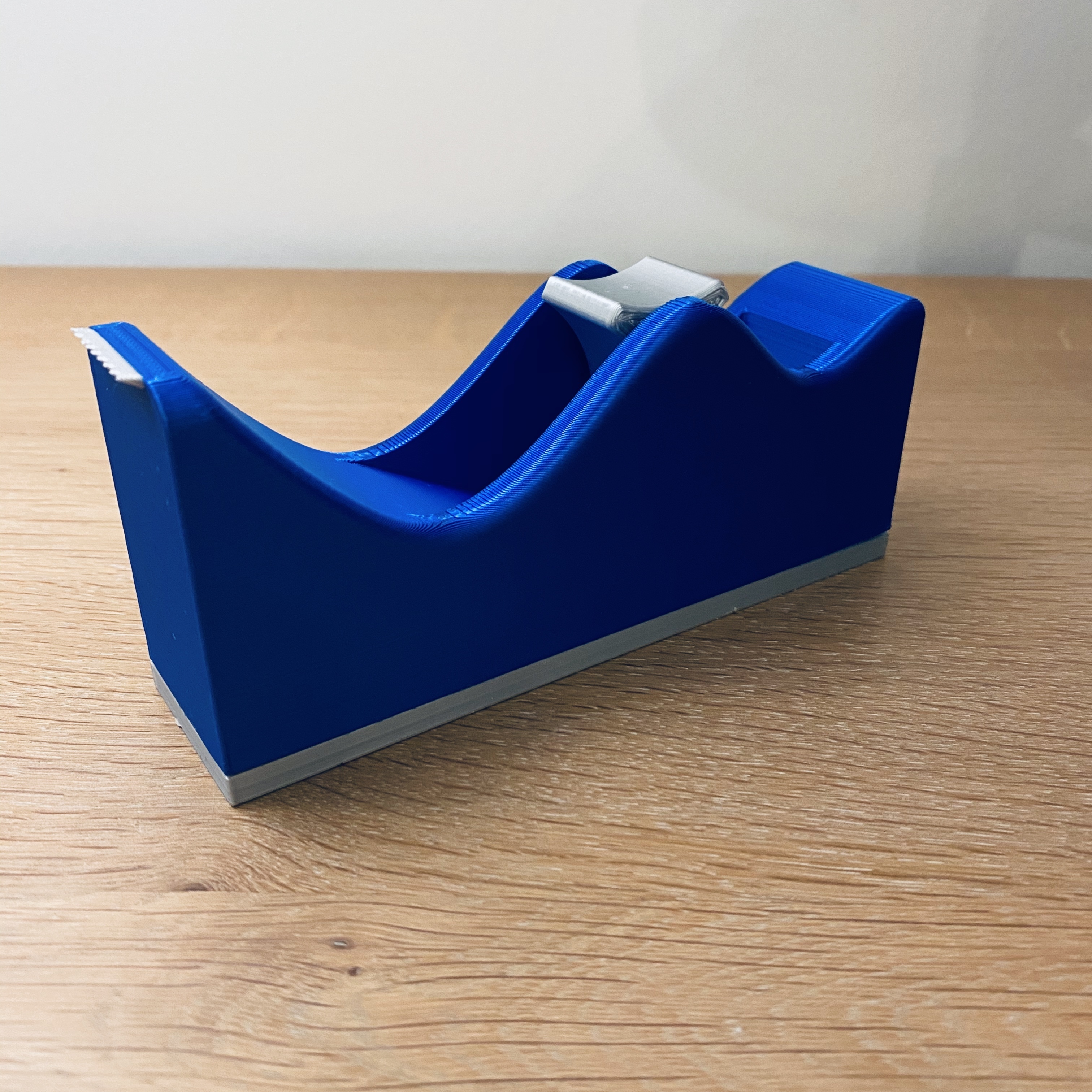

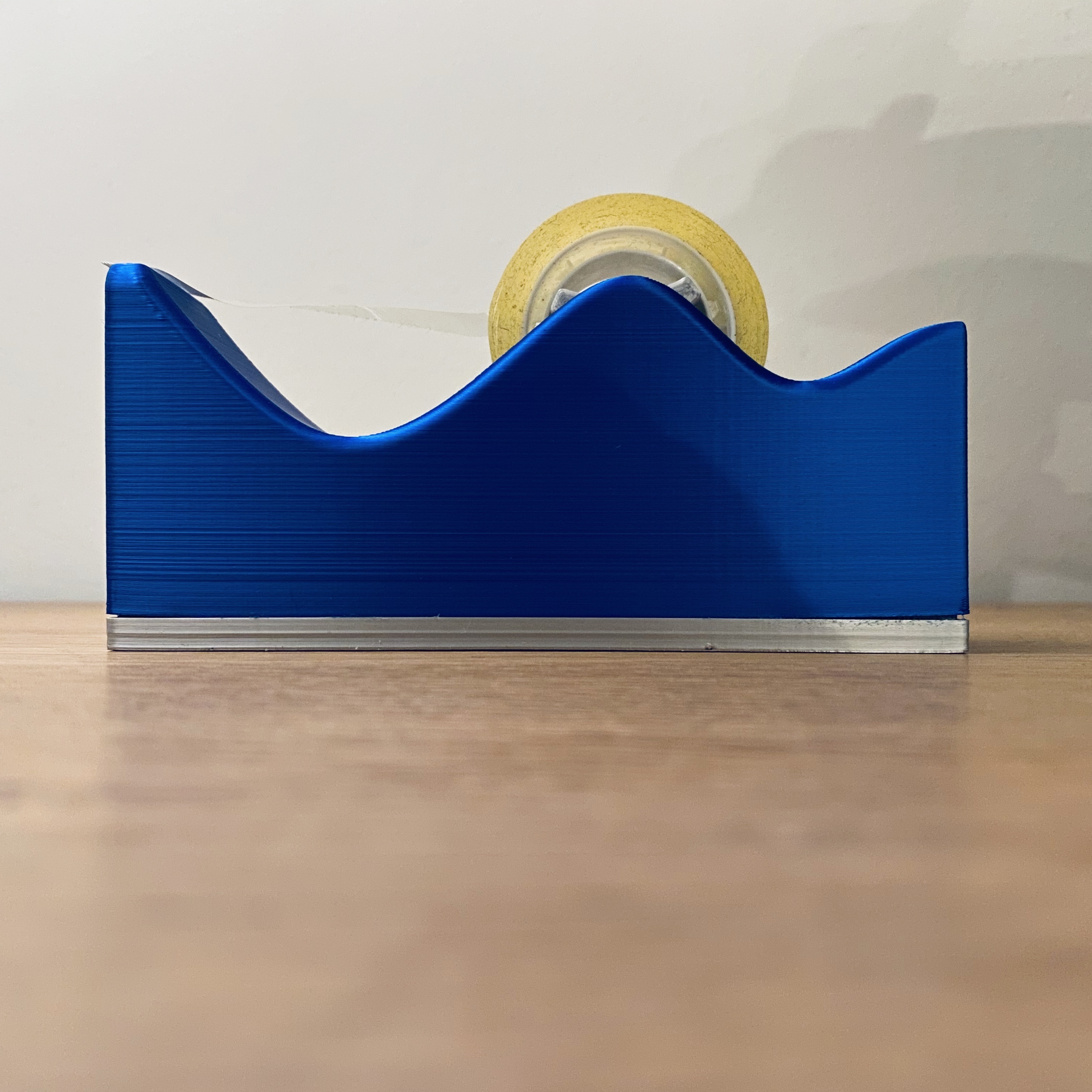

Tape dispenser, pretty simple. 4 pieces: the axis of the tape, the toothed "blade" to cut the tape, the body and the base.
Just ballast the base with heavy elements (for my part, bolts), glue the base with the body, insert the "blade" in the slot provided and you're all set.
The body could be optimized to limit the material to be used, but I took the option of robustness.
Feel free to give me feedback if you have any suggestions for improvement!
3D printing settings
Body, base, shaft: 0.2mm
Blade: 0.12 or 0.16mm

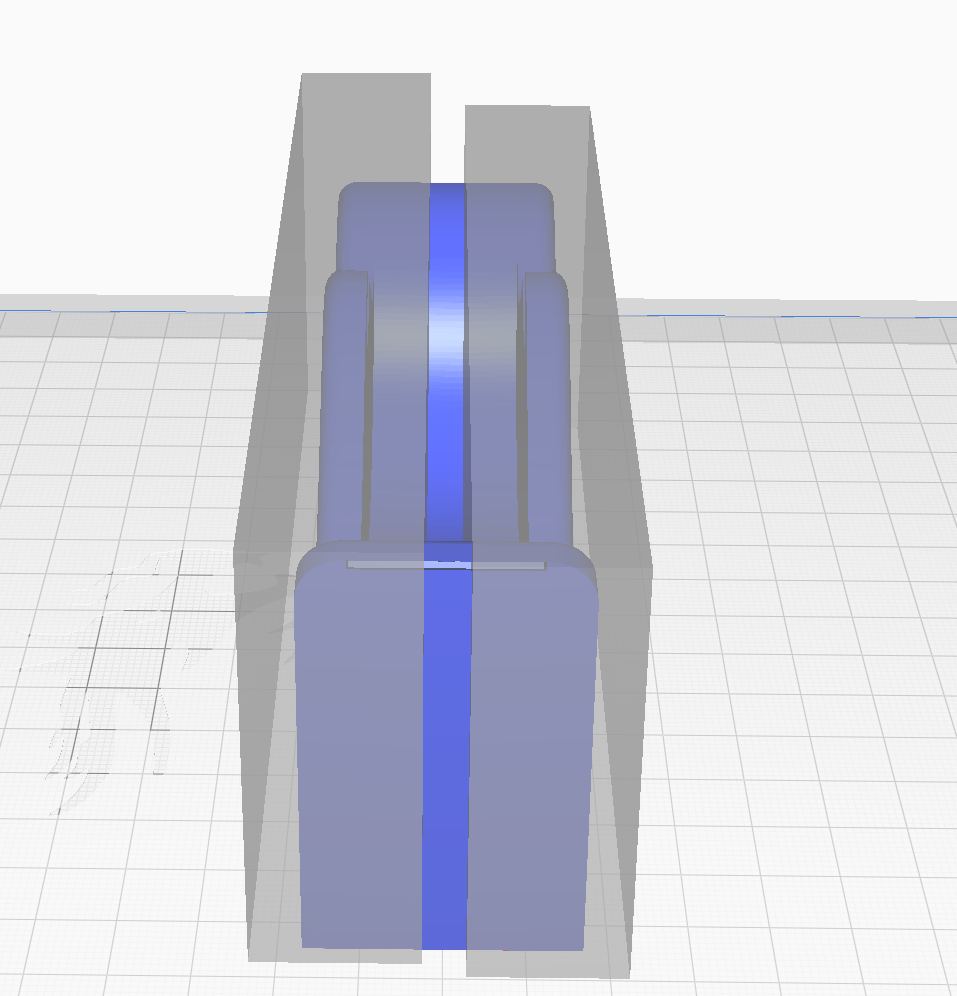

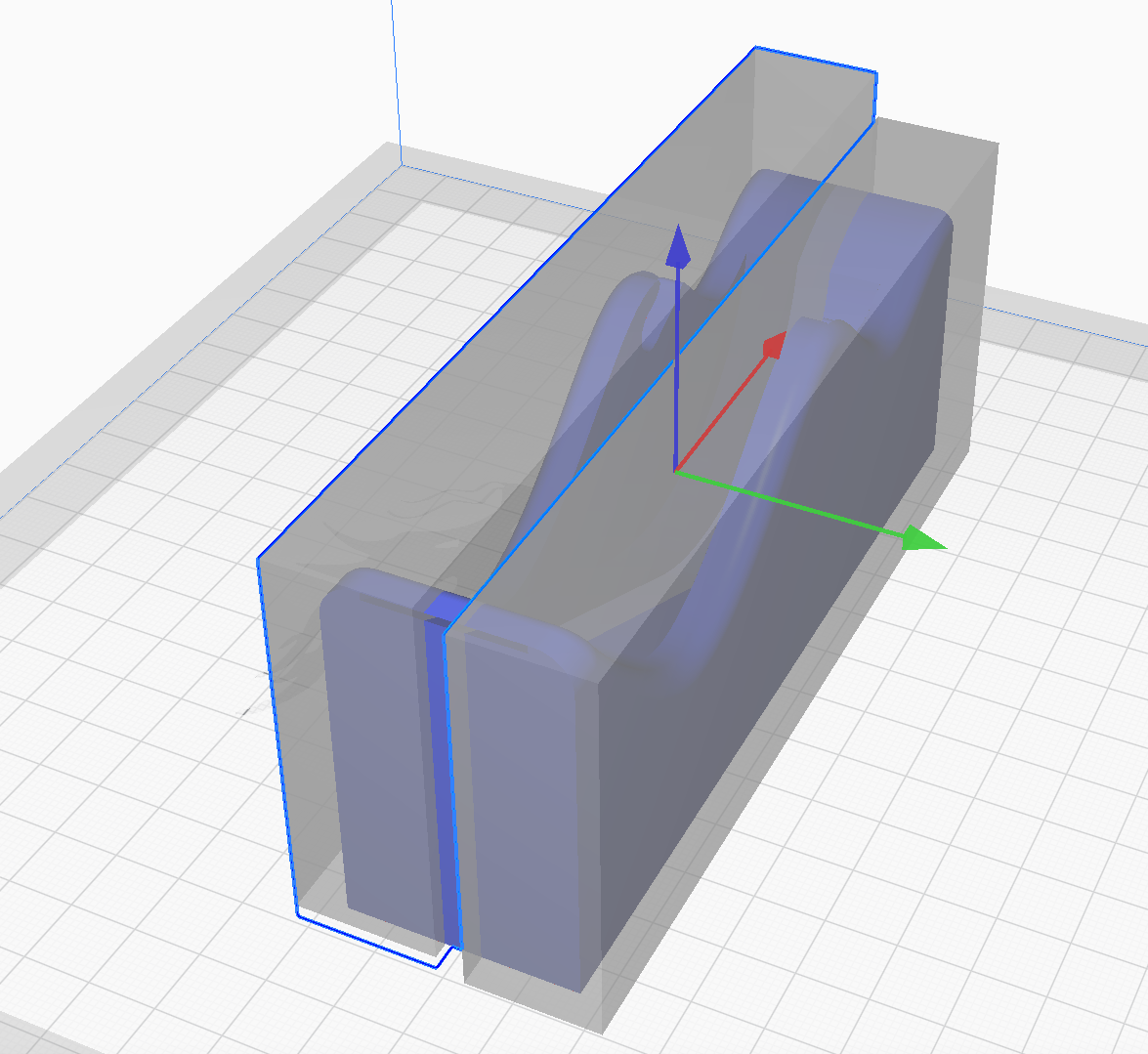

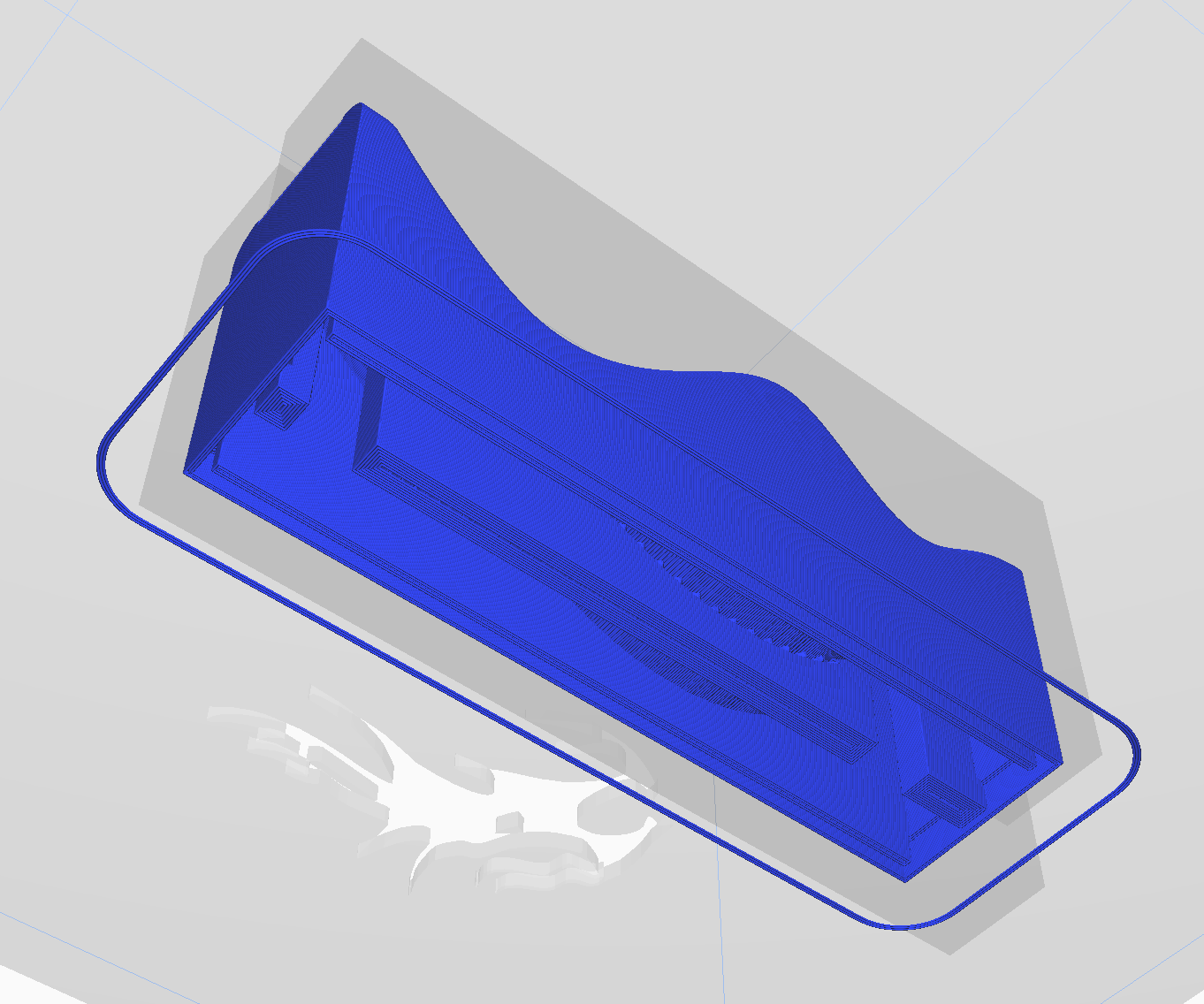

The body has to be printed with supports, and these can be optimized, making only supports on the median plane, but not on the long sides (see the last 3 images to place the two blockers). The capacity of your printer should do the bridges.

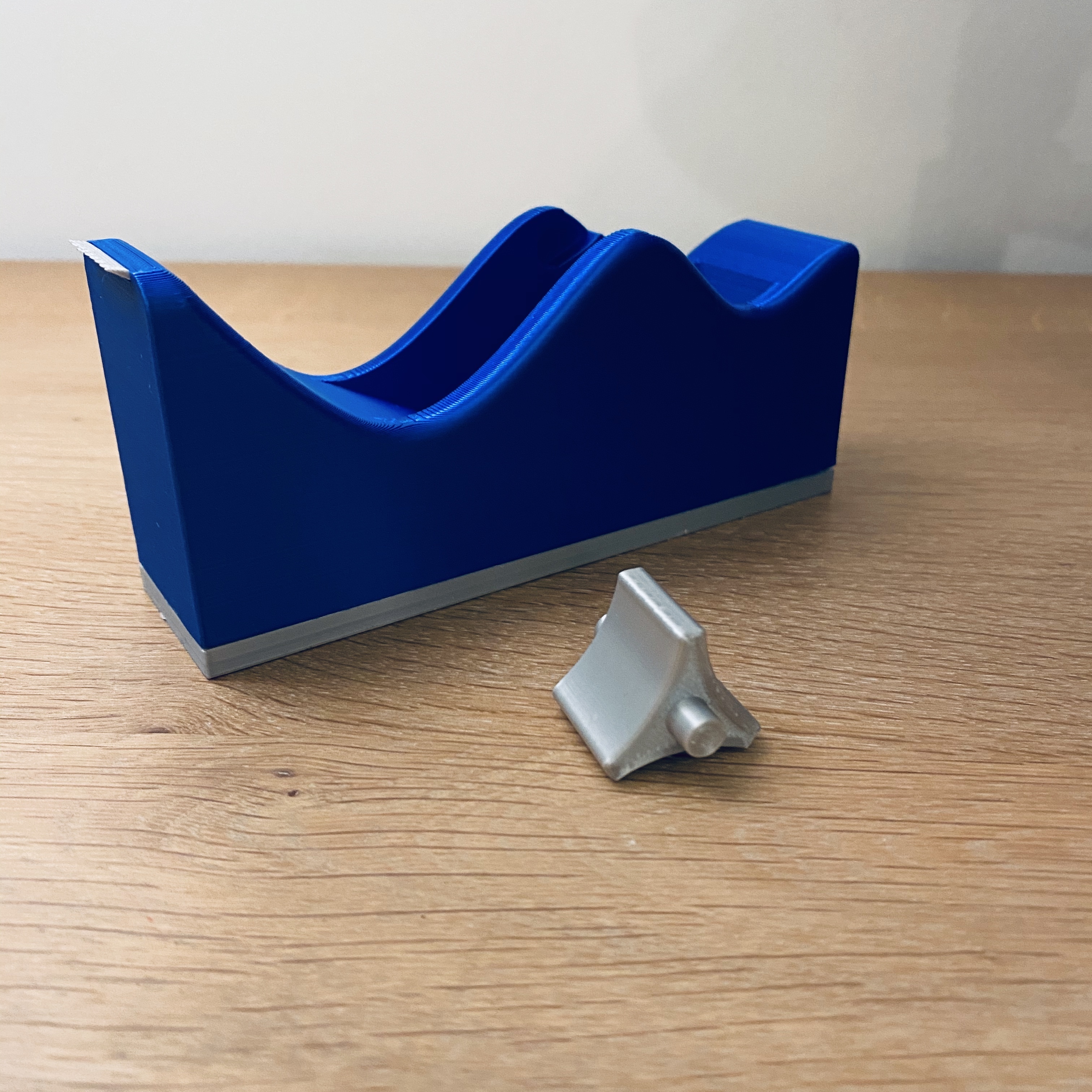

Axis to be printed vertically with supports as well.
The base does not need any support.
The blade (update v2) should cut the tape better. Note: If a small holder has been inserted into the slot of the blade, you can remove it using the blade itself.
- 3D file format: STL
- Last update: 2020/02/26 at 13:15
- Publication date: 2020/02/23 at 18:47
