Desktop Tool Rack Organizer for small hand tools

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 4.1k views
  • 14 likes
  • 341 downloads

3D model description

Desktop Tool Rack Organiser for small hand tools

May also have other uses : pen holder, artist’s paint brush holder etc.

There are two different top plate versions for this.

Custom Top Plate

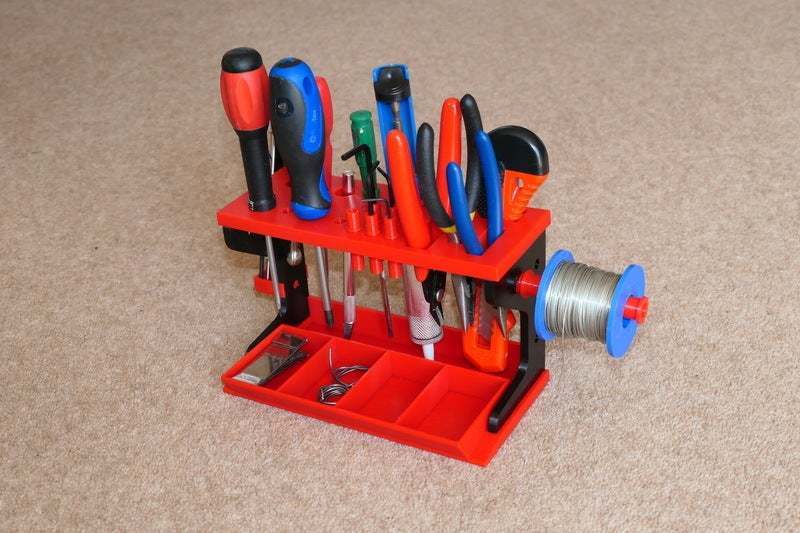

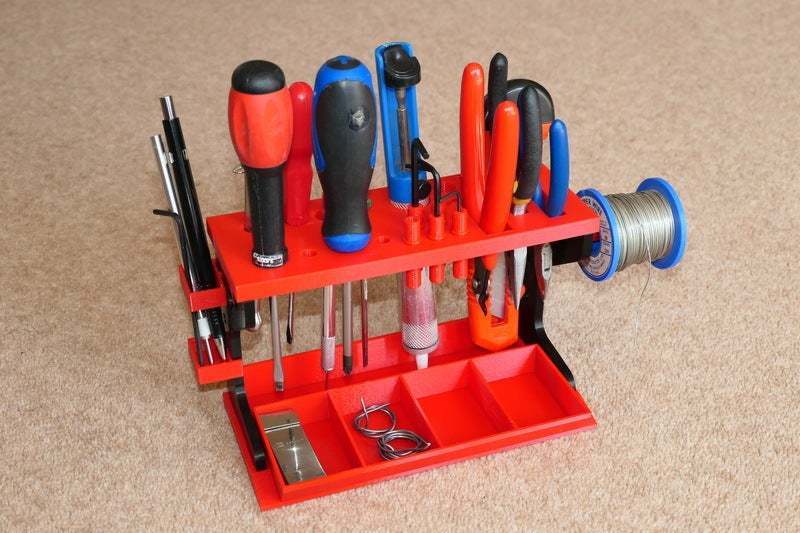

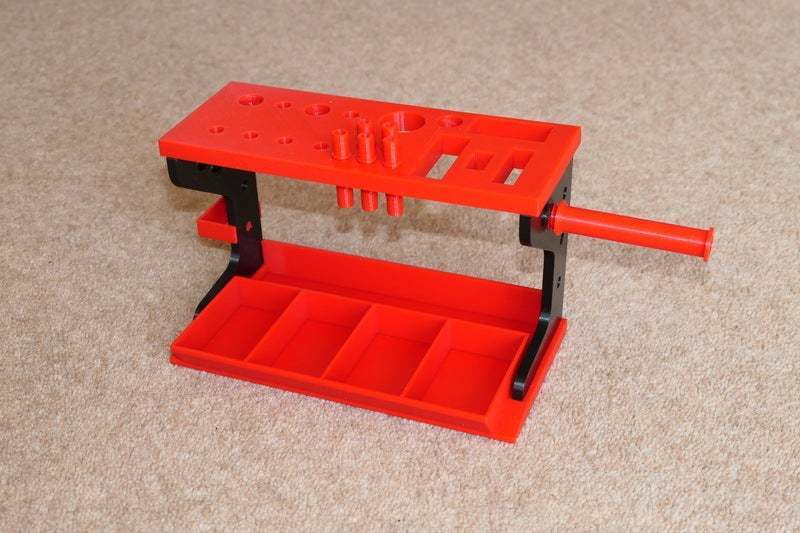

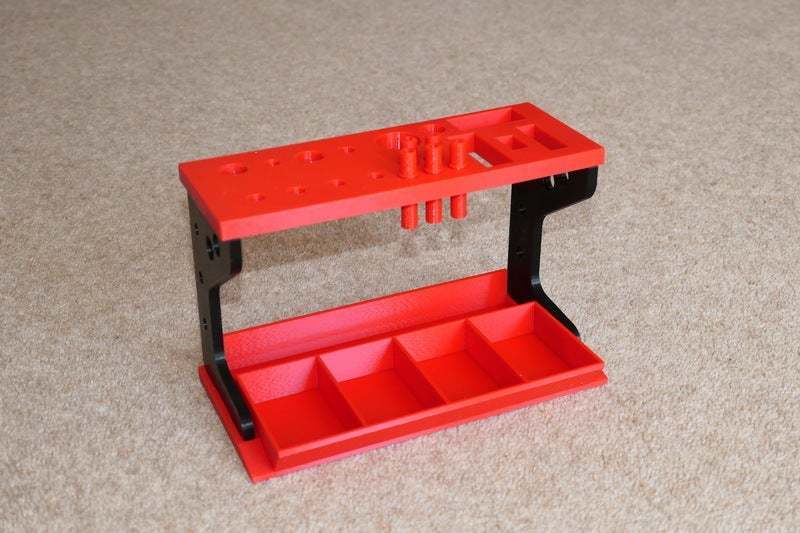

The one shown in the photos is a custom top plate for my own selection of tools. This should be useful for many tools and items.

General Top Plate

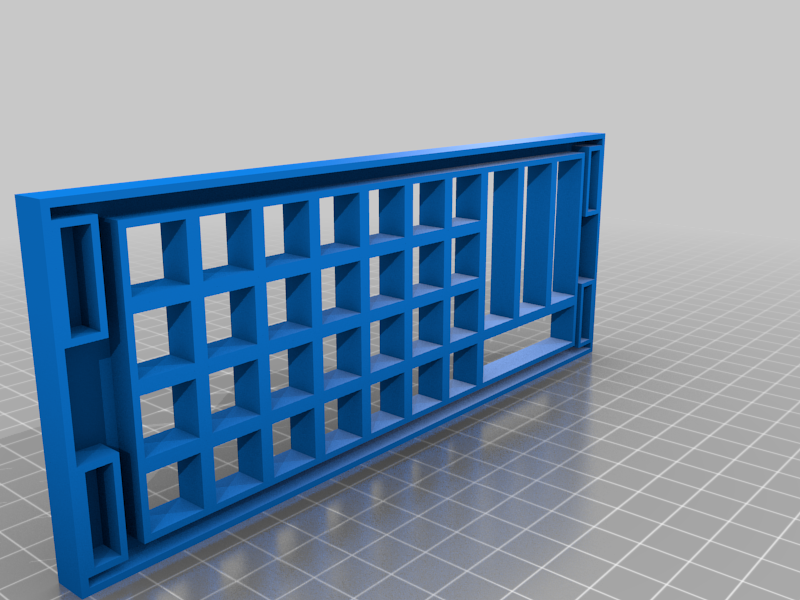

As an alternative, I designed a general top plate, which is basically a grid. There are also some inserts to adapt the square apertures to make them more useful for smaller tools

I haven’t printed out the full version of the general top, but I did do some tests to make sure the inserts fit and there is a CAD render to show what is looks like with and without the inserts.

For both versions there are some options that you can print for the sides. A small side rack for pens etc and a screw in reel holder for wire/solder etc.

Base.stl - The base part

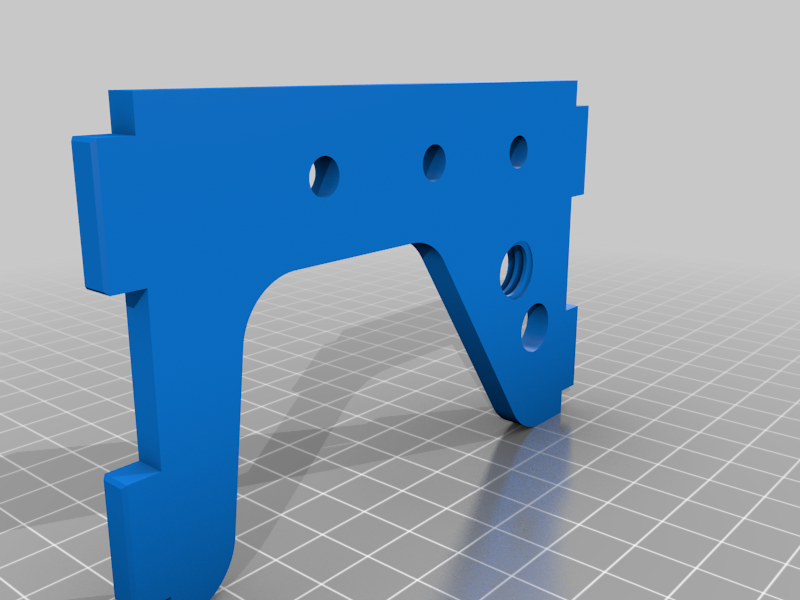

SidePanel.stl - Side panels, print two of these

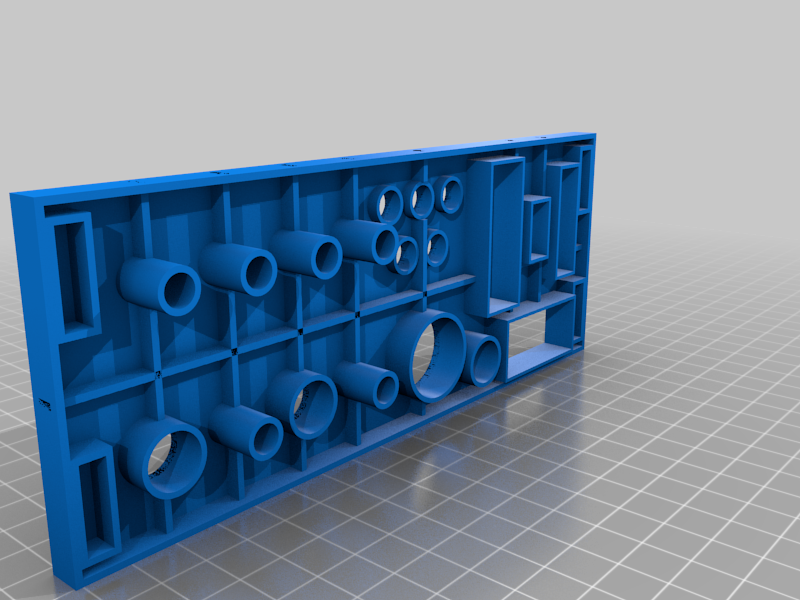

CustomTop.stl - Top panel as shower in the photos (custom version)

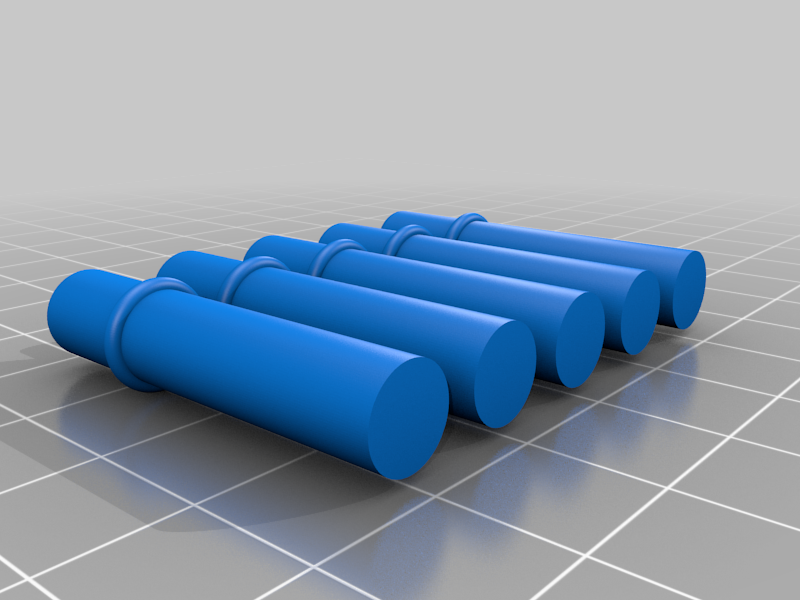

AllenKeyStandoffs.stl Holds Allen keys for the custom version (see photos)

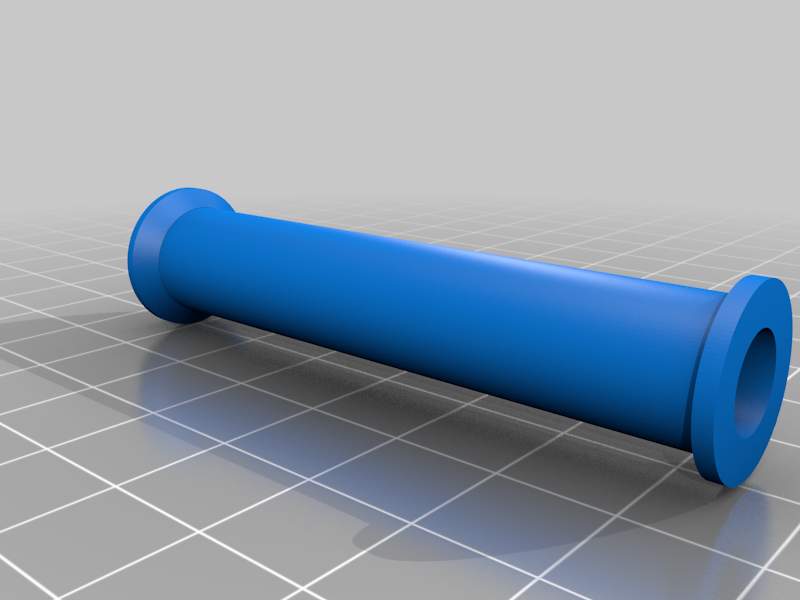

ReelHolder.stl - Screw-in Reel holder for side (for both version)

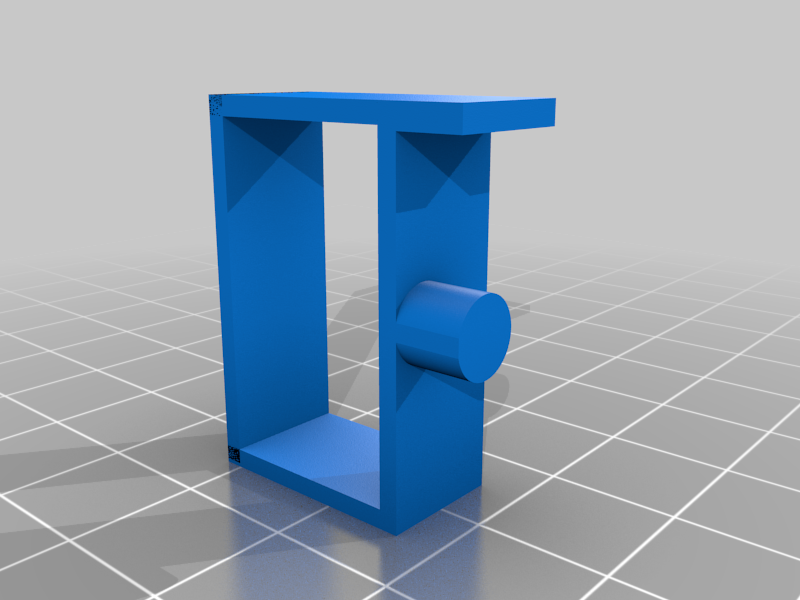

SideRackUpper.stl - Side pen holder upper part (for both version)

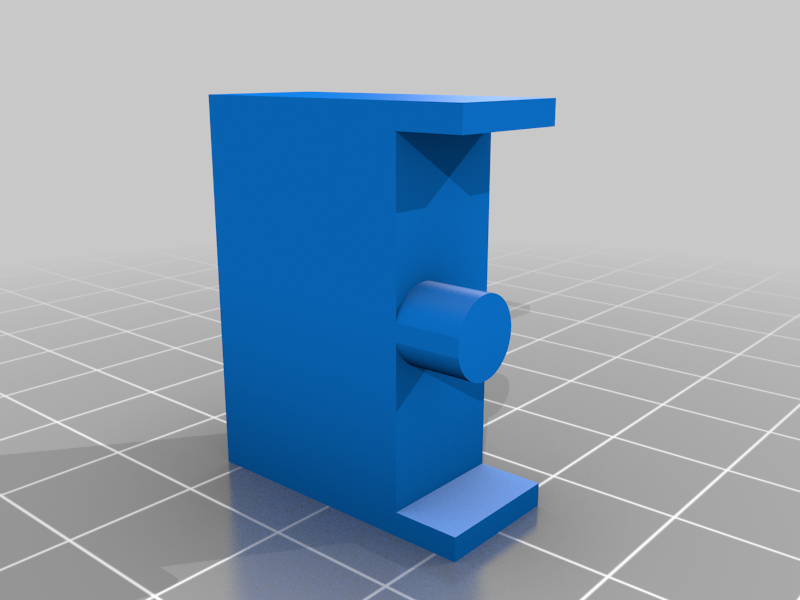

SideRackLower.stl - Side pen holder lower part (for both version)

GeneralTop.stl - Alternative general top plate

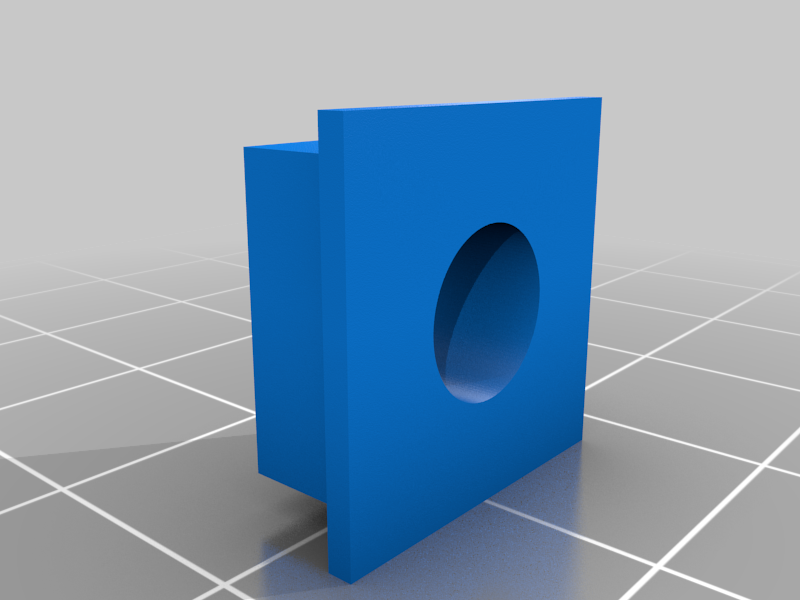

HoleBlock65.stl
Square insert with 6.5mm hole (for general version only)

HoleBlock90.stl
Square insert with 9mm hole (for general version only)

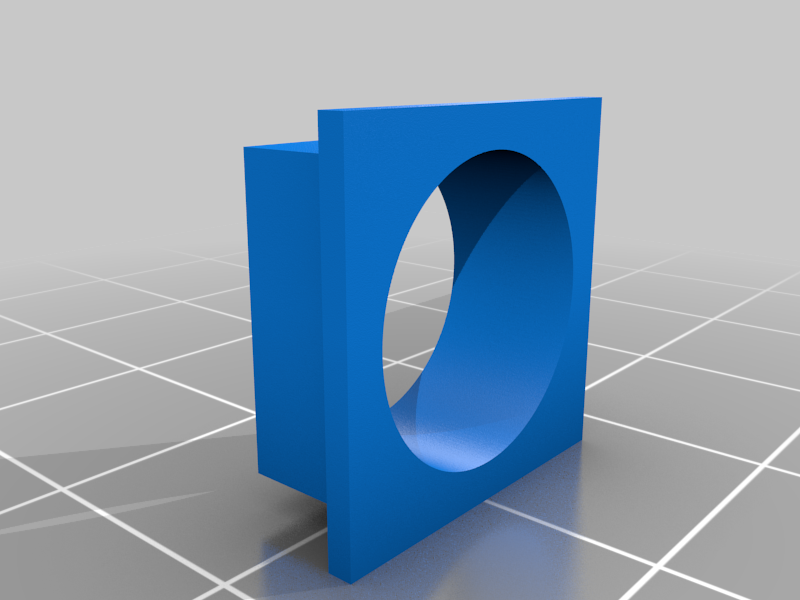

HoleBlock115.stl

Square insert with 11.5mm hole (for general version only)

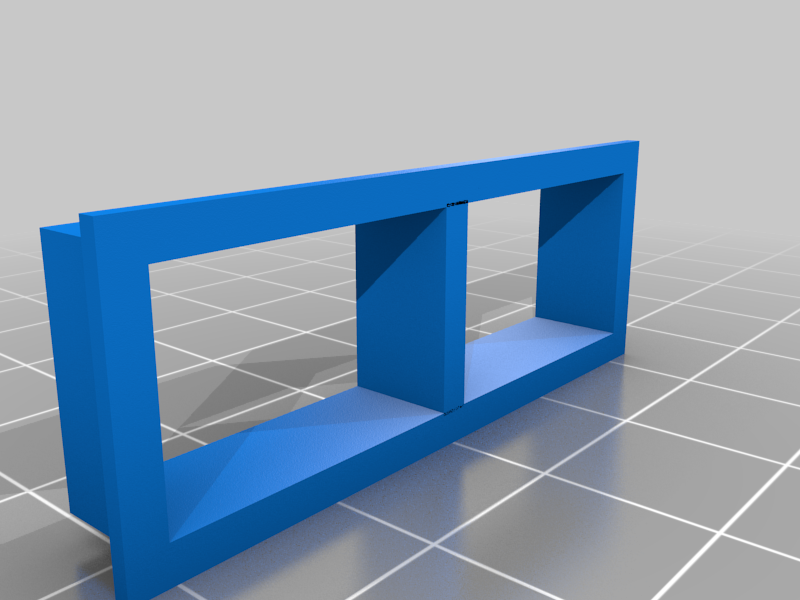

RectBlock.stl
Rectangular insert to put a center bar in the longer slots. (for general version only)

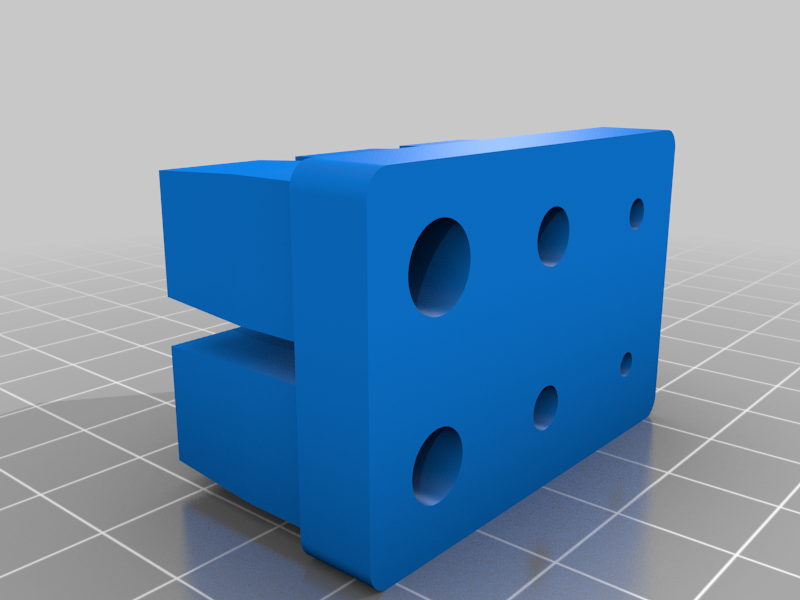

AllenKeyHolder.stl
Allen key holder for general version

  • 3D file format: STL
  • Publication date: 2020/04/23 at 10:02

License

CC BY
