DE200 brackets micrometer parallelism head tray

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

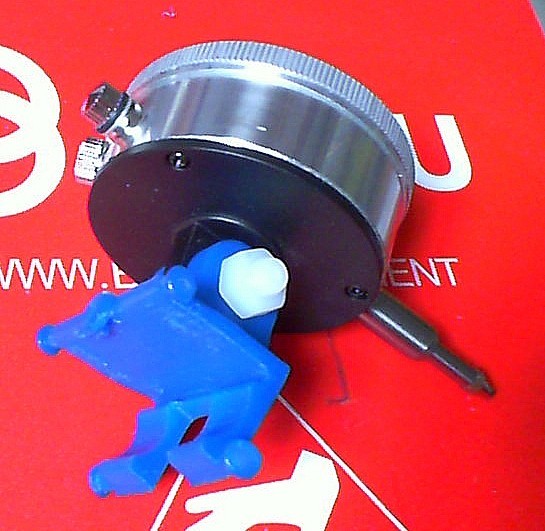

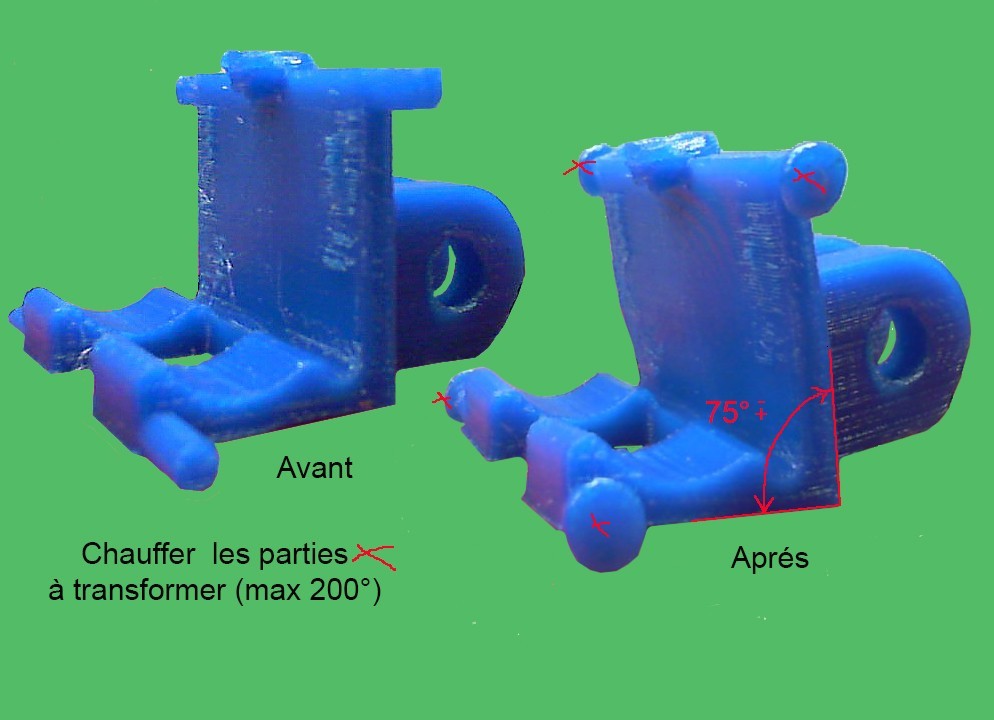

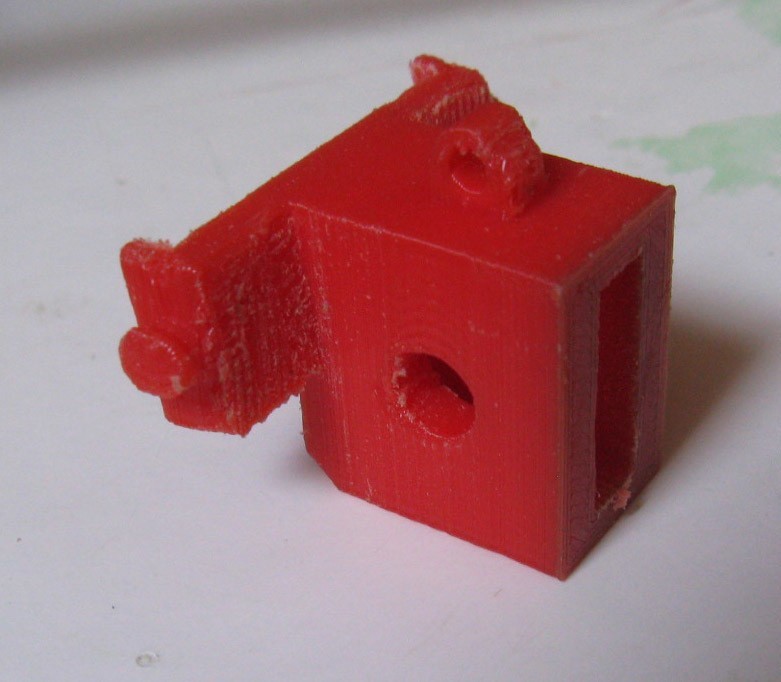

So that the print head with the tray is parallel, use a micrometer recessed on one of the different PLA supports, depending on your choice, fixed on the print head of the Discoeasy 200. I used screws and M6 nylon nut to secure this assembly.

3D printing settings

After using shims, calipers, a micrometer comes to mind, but how to fix it on the print head where this PLA stl file, held by an elastic. By navigating from right to left, adjusting the threaded rods is easier ....

3D printer file information

  • 3D design format: STL Folder details Close
    • support_micrometre_2.stl
    • support_micrometre_fd.stl
    • support_micrometre_fdbis.stl

    Learn more about the formats

  • Last update: 2018/03/20 at 11:43
  • Publication date: 2017/12/28 at 14:05



Page translated by automatic translation. See the original version.
Issue with this design? Report a problem

Best sellers of the category Tools

Add a comment


J'ai acheté le micromètre sur aliexpress pour même pas 6€

J'ai eu la même idée mais je n'ai pas réussi à designer le produit. Alors merci bcp, fonctionne parfaitement.

Bonjour, où avez-vous acheter votre micromètre ?
