DB9 male socket (just add 0.1" header)

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 775 views
  • 2 likes
  • 8 downloads

3D model description

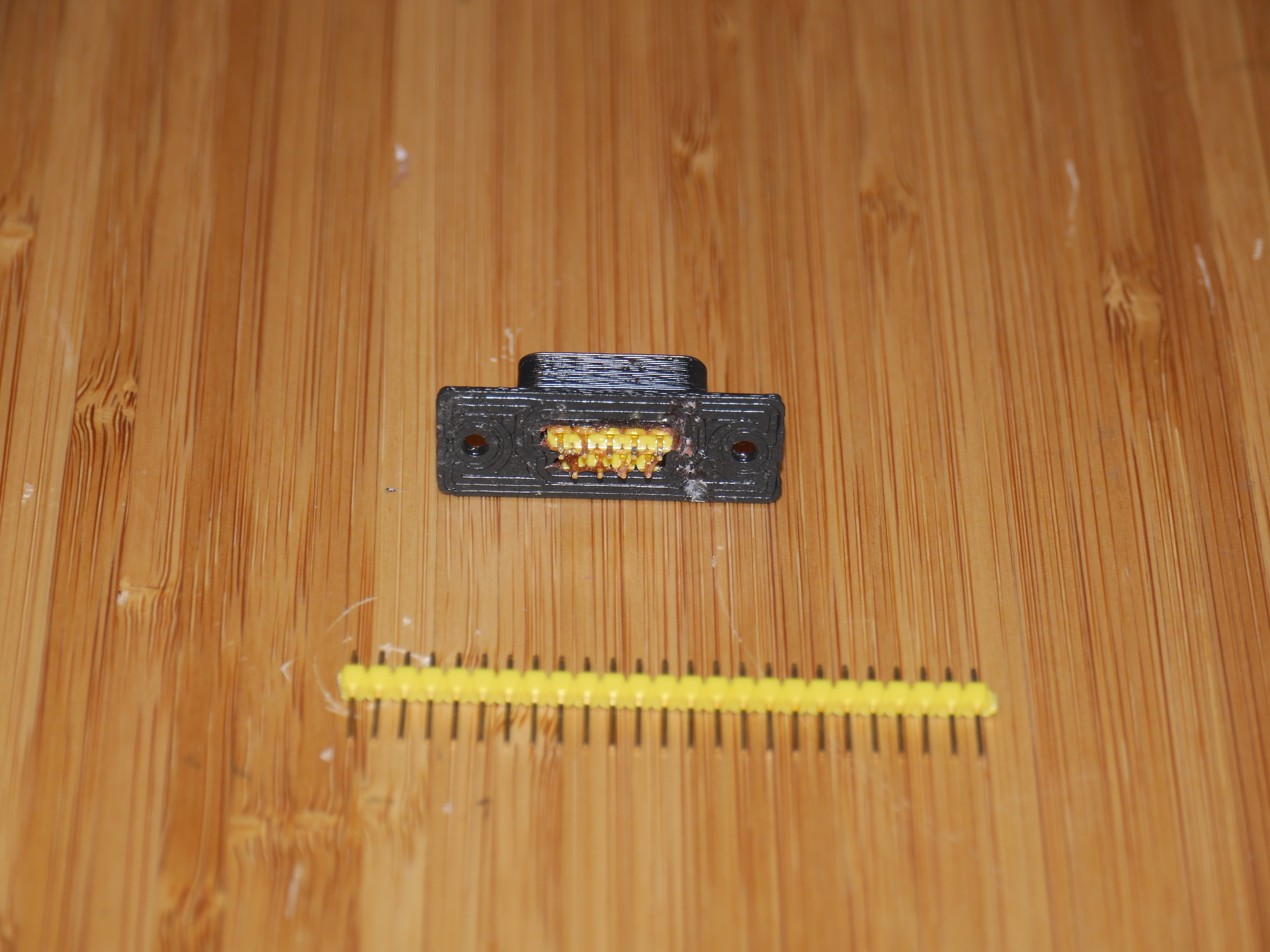

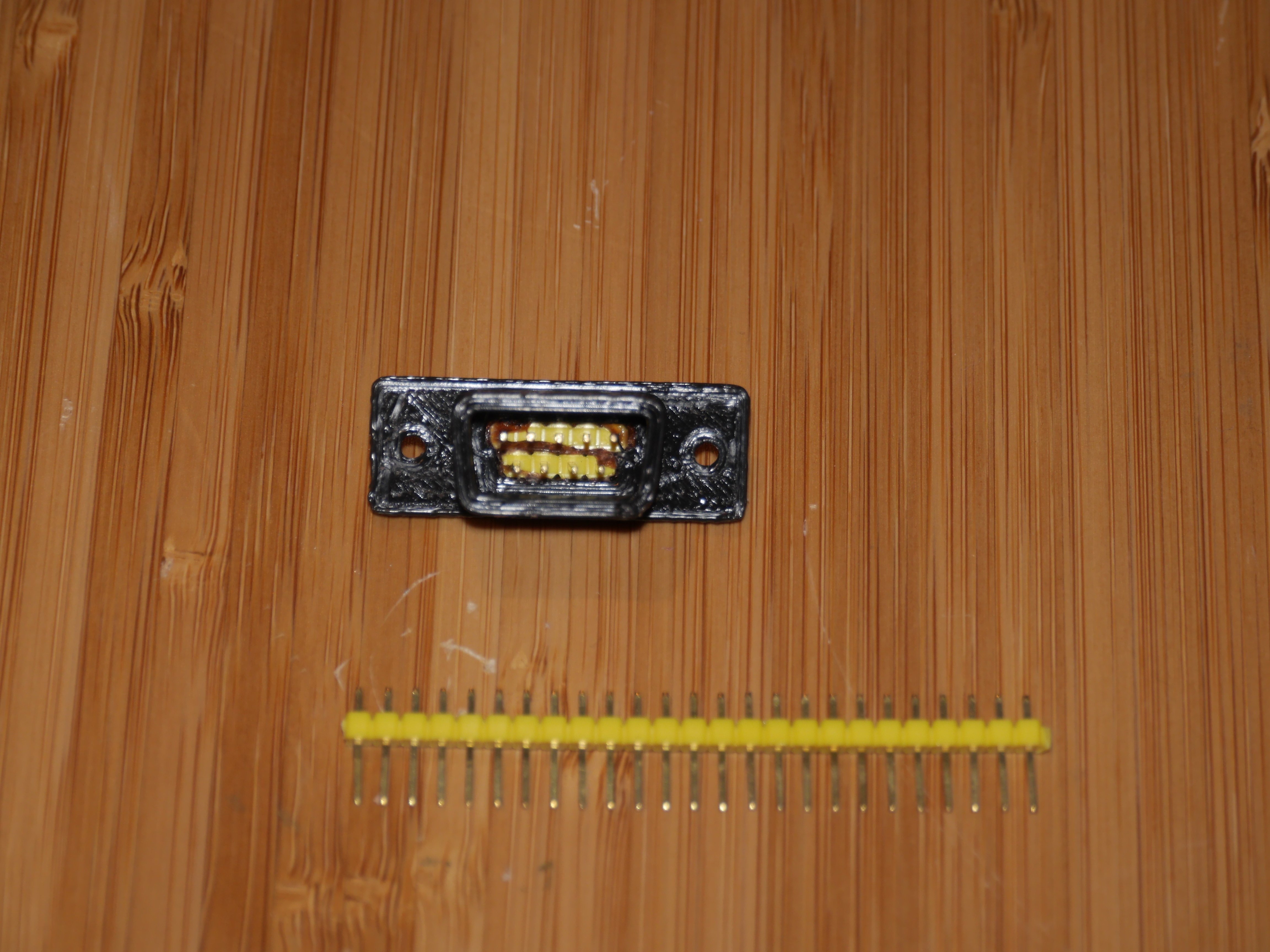

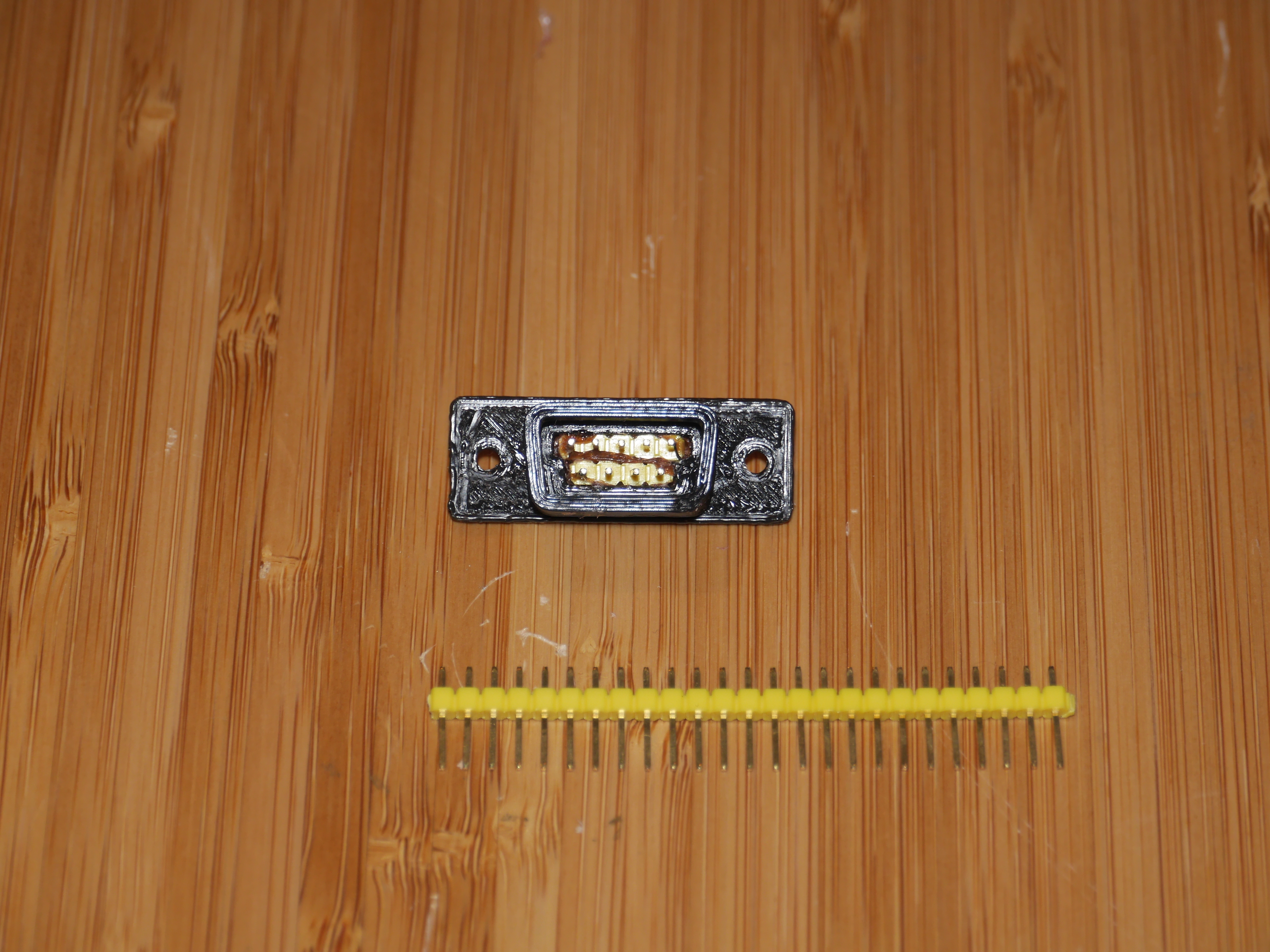

This is a DB9 male connector. Just glue inside it two strips of 0.1" header, one with 5 pins and one with 4 pins. (I used ABS juice for the glue.) The pins will be slightly off from the official DB9 spacing of 0.108", but it should be close enough.

In theory, you can change the number of pins and even customize this to generate a DB15, but the disparity in pin spacing will then become more problematic.

  • 3D file format: SCAD and STL

Tags

Creator

License

CC BY


Best sellers of the category Tool


Add a comment

One comment

i made cover for db9 => https://3docean.net/item/rs323-cover-for-3d-printer/23497054
your idea to make printed head nice for how want that connector and don't find them because all device now work in USB,
but i want you do a connector for card OBD-2, it's very usefull connector for reading error codes in car using bleauthoot
