D9 X Axis Idler Bracket, works on stock printer or with MGN12 Rails

2e80f6fdf95dd2cb6e38878d2184eafc.png Free STL file D9 X Axis Idler Bracket, works on stock printer or with MGN12 Rails・3D print design to download
C74624A9-9A73-4B09-A56F-DB459C199941.png Free STL file D9 X Axis Idler Bracket, works on stock printer or with MGN12 Rails・3D print design to download
3506E87C-F014-4F64-A408-185CE06A5E76.jpeg Free STL file D9 X Axis Idler Bracket, works on stock printer or with MGN12 Rails・3D print design to download
Wanhao_Duplicator_9_-_D9_-_Idler_mount_WORK_IN_PROGRESS.stl Free STL file D9 X Axis Idler Bracket, works on stock printer or with MGN12 Rails・3D print design to download
Share
Add to
Make
?
Creation quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

Bleugh

Bleugh

3D model description

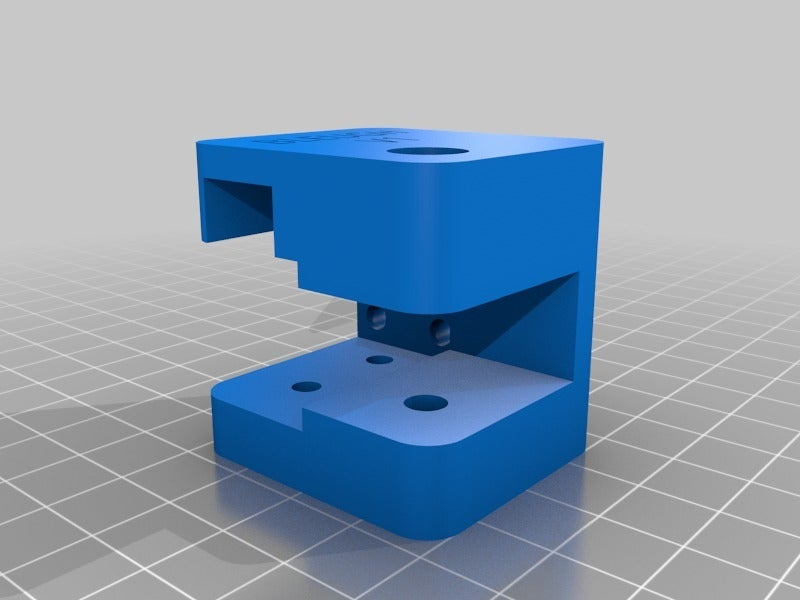

First run of a bracket that allows you to have a much more stable X Axis idler held from top and bottom.

This bracket also allows tension adjustment of the X axis belt via M3 screws on the side

Uses a long M5 bolt to hold the idler in

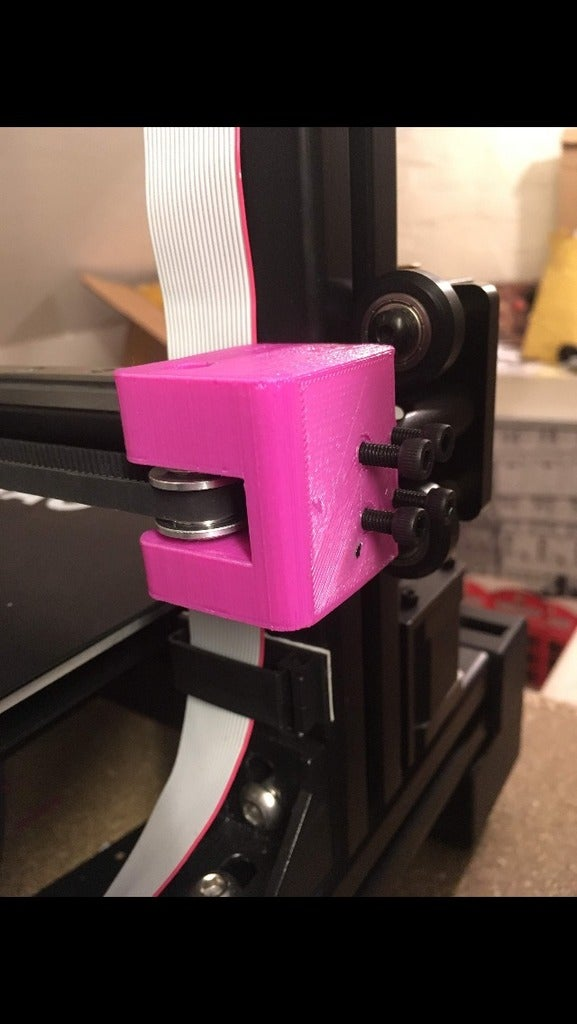

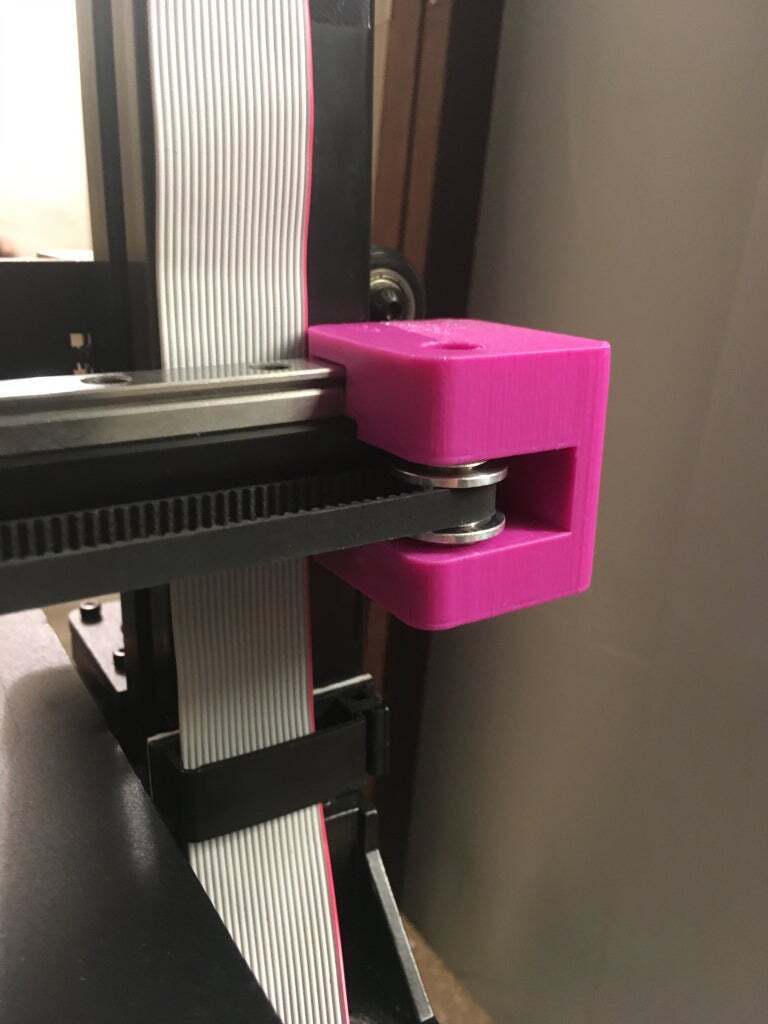

I've been using this for a few months now on my own printer

Will be updating it when I get time, as I’ve also an c axis stepper bracket in design that puts the belt parallel to the extrusion. The stock is about 2mm out of level on one side!
