D810 delta 2020 bed brace

20170806_113329.jpg D810 delta 2020 bed brace
D810_bed_brace.stl D810 delta 2020 bed brace
Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
Licence CC BY-NC-SA
Publication date 2020-02-11 at 11:51
?
Published to Thingiverse on: 2017-08-06 at 01:48
Design number 107584
3D design format
STL Folder details Close
  • D810_bed_brace.stl

Learn more about the formats
3D model size X 33.7 × Y 20.8 × Z 52.1 mm
frankv

frankv

3D printer file info

3D model description

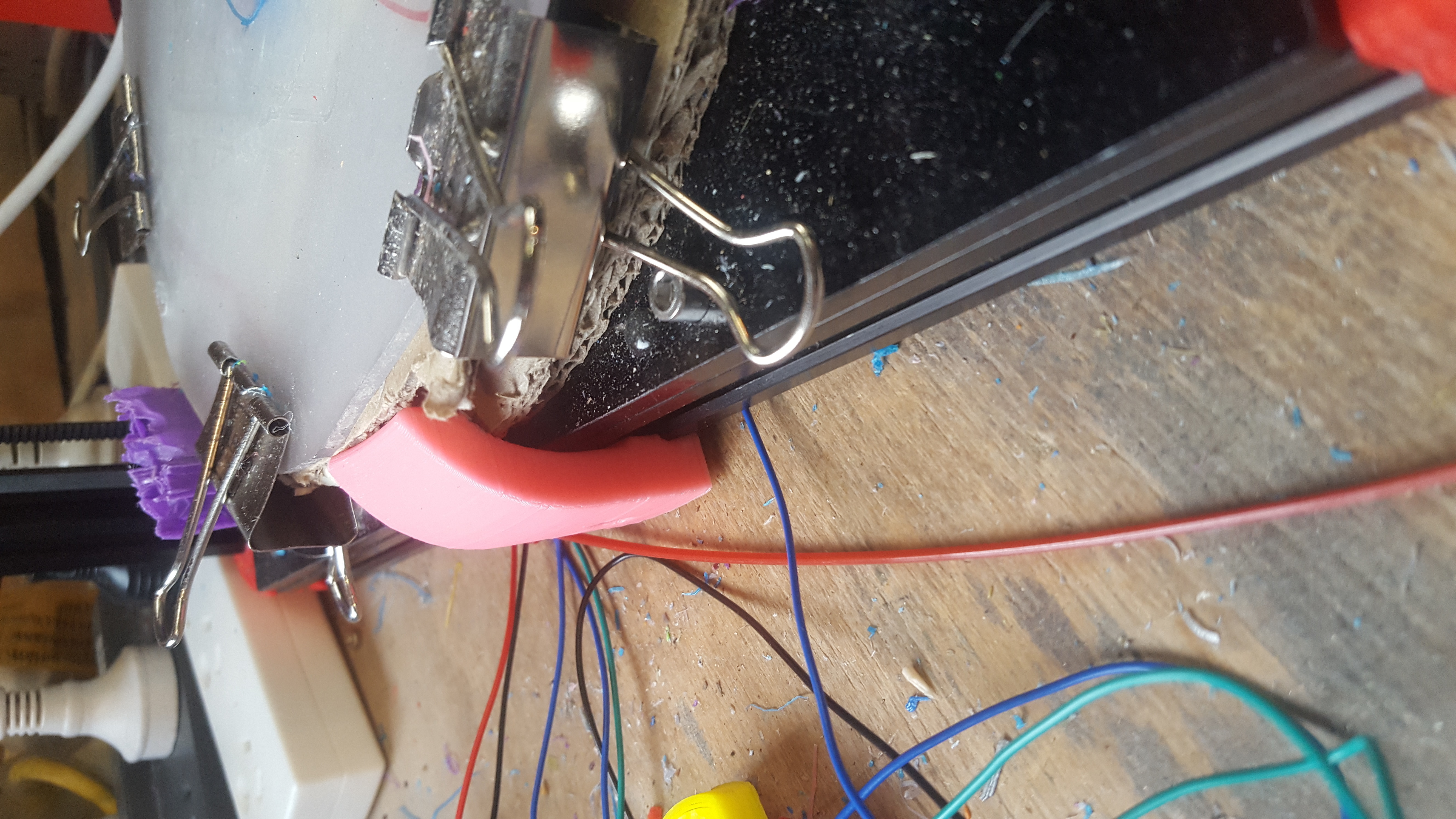

Whilst printing, I noticed that my bed was being pushed sideways by the nozzle, resulting in a bit of distortion to the print. So I designed these braces to screw to the bottom 2020 extrusion to lock the bed in place horizontally, but still allow vertical movement for bed levelling.

The 2020 attach is altered so that tightening the screw increased pressure against the edge of the bed.

Designed for the Zonestar D810, but possibly will work (with a bit of packing perhaps) for other delta printers with a 2020 bottom frame.
