D-bot Linear Z bearing holder

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.5k views
  • 4 likes
  • 114 downloads

3D model description

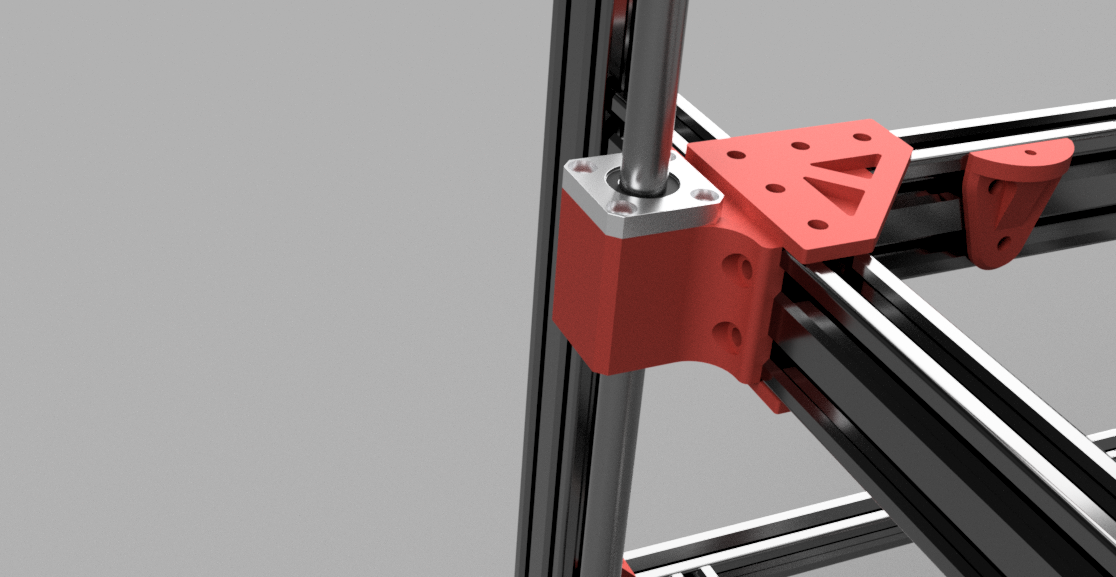

I wanted linear shafts on my D-bot after i had some z banding.

found some solutions here but i wanted to use aluminum brackets for securing the rods to the printer for improved stability. (SK12 )

and i also made the brackets for the LMK12UU bearings.

i havent printed these since i am offshore still. so its at your own risk ;)


3D printing settings

high infill and 4-6 perimiters.

i prefer PETG

3D printer file information

  • 3D design format: STL Folder details Close
    • D-bot LMK12uu Bracket.stl
  • Publication date: 2017/08/29 at 00:10

License

CC BY
