Cyclone Dust Seperator from a road cone.

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.9k views
  • 3 likes

3D model description

machine translation

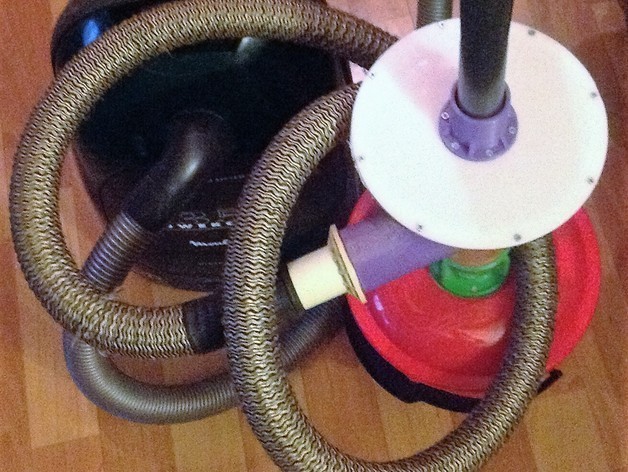

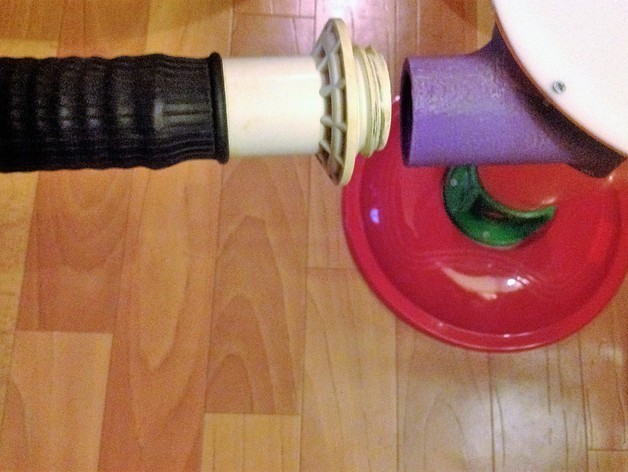

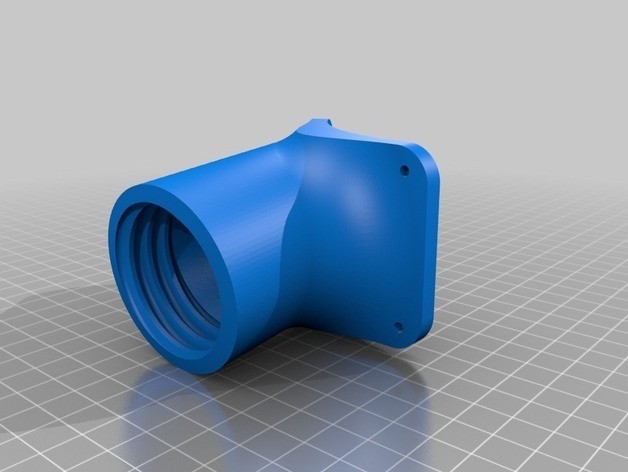

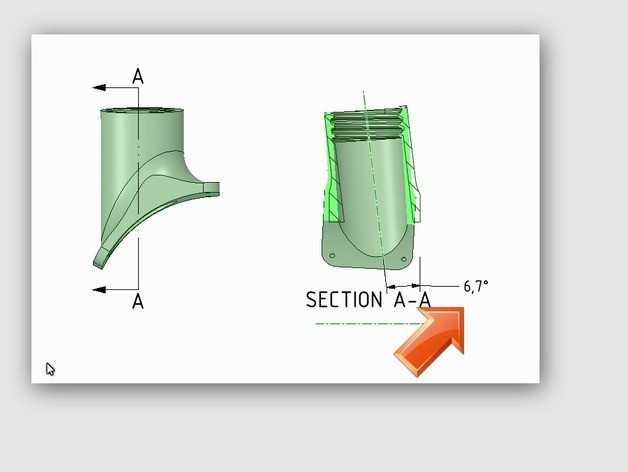

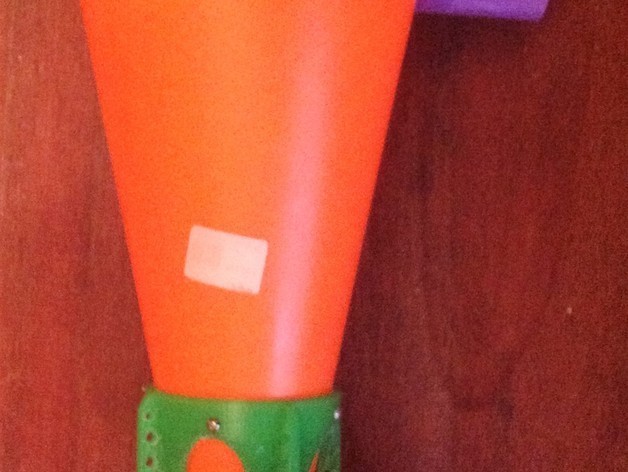

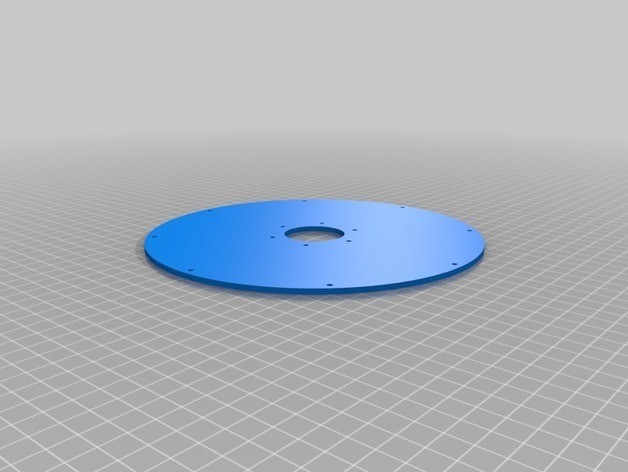

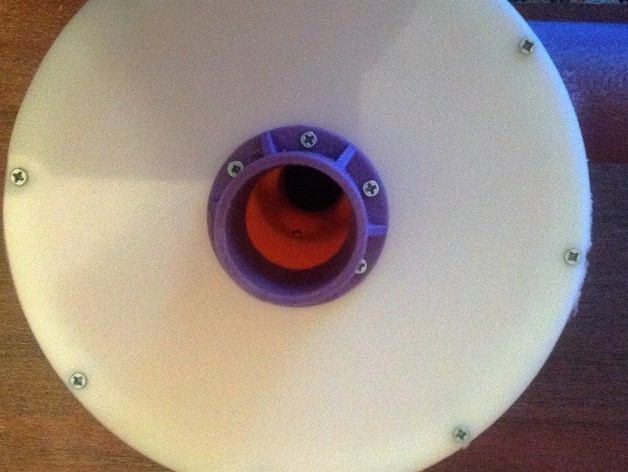

Not to print such big cone for cyclone creation, I decided to use a road signal cone. I printed remaining details. I made a cover on the milling machine (CNC) of organic glass. I have it also to me it was so simpler. I put the file in the DXF format. My input hose from the vacuum cleaner has a thread, yours can not have if it is necessary for you, then I can remake under your requirements. The input device for connection of a hose has an inclination about 7 degrees. I used a bucket with a thin cover, for normal fixing made a washer. If your bucket is with a thick or metal cover, then the ring can be not done. You watch pictures. Ask questions.

3D printer file information

  • 3D design format: STL Folder details Close
    • 121.stl
    • 2.stl
    • krishkacyclon.stl
    • rezbasosok.stl
    • vnutrvixod.stl
    • vxod_repaired.stl

    Learn more about the formats

  • Last update: 2018/02/06 at 12:23
  • Publication date: 2018/01/30 at 18:12
