Customizable (Dremel) Cutting Guide

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 2.2k views
  • 11 likes
  • 67 downloads

3D model description

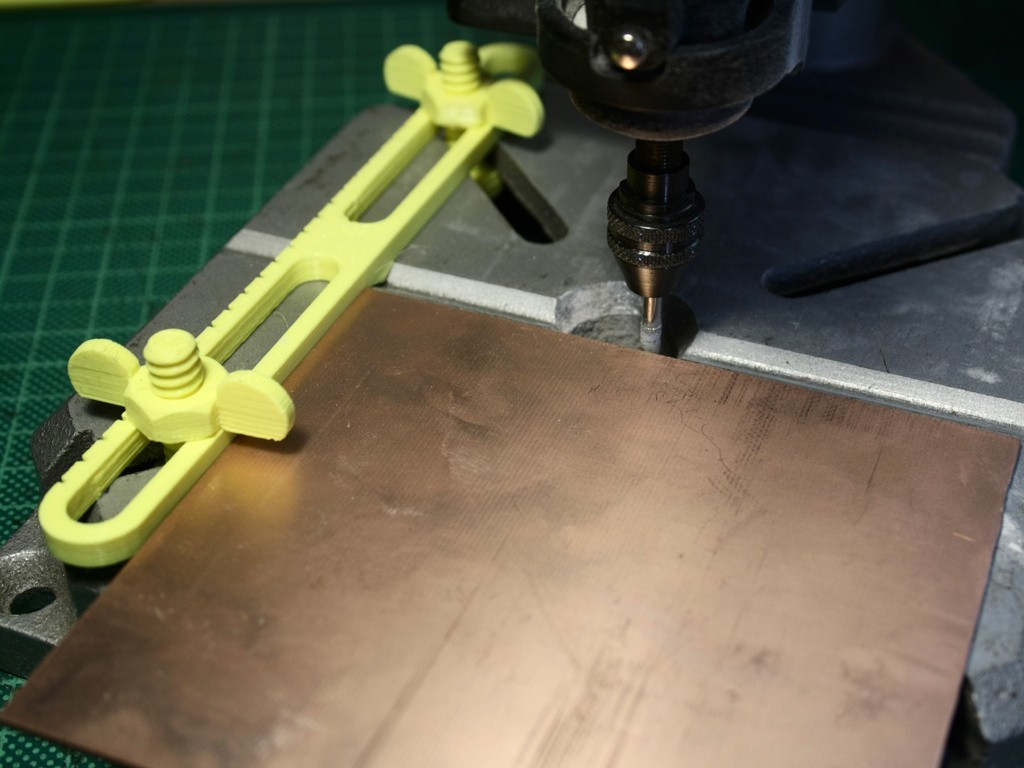

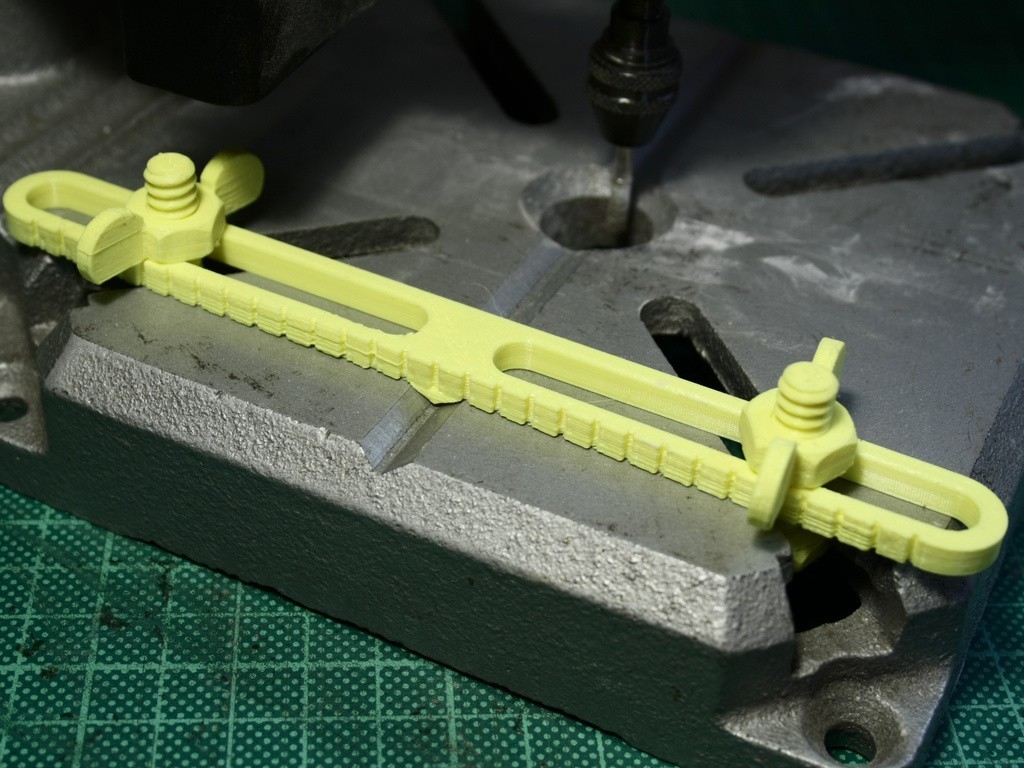

This thing is designed for my Dremel drill press stand to be used as a guide when cutting with the milling head. The customizer allows to adapt the cutting guide to fit your needs, you can disable the ruler on the back of the cutting guide if you do not need it, same with the grove.

My drill press stand has a grove, so I designed a guide for it, but you can disable it in the customizer, same with the ruler indentations.

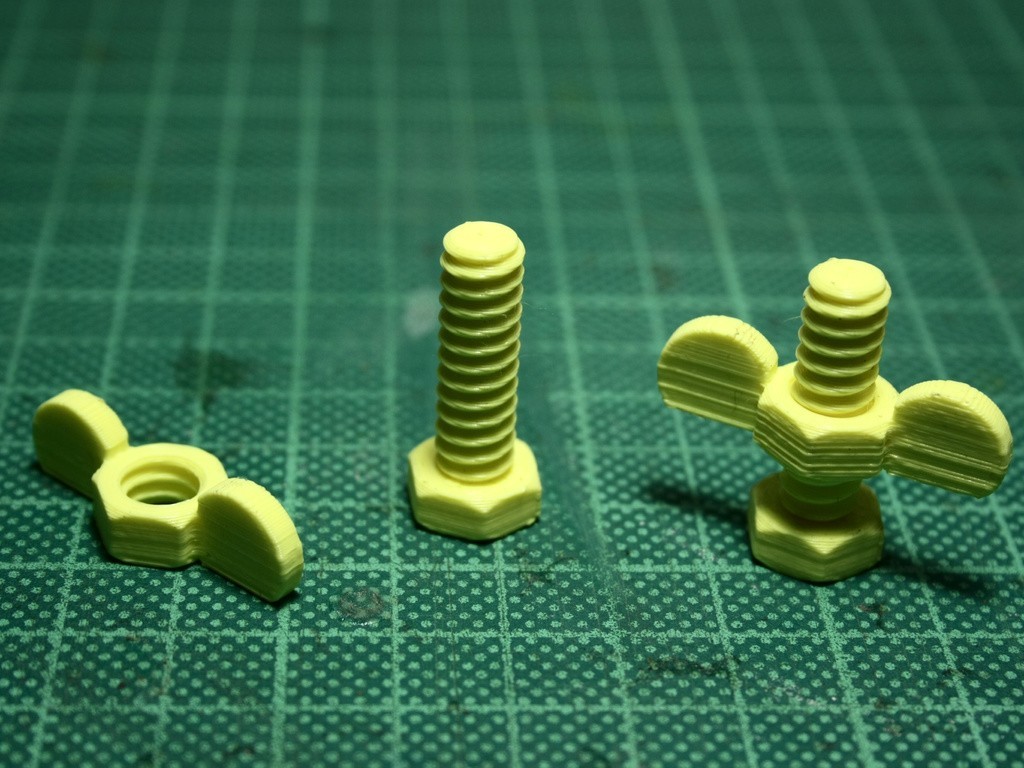

The attached screws were made with the great "Nuts and Bolts customizer" so in case the attached ones should not fit your needs, you can make yourself some that have the perfect fit.

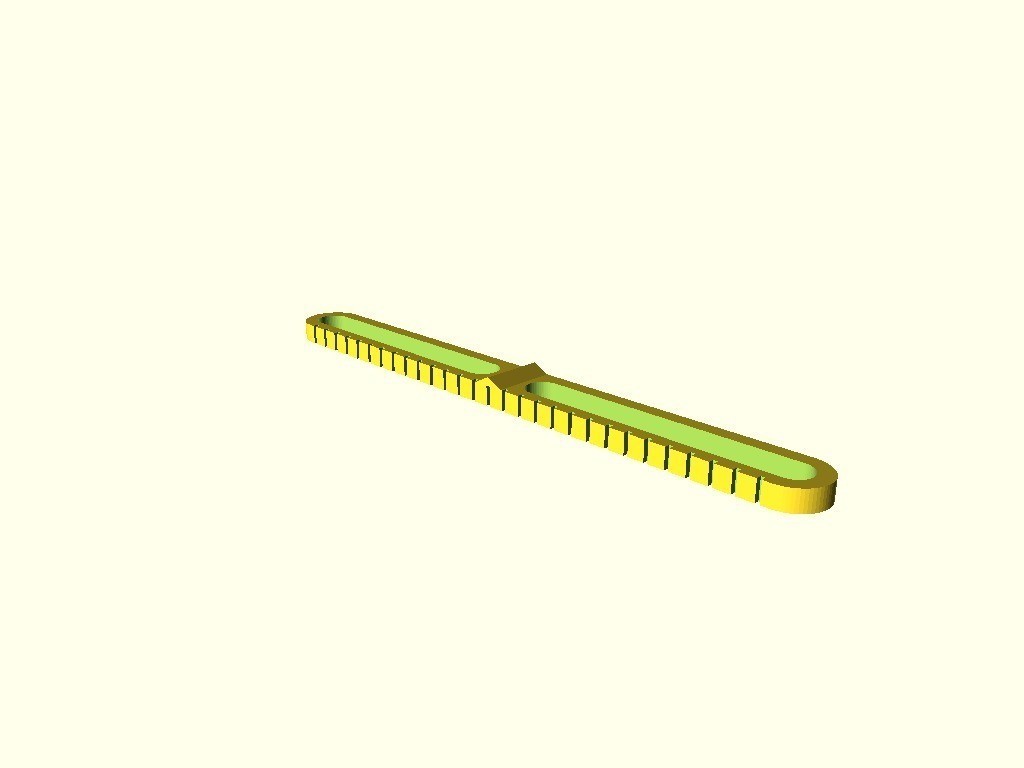

The attached cutting_guide.stl is exported with the customizers default settings. Print cutting_guide.stl once and bolt and nut twice each.

3D printer file information

  • 3D design format: STL Folder details Close
    • bolt.stl
    • cutting_guide.stl
    • wing_nut.stl

    Learn more about the formats

  • Publication date: 2018/10/10 at 16:17

License

CC BY NC SA
