Crocodile Vise Clamps (attachment for Solder Helper Hands)

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 187 views

3D model description

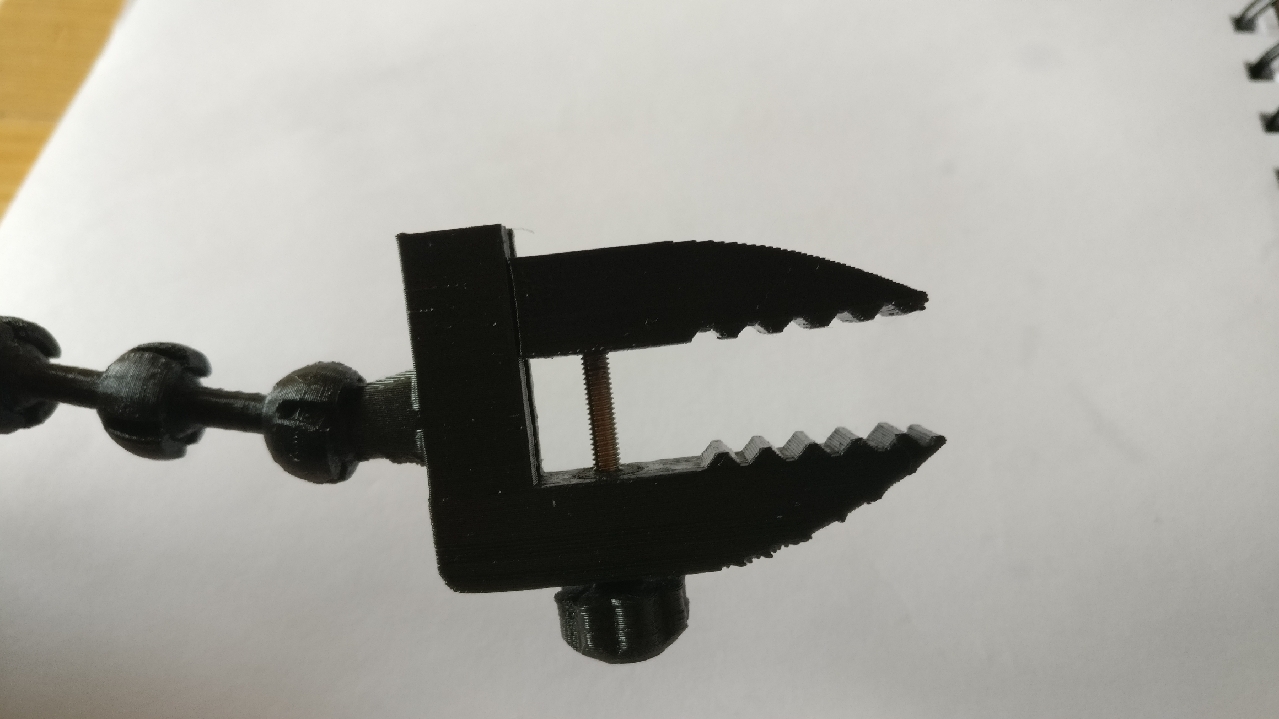

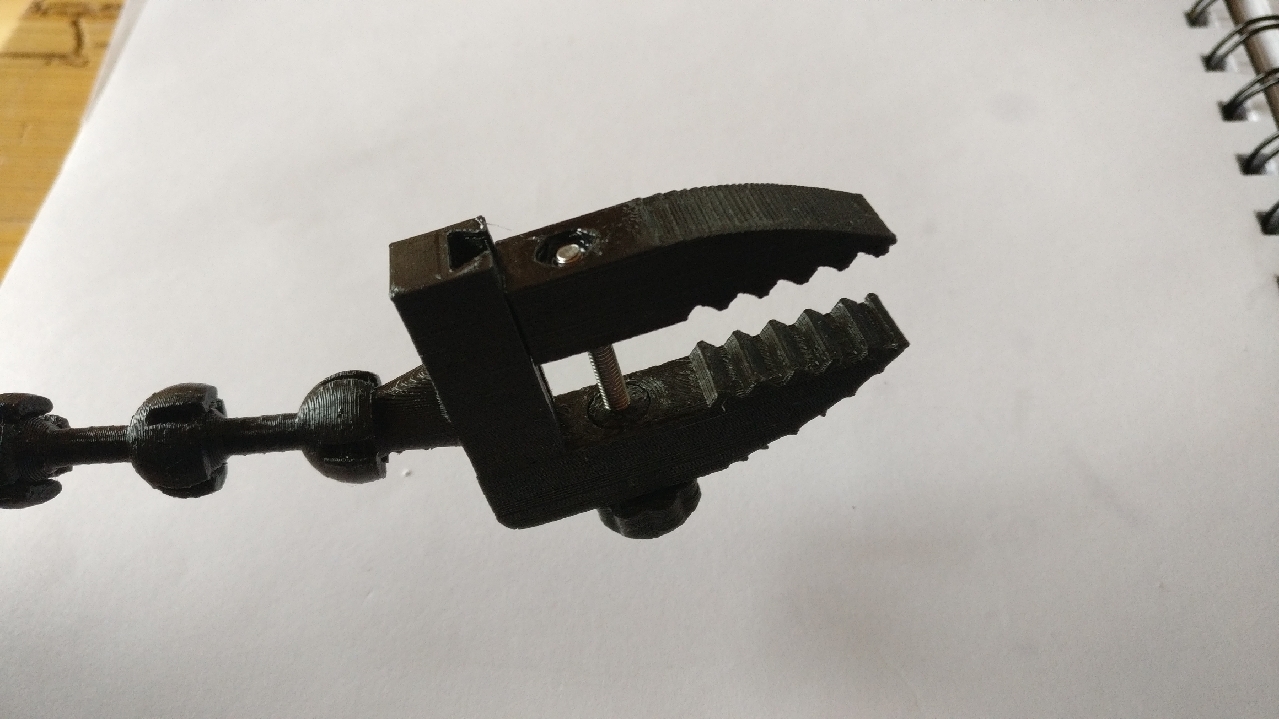

Crocodile Vice/Vise Clamps


I designed this crocodile vice/vise clamp as an attachment onto the articulated arm for a solder helper hand. It has a 8.25mm sphere ball to sit into the cup of the articulating arm. This will fit perfectly into this thingiverse item:
Thingiverse #3386400


This comes in two separate versions. One with a 15mm span and another with a 25mm span. You get both of these on the same order.

NOTE: 15mm and 25mm indicates the maximum jaw opening size of the clamp.

HARDWARE NEEDED:

1 x M3 nut
1 x 40mm M3 screw (preferrably cap head screw, button head works too as I use these myself.) for the 15mm version
OR
1 x 50mm M3 screw for the 25mm version

INSTALLATION:

  1. Dry fit the clamps and lube the dovetails with PTFE lubricant. Work it back and forth a few times until it runs fairly smooth. It should be fairly tight at first but will loosen up after a few runs back and forth. It will not loosen until there is slop/play, as long as there is minimal catching, that's sufficient. When you thread the screw later in Step 5, if the assembly is not moving smoothly, disassemble and re-work the part (although this shouldn't be necessary). Bear in mind, you need to be printing accurate parts which means you will need to calibrate your printer before you take this on. If you're printing accurate parts, there is also no sanding necessary.
  2. Melt the M3 nut into place onto the Top Clamp with a soldering iron. Clean up the threads so that the screw will thread in smoothly. You want this to thread in and out without too much resistance or the clamp will be difficult to operate. Spray some PTFE lube and run the screw in and out as many times needed until it's smooth. You can also use a tap if you have access to one. Clear off any plastic burrs that are caught on the threads.
  3. Remove supports off the bottom clamp. Thread the screw into the knob until it bottoms out. Next, melt the screw until it sinks into the knob and sits recessed inside the knob. Let it cool down.
  4. Run the screw through the bottom clamp (the bit with the negative of the dovetail, or in other words, the part that looks like an L shape). Thread the retention nut (round threaded nut that was printed together with the knob) onto the screw. This is a really tight fit and is designed that way so it holds in place and the screw doesn't fall out. You will need to grab this round nut with pliers and use a hex-head to screw into it. Thread it all the way as far as you can go so the screw will have as little slop as possible. You don't want the screw to be pinched tight (otherwise, you won't be able to move the top clamp up and down).
  5. Spray some PTFE lube into the dovetail. Install the top clamp into the dovetail. Push it down and turn the screw with the knob until the screw catches onto the nut.

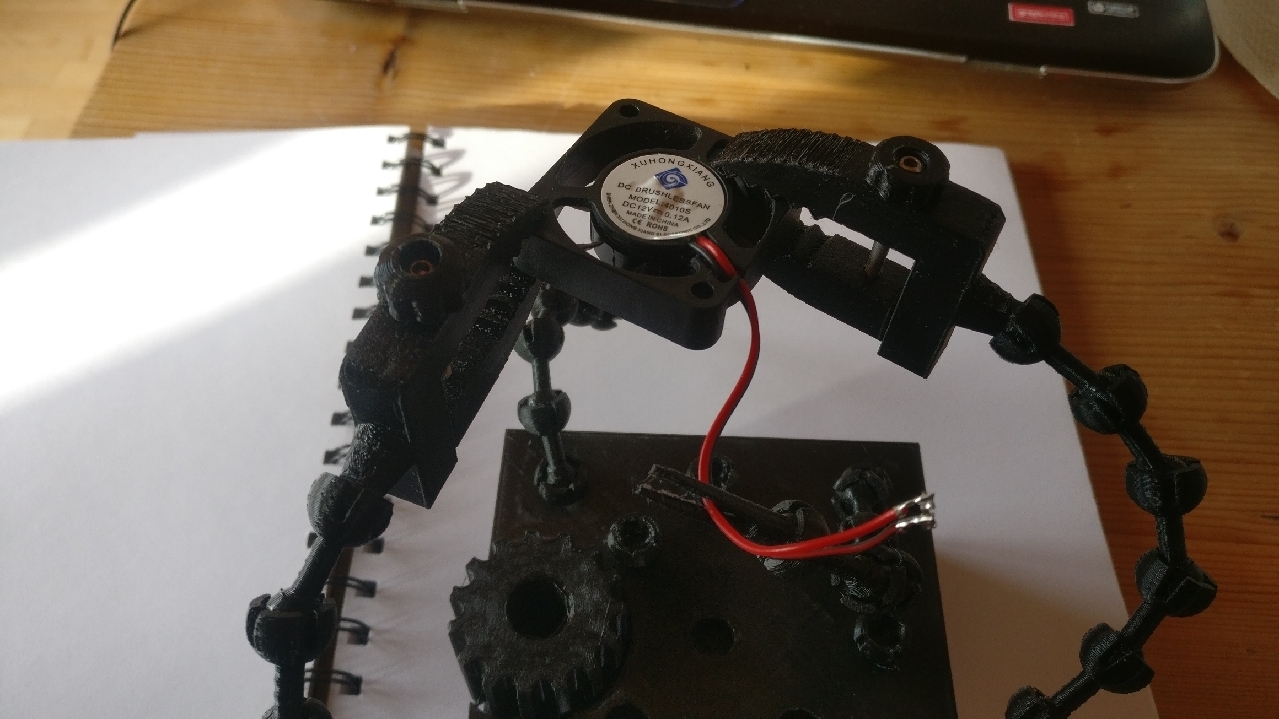

  6. Enjoy clamping things securely while you do your soldering work.

3D printing settings

You need to be able to print accurate parts for this to work. The tolerances are pretty tight so that there is no slop on the clamp when it's in use.

I printed with PETG at 65% infill. 0.12 layer height, 0.42mm width. I printed with linear advance enabled, and a fairly slow speed since it is PETG (around 15-30mm/s)

Top clamp is printed with the jaws facing down onto the bed (without supports)
Bottom clamp (L-shaped clamp) is printed with the jaws facing up (with supports enabled - touching baseplate only). Do not print this on the side as your dovetail might not come out accurately (and cleaning off supports inside a dovetail is no fun).
Retention nut and knob are printed with the top of the knob facing up. (without supports)

I did not test this with PLA but it should work although your mileage might vary as this is intended to be a working part/tool.

  • 3D file format: STL
  • Last update: 2021/01/21 at 09:15
  • Publication date: 2021/01/13 at 22:03

Tags

Creator

Designs 8
Downloads 21
Sales US$12
Followers 1

I am a hobbyist 3D printer maker and designer.

I have a background in Mechantronics/Mechanical Engineering. I enjoy designing and building various objects. I also like to tinker with and repair broken mechanical/electronic items.

I'm currently working on a personal project of designing and building a CoreXY printer with a stationary bed and gantry system that moves in the XYZ dimension. Build area of 450+mm X x 450+mm Y x 600mm Z.
