Creator Pro - HBP strain relief

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 994 views
  • 1 like
  • 13 downloads

3D model description

I had a problem with my FFCP (2016) whereby the power connector on the HBP started to smoke and was burnt very badly. I had to replace the HBP and the cable as both were destroyed

I believe that this problem was caused by the fact that the movement of the HBP stressed the power connector slightly and over time this ovalled the socket in the housing and this is what caused the fault. There is no strain relief on this connection at all

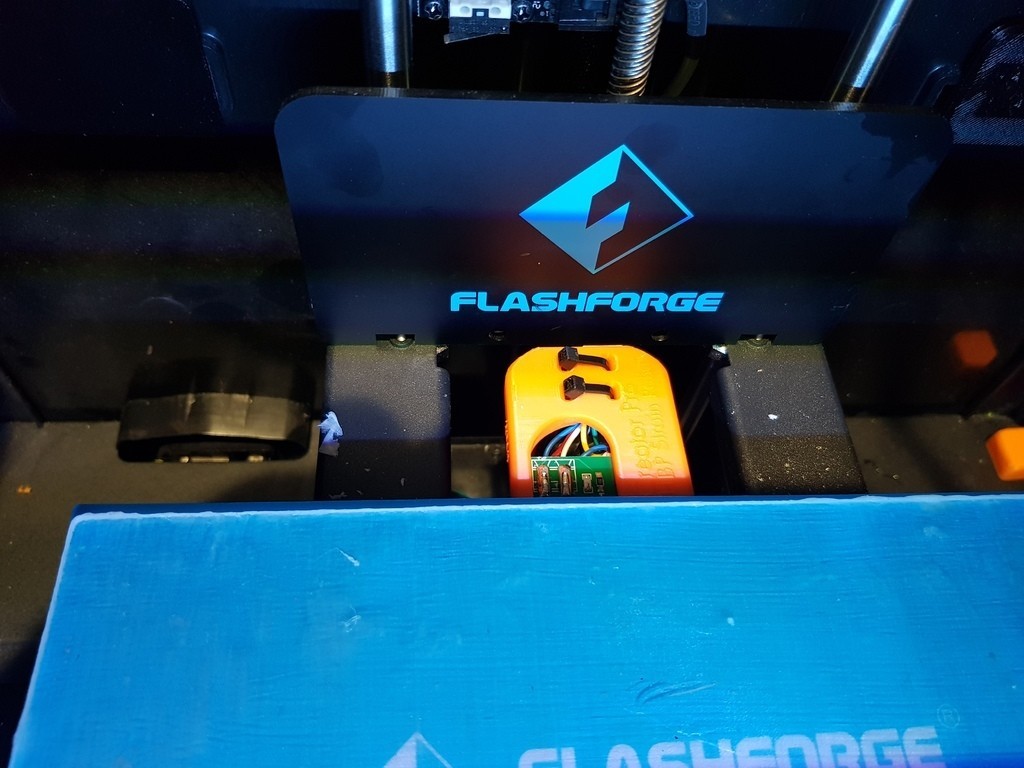

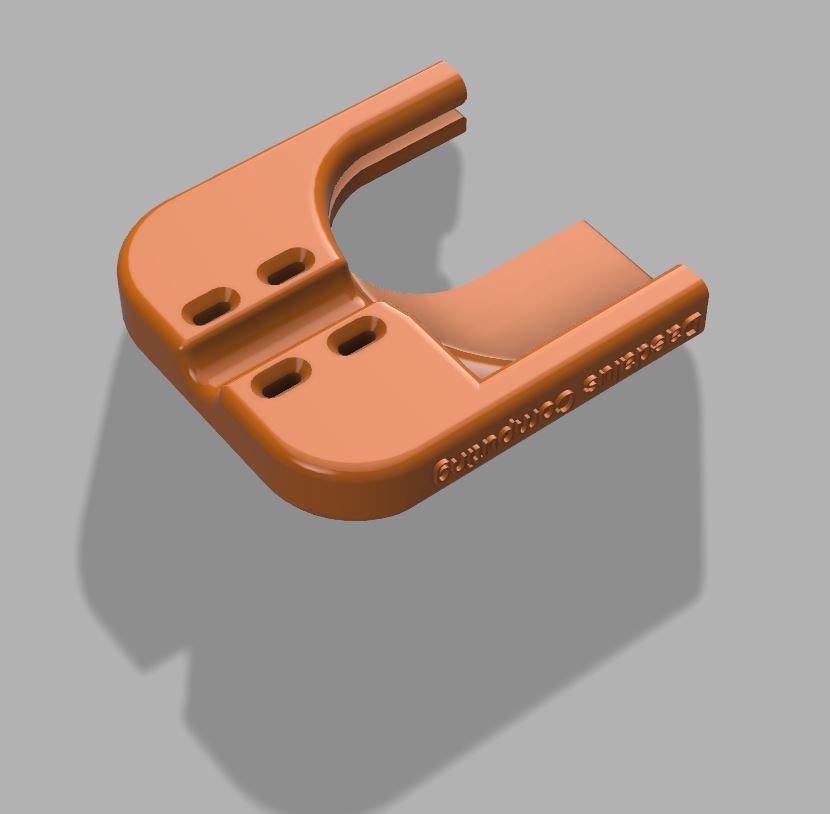

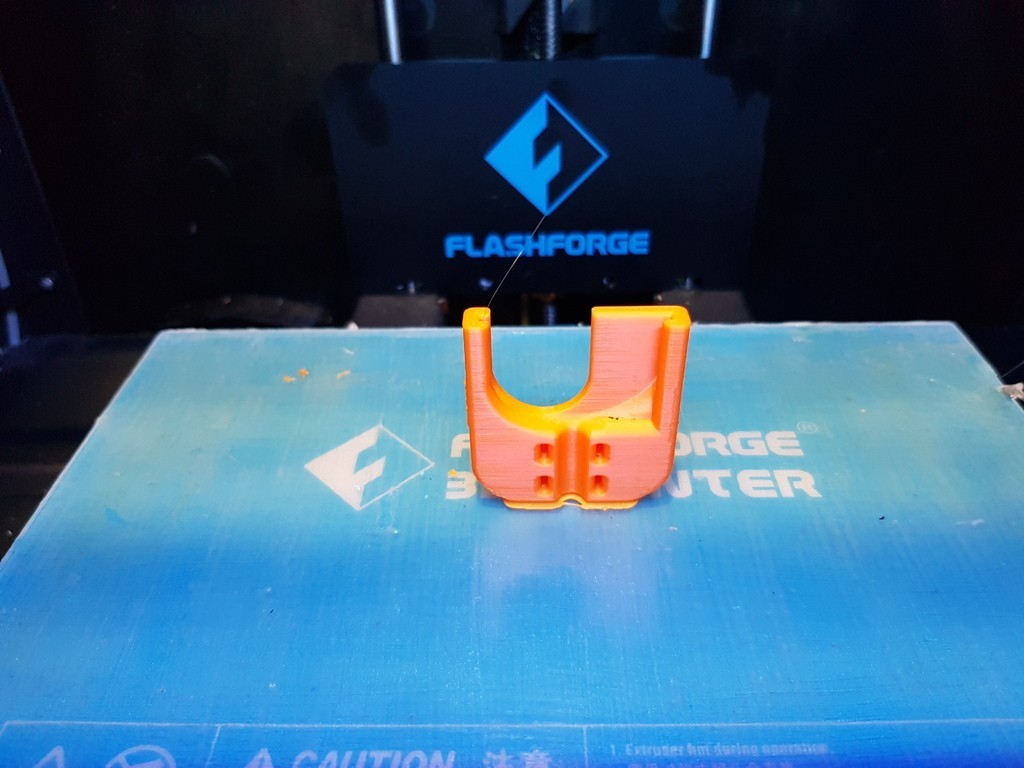

Until now: I have created this device which fits snugly over the end of the board and takes the strain from the cabling.

It goes without saying but: use at your own risk
