Creality Ender 3 / MicroSwiss Direct Drive Extruder Motor Knob

?
Creation quality: 4.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

A knob for the extruder motor's axle of the Creality Ender 3. I uploaded two models, one holed with a specific shape, an other one that remains stock. It's now your task to add something to the blank knob ! (And post a remix, by the way)
It fits Nema Motors axle with a gentle pression.

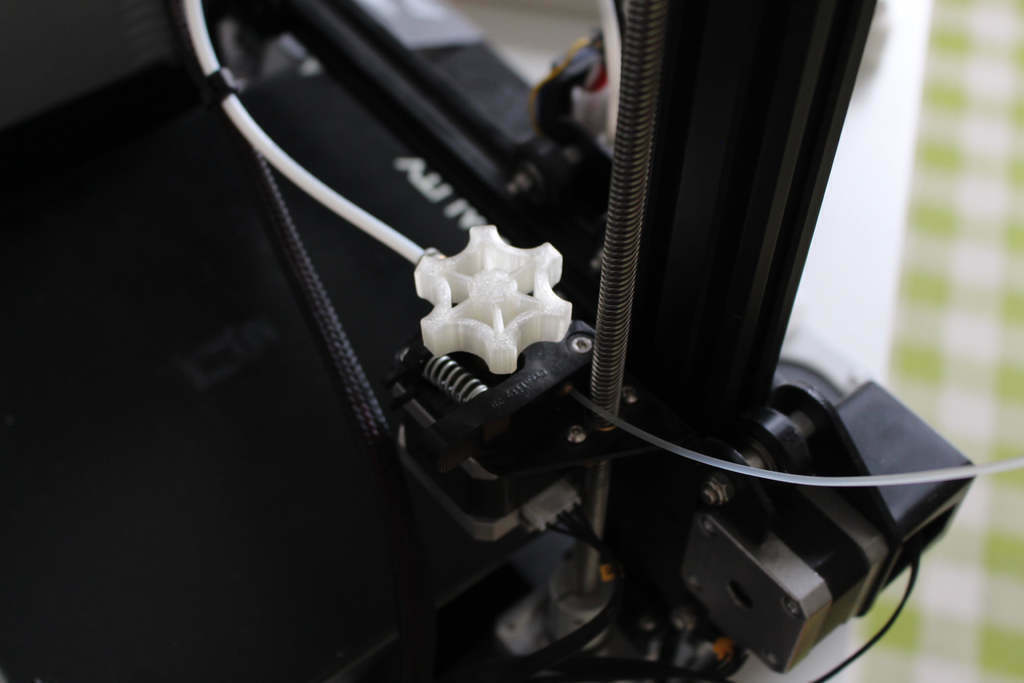

EDIT 07/05/2021 : The knob works perfectly fine on a microswiss direct drive extruder, It helps changing the filament

EDIT 22/12/2021 : This wheel allows to do cold pulls on the Microswiss

REMINDER
You might wanna check before printing that your fan duct/shroud leaves you enough space to mount the knob, as it didn't fit with my Satsana for MicroSwiss, that's too high.

Feel free to press the like button for this design, I would really appreciate this in return for my work


3D printing settings

-0.2 resolution
-50% infill
-Supports : Yes - Touching Buildplate
-Build plate adhesion : Doesn't matter

3D printer file information

  • 3D design format: STL Folder details Close

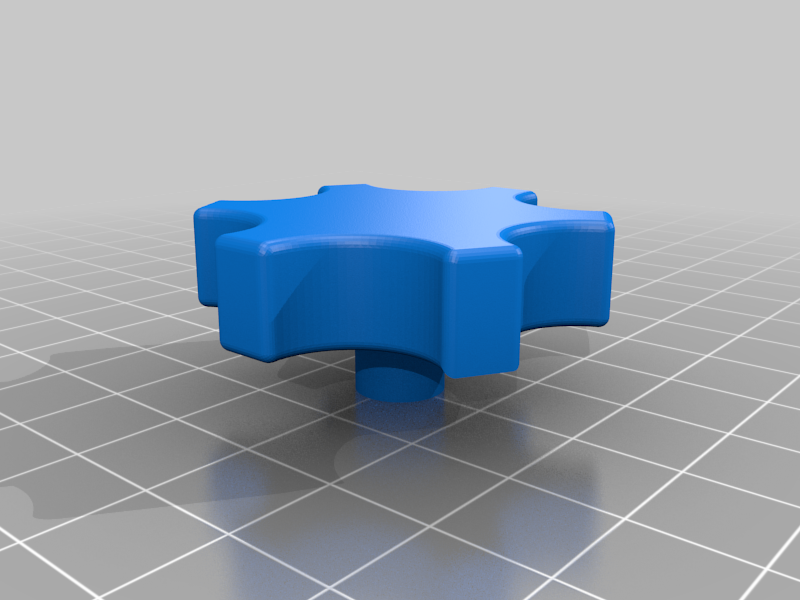

    • Blank.stl

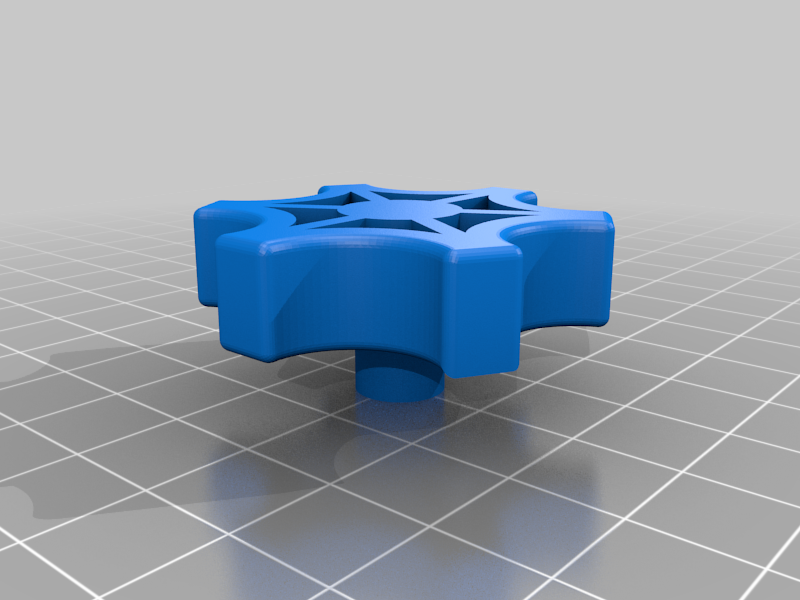

    • Holed.stl

    Learn more about the formats

  • Publication date: 2021-03-21 at 02:23
    ?
    Published to Thingiverse on: 2021-03-14 at 10:21

License

CC BY NC SA

Tags

Creator

French maker, I'm training myself on Fusion 360.
I own a Creality Ender 3 with a BigTreeTech silent motheboard and a MicroSwiss Direct Drive kit, and a stock (not for long ^^) Creality CR10S Pro.
